WCF basicHttpBinding之Transport Security Mode, clientCredentialType="None"

 2014/11/3 17:23:47  JF Zhu  程序员俱乐部  我要评论(0)
  • 摘要:原创地址:http://www.cnblogs.com/jfzhu/p/4071342.html转载请注明出处前面文章介绍了《WCFbasicHttpBinding之MessageSecurityMode》如何basicHttpBinding的MessageSecurityMode,并且clientCredentialType用的是certificate。本文演示basicHttpbinding使用TransportSecurityMode
  • 标签:client BASIC WCF HTTP

原创地址:http://www.cnblogs.com/jfzhu/p/4071342.html

转载请注明出处



前面文章介绍了《WCF basicHttpBinding之Message Security Mode》如何basicHttpBinding的Message Security Mode,并且clientCredentialType用的是certificate。

本文演示basicHttpbinding使用Transport Security Mode,并且clientCredentialType="None"。





(一)WCF 服务代码与配置文件

IDemoService.cs

using System.ServiceModel;

namespace WCFDemo
{
    [ServiceContract(Name = "IDemoService")]
    public interface IDemoService
    {
        [OperationContract]
        [FaultContract(typeof(DivideByZeroFault))]
        int Divide(int numerator, int denominator);
    }
}



DemoService.cs

using System;
using System.ServiceModel;
using System.ServiceModel.Activation;

namespace WCFDemo
{
    [AspNetCompatibilityRequirements(RequirementsMode = AspNetCompatibilityRequirementsMode.Allowed)]
    public class DemoService : IDemoService
    {
        public int Divide(int numerator, int denominator)
        {
            try
            {
                return numerator / denominator;
            }
            catch (DivideByZeroException ex)
            {
                DivideByZeroFault fault = new DivideByZeroFault();
                fault.Error = ex.Message;
                fault.Detail = "Denominator cannot be ZERO!";
                throw new FaultException<DivideByZeroFault>(fault);
            }
        }
    }
}



完整的代码也可以参见《WCF服务创建与抛出强类型SOAP Fault》。



server web.config

<?xml version="1.0"?>
<configuration>
    <system.web>
      <compilation debug="true" targetFramework="4.0" />
    </system.web>
    <system.serviceModel>
      <bindings>
        <basicHttpBinding>
          <binding name="basicBinding">
            <security mode="Transport">
              <transport clientCredentialType="None" />
            </security>
          </binding>
        </basicHttpBinding>
      </bindings>
      <services>
        <service name="WCFDemo.DemoService" behaviorConfiguration="CustomBehavior">
          <endpoint address="DemoService" binding="basicHttpBinding" contract="WCFDemo.IDemoService" bindingConfiguration="basicBinding" />
          <endpoint address="mex" binding="mexHttpBinding" contract="IMetadataExchange"></endpoint>
        </service>
      </services>
        <behaviors>
            <serviceBehaviors>
                <behavior name="CustomBehavior">
                    <serviceMetadata httpsGetEnabled="true" />
                    <serviceDebug includeExceptionDetailInFaults="false" />
                </behavior>
            </serviceBehaviors>
        </behaviors>
        <serviceHostingEnvironment multipleSiteBindingsEnabled="true" />
    </system.serviceModel>
</configuration>



(二)为WCF Service application添加一个https binding。

具体作法参见《Step by Step 配置使用HTTPS的ASP.NET Web应用》。

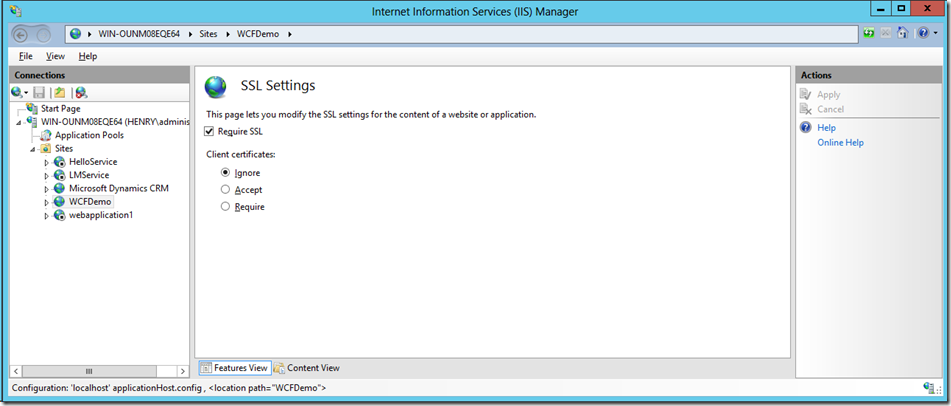

配置完https binding之后,双击SSL Settings




勾选Require SSL,点击Apply。

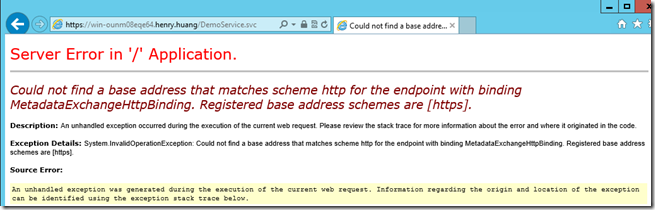

Http的Binding还是不可缺少,否则会出现下面的错误











(三)在客户端安装SSL根证书

由于https证书使用的是




所以我们使用的WCF Service URL为 https://win-ounm08eqe64.henry.huang/DemoService.svc

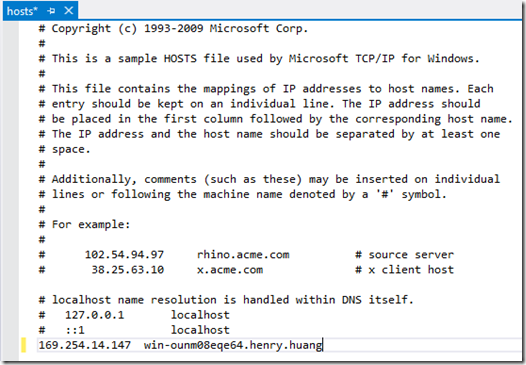

在客户端,为C:\Windows\System32\Drivers\etc\host 添加一条记录




然后安装根证书

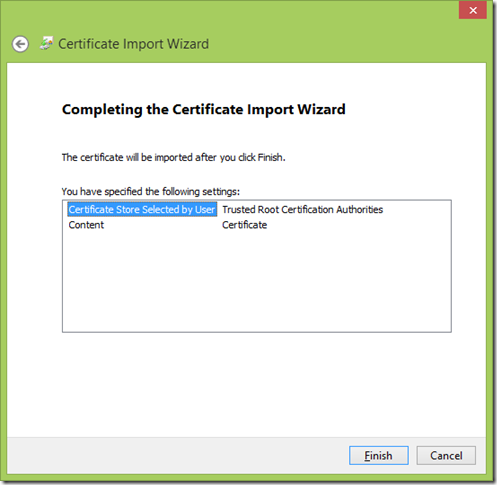

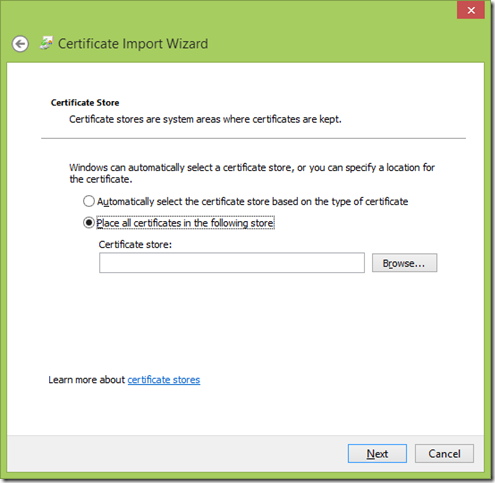

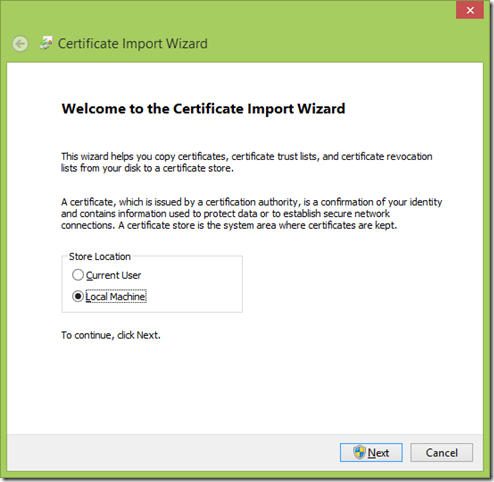

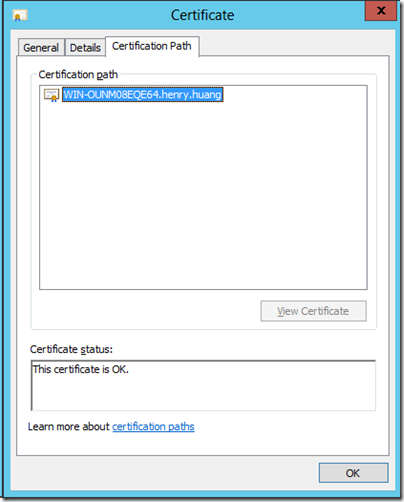

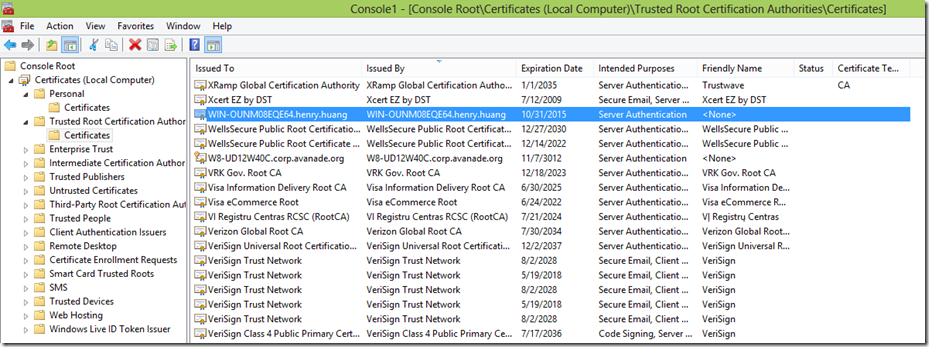

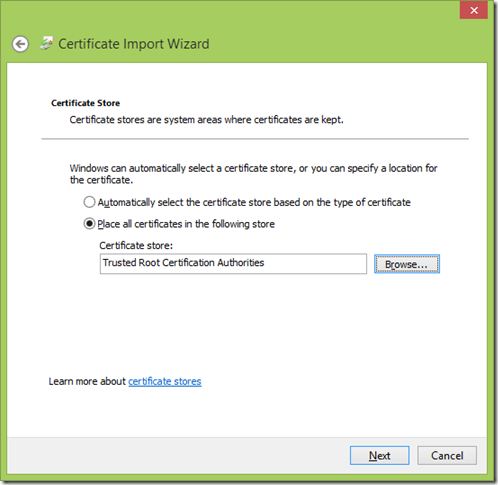

双击根证书文件,弹出证书属性的对话框,此时该根证书并不受信任,我们需要将其加入“受信任的根证书颁发机构”,点击安装证书













(四)客户端代码与配置文件

在客户端Visual Studio添加Service Reference




private void buttonCalculate_Click(object sender, EventArgs e)
{
    try
    {
        textBoxResult.Text = demoServiceClient.Divide(Convert.ToInt32(textBoxNumerator.Text), Convert.ToInt32(textBoxDenominator.Text)).ToString();
    }
    catch (FaultException<DemoServiceReference.DivideByZeroFault> fault)
    {
        MessageBox.Show(fault.Detail.Error + " - " + fault.Detail.Detail);
    }
}



client app.config

<?xml version="1.0" encoding="utf-8" ?>
<configuration>
    <system.serviceModel>
        <bindings>
            <basicHttpBinding>
                <binding name="BasicHttpBinding_IDemoService">
                    <security mode="Transport" />
                </binding>
            </basicHttpBinding>
        </bindings>
        <client>
            <endpoint address="https://win-ounm08eqe64.henry.huang/DemoService.svc/DemoService"
                binding="basicHttpBinding" bindingConfiguration="BasicHttpBinding_IDemoService"
                contract="DemoServiceReference.IDemoService" name="BasicHttpBinding_IDemoService" />
        </client>
    </system.serviceModel>
</configuration>





(五)运行代码,监听Message

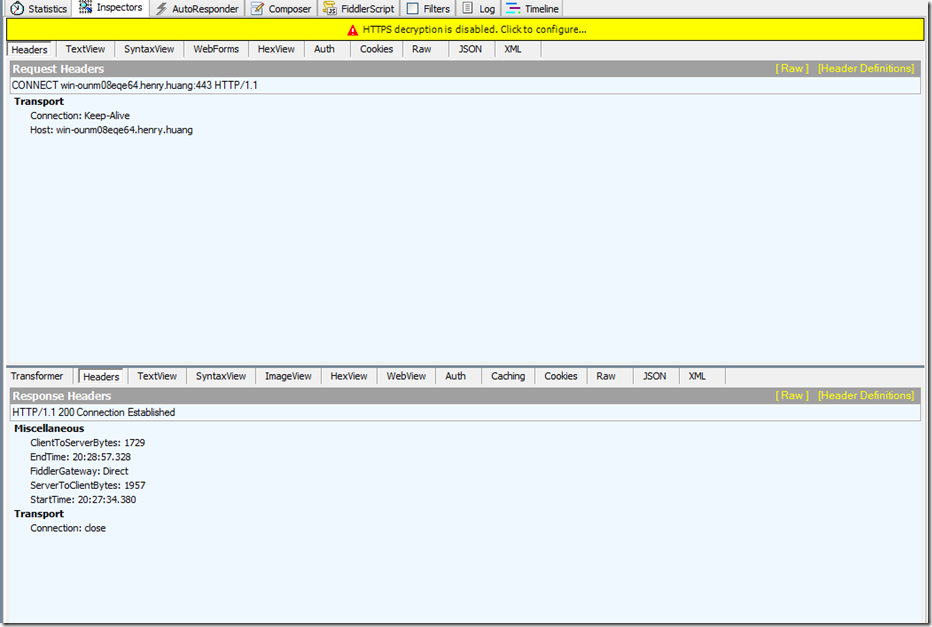

使用Fiddler,发现消息全部加密

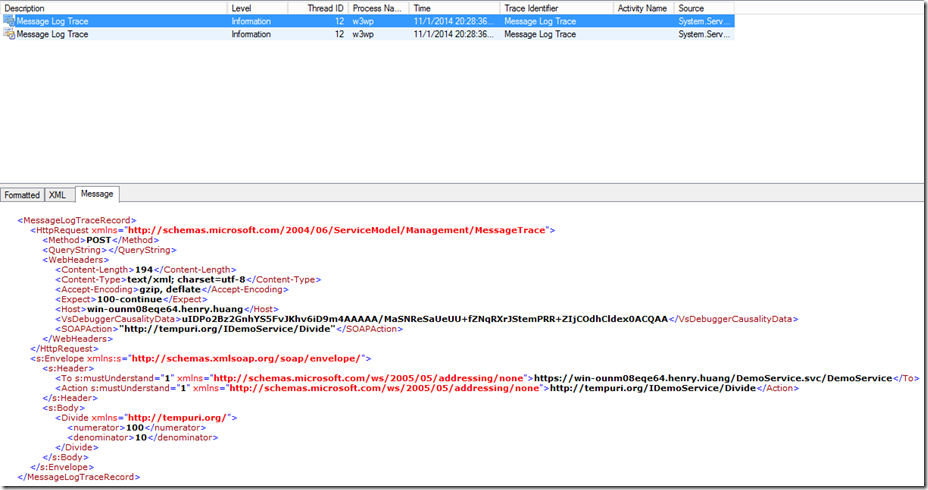

但是如果用Microsoft Service Trace Viewer查看Message Log(参见《使用WCF的Trace与Message Log功能 》),可以看到解密后的信息,因为它不是在wire上监听,而Fiddler是在wire上进行监听。

Request:

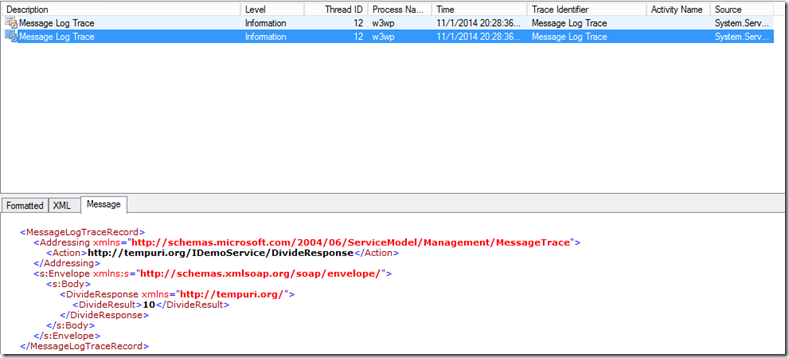

Response:




(六)总结

Transport Security Mode是传输协议级的加密,而Message Security Mode是对消息级别的加密。每种协议都有自己对应的传输协议级的加密方式,比如HTTP的加密方式就为SSL。
