Java代码
class="star" src="/Upload/Images/2014072103/40B102E0EF997EA6.png" alt="收藏代码" />
- public static Bitmap compressImage(Bitmap image) {
-
- ByteArrayOutputStream baos = new ByteArrayOutputStream();
- image.compress(Bitmap.CompressFormat.JPEG, 100, baos);
- int options = 100;
- while ( baos.toByteArray().length / 1024>100) {
- baos.reset();
- image.compress(Bitmap.CompressFormat.JPEG, options, baos);
- options -= 10;
- }
- ByteArrayInputStream isBm = new ByteArrayInputStream(baos.toByteArray());
- Bitmap bitmap = BitmapFactory.decodeStream(isBm, null, null);
- return bitmap;
- }
Java代码

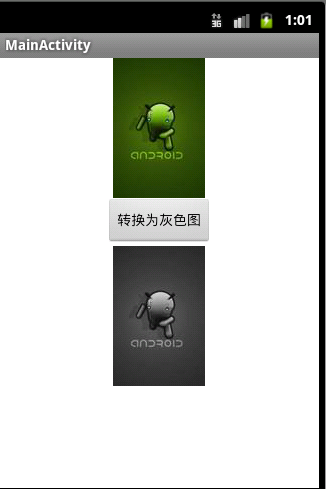

- public Bitmap convertGreyImg(Bitmap img) {
- int width = img.getWidth();
- int height = img.getHeight();
-
- int []pixels = new int[width * height];
-
- img.getPixels(pixels, 0, width, 0, 0, width, height);
- int alpha = 0xFF << 24;
- for(int i = 0; i < height; i++) {
- for(int j = 0; j < width; j++) {
- int grey = pixels[width * i + j];
-
- int red = ((grey & 0x00FF0000 ) >> 16);
- int green = ((grey & 0x0000FF00) >> 8);
- int blue = (grey & 0x000000FF);
-
- grey = (int)((float) red * 0.3 + (float)green * 0.59 + (float)blue * 0.11);
- grey = alpha | (grey << 16) | (grey << 8) | grey;
- pixels[width * i + j] = grey;
- }
- }
- Bitmap result = Bitmap.createBitmap(width, height, Config.RGB_565);
- result.setPixels(pixels, 0, width, 0, 0, width, height);
- return result;
- }
将一个图片切割成多个图片
有种场景,我们想将一个图片切割成多个图片。比如我们在开发一个拼图的游戏,就首先要对图片进行切割。
以下是封装好的两个类,可以实现图片的切割。仅供参考和学习。
一个是ImagePiece类,此类保存了一个Bitmap对象和一个标识图片的顺序索引的int变量。
Java代码
- import android.graphics.Bitmap;
- public class ImagePiece {
- public int index = 0;
- public Bitmap bitmap = null;
- }
一个是ImageSplitter类,有一个静态方法split,传入的参数是要切割的Bitmap对象,和横向和竖向的切割片数。比如传入的是3、3,则横竖向都切割成3片,最终会将整个图片切割成3X3=9片。
Java代码
- import java.util.ArrayList;
- import java.util.List;
-
- import android.graphics.Bitmap;
-
- public class ImageSplitter {
-
- public static List<ImagePiece> split(Bitmap bitmap, int xPiece, int yPiece) {
-
- List<ImagePiece> pieces = new ArrayList<ImagePiece>(xPiece * yPiece);
- int width = bitmap.getWidth();
- int height = bitmap.getHeight();
- int pieceWidth = width / 3;
- int pieceHeight = height / 3;
- for (int i = 0; i < yPiece; i++) {
- for (int j = 0; j < xPiece; j++) {
- ImagePiece piece = new ImagePiece();
- piece.index = j + i * xPiece;
- int xValue = j * pieceWidth;
- int yValue = i * pieceHeight;
- piece.bitmap = Bitmap.createBitmap(bitmap, xValue, yValue,
- pieceWidth, pieceHeight);
- pieces.add(piece);
- }
- }
-
- return pieces;
- }
-
- }
1、图标加灰色过滤;
2、android的图片资源默认是静态的,单实例;如果两个IM好友的头像一样,最简单的都是用的软件自带头像,有一个在线,一个离线,直接改变头像的灰度,则两个用户的头像都会变灰或者在线,答案是:Drawable.mutate()。
Java代码
- Drawable mDrawable = context.getResources().getDrawable(R.drawable.face_icon);
- mDrawable.mutate();
- ColorMatrix cm = new ColorMatrix();
- cm.setSaturation(0);
- ColorMatrixColorFilter cf = new ColorMatrixColorFilter(cm);
- mDrawable.setColorFilter(cf);
生成缩略图,抠自android launcher源码:
Java代码
-
- package com.android.launcher;
-
- import android.graphics.drawable.BitmapDrawable;
- import android.graphics.drawable.Drawable;
- import android.graphics.drawable.PaintDrawable;
- import android.graphics.Bitmap;
- import android.graphics.PixelFormat;
- import android.graphics.Canvas;
- import android.graphics.PaintFlagsDrawFilter;
- import android.graphics.Paint;
- import android.graphics.Rect;
- import android.content.res.Resources;
- import android.content.Context;
-
- final class Utilities {
- private static int sIconWidth = -1;
- private static int sIconHeight = -1;
-
- private static final Paint sPaint = new Paint();
- private static final Rect sBounds = new Rect();
- private static final Rect sOldBounds = new Rect();
- private static Canvas sCanvas = new Canvas();
-
- static {
- sCanvas.setDrawFilter(new PaintFlagsDrawFilter(Paint.DITHER_FLAG,
- Paint.FILTER_BITMAP_FLAG));
- }
-
-
- static Drawable createIconThumbnail(Drawable icon, Context context) {
- if (sIconWidth == -1) {
- final Resources resources = context.getResources();
- sIconWidth = sIconHeight = (int) resources.getDimension(android.R.dimen.app_icon_size);
- }
-
- int width = sIconWidth;
- int height = sIconHeight;
-
- float scale = 1.0f;
- if (icon instanceof PaintDrawable) {
- PaintDrawable painter = (PaintDrawable) icon;
- painter.setIntrinsicWidth(width);
- painter.setIntrinsicHeight(height);
- } else if (icon instanceof BitmapDrawable) {
-
- BitmapDrawable bitmapDrawable = (BitmapDrawable) icon;
- Bitmap bitmap = bitmapDrawable.getBitmap();
- if (bitmap.getDensity() == Bitmap.DENSITY_NONE) {
- bitmapDrawable.setTargetDensity(context.getResources().getDisplayMetrics());
- }
- }
- int iconWidth = icon.getIntrinsicWidth();
- int iconHeight = icon.getIntrinsicHeight();
-
- if (width > 0 && height > 0) {
- if (width < iconWidth || height < iconHeight || scale != 1.0f) {
- final float ratio = (float) iconWidth / iconHeight;
-
- if (iconWidth > iconHeight) {
- height = (int) (width / ratio);
- } else if (iconHeight > iconWidth) {
- width = (int) (height * ratio);
- }
-
- final Bitmap.Config c = icon.getOpacity() != PixelFormat.OPAQUE ?
- Bitmap.Config.ARGB_8888 : Bitmap.Config.RGB_565;
- final Bitmap thumb = Bitmap.createBitmap(sIconWidth, sIconHeight, c);
- final Canvas canvas = sCanvas;
- canvas.setBitmap(thumb);
-
-
-
-
-
- sOldBounds.set(icon.getBounds());
- final int x = (sIconWidth - width) / 2;
- final int y = (sIconHeight - height) / 2;
- icon.setBounds(x, y, x + width, y + height);
- icon.draw(canvas);
- icon.setBounds(sOldBounds);
- icon = new FastBitmapDrawable(thumb);
- } else if (iconWidth < width && iconHeight < height) {
- final Bitmap.Config c = Bitmap.Config.ARGB_8888;
- final Bitmap thumb = Bitmap.createBitmap(sIconWidth, sIconHeight, c);
- final Canvas canvas = sCanvas;
- canvas.setBitmap(thumb);
- sOldBounds.set(icon.getBounds());
- final int x = (width - iconWidth) / 2;
- final int y = (height - iconHeight) / 2;
- icon.setBounds(x, y, x + iconWidth, y + iconHeight);
- icon.draw(canvas);
- icon.setBounds(sOldBounds);
- icon = new FastBitmapDrawable(thumb);
- }
- }
-
- return icon;
- }
-
-
- static Bitmap createBitmapThumbnail(Bitmap bitmap, Context context) {
- if (sIconWidth == -1) {
- final Resources resources = context.getResources();
- sIconWidth = sIconHeight = (int) resources.getDimension(
- android.R.dimen.app_icon_size);
- }
-
- int width = sIconWidth;
- int height = sIconHeight;
-
- final int bitmapWidth = bitmap.getWidth();
- final int bitmapHeight = bitmap.getHeight();
-
- if (width > 0 && height > 0) {
- if (width < bitmapWidth || height < bitmapHeight) {
- final float ratio = (float) bitmapWidth / bitmapHeight;
-
- if (bitmapWidth > bitmapHeight) {
- height = (int) (width / ratio);
- } else if (bitmapHeight > bitmapWidth) {
- width = (int) (height * ratio);
- }
-
- final Bitmap.Config c = (width == sIconWidth && height == sIconHeight) ?
- bitmap.getConfig() : Bitmap.Config.ARGB_8888;
- final Bitmap thumb = Bitmap.createBitmap(sIconWidth, sIconHeight, c);
- final Canvas canvas = sCanvas;
- final Paint paint = sPaint;
- canvas.setBitmap(thumb);
- paint.setDither(false);
- paint.setFilterBitmap(true);
- sBounds.set((sIconWidth - width) / 2, (sIconHeight - height) / 2, width, height);
- sOldBounds.set(0, 0, bitmapWidth, bitmapHeight);
- canvas.drawBitmap(bitmap, sOldBounds, sBounds, paint);
- return thumb;
- } else if (bitmapWidth < width || bitmapHeight < height) {
- final Bitmap.Config c = Bitmap.Config.ARGB_8888;
- final Bitmap thumb = Bitmap.createBitmap(sIconWidth, sIconHeight, c);
- final Canvas canvas = sCanvas;
- final Paint paint = sPaint;
- canvas.setBitmap(thumb);
- paint.setDither(false);
- paint.setFilterBitmap(true);
- canvas.drawBitmap(bitmap, (sIconWidth - bitmapWidth) / 2,
- (sIconHeight - bitmapHeight) / 2, paint);
- return thumb;
- }
- }
-
- return bitmap;
- }
- }
Java代码
- public void drawRegion(Image image_src,
-
- int x_src, int y_src,
-
- int width, int height,
-
- int transform,
-
- int x_dest, int y_dest,
-
- int anchor){
-
- if((anchor&VCENTER) != 0){
-
- y_dest -= height/2;
-
- }else if((anchor&BOTTOM) != 0){
-
- y_dest -= height;
-
- }
-
- if((anchor&RIGHT) != 0){
-
- x_dest -= width;
-
- }else if((anchor&HCENTER) != 0){
-
- x_dest -= width/2;
-
- }
-
- Bitmap newMap = Bitmap.createBitmap(image_src.getBitmap(), x_src, y_src, width, height);
-
- Matrix mMatrix = new Matrix();
-
- Matrix temp = new Matrix();
-
- Matrix temp2 = new Matrix();
-
- float[] mirrorY = {
-
- -1, 0, 0,
- 0, 1, 0,
- 0, 0, 1
-
- };
-
- temp.setValues(mirrorY);
-
- switch(transform){
-
- case Sprite.TRANS_NONE:
-
- break;
-
- case Sprite.TRANS_ROT90:
-
- mMatrix.setRotate(90,width/2, height/2);
-
- break;
-
- case Sprite.TRANS_ROT180:
-
- mMatrix.setRotate(180,width/2, height/2);
-
- break;
-
- case Sprite.TRANS_ROT270:
-
- mMatrix.setRotate(270,width/2, height/2);
-
- break;
-
- case Sprite.TRANS_MIRROR:
-
- mMatrix.postConcat(temp);
-
- break;
-
- case Sprite.TRANS_MIRROR_ROT90:
-
- mMatrix.postConcat(temp);
-
- mMatrix.setRotate(90,width/2, height/2);
-
- break;
-
- case Sprite.TRANS_MIRROR_ROT180:
-
- mMatrix.postConcat(temp);
-
- mMatrix.setRotate(180,width/2, height/2);
-
- break;
-
- case Sprite.TRANS_MIRROR_ROT270:
-
- mMatrix.postConcat(temp);
-
- mMatrix.setRotate(270,width/2, height/2);
-
- break;
-
- }
-
- mMatrix.setTranslate(x_dest, y_dest);
-
- canvas.drawBitmap(newMap, mMatrix, mPaint);
-
- }
Java代码
- public Bitmap returnBitMap(String url) {
- URL myFileUrl = null;
- Bitmap bitmap = null;
- try {
- myFileUrl = new URL(url);
- } catch (MalformedURLException e) {
- e.printStackTrace();
- }
- try {
- HttpURLConnection conn = (HttpURLConnection) myFileUrl
- .openConnection();
- conn.setDoInput(true);
- conn.connect();
- InputStream is = conn.getInputStream();
- bitmap = BitmapFactory.decodeStream(is);
- is.close();
- } catch (IOException e) {
- e.printStackTrace();
- }
- Log.v(tag, bitmap.toString());
-
- return bitmap;
- }
- public static Drawable resizeImage(Bitmap bitmap, int w, int h) {
-
-
- Bitmap BitmapOrg = bitmap;
-
- int width = BitmapOrg.getWidth();
- int height = BitmapOrg.getHeight();
- int newWidth = w;
- int newHeight = h;
-
- Log.v(tag, String.valueOf(width));
- Log.v(tag, String.valueOf(height));
-
- Log.v(tag, String.valueOf(newWidth));
- Log.v(tag, String.valueOf(newHeight));
-
-
- float scaleWidth = ((float) newWidth) / width;
- float scaleHeight = ((float) newHeight) / height;
-
-
- Matrix matrix = new Matrix();
-
- matrix.postScale(scaleWidth, scaleHeight);
-
-
-
-
- Bitmap resizedBitmap = Bitmap.createBitmap(BitmapOrg, 0, 0, width,
- height, matrix, true);
-
-
-
- return new BitmapDrawable(resizedBitmap);
-
- }
Java代码
- 1.图片加载方法,方便用户加载图片
- public final Bitmap CreatImage(Context context, int bitAdress) {
- Bitmap bitmaptemp = null;
- bitmaptemp = BitmapFactory.decodeResource(context.getResources(),
- bitAdress);
- return bitmaptemp;
- }
- 2.图片平均分割方法,将大图平均分割为N行N列,方便用户使用
- public final void cuteImage(Canvas g, Paint paint, Bitmap imgBit, int x,
- int y, int w, int h, int line, int row) {
- g.clipRect(x, y, x + w, h + y);
- g.drawBitmap(imgBit, x – line * w, y – row * h, paint);
- g.restore();
- }
- 3.图片缩放,对当前图片进行缩放处理
- public Bitmap zoomImage(Bitmap bgimage, int newWidth, int newHeight) {
- int width = bgimage.getWidth();
- int height = bgimage.getHeight();
- Matrix matrix = new Matrix();
- float scaleWidth = ((float) newWidth) / width;
- float scaleHeight = ((float) newHeight) / height;
- matrix.postScale(scaleWidth, scaleHeight);
- Bitmap bitmap = Bitmap.createBitmap(bgimage, 0, 0, width, height,
- matrix, true);
- return bitmap;
- }
- 4.绘制带有边框的文字,一般在游戏中起文字的美化作用
- public void drawText(String strMsg, Canvas g, Paint paint, int setx,
- int sety, int fg, int bg) {
- paint.setColor(bg);
- g.drawText(strMsg, setx + 1, sety, paint);
- g.drawText(strMsg, setx, sety – 1, paint);
- g.drawText(strMsg, setx, sety + 1, paint);
- g.drawText(strMsg, setx – 1, sety, paint);
- paint.setColor(fg);
- g.drawText(strMsg, setx, sety, paint);
- g.restore();
- }
- 5.Android 图片透明度处理代码
- public static Bitmap setAlpha(Bitmap sourceImg, int number) {
- int[] argb = new int[sourceImg.getWidth() * sourceImg.getHeight()];
- sourceImg.getPixels(argb, 0, sourceImg.getWidth(), 0, 0,sourceImg.getWidth(), sourceImg.getHeight());
- number = number * 255 / 100;
- for (int i = 0; i < argb.length; i++) {
- argb = (number << 24) | (argb & 0×00FFFFFF);
- }
- sourceImg = Bitmap.createBitmap(argb, sourceImg.getWidth(), sourceImg.getHeight(), Config.ARGB_8888);
- return sourceImg;
- }
- 6.图片翻转
- Resources res = this.getContext().getResources();
- img = BitmapFactory.decodeResource(res, R.drawable.slogo);
- Matrix matrix = new Matrix();
- matrix.postRotate(90);
- int width = img.getWidth();
- int height = img.getHeight();
- r_img = Bitmap.createBitmap(img, 0, 0, width, height, matrix, true);
Java代码
- import android.graphics.Bitmap;
- import android.graphics.Canvas;
- import android.graphics.LinearGradient;
- import android.graphics.Matrix;
- import android.graphics.Paint;
- import android.graphics.PixelFormat;
- import android.graphics.PorterDuffXfermode;
- import android.graphics.Rect;
- import android.graphics.RectF;
- import android.graphics.Bitmap.Config;
- import android.graphics.PorterDuff.Mode;
- import android.graphics.Shader.TileMode;
- import android.graphics.drawable.Drawable;
- public class ImageUtil {
-
- public static Bitmap zoomBitmap(Bitmap bitmap, int w, int h) {
- int width = bitmap.getWidth();
- int height = bitmap.getHeight();
- Matrix matrix = new Matrix();
- float scaleWidht = ((float) w / width);
- float scaleHeight = ((float) h / height);
- matrix.postScale(scaleWidht, scaleHeight);
- Bitmap newbmp = Bitmap.createBitmap(bitmap, 0, 0, width, height, matrix, true);
- return newbmp;
- }
-
- public static Bitmap drawableToBitmap(Drawable drawable) {
- int width = drawable.getIntrinsicWidth();
- int height = drawable.getIntrinsicHeight();
- Bitmap bitmap = Bitmap.createBitmap(width, height, drawable.getOpacity() != PixelFormat.OPAQUE ? Bitmap.Config.ARGB_8888 : Bitmap.Config.RGB_565);
- Canvas canvas = new Canvas(bitmap);
- drawable.setBounds(0, 0, width, height);
- drawable.draw(canvas);
- return bitmap;
-
- }
-
- public static Bitmap getRoundedCornerBitmap(Bitmap bitmap, float roundPx) {
-
- Bitmap output = Bitmap.createBitmap(bitmap.getWidth(), bitmap.getHeight(), Config.ARGB_8888);
- Canvas canvas = new Canvas(output);
-
- final int color = 0xff424242;
- final Paint paint = new Paint();
- final Rect rect = new Rect(0, 0, bitmap.getWidth(), bitmap.getHeight());
- final RectF rectF = new RectF(rect);
-
- paint.setAntiAlias(true);
- canvas.drawARGB(0, 0, 0, 0);
- paint.setColor(color);
- canvas.drawRoundRect(rectF, roundPx, roundPx, paint);
-
- paint.setXfermode(new PorterDuffXfermode(Mode.SRC_IN));
- canvas.drawBitmap(bitmap, rect, rect, paint);
-
- return output;
- }
-
- public static Bitmap createReflectionImageWithOrigin(Bitmap bitmap) {
- final int reflectionGap = 4;
- int width = bitmap.getWidth();
- int height = bitmap.getHeight();
-
- Matrix matrix = new Matrix();
- matrix.preScale(1, -1);
-
- Bitmap reflectionImage = Bitmap.createBitmap(bitmap, 0, height / 2, width, height / 2, matrix, false);
-
- Bitmap bitmapWithReflection = Bitmap.createBitmap(width, (height + height / 2), Config.ARGB_8888);
-
- Canvas canvas = new Canvas(bitmapWithReflection);
- canvas.drawBitmap(bitmap, 0, 0, null);
- Paint deafalutPaint = new Paint();
- canvas.drawRect(0, height, width, height + reflectionGap, deafalutPaint);
-
- canvas.drawBitmap(reflectionImage, 0, height + reflectionGap, null);
-
- Paint paint = new Paint();
- LinearGradient shader = new LinearGradient(0, bitmap.getHeight(), 0, bitmapWithReflection.getHeight() + reflectionGap, 0x70ffffff, 0x00ffffff, TileMode.CLAMP);
- paint.setShader(shader);
-
- paint.setXfermode(new PorterDuffXfermode(Mode.DST_IN));
-
- canvas.drawRect(0, height, width, bitmapWithReflection.getHeight() + reflectionGap, paint);
- return bitmapWithReflection;
- }
- }
Java代码
- private byte[] Bitmap2Bytes(Bitmap bm){
- ByteArrayOutputStream baos = new ByteArrayOutputStream();
- bm.compress(Bitmap.CompressFormat.PNG, 100, baos);
- return baos.toByteArray();
- }
- private Bitmap Bytes2Bimap(byte[] b){
- if(b.length!=0){
- return BitmapFactory.decodeByteArray(b, 0, b.length);
- }
- else {
- return null;
- }
- }
-
-
- private Bitmap createBitmap( Bitmap src, Bitmap watermark )
- {
- String tag = "createBitmap";
- Log.d( tag, "create a new bitmap" );
- if( src == null )
- {
- return null;
- }
-
- int w = src.getWidth();
- int h = src.getHeight();
- int ww = watermark.getWidth();
- int wh = watermark.getHeight();
-
- Bitmap newb = Bitmap.createBitmap( w, h, Config.ARGB_8888 );
- Canvas cv = new Canvas( newb );
-
- cv.drawBitmap( src, 0, 0, null );
-
- cv.drawBitmap( watermark, w - ww + 5, h - wh + 5, null );
-
- cv.save( Canvas.ALL_SAVE_FLAG );
-
- cv.restore();
- return newb;
- }
-
- private static Bitmap codec(Bitmap src, Bitmap.CompressFormat format,
- int quality) {
- ByteArrayOutputStream os = new ByteArrayOutputStream();
- src.compress(format, quality, os);
-
- byte[] array = os.toByteArray();
- return BitmapFactory.decodeByteArray(array, 0, array.length);
- }
-
- static byte[] streamToBytes(InputStream is) {
- ByteArrayOutputStream os = new ByteArrayOutputStream(1024);
- byte[] buffer = new byte[1024];
- int len;
- try {
- while ((len = is.read(buffer)) >= 0) {
- os.write(buffer, 0, len);
- }
- } catch (java.io.IOException e) {
-
- }
- return os.toByteArray();
- }
-
-
- static Bitmap getViewBitmap(View v) {
-
- v.clearFocus();
- v.setPressed(false);
-
-
- boolean willNotCache = v.willNotCacheDrawing();
- v.setWillNotCacheDrawing(false);
- int color = v.getDrawingCacheBackgroundColor();
- v.setDrawingCacheBackgroundColor(0);
- if (color != 0) {
- v.destroyDrawingCache();
- }
- v.buildDrawingCache();
- Bitmap cacheBitmap = v.getDrawingCache();
- if (cacheBitmap == null) {
- Log.e(TAG, "failed getViewBitmap(" + v + ")", new RuntimeException());
- return null;
- }
- Bitmap bitmap = Bitmap.createBitmap(cacheBitmap);
-
- v.destroyDrawingCache();
- v.setWillNotCacheDrawing(willNotCache);
- v.setDrawingCacheBackgroundColor(color);
- return bitmap;
- }
Java代码
- 读取raw资源文件中的mp3文件,然后通过音乐播放器播放:
-
-
- private void writeMP3ToSDcard(String fileName, Context context) {
- byte[] buffer = new byte[1024 * 8];
- int read;
- BufferedInputStream bin = new BufferedInputStream(context.getResources().openRawResource(R.raw.ring));
- try {
- BufferedOutputStream bout = new BufferedOutputStream(new FileOutputStream(fileName));
- while ((read = bin.read(buffer)) > -1) {
- bout.write(buffer, 0, read);
- }
- bout.flush();
- bout.close();
- bin.close();
- } catch (FileNotFoundException e) {
- e.printStackTrace();
- } catch (IOException e) {
- e.printStackTrace();
- }
- }
-
-
- Intent intent = new Intent();
- intent.addFlags(Intent.FLAG_ACTIVITY_NEW_TASK);
- intent.setAction(android.content.Intent.ACTION_VIEW);
- intent.setDataAndType(Uri.fromFile(newFile("XXXXmp3的文件全路径")),"audio/*");
- startActivity(intent);
绘制图像倒影
Java代码
- private void
- _Init()
- {
- m_paint = new Paint(Paint.ANTI_ALIAS_FLAG);
- LinearGradient lg = new LinearGradient(
- 0, 0, 0, m_nShadowH,
- 0xB0FFFFFF, 0x00000000,
- Shader.TileMode.CLAMP);
- m_paint.setShader(lg);
- m_paint.setXfermode(new PorterDuffXfermode(PorterDuff.Mode.MULTIPLY));
- }
-
- @Override protected void
- onDraw(Canvas canvas)
- {
- super.onDraw(canvas);
-
- int nX = 0;
- int nY = 20;
-
- _DrawNormalImg(canvas, nX, nY);
- _DrawMirror(canvas, nX, nY);
- }
-
- private void
- _DrawNormalImg(Canvas canvas, int nX, int nY)
- {
- canvas.save(Canvas.MATRIX_SAVE_FLAG);
- canvas.translate(nX, nY);
- m_dw.draw(canvas);
- canvas.restore();
- }
-
- private void
- _DrawMirror(Canvas canvas, int nX, int nY)
- {
- int nW = m_dw.getIntrinsicWidth();
- int nH = m_dw.getIntrinsicHeight();
-
-
-
- canvas.save(Canvas.MATRIX_SAVE_FLAG);
- canvas.scale(1.0f, -1.0f);
- canvas.translate(nX, -(nY + nH * 2));
- canvas.clipRect(0, nH, nW, nH - m_nShadowH);
- m_dw.draw(canvas);
- canvas.restore();
-
-
-
- canvas.save();
- canvas.translate(nX, nY + nH);
- canvas.drawRect(0, 0, nW, m_nShadowH, m_paint);
- canvas.restore();
- }
Android 繪圖座標體系預設的原點在左上角,X 軸往右是越來越大的正值,而 Y 軸往下,則是越來越大的正值。要畫出垂直翻轉的圖片,其實也就是要垂直翻轉整個繪圖座標體系。在 Android 中,要如何做?答案就是 canvas.scale(1.0f, -1.0f)。很簡單吧,沒想到給 scale() 函式一個負值,就可以翻轉相對應的軸。
在 Photoshop 中,做鏡像特效的第二步是要對這翻轉的圖片,加個由灰到黑的漸層 mask。
在 Android 中,要畫漸層色,那就一定得用 LinearGradient 這個類別。至於要對背景圖加上個 mask,就請參考一下 Paint 的 setXfermode() 函式。_Init() 這個函式,就是負責生成一個由灰到黑漸層 mask 的 m_paint 物件。
http://blog.csdn.net/Android_Tutor/archive/2010/11/02/5981753.aspx
http://www.cnblogs.com/TerryBlog/archive/2012/01/08/2316482.html
android常用图片特效处理
http://www.eoeandroid.com/thread-170526-1-1.html
相机(Camera)实时滤镜效果
http://www.eoeandroid.com/thread-171528-1-1.html
Android, WindowsPhone7, IOS ,vc2010平台40多套图片滤镜开源
http://www.cnblogs.com/daizhj/archive/2012/05/15/2501406.html
Android实现获取本机中所有图片
http://www.cnblogs.com/hanyonglu/archive/2012/05/10/2494908.html
