使用sqlserver搭建高可用双机热备的Quartz集群部署【附源码】

 2017/5/29 0:31:13  一线码农  程序员俱乐部  我要评论(0)
  • 摘要:一般拿Timer和Quartz相比较的,简直就是对Quartz的侮辱,两者的功能根本就不在一个层级上,如本篇介绍的Quartz强大的集群机制,可以采用基于sqlserver,mysql的集群方案,当然还可以在第三方插件的基础上实现quartz序列化到热炒的mongodb,redis,震撼力可想而知,接下来本篇就和大家聊一聊怎么搭建基于sqlserver的quartz集群,实现这么一种双机热备的强大功能。一:下载sqlserver版的建表脚本首先大家可以通过github上搜索quartz的源代码
  • 标签:Server SQLSERVER 使用 源码 Quartz SQL

  一般拿Timer和Quartz相比较的,简直就是对Quartz的侮辱,两者的功能根本就不在一个层级上,如本篇介绍的Quartz强大的集群机制,可以采用基于

sqlserver,mysql的集群方案,当然还可以在第三方插件的基础上实现quartz序列化到热炒的mongodb,redis,震撼力可想而知,接下来本篇就和大家聊

一聊怎么搭建基于sqlserver的quartz集群,实现这么一种双机热备的强大功能。



一:下载sqlserver版的建表脚本

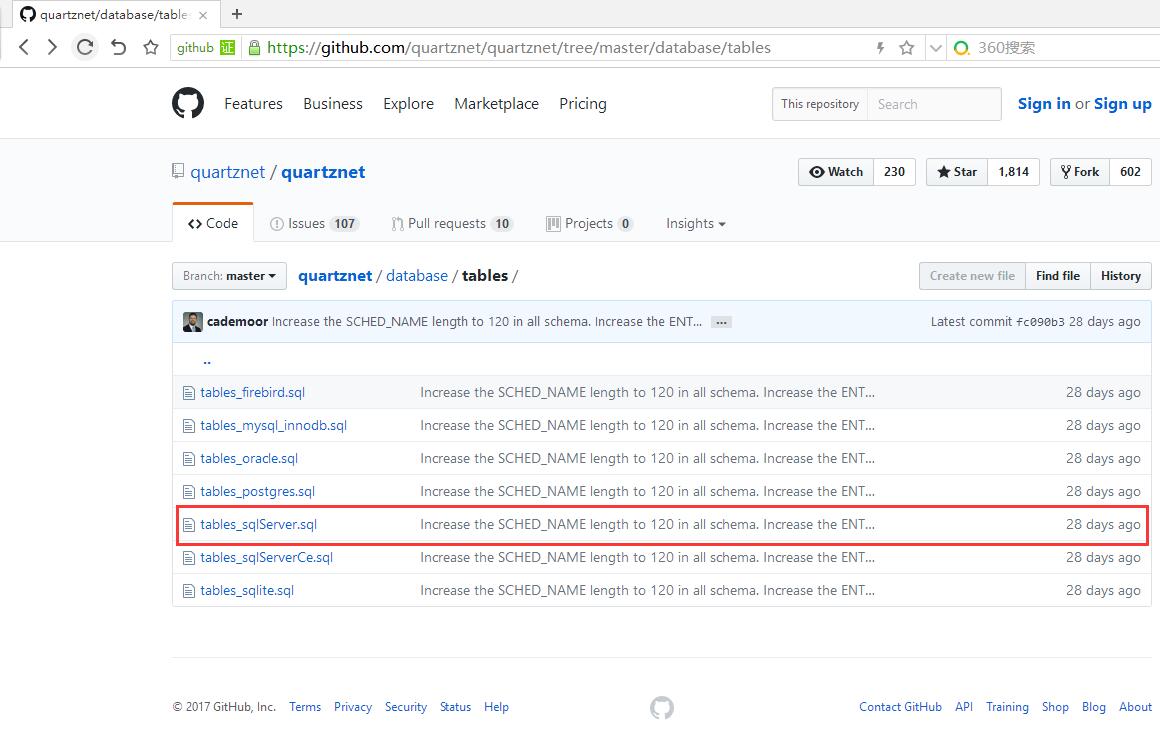

    首先大家可以通过github上搜索quartz的源代码,在源码项目的/database/tables目录下,可以找到firebird,oracle,mysql,sqlserver等建库脚本,

本篇只需拿取sqlserver版本即可。 https://github.com/quartznet/quartznet/tree/master/database/tables  如下图所示







     从上面的截图中可以看到,我接下来要做的事情就是增加一个你需要创建的database名字,这里取为:【quartz】,完整的脚本如下:

class="code_img_closed" src="/Upload/Images/2017052900/0015B68B3C38AA5B.gif" alt="" />logs_code_hide('fe28657d-fd5c-4994-98f7-d2927a94a2b6',event)" src="/Upload/Images/2017052900/2B1B950FA3DF188F.gif" alt="" />
  1 -- this script is for SQL Server and Azure SQL
  2
  3 CREATE DATABASE [quartz]
  4 GO
  5
  6 USE [quartz]
  7 GO
  8
  9 IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[FK_QRTZ_TRIGGERS_QRTZ_JOB_DETAILS]') AND OBJECTPROPERTY(id, N'ISFOREIGNKEY') = 1)
 10 ALTER TABLE [dbo].[QRTZ_TRIGGERS] DROP CONSTRAINT FK_QRTZ_TRIGGERS_QRTZ_JOB_DETAILS
 11 GO
 12
 13 IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[FK_QRTZ_CRON_TRIGGERS_QRTZ_TRIGGERS]') AND OBJECTPROPERTY(id, N'ISFOREIGNKEY') = 1)
 14 ALTER TABLE [dbo].[QRTZ_CRON_TRIGGERS] DROP CONSTRAINT FK_QRTZ_CRON_TRIGGERS_QRTZ_TRIGGERS
 15 GO
 16
 17 IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[FK_QRTZ_SIMPLE_TRIGGERS_QRTZ_TRIGGERS]') AND OBJECTPROPERTY(id, N'ISFOREIGNKEY') = 1)
 18 ALTER TABLE [dbo].[QRTZ_SIMPLE_TRIGGERS] DROP CONSTRAINT FK_QRTZ_SIMPLE_TRIGGERS_QRTZ_TRIGGERS
 19 GO
 20
 21 IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[FK_QRTZ_SIMPROP_TRIGGERS_QRTZ_TRIGGERS]') AND OBJECTPROPERTY(id, N'ISFOREIGNKEY') = 1)
 22 ALTER TABLE [dbo].[QRTZ_SIMPROP_TRIGGERS] DROP CONSTRAINT FK_QRTZ_SIMPROP_TRIGGERS_QRTZ_TRIGGERS
 23 GO
 24
 25 IF  EXISTS (SELECT * FROM sys.foreign_keys WHERE object_id = OBJECT_ID(N'[dbo].[FK_QRTZ_JOB_LISTENERS_QRTZ_JOB_DETAILS]') AND parent_object_id = OBJECT_ID(N'[dbo].[QRTZ_JOB_LISTENERS]'))
 26 ALTER TABLE [dbo].[QRTZ_JOB_LISTENERS] DROP CONSTRAINT [FK_QRTZ_JOB_LISTENERS_QRTZ_JOB_DETAILS]
 27
 28 IF  EXISTS (SELECT * FROM sys.foreign_keys WHERE object_id = OBJECT_ID(N'[dbo].[FK_QRTZ_TRIGGER_LISTENERS_QRTZ_TRIGGERS]') AND parent_object_id = OBJECT_ID(N'[dbo].[QRTZ_TRIGGER_LISTENERS]'))
 29 ALTER TABLE [dbo].[QRTZ_TRIGGER_LISTENERS] DROP CONSTRAINT [FK_QRTZ_TRIGGER_LISTENERS_QRTZ_TRIGGERS]
 30
 31
 32 IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[QRTZ_CALENDARS]') AND OBJECTPROPERTY(id, N'ISUSERTABLE') = 1)
 33 DROP TABLE [dbo].[QRTZ_CALENDARS]
 34 GO
 35
 36 IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[QRTZ_CRON_TRIGGERS]') AND OBJECTPROPERTY(id, N'ISUSERTABLE') = 1)
 37 DROP TABLE [dbo].[QRTZ_CRON_TRIGGERS]
 38 GO
 39
 40 IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[QRTZ_BLOB_TRIGGERS]') AND OBJECTPROPERTY(id, N'ISUSERTABLE') = 1)
 41 DROP TABLE [dbo].[QRTZ_BLOB_TRIGGERS]
 42 GO
 43
 44 IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[QRTZ_FIRED_TRIGGERS]') AND OBJECTPROPERTY(id, N'ISUSERTABLE') = 1)
 45 DROP TABLE [dbo].[QRTZ_FIRED_TRIGGERS]
 46 GO
 47
 48 IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[QRTZ_PAUSED_TRIGGER_GRPS]') AND OBJECTPROPERTY(id, N'ISUSERTABLE') = 1)
 49 DROP TABLE [dbo].[QRTZ_PAUSED_TRIGGER_GRPS]
 50 GO
 51
 52 IF  EXISTS (SELECT * FROM sys.objects WHERE object_id = OBJECT_ID(N'[dbo].[QRTZ_JOB_LISTENERS]') AND type in (N'U'))
 53 DROP TABLE [dbo].[QRTZ_JOB_LISTENERS]
 54
 55 IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[QRTZ_SCHEDULER_STATE]') AND OBJECTPROPERTY(id, N'ISUSERTABLE') = 1)
 56 DROP TABLE [dbo].[QRTZ_SCHEDULER_STATE]
 57 GO
 58
 59 IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[QRTZ_LOCKS]') AND OBJECTPROPERTY(id, N'ISUSERTABLE') = 1)
 60 DROP TABLE [dbo].[QRTZ_LOCKS]
 61 GO
 62 IF  EXISTS (SELECT * FROM sys.objects WHERE object_id = OBJECT_ID(N'[dbo].[QRTZ_TRIGGER_LISTENERS]') AND type in (N'U'))
 63 DROP TABLE [dbo].[QRTZ_TRIGGER_LISTENERS]
 64
 65
 66 IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[QRTZ_JOB_DETAILS]') AND OBJECTPROPERTY(id, N'ISUSERTABLE') = 1)
 67 DROP TABLE [dbo].[QRTZ_JOB_DETAILS]
 68 GO
 69
 70 IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[QRTZ_SIMPLE_TRIGGERS]') AND OBJECTPROPERTY(id, N'ISUSERTABLE') = 1)
 71 DROP TABLE [dbo].[QRTZ_SIMPLE_TRIGGERS]
 72 GO
 73
 74 IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[QRTZ_SIMPROP_TRIGGERS]') AND OBJECTPROPERTY(id, N'ISUSERTABLE') = 1)
 75 DROP TABLE [dbo].QRTZ_SIMPROP_TRIGGERS
 76 GO
 77
 78 IF EXISTS (SELECT * FROM dbo.sysobjects WHERE id = OBJECT_ID(N'[dbo].[QRTZ_TRIGGERS]') AND OBJECTPROPERTY(id, N'ISUSERTABLE') = 1)
 79 DROP TABLE [dbo].[QRTZ_TRIGGERS]
 80 GO
 81
 82 CREATE TABLE [dbo].[QRTZ_CALENDARS] (
 83   [SCHED_NAME] [NVARCHAR] (120)  NOT NULL ,
 84   [CALENDAR_NAME] [NVARCHAR] (200)  NOT NULL ,
 85   [CALENDAR] [IMAGE] NOT NULL
 86 )
 87 GO
 88
 89 CREATE TABLE [dbo].[QRTZ_CRON_TRIGGERS] (
 90   [SCHED_NAME] [NVARCHAR] (120)  NOT NULL ,
 91   [TRIGGER_NAME] [NVARCHAR] (150)  NOT NULL ,
 92   [TRIGGER_GROUP] [NVARCHAR] (150)  NOT NULL ,
 93   [CRON_EXPRESSION] [NVARCHAR] (120)  NOT NULL ,
 94   [TIME_ZONE_ID] [NVARCHAR] (80)
 95 )
 96 GO
 97
 98 CREATE TABLE [dbo].[QRTZ_FIRED_TRIGGERS] (
 99   [SCHED_NAME] [NVARCHAR] (120)  NOT NULL ,
100   [ENTRY_ID] [NVARCHAR] (140)  NOT NULL ,
101   [TRIGGER_NAME] [NVARCHAR] (150)  NOT NULL ,
102   [TRIGGER_GROUP] [NVARCHAR] (150)  NOT NULL ,
103   [INSTANCE_NAME] [NVARCHAR] (200)  NOT NULL ,
104   [FIRED_TIME] [BIGINT] NOT NULL ,
105   [SCHED_TIME] [BIGINT] NOT NULL ,
106   [PRIORITY] [INTEGER] NOT NULL ,
107   [STATE] [NVARCHAR] (16)  NOT NULL,
108   [JOB_NAME] [NVARCHAR] (150)  NULL ,
109   [JOB_GROUP] [NVARCHAR] (150)  NULL ,
110   [IS_NONCONCURRENT] BIT  NULL ,
111   [REQUESTS_RECOVERY] BIT  NULL
112 )
113 GO
114
115 CREATE TABLE [dbo].[QRTZ_PAUSED_TRIGGER_GRPS] (
116   [SCHED_NAME] [NVARCHAR] (120)  NOT NULL ,
117   [TRIGGER_GROUP] [NVARCHAR] (150)  NOT NULL
118 )
119 GO
120
121 CREATE TABLE [dbo].[QRTZ_SCHEDULER_STATE] (
122   [SCHED_NAME] [NVARCHAR] (120)  NOT NULL ,
123   [INSTANCE_NAME] [NVARCHAR] (200)  NOT NULL ,
124   [LAST_CHECKIN_TIME] [BIGINT] NOT NULL ,
125   [CHECKIN_INTERVAL] [BIGINT] NOT NULL
126 )
127 GO
128
129 CREATE TABLE [dbo].[QRTZ_LOCKS] (
130   [SCHED_NAME] [NVARCHAR] (120)  NOT NULL ,
131   [LOCK_NAME] [NVARCHAR] (40)  NOT NULL
132 )
133 GO
134
135 CREATE TABLE [dbo].[QRTZ_JOB_DETAILS] (
136   [SCHED_NAME] [NVARCHAR] (120)  NOT NULL ,
137   [JOB_NAME] [NVARCHAR] (150)  NOT NULL ,
138   [JOB_GROUP] [NVARCHAR] (150)  NOT NULL ,
139   [DESCRIPTION] [NVARCHAR] (250) NULL ,
140   [JOB_CLASS_NAME] [NVARCHAR] (250)  NOT NULL ,
141   [IS_DURABLE] BIT  NOT NULL ,
142   [IS_NONCONCURRENT] BIT  NOT NULL ,
143   [IS_UPDATE_DATA] BIT  NOT NULL ,
144   [REQUESTS_RECOVERY] BIT  NOT NULL ,
145   [JOB_DATA] [IMAGE] NULL
146 )
147 GO
148
149 CREATE TABLE [dbo].[QRTZ_SIMPLE_TRIGGERS] (
150   [SCHED_NAME] [NVARCHAR] (120)  NOT NULL ,
151   [TRIGGER_NAME] [NVARCHAR] (150)  NOT NULL ,
152   [TRIGGER_GROUP] [NVARCHAR] (150)  NOT NULL ,
153   [REPEAT_COUNT] [INTEGER] NOT NULL ,
154   [REPEAT_INTERVAL] [BIGINT] NOT NULL ,
155   [TIMES_TRIGGERED] [INTEGER] NOT NULL
156 )
157 GO
158
159 CREATE TABLE [dbo].[QRTZ_SIMPROP_TRIGGERS] (
160   [SCHED_NAME] [NVARCHAR] (120)  NOT NULL ,
161   [TRIGGER_NAME] [NVARCHAR] (150)  NOT NULL ,
162   [TRIGGER_GROUP] [NVARCHAR] (150)  NOT NULL ,
163   [STR_PROP_1] [NVARCHAR] (512) NULL,
164   [STR_PROP_2] [NVARCHAR] (512) NULL,
165   [STR_PROP_3] [NVARCHAR] (512) NULL,
166   [INT_PROP_1] [INT] NULL,
167   [INT_PROP_2] [INT] NULL,
168   [LONG_PROP_1] [BIGINT] NULL,
169   [LONG_PROP_2] [BIGINT] NULL,
170   [DEC_PROP_1] [NUMERIC] (13,4) NULL,
171   [DEC_PROP_2] [NUMERIC] (13,4) NULL,
172   [BOOL_PROP_1] BIT NULL,
173   [BOOL_PROP_2] BIT NULL,
174 )
175 GO
176
177 CREATE TABLE [dbo].[QRTZ_BLOB_TRIGGERS] (
178   [SCHED_NAME] [NVARCHAR] (120)  NOT NULL ,
179   [TRIGGER_NAME] [NVARCHAR] (150)  NOT NULL ,
180   [TRIGGER_GROUP] [NVARCHAR] (150)  NOT NULL ,
181   [BLOB_DATA] [IMAGE] NULL
182 )
183 GO
184
185 CREATE TABLE [dbo].[QRTZ_TRIGGERS] (
186   [SCHED_NAME] [NVARCHAR] (120)  NOT NULL ,
187   [TRIGGER_NAME] [NVARCHAR] (150)  NOT NULL ,
188   [TRIGGER_GROUP] [NVARCHAR] (150)  NOT NULL ,
189   [JOB_NAME] [NVARCHAR] (150)  NOT NULL ,
190   [JOB_GROUP] [NVARCHAR] (150)  NOT NULL ,
191   [DESCRIPTION] [NVARCHAR] (250) NULL ,
192   [NEXT_FIRE_TIME] [BIGINT] NULL ,
193   [PREV_FIRE_TIME] [BIGINT] NULL ,
194   [PRIORITY] [INTEGER] NULL ,
195   [TRIGGER_STATE] [NVARCHAR] (16)  NOT NULL ,
196   [TRIGGER_TYPE] [NVARCHAR] (8)  NOT NULL ,
197   [START_TIME] [BIGINT] NOT NULL ,
198   [END_TIME] [BIGINT] NULL ,
199   [CALENDAR_NAME] [NVARCHAR] (200)  NULL ,
200   [MISFIRE_INSTR] [INTEGER] NULL ,
201   [JOB_DATA] [IMAGE] NULL
202 )
203 GO
204
205 ALTER TABLE [dbo].[QRTZ_CALENDARS] WITH NOCHECK ADD
206   CONSTRAINT [PK_QRTZ_CALENDARS] PRIMARY KEY  CLUSTERED
207   (
208     [SCHED_NAME],
209     [CALENDAR_NAME]
210   )
211 GO
212
213 ALTER TABLE [dbo].[QRTZ_CRON_TRIGGERS] WITH NOCHECK ADD
214   CONSTRAINT [PK_QRTZ_CRON_TRIGGERS] PRIMARY KEY  CLUSTERED
215   (
216     [SCHED_NAME],
217     [TRIGGER_NAME],
218     [TRIGGER_GROUP]
219   )
220 GO
221
222 ALTER TABLE [dbo].[QRTZ_FIRED_TRIGGERS] WITH NOCHECK ADD
223   CONSTRAINT [PK_QRTZ_FIRED_TRIGGERS] PRIMARY KEY  CLUSTERED
224   (
225     [SCHED_NAME],
226     [ENTRY_ID]
227   )
228 GO
229
230 ALTER TABLE [dbo].[QRTZ_PAUSED_TRIGGER_GRPS] WITH NOCHECK ADD
231   CONSTRAINT [PK_QRTZ_PAUSED_TRIGGER_GRPS] PRIMARY KEY  CLUSTERED
232   (
233     [SCHED_NAME],
234     [TRIGGER_GROUP]
235   )
236 GO
237
238 ALTER TABLE [dbo].[QRTZ_SCHEDULER_STATE] WITH NOCHECK ADD
239   CONSTRAINT [PK_QRTZ_SCHEDULER_STATE] PRIMARY KEY  CLUSTERED
240   (
241     [SCHED_NAME],
242     [INSTANCE_NAME]
243   )
244 GO
245
246 ALTER TABLE [dbo].[QRTZ_LOCKS] WITH NOCHECK ADD
247   CONSTRAINT [PK_QRTZ_LOCKS] PRIMARY KEY  CLUSTERED
248   (
249     [SCHED_NAME],
250     [LOCK_NAME]
251   )
252 GO
253
254 ALTER TABLE [dbo].[QRTZ_JOB_DETAILS] WITH NOCHECK ADD
255   CONSTRAINT [PK_QRTZ_JOB_DETAILS] PRIMARY KEY  CLUSTERED
256   (
257     [SCHED_NAME],
258     [JOB_NAME],
259     [JOB_GROUP]
260   )
261 GO
262
263 ALTER TABLE [dbo].[QRTZ_SIMPLE_TRIGGERS] WITH NOCHECK ADD
264   CONSTRAINT [PK_QRTZ_SIMPLE_TRIGGERS] PRIMARY KEY  CLUSTERED
265   (
266     [SCHED_NAME],
267     [TRIGGER_NAME],
268     [TRIGGER_GROUP]
269   )
270 GO
271
272 ALTER TABLE [dbo].[QRTZ_SIMPROP_TRIGGERS] WITH NOCHECK ADD
273   CONSTRAINT [PK_QRTZ_SIMPROP_TRIGGERS] PRIMARY KEY  CLUSTERED
274   (
275     [SCHED_NAME],
276     [TRIGGER_NAME],
277     [TRIGGER_GROUP]
278   )
279 GO
280
281 ALTER TABLE [dbo].[QRTZ_TRIGGERS] WITH NOCHECK ADD
282   CONSTRAINT [PK_QRTZ_TRIGGERS] PRIMARY KEY  CLUSTERED
283   (
284     [SCHED_NAME],
285     [TRIGGER_NAME],
286     [TRIGGER_GROUP]
287   )
288 GO
289
290 ALTER TABLE [dbo].QRTZ_BLOB_TRIGGERS WITH NOCHECK ADD
291   CONSTRAINT [PK_QRTZ_BLOB_TRIGGERS] PRIMARY KEY  CLUSTERED
292   (
293     [SCHED_NAME],
294     [TRIGGER_NAME],
295     [TRIGGER_GROUP]
296   )
297 GO
298
299 ALTER TABLE [dbo].[QRTZ_CRON_TRIGGERS] ADD
300   CONSTRAINT [FK_QRTZ_CRON_TRIGGERS_QRTZ_TRIGGERS] FOREIGN KEY
301   (
302     [SCHED_NAME],
303     [TRIGGER_NAME],
304     [TRIGGER_GROUP]
305   ) REFERENCES [dbo].[QRTZ_TRIGGERS] (
306     [SCHED_NAME],
307     [TRIGGER_NAME],
308     [TRIGGER_GROUP]
309   ) ON DELETE CASCADE
310 GO
311
312 ALTER TABLE [dbo].[QRTZ_SIMPLE_TRIGGERS] ADD
313   CONSTRAINT [FK_QRTZ_SIMPLE_TRIGGERS_QRTZ_TRIGGERS] FOREIGN KEY
314   (
315     [SCHED_NAME],
316     [TRIGGER_NAME],
317     [TRIGGER_GROUP]
318   ) REFERENCES [dbo].[QRTZ_TRIGGERS] (
319     [SCHED_NAME],
320     [TRIGGER_NAME],
321     [TRIGGER_GROUP]
322   ) ON DELETE CASCADE
323 GO
324
325 ALTER TABLE [dbo].[QRTZ_SIMPROP_TRIGGERS] ADD
326   CONSTRAINT [FK_QRTZ_SIMPROP_TRIGGERS_QRTZ_TRIGGERS] FOREIGN KEY
327   (
328     [SCHED_NAME],
329     [TRIGGER_NAME],
330     [TRIGGER_GROUP]
331   ) REFERENCES [dbo].[QRTZ_TRIGGERS] (
332     [SCHED_NAME],
333     [TRIGGER_NAME],
334     [TRIGGER_GROUP]
335   ) ON DELETE CASCADE
336 GO
337
338 ALTER TABLE [dbo].[QRTZ_TRIGGERS] ADD
339   CONSTRAINT [FK_QRTZ_TRIGGERS_QRTZ_JOB_DETAILS] FOREIGN KEY
340   (
341     [SCHED_NAME],
342     [JOB_NAME],
343     [JOB_GROUP]
344   ) REFERENCES [dbo].[QRTZ_JOB_DETAILS] (
345     [SCHED_NAME],
346     [JOB_NAME],
347     [JOB_GROUP]
348   )
349 GO
350
351 CREATE INDEX IDX_QRTZ_T_J ON QRTZ_TRIGGERS(SCHED_NAME,JOB_NAME,JOB_GROUP)
352 CREATE INDEX IDX_QRTZ_T_JG ON QRTZ_TRIGGERS(SCHED_NAME,JOB_GROUP)
353 CREATE INDEX IDX_QRTZ_T_C ON QRTZ_TRIGGERS(SCHED_NAME,CALENDAR_NAME)
354 CREATE INDEX IDX_QRTZ_T_G ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_GROUP)
355 CREATE INDEX IDX_QRTZ_T_STATE ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_STATE)
356 CREATE INDEX IDX_QRTZ_T_N_STATE ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP,TRIGGER_STATE)
357 CREATE INDEX IDX_QRTZ_T_N_G_STATE ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_GROUP,TRIGGER_STATE)
358 CREATE INDEX IDX_QRTZ_T_NEXT_FIRE_TIME ON QRTZ_TRIGGERS(SCHED_NAME,NEXT_FIRE_TIME)
359 CREATE INDEX IDX_QRTZ_T_NFT_ST ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_STATE,NEXT_FIRE_TIME)
360 CREATE INDEX IDX_QRTZ_T_NFT_MISFIRE ON QRTZ_TRIGGERS(SCHED_NAME,MISFIRE_INSTR,NEXT_FIRE_TIME)
361 CREATE INDEX IDX_QRTZ_T_NFT_ST_MISFIRE ON QRTZ_TRIGGERS(SCHED_NAME,MISFIRE_INSTR,NEXT_FIRE_TIME,TRIGGER_STATE)
362 CREATE INDEX IDX_QRTZ_T_NFT_ST_MISFIRE_GRP ON QRTZ_TRIGGERS(SCHED_NAME,MISFIRE_INSTR,NEXT_FIRE_TIME,TRIGGER_GROUP,TRIGGER_STATE)
363
364 CREATE INDEX IDX_QRTZ_FT_TRIG_INST_NAME ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,INSTANCE_NAME)
365 CREATE INDEX IDX_QRTZ_FT_INST_JOB_REQ_RCVRY ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,INSTANCE_NAME,REQUESTS_RECOVERY)
366 CREATE INDEX IDX_QRTZ_FT_J_G ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,JOB_NAME,JOB_GROUP)
367 CREATE INDEX IDX_QRTZ_FT_JG ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,JOB_GROUP)
368 CREATE INDEX IDX_QRTZ_FT_T_G ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
369 CREATE INDEX IDX_QRTZ_FT_TG ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,TRIGGER_GROUP)
370 GO
View Code





二:配置quartz的集群参数

    当我们写var scheduler = StdSchedulerFactory.GetDefaultScheduler()这段代码的时候,如果大家看过源码的话,会知道这个GetScheduler的

过程中有一个初始化方法【Instantiate】方法,此方法中你会发现在做DBProvider的时候会需要几个参数来初始化DB的,比如下面看到的几个标红属性。

 1             IList<string> dsNames = cfg.GetPropertyGroups(PropertyDataSourcePrefix);
 2             foreach (string dataSourceName in dsNames)
 3             {
 4                 string datasourceKey = "{0}.{1}".FormatInvariant(PropertyDataSourcePrefix, dataSourceName);
 5                 NameValueCollection propertyGroup = cfg.GetPropertyGroup(datasourceKey, true);
 6                 PropertiesParser pp = new PropertiesParser(propertyGroup);
 7
 8                 Type cpType = loadHelper.LoadType(pp.GetStringProperty(PropertyDbProviderType, null));
 9
10                 // custom connectionProvider...
11                 if (cpType != null)
12                 {
13                     IDbProvider cp;
14                     try
15                     {
16                         cp = ObjectUtils.InstantiateType<IDbProvider>(cpType);
17                     }
18                     catch (Exception e)
19                     {
20                         initException = new SchedulerException("ConnectionProvider of type '{0}' could not be instantiated.".FormatInvariant(cpType), e);
21                         throw initException;
22                     }
23
24                     try
25                     {
26                         // remove the type name, so it isn't attempted to be set
27                         pp.UnderlyingProperties.Remove(PropertyDbProviderType);
28
29                         ObjectUtils.SetObjectProperties(cp, pp.UnderlyingProperties);
30                         cp.Initialize();
31                     }
32                     catch (Exception e)
33                     {
34                         initException = new SchedulerException("ConnectionProvider type '{0}' props could not be configured.".FormatInvariant(cpType), e);
35                         throw initException;
36                     }
37
38                     dbMgr = DBConnectionManager.Instance;
39                     dbMgr.AddConnectionProvider(dataSourceName, cp);
40                 }
41                 else
42                 {
43                     string dsProvider = pp.GetStringProperty(PropertyDataSourceProvider, null);
44                     string dsConnectionString = pp.GetStringProperty(PropertyDataSourceConnectionString, null);
45                     string dsConnectionStringName = pp.GetStringProperty(PropertyDataSourceConnectionStringName, null);
46
47                     if (dsConnectionString == null && !String.IsNullOrEmpty(dsConnectionStringName))
48                     {
49
50                         ConnectionStringSettings connectionStringSettings = ConfigurationManager.ConnectionStrings[dsConnectionStringName];
51                         if (connectionStringSettings == null)
52                         {
53                             initException = new SchedulerException("Named connection string '{0}' not found for DataSource: {1}".FormatInvariant(dsConnectionStringName, dataSourceName));
54                             throw initException;
55                         }
56                         dsConnectionString = connectionStringSettings.ConnectionString;
57                     }
58
59                     if (dsProvider == null)
60                     {
61                         initException = new SchedulerException("Provider not specified for DataSource: {0}".FormatInvariant(dataSourceName));
62                         throw initException;
63                     }
64                     if (dsConnectionString == null)
65                     {
66                         initException = new SchedulerException("Connection string not specified for DataSource: {0}".FormatInvariant(dataSourceName));
67                         throw initException;
68                     }
69                     try
70                     {
71                         DbProvider dbp = new DbProvider(dsProvider, dsConnectionString);
72                         dbp.Initialize();
73
74                         dbMgr = DBConnectionManager.Instance;
75                         dbMgr.AddConnectionProvider(dataSourceName, dbp);
76                     }
77                     catch (Exception exception)
78                     {
79                         initException = new SchedulerException("Could not Initialize DataSource: {0}".FormatInvariant(dataSourceName), exception);
80                         throw initException;
81                     }
82                 }
83             }



     接下来的问题就是这几个属性是如何配置进去的,仔细观察上面代码,你会发现所有的配置的源头都来自于cfg变量,ok,接下来你可以继续翻看代码,相信

你会看到有一个Initialize方法就是做cfg变量的初始化,如下代码所示:

 1   public void Initialize()
 2         {
 3             // short-circuit if already initialized
 4             if (cfg != null)
 5             {
 6                 return;
 7             }
 8             if (initException != null)
 9             {
10                 throw initException;
11             }
12
13             NameValueCollection props = (NameValueCollection) ConfigurationManager.GetSection(ConfigurationSectionName);
14
15             string requestedFile = QuartzEnvironment.GetEnvironmentVariable(PropertiesFile);
16
17             string propFileName = requestedFile != null && requestedFile.Trim().Length > 0 ? requestedFile : "~/quartz.config";
18
19             // check for specials
20             try
21             {
22                 propFileName = FileUtil.ResolveFile(propFileName);
23             }
24             catch (SecurityException)
25             {
26                 log.WarnFormat("Unable to resolve file path '{0}' due to security exception, probably running under medium trust");
27                 propFileName = "quartz.config";
28             }
29
30             if (props == null && File.Exists(propFileName))
31             {
32                 // file system
33                 try
34                 {
35                     PropertiesParser pp = PropertiesParser.ReadFromFileResource(propFileName);
36                     props = pp.UnderlyingProperties;
37                     Log.Info(string.Format("Quartz.NET properties loaded from configuration file '{0}'", propFileName));
38                 }
39                 catch (Exception ex)
40                 {
41                     Log.Error("Could not load properties for Quartz from file {0}: {1}".FormatInvariant(propFileName, ex.Message), ex);
42                 }
43
44             }
45             if (props == null)
46             {
47                 // read from assembly
48                 try
49                 {
50                     PropertiesParser pp = PropertiesParser.ReadFromEmbeddedAssemblyResource("Quartz.quartz.config");
51                     props = pp.UnderlyingProperties;
52                     Log.Info("Default Quartz.NET properties loaded from embedded resource file");
53                 }
54                 catch (Exception ex)
55                 {
56                     Log.Error("Could not load default properties for Quartz from Quartz assembly: {0}".FormatInvariant(ex.Message), ex);
57                 }
58             }
59             if (props == null)
60             {
61                 throw new SchedulerConfigException(
62                     @"Could not find <quartz> configuration section from your application config or load default configuration from assembly.
63 Please add configuration to your application config file to correctly initialize Quartz.");
64             }
65             Initialize(OverrideWithSysProps(props));
66         }



     仔细阅读上面的一串代码,你会发现,默认quartz参数配置来源于三个地方。

1. app.config中的section节点。

2. bin目录下的~/quartz.config文件。

3. 默认配置的NameValueCollection字典集合,也就是上一篇博客给大家做的一个演示。



     我个人不怎么喜欢通过quartz.config文件进行配置,这样也容易写死,所以我还是喜欢使用最简单的NameValueCollection配置,因为它的数据源可来源

于第三方存储结构中,配置代码如下:

 1                 //1.首先创建一个作业调度池
 2                 var properties = new NameValueCollection();
 3                 //存储类型
 4                 properties["quartz.jobStore.type"] = "Quartz.Impl.AdoJobStore.JobStoreTX, Quartz";
 5
 6                 //驱动类型
 7                 properties["quartz.jobStore.driverDelegateType"] = "Quartz.Impl.AdoJobStore.SqlServerDelegate, Quartz";                //数据源名称
 8                 properties["quartz.jobStore.dataSource"] = "myDS";
 9
10                 //连接字符串
11                 properties["quartz.dataSource.myDS.connectionString"] = @"server=.;Initial Catalog=quartz;Integrated Security=True";
12                 //sqlserver版本
13                 properties["quartz.dataSource.myDS.provider"] = "SqlServer-20";
14
15                 //是否集群
16                 properties["quartz.jobStore.clustered"] = "true";
17                 properties["quartz.scheduler.instanceId"] = "AUTO";



    上面的代码配置我都加过详细的注释,大家应该都能看得懂,而且这些配置就是这么定死的,没什么修改的空间,大家记住即可。



三:Job和Trigger定义

     在集群中环境下,job和trigger的定义该怎么写的?大家也不要想的太复杂,注意一点就可以了,在Schedule一个Job时候,通过CheckExists判断一下

这个Job在Scheduler中是否已经存在了,如果存在,你就不能再次通过Schedule去重复调度一个Job就可以了。。。所以判断的代码也很简单,如下所示:

 1          IScheduler scheduler = factory.GetScheduler();
 2
 3                 scheduler.Start();
 4
 5                 var jobKey = JobKey.Create("myjob", "group");
 6
 7                 if (scheduler.CheckExists(jobKey))
 8                 {
 9                     Console.WriteLine("当前job已经存在,无需调度:{0}", jobKey.ToString());
10                 }
11                 else
12                 {
13                     IJobDetail job = JobBuilder.Create<HelloJob>()
14                            .WithDescription("使用quartz进行持久化存储")
15                            .StoreDurably()
16                            .RequestRecovery()
17                            .WithIdentity(jobKey)
18                            .UsingJobData("count", 1)
19                            .Build();
20
21                     ITrigger trigger = TriggerBuilder.Create().WithSimpleSchedule(x => x.WithIntervalInSeconds(2).RepeatForever())
22                                                               .Build();
23
24                     scheduler.ScheduleJob(job, trigger);
25
26                     Console.WriteLine("调度进行中!!!");
27                 }



上面这段代码,大家就可以部署在多台机器中了,是不是很简单?



四:强大的cluster完整演示

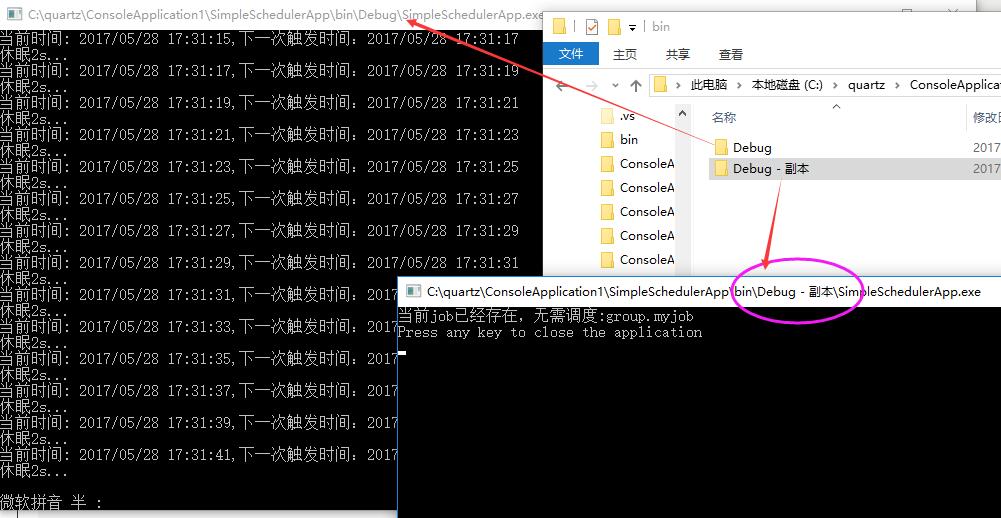

     所有的初始化工作都做完了,接下来我们copy一份bin文件,同时打开两个console程序,如下所示,可以看到job任务只会被一个console调度,另外

一个在空等待。

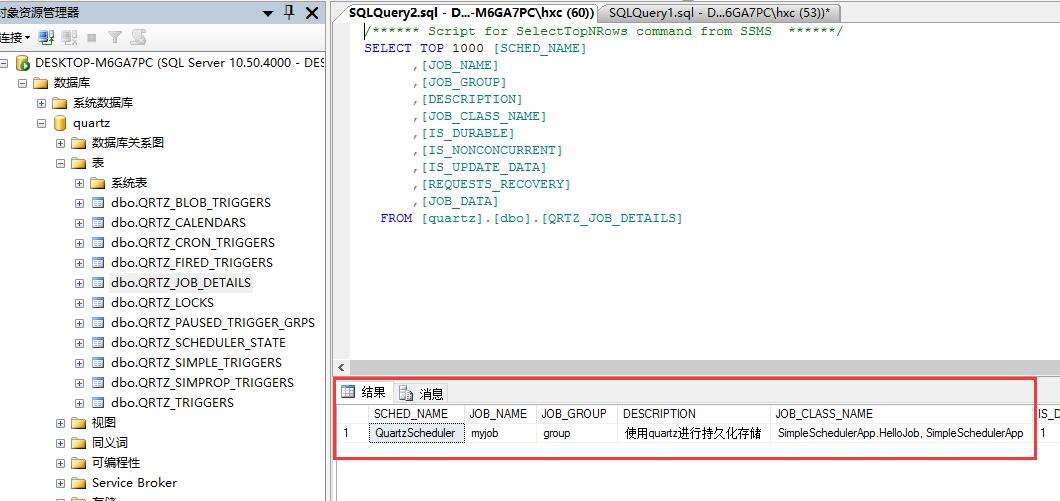

       然后你肯定很好奇的跑到sqlserver中去看看,是否已经有job和trigger的db存储,很开心吧,数据都有的。。。

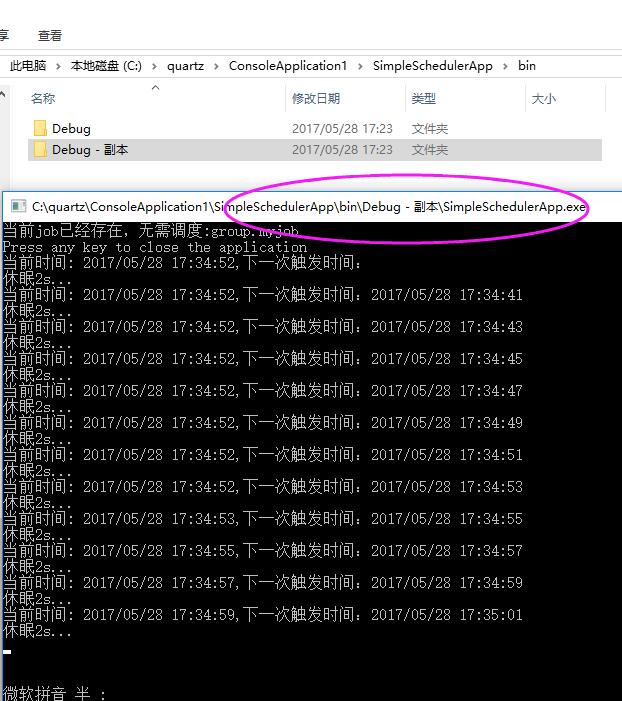

       好了,一切都是那么完美,接下来可以展示一下quartz集群下的高可用啦,如果某一个console挂了,那么另一台console会把这个任务给接过来,实

现强大的高可用。。。所以我要做的事情就是把console1关掉,再看看console2是不是可以开始调度job了???



完美,这个就是本篇给大家介绍的Quartz的Cluster集群,一台挂,另一台顶住,双击热备,当然这些console你可以部署在多台机器中,要做的就是保持各

个server的时间同步,因为quarz是依赖于本机server的时间,好了,本篇就先说到这里吧。



小礼物走一波,双击666。。。  完整代码:QuartzCluster.zip



发表评论
用户名: 匿名
