通过一个注册用户的实例了解页面间数据的传递



首先构建一个User类  User.cs

class="code_img_closed" src="/Upload/Images/2015042211/0015B68B3C38AA5B.gif" alt="" />logs_code_hide('46f056bb-a180-42cd-8d3c-3ae83241f257',event)" src="/Upload/Images/2015042211/2B1B950FA3DF188F.gif" alt="" />

public class User
{
    private string name;
    public string Name
    {
        get { return this.name; }
        set { this.name = value; }
    }

    private string password;
    public string Password
    {
        get { return this.password; }
        set { this.password = value; }
    }

    private List<string> favColors;
    public List<string> FavColors
    {
        get { return this.favColors; }
        set { this.favColors = value; }
    }

    public User() { }

    public User(string name, string password)
    {
        this.name = name;
        this.password = password;
        favColors = new List<string>();
    }

    public override string ToString()
    {
        return "Name: {0}" + name;
    }

    public override bool Equals(object obj)
    {
        if (obj is User)
        {
            return (obj as User).Name.Equals(this.name) && (obj as User).Password.Equals(this.password);
        }
        return false;
    }

    public override int GetHashCode()
    {
        return this.name.GetHashCode();
    }
}

View Code



User信息存放在App中 App.xaml.cs

public List<User> users;

private void Application_Startup(object sender, StartupEventArgs e)
{
    users = new List<User>();
    User userA = new User("UserA", "11111111");
    userA.FavColors.Add("Red");
    userA.FavColors.Add("Green");
    users.Add(userA);

    NavigationWindow win = new NavigationWindow();
    win.Height = 400;
    win.Width = 480;
    win.Content = new LoginPage();
    win.Show();
}

View Code

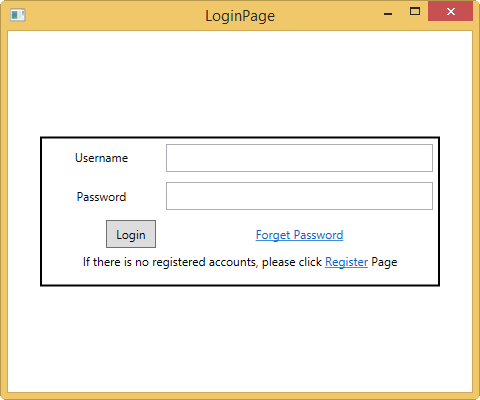

设计一个LoginPage

<Page x:Class="Alex_WPFAPPDemo08.LoginPage"
      xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
      xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    Title="LoginPage" WindowTitle="LoginPage" ShowsNavigationUI="False">
    <Border BorderBrush="Black" BorderThickness="2" Height="150" Width="400">
        <Grid>
            <Grid.RowDefinitions>
                <RowDefinition />
                <RowDefinition />
                <RowDefinition />
                <RowDefinition  Height="Auto"/>
            </Grid.RowDefinitions>
            <Grid.ColumnDefinitions>
                <ColumnDefinition Width="3*"/>
                <ColumnDefinition Width="7*"/>
            </Grid.ColumnDefinitions>
            <TextBlock Grid.Row="0" Grid.Column="0" Text="Username" Margin="5" HorizontalAlignment="Center" VerticalAlignment="Center" />
            <TextBox Grid.Row="0" Grid.Column="1" Margin="5" x:Name="name"/>
            <TextBlock Grid.Row="1" Grid.Column="0" Text="Password" Margin="5" HorizontalAlignment="Center" VerticalAlignment="Center" />
            <PasswordBox Grid.Row="1" Grid.Column="1" Margin="5" x:Name="password"/>
            <Button x:Name="btn" Grid.Row="2" Grid.Column="0" HorizontalAlignment="Right" Margin="5" Width="50" Click="Btn_Click" >
                Login
            </Button>
            <TextBlock Grid.Row="2" Grid.Column="1" HorizontalAlignment="Center" VerticalAlignment="Center">
                <Hyperlink NavigateUri="GetPasswordPage.xaml">
                    Forget Password
                </Hyperlink>
            </TextBlock>
            <TextBlock Margin="0" Grid.Row="3" Grid.ColumnSpan="2" x:Name="hyperlinkText" HorizontalAlignment="Center" VerticalAlignment="Center">
                If there is no registered accounts, please click
                <Hyperlink>
                    Register
                </Hyperlink>
                Page
                <LineBreak />
            </TextBlock>
        </Grid>
    </Border>
</Page>

View Code

private void Btn_Click(object sender, RoutedEventArgs e)
{
    List<User> users = ((App)App.Current).users;
    User user = new User(name.Text, password.Password);
    if (users.Contains(user))
    {
        WelcomePage page = new WelcomePage(user, false);
        NavigationService.Navigate(page);
        return;
    }
    NavigationService.Navigate(new Uri("pack://application:,,,/ErrorPage.xaml"));
}

View Code



设计一个WelcomePage

<Grid Margin="5">
    <TextBlock x:Name="welcome" VerticalAlignment="Center" HorizontalAlignment="Center">
    </TextBlock>
    <TextBlock VerticalAlignment="Bottom" HorizontalAlignment="Right" Margin="5">
            <Hyperlink NavigateUri="LoginPage.xaml">
                Logout
            </Hyperlink>
    </TextBlock>
</Grid>

View Code

public WelcomePage(User user, bool isPasswordVisiable)
    :this()
{
    welcome.Text = "Welcome " + user.Name;
    if (isPasswordVisiable)
        welcome.Text += "\nPassword: " + user.Password;
}

View Code

Logout返回LoginPage，不保留User信息

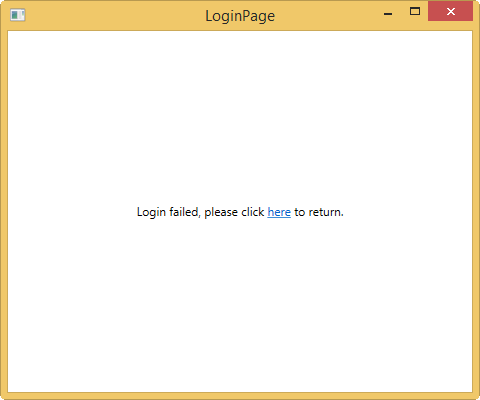

设计一个ErrorPage

<TextBlock VerticalAlignment="Center" HorizontalAlignment="Center">
    <TextBlock x:Name="ErrorInfo">Login failed,</TextBlock>
    please click
    <Hyperlink x:Name="link" Command="NavigationCommands.BrowseBack">
        here
    </Hyperlink>
    to return.
</TextBlock>

View Code



 Return返回LoginPage，保留Username信息





虽然保留了Username信息，但是焦点没有停留在输入框中

创建一个依赖属性来保存最后焦点获得的元素

LoginPage.xaml.cs

public static DependencyProperty FocusElementProperty;
public string FocusElement
{
    get { return (string)base.GetValue(LoginPage.FocusElementProperty); }
    set { base.SetValue(LoginPage.FocusElementProperty, value); }
}

public LoginPage()
{
    if (LoginPage.FocusElementProperty == null)
    {
        LoginPage.FocusElementProperty = DependencyProperty.Register(
            "FocusElement",
            typeof(string),
            typeof(LoginPage),
            new FrameworkPropertyMetadata(null, FrameworkPropertyMetadataOptions.Journal));
    }
    InitializeComponent();
}

View Code

PreviewLostKeyboardFocus事件记录焦点所在的文本框信息

private void Page_PreviewLostKeyboardFocus(object sender, KeyboardFocusChangedEventArgs e)
{
    if (e.NewFocus == this.name || e.NewFocus == this.password)
    {
        this.FocusElement = (string)((DependencyObject)e.NewFocus).GetValue(FrameworkElement.NameProperty);
    }
}

View Code

Loaded事件根据记录信息设置焦点

private void Page_Loaded(object sender, RoutedEventArgs e)
{
    if (this.FocusElement != null)
    {
        IInputElement element = (IInputElement)LogicalTreeHelper.FindLogicalNode(this, this.FocusElement);
        Keyboard.Focus(element);
    }
}

View Code

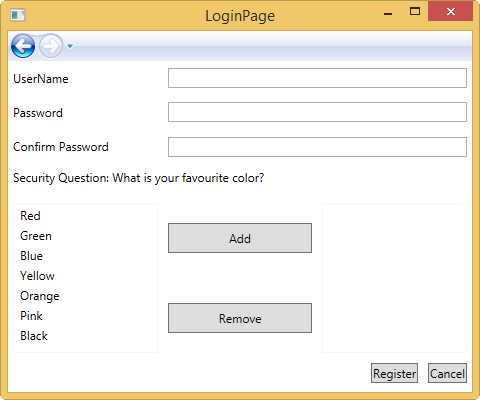

设计一个RegisterPage

继承自PageFunction<T>，用于实现传递数据

<PageFunction
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:sys="clr-namespace:System;assembly=mscorlib"
    x:Class="Alex_WPFAPPDemo08.RegisterUserPage"
    xmlns:local="clr-namespace:Alex_WPFAPPDemo08"
    x:TypeArguments="local:User"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    mc:Ignorable="d"
    d:DesignHeight="300" d:DesignWidth="300"
    Title="RegisterUserPage">
    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition />
            <RowDefinition />
            <RowDefinition />
            <RowDefinition />
            <RowDefinition Height="Auto" />
            <RowDefinition />
        </Grid.RowDefinitions>
        <Grid.ColumnDefinitions>
            <ColumnDefinition />
            <ColumnDefinition />
            <ColumnDefinition />
        </Grid.ColumnDefinitions>
        <TextBlock Grid.Row="0" Grid.Column="0" VerticalAlignment="Center" Margin="5" Text="UserName" />
        <TextBox Grid.Row="0" Grid.Column="1" Grid.ColumnSpan="2" Margin="5" Height="20" x:Name="username" />
        <TextBlock Grid.Row="1" Grid.Column="0" VerticalAlignment="Center" Margin="5" Text="Password" />
        <PasswordBox Grid.Row="1" Grid.Column="1" Grid.ColumnSpan="2" Margin="5" Height="20" x:Name="password1" />
        <TextBlock Grid.Row="2" Grid.Column="0" VerticalAlignment="Center" Margin="5" Text="Confirm Password" />
        <PasswordBox Grid.Row="2" Grid.Column="1" Grid.ColumnSpan="2" Margin="5" Height="20" x:Name="password2" />
        <TextBlock Grid.Row="3" Grid.ColumnSpan="3" Text="Security Question: What is your favourite color?" Margin="5" />
        <ListBox Grid.Row="4" Grid.Column="0" Margin="5"  BorderBrush="AliceBlue" BorderThickness="1" x:Name="list1">
            <ListBoxItem Background="Red">Red</ListBoxItem>
            <ListBoxItem Background="Blue">Blue</ListBoxItem>
            <ListBoxItem Background="White">White</ListBoxItem>
            <ListBoxItem Background="Green">Green</ListBoxItem>
        </ListBox>
        <Grid Grid.Row="4" Grid.Column="1">
            <Grid.RowDefinitions>
                <RowDefinition />
                <RowDefinition />
            </Grid.RowDefinitions>
            <Button Grid.Row="0" x:Name="addBtn" Content="Add" Margin="5" Click="Add_Click" />
            <Button Grid.Row="1" x:Name="removeBtn" Content="Remove" Margin="5" Click="Remove_Click" />
        </Grid>
        <ListBox Grid.Row="4" Grid.Column="2" Margin="5" BorderBrush="AliceBlue" BorderThickness="1" x:Name="list2" />
        <WrapPanel Grid.Row="5" Grid.Column="2" HorizontalAlignment="Right">
            <Button Content="Register" Click="Ok_Click" Margin="5"/>
            <Button Content="Cancel" Click="Cancel_Click" Margin="5"/>
        </WrapPanel>
    </Grid>
</PageFunction>

View Code

RegisterUserPage.xaml.cs

public partial class RegisterUserPage : PageFunction<User>
{
private bool isLoad;
public string RestoredContentState;

public static DependencyProperty FocusElementProperty;
public string FocusElement
{
    get { return (string)base.GetValue(RegisterUserPage.FocusElementProperty); }
    set { base.SetValue(RegisterUserPage.FocusElementProperty, value); }
}

public RegisterUserPage()
{
    if (RegisterUserPage.FocusElementProperty == null)
    {
        RegisterUserPage.FocusElementProperty = DependencyProperty.Register(
            "FocusElement",
            typeof(string),
            typeof(RegisterUserPage),
            new FrameworkPropertyMetadata(null, FrameworkPropertyMetadataOptions.Journal));
    }
    InitializeComponent();
    isLoad = true;
}

public RegisterUserPage(bool isLoad)
    :this()
{
    this.isLoad = isLoad;
}

private void Cancel_Click(object sender, RoutedEventArgs e)
{
    OnReturn(null);
}

private void Ok_Click(object sender, RoutedEventArgs e)
{
    User user = CreateUser();
    if (user == null)
        return;
    else
    {
        OnReturn(new ReturnEventArgs<User>(user));
    }
}

private void Remove_Click(object sender, RoutedEventArgs e)
{
    if (list2.SelectedIndex != -1)
    {
        NavigationService service = NavigationService.GetNavigationService(this);
        string itemText = list2.SelectedItem.ToString();
        string journalName = "Remove " + itemText;
        service.AddBackEntry(GetJournalEntry(journalName));

        list2.Items.Remove(itemText);
        list1.Items.Add(itemText);
    }
}

private void Add_Click(object sender, RoutedEventArgs e)
{
    if (list1.SelectedIndex != -1)
    {
        NavigationService service = NavigationService.GetNavigationService(this);
        string itemText = list1.SelectedItem.ToString();
        string journalName = "Add " + itemText;
        service.AddBackEntry(GetJournalEntry(journalName));

        list2.Items.Add(itemText);
        list1.Items.Remove(itemText);
    }
}

private User CreateUser()
{
    var username = this.username.Text;
    var password = this.password1.Password.Equals(this.password2.Password) ? this.password1.Password : string.Empty;
    if (string.IsNullOrEmpty(password))
    {
        ErrorPage page = new ErrorPage();
        page.ErrorInfo.Text = "The two passwords you typed do not match,";
        this.NavigationService.Navigate(page);
        return null;
    }

    User user = new User(username, password);
    List<string> favColors = new List<string>();
    foreach (string item in list2.Items)
    {
        favColors.Add(item);
    }
    user.FavColors = favColors;
    return user;
}

private void Page_Loaded(object sender, RoutedEventArgs e)
{
    if (isLoad)
    {
        LoadList();
    }
    if (this.FocusElement != null)
    {
        IInputElement element = (IInputElement)LogicalTreeHelper.FindLogicalNode(this, this.FocusElement);
        Keyboard.Focus(element);
    }
}

private void LoadList()
{
    list1.Items.Add("Red");
    list1.Items.Add("Green");
    list1.Items.Add("Blue");
    list1.Items.Add("Yellow");
    list1.Items.Add("Orange");
    list1.Items.Add("Pink");
    list1.Items.Add("Black");
}

public CustomContentState GetContentState()
{
    string journal;

    if (!string.IsNullOrEmpty(RestoredContentState))
    {
        journal = RestoredContentState;
    }
    else
    {
        journal = "RegisterUserPage";
    }
    return GetJournalEntry(journal);
}

private ListSelectionJournalEntry GetJournalEntry(string journalName)
{
    List<string> source = GetListState(list1);
    List<string> target = GetListState(list2);

    return new ListSelectionJournalEntry(source, target, journalName);
}

private List<string> GetListState(ListBox list)
{
    List<string> items = new List<string>();
    foreach (string item in list.Items)
    {
        items.Add(item);
    }
    return items;
}

private void Page_PreviewLostKeyboardFocus(object sender, KeyboardFocusChangedEventArgs e)
{
    if (e.NewFocus == this.username)
    {
        this.FocusElement = (string)((DependencyObject)e.NewFocus).GetValue(FrameworkElement.NameProperty);
    }
    else if (e.NewFocus == this.password1 || e.NewFocus == this.password2)
    {
        this.FocusElement = (string)((DependencyObject)this.password1).GetValue(FrameworkElement.NameProperty);
    }
}

View Code





如果注册失败，导航到ErrorPage后返回，Username信息保留，其他信息丢失

采用另一种方法代替依赖属性保留页面状态，



构建一个类保存两个ListBox中的信息，继承自CustomContentState

[Serializable()]
public class ListSelectionJournalEntry : CustomContentState
{
    private List<string> sourceItems;
    public List<string> SourceItems
    {
        get { return this.sourceItems; }
    }

    private List<string> targetItems;
    public List<string> TargetItems
    {
        get { return this.targetItems; }
    }

    private string journalEntryName;
    public override string JournalEntryName
    {
        get
        {
            return journalEntryName;
        }
    }

    public ListSelectionJournalEntry(List<string> source, List<string> target, string journalName)
    {
        this.sourceItems = source;
        this.targetItems = target;
        this.journalEntryName = journalName;
    }
}

View Code



 在GetContentState中返回一个保存两个ListBox状态的ListSelectionJournalEntry，通过AddBackEntry方法记录添加和移除按钮的事件



 设计一个GetPasswordPage

<Grid Margin="5">
    <Grid.RowDefinitions>
        <RowDefinition Height="35" />
        <RowDefinition Height="35" />
        <RowDefinition Height="Auto" />
        <RowDefinition />
        <RowDefinition />
    </Grid.RowDefinitions>
    <Grid.ColumnDefinitions>
        <ColumnDefinition />
        <ColumnDefinition />
        <ColumnDefinition />
    </Grid.ColumnDefinitions>
    <TextBlock Text="Username" Grid.Row="0" Grid.Column="0" Margin="5" VerticalAlignment="Center" />
    <TextBox x:Name="username" Grid.Row="0" Grid.Column="1" Grid.ColumnSpan="2" Margin="5" VerticalAlignment="Center" Height="20"/>
    <TextBlock Grid.Row="1" Grid.ColumnSpan="3" Text="Security Question: What is your favourite color?" Margin="5" />

    <ListBox Grid.Row="2" Grid.Column="0" Margin="5"  BorderBrush="AliceBlue" BorderThickness="1" x:Name="list1" Height="150" />
    <Grid Grid.Row="2" Grid.Column="1">
        <Grid.RowDefinitions>
            <RowDefinition />
            <RowDefinition />
        </Grid.RowDefinitions>
        <Button Grid.Row="0" x:Name="addBtn" Content="Add" Margin="5" Click="Add_Click" Height="30" />
        <Button Grid.Row="1" x:Name="removeBtn" Content="Remove" Margin="5" Click="Remove_Click" Height="30" />
    </Grid>
    <ListBox Grid.Row="2" Grid.Column="2" Margin="5" BorderBrush="AliceBlue" BorderThickness="1" x:Name="list2" Height="150" />
    <TextBlock Grid.Row="3" Text="Result" Margin="5" />
    <Label x:Name="result" Grid.Row="3" Grid.Column="1" Grid.ColumnSpan="2" Margin="5" VerticalAlignment="Center" Height="20"/>
    <Button Grid.Row="4" Grid.Column="1" Margin="5" Content="Get Password" Click="Get_Click" />
    <Button Grid.Row="4" Grid.Column="2" Margin="5" Content="Return" Click="Return_Click" />
</Grid>

View Code

代码实现参考其他页面~













To be continue...
