achartengine做平行线的时候经常会遇到:

java.lang.IndexOutOfBoundsException: Invalid index 1, size is 1

at java.util.ArrayList.throwIndexOutOfBoundsException(ArrayList.java:251)

at org.achartengine.renderer.DefaultRenderer.getSeriesRendererAt(DefaultRenderer.java:189)

at org.achartengine.chart.XYChart.draw(XYChart.java:240)

at org.achartengine.GraphicalView.onDraw(GraphicalView.java:168)

最后在stackoverflow找到了答案：1个数据就要用一个XYSeriesRenderer 所以两条平行线就要用2个XYSeriesRenderer

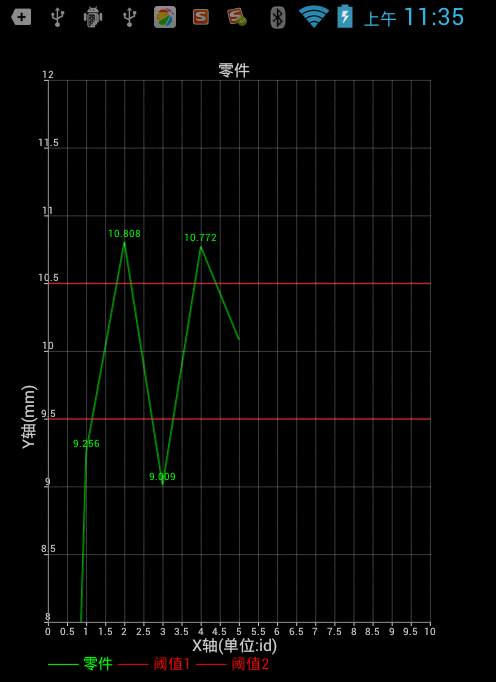

最后效果图:

  1 package com.example.achartparallel;
  2
  3
  4 import com.example.achartparallel.XYRenderer;
  5
  6
  7 import java.math.BigDecimal;
  8 import java.text.DecimalFormat;
  9
 10 import org.achartengine.ChartFactory;
 11 import org.achartengine.GraphicalView;
 12 import org.achartengine.chart.PointStyle;
 13 import org.achartengine.model.XYMultipleSeriesDataset;
 14 import org.achartengine.model.XYSeries;
 15 import org.achartengine.renderer.XYMultipleSeriesRenderer;
 16 import org.achartengine.renderer.XYSeriesRenderer;
 17
 18
 19 import android.app.Activity;
 20 import android.app.AlertDialog;
 21 import android.content.Context;
 22 import android.content.DialogInterface;
 23 import android.content.Intent;
 24 import android.graphics.Color;
 25 import android.os.Bundle;
 26 import android.os.Handler;
 27 import android.os.Message;
 28 import android.view.LayoutInflater;
 29 import android.view.Menu;
 30 import android.view.MenuItem;
 31 import android.view.View;
 32 import android.view.View.OnClickListener;
 33 import android.view.ViewGroup.LayoutParams;
 34 import android.view.Window;
 35 import android.view.WindowManager;
 36 import android.widget.Button;
 37 import android.widget.EditText;
 38 import android.widget.LinearLayout;
 39 import android.widget.TextView;
 40 import android.widget.Toast;
 41
 42 public class MainActivity extends Activity {
 43
 44
 45     private XYSeries xyseries;//数据
 46     private XYSeries xyseries_up;//上平行线
 47     private XYSeries xyseries_down;//下平行线
 48     private XYMultipleSeriesDataset dataset;
 49     private GraphicalView chartview;
 50     private XYMultipleSeriesRenderer renderer;
 51     private XYSeriesRenderer datarenderer;
 52     private XYSeriesRenderer datarenderer_up;
 53     private XYSeriesRenderer datarenderer_down;
 54     private Context context;
 55
 56     int i=0;
 57     Thread t;
 58     private int addX ;
 59     private double addY ;
 60     int X_MAX=10;//x轴最大值
 61
 62     //标准和阈值
 63     double value=10 ;//平行线中间值
 64     double bound=0.5;//上下限 可以自己随意设定
 65     protected void onCreate(Bundle savedInstanceState) {
 66         super.onCreate(savedInstanceState);
 67         requestWindowFeature(Window.FEATURE_NO_TITLE); //无title
 68         setContentView(R.layout.activity_main);
 69         LinearLayout chart_layout1 = (LinearLayout)findViewById(R.id.chart_layout1);
 70         chart_layout1.setBackgroundColor(Color.BLACK);
 71
 72
 73          //No.1 设定大渲染器的属性 太多了 所以写了个类
 74         renderer=new XYRenderer("零件", "X轴(单位:id)", "Y轴(mm)",
 75                 0,X_MAX, -1, 1, Color.GRAY, Color.LTGRAY,
 76                 16,16,10,15,20,10,true);
 77         dataset=new XYMultipleSeriesDataset();
 78         datarenderer=new XYSeriesRenderer();
 79         datarenderer.setDisplayChartValues(true);
 80         xyseries=new XYSeries("零件");
 81         //2
 82         xyseries.add(0, 0);//先输入一个数据让它绘出renderer
 83         //3
 84         dataset.addSeries(0,xyseries);
 85         datarenderer.setColor(Color.GREEN);
 86         datarenderer.setPointStyle(PointStyle.POINT);
 87         //4
 88         renderer.addSeriesRenderer(datarenderer);
 89
 90         //5
 91         context = getApplicationContext();
 92         chartview = ChartFactory.getLineChartView(context, dataset, renderer);
 93         chart_layout1.addView(chartview, new LayoutParams(LayoutParams.FILL_PARENT, LayoutParams.FILL_PARENT));
 94
 95         //设置按钮 用来记录尺寸的标准(value)和阈值(bound),然后再主界面显示出红线
 96
 97                         //绘出两条红线 分别用新的XYSeriesRenderer要不然会报错
 98                         xyseries_up=new XYSeries("阈值1");
 99                         xyseries_down=new XYSeries("阈值2");
100                         xyseries_up.add(0 , value+bound);
101                         xyseries_up.add(X_MAX*2, value+bound);
102                         xyseries_down.add(0, value-bound);
103                         xyseries_down.add(X_MAX*2,value-bound);
104                         dataset.addSeries(1,xyseries_up);
105                         dataset.addSeries(2,xyseries_down);
106                         datarenderer_up = new XYSeriesRenderer();
107                         datarenderer_down = new XYSeriesRenderer();
108                         datarenderer_up.setColor(Color.RED);
109                         datarenderer_down=datarenderer_up;
110                         renderer.addSeriesRenderer(datarenderer_up);
111                         renderer.addSeriesRenderer(datarenderer_down);
112                         renderer.setYAxisMin(value-(4*bound));// Y最小值
113                         renderer.setYAxisMax(value+(4*bound));// Y最小值
114                         //设置chart的视图范围  参数//1x->start 2max 3y->start 4max
115                         renderer.setRange(new double[]{0d, (double)X_MAX, value-(4*bound), value+(4*bound)});
116                       //  chartview.repaint();
117
118
119
120
121
122
123
124
125          t=new Thread (r1);
126              t.start();
127
128     }//oncreate end
129
130     //handler处理UI更新
131     Handler myhandler=new Handler()
132     {
133
134         @Override
135         public void handleMessage(Message msg) {
136             super.handleMessage(msg);
135　　　　　　　　//可以处理些数据
142              chartview.repaint();
143         }
144
145
146     };
147
148
149         Runnable r1=new Runnable() {
150             BigDecimal b;
151
152         public void run(){
153             try {
154                 while(true)
155                 {
156                 i++;
157                 Thread.sleep(500);
158                 addX = i;
159                  //设置好下一个需要增加的节点 随机产生 在value+-bound左右
160                 b =new BigDecimal(((Math.random())*bound*4)-(2*bound));  //转换
161                 addY=b.setScale(3, BigDecimal.ROUND_HALF_UP).doubleValue();
162                 //double+double再转一次
163                 b =new BigDecimal(addY+value); //保留三位小数 四舍五入
164                 addY=b.setScale(3, BigDecimal.ROUND_HALF_UP).doubleValue();
165
166                 //传给hanlder
167                  Message message=new Message();
168                  Bundle bundle=new Bundle();
169                  bundle.putString("part_id1", "编号:"+addX);
170                  bundle.putString("part_size1", "尺寸:"+addY);
171                  message.setData(bundle);//bundle传值，耗时，效率低
172                  myhandler.sendMessage(message);//发送message信息
173                  message.what=1;//标志是哪个线程传数据
174
175
176                  //步骤不能变 1先清除数据 2添加源数据 3添加数据
177                  dataset.removeSeries(xyseries);
178                  xyseries.add(addX, addY);
179                  dataset.addSeries(0,xyseries);
180                  //chartview.repaint();
181                  chartview.postInvalidate();
182
183
184                  if(i*2>X_MAX)//延长X_MAX造成右移效果
185                  {
186                      X_MAX*=2;//按2倍速度延长 可以设置成speed
187                      renderer.setXAxisMax(X_MAX);// 设置X最大值
188                      dataset.removeSeries(xyseries_up);
189                      dataset.removeSeries(xyseries_down);
190                      xyseries_up.add(X_MAX/2 , value+bound);
191                      xyseries_up.add(X_MAX, value+bound);
192                      xyseries_down.add(X_MAX/2, value-bound);
193                      xyseries_down.add(X_MAX,value-bound);
194                      dataset.addSeries(1,xyseries_up);
195                      dataset.addSeries(2,xyseries_down);
196 //                     datarenderer_up = new XYSeriesRenderer();
197 //                     datarenderer_down = new XYSeriesRenderer();
198 //                     datarenderer_up.setColor(Color.RED);
199 //                     datarenderer_down=datarenderer_up;
200                      renderer.addSeriesRenderer(datarenderer_up);
201                      renderer.addSeriesRenderer(datarenderer_down);
202                  }
203
204
205                 }
206             } catch (InterruptedException e) {
207                 e.printStackTrace();
208             }
209
210          }
211         };
212         @Override
213         protected void onDestroy() {
214             t.interrupt();
215             System.out.println("destory");
216             super.onDestroy();
217         }
218
219
220 }

 1 package com.example.achartparallel;
 2
 3 import org.achartengine.renderer.XYMultipleSeriesRenderer;
 4
 5 public class XYRenderer extends XYMultipleSeriesRenderer
 6 {
 7     //图表样式构造器
 8     public XYRenderer()
 9     {
10
11     }
12     public XYRenderer(
13             String title, String xTitle, String yTitle, double xMin,
14             double xMax, double yMin, double yMax, int axesColor,
15             int labelsColor,int XTitleTextSize,int ChartTitleTextSize,
16             int LabelsTextSize,int LegendTextSize,int Xshow,int Yshow,
17             boolean ShowGrid)
18     {
19         this.setChartTitle(title);
20         this.setXTitle(xTitle);// X轴标题
21         this.setYTitle(yTitle);// Y轴标题
22         this.setXAxisMin(xMin);// X最小值
23         this.setXAxisMax(xMax);// X最大值
24         this.setYAxisMin(yMin);// Y最小值
25         this.setYAxisMax(yMax);// Y最小值
26         this.setAxesColor(axesColor);// X轴颜色
27         this.setLabelsColor(labelsColor);// Y轴颜色
28         this.setAxisTitleTextSize(XTitleTextSize); // 坐标轴标题字体大小：16
29         this.setChartTitleTextSize(ChartTitleTextSize); // 图表标题字体大小：20
30         this.setLabelsTextSize(LabelsTextSize); // 轴标签字体大小：10
31         this.setLegendTextSize(LegendTextSize); // 图例字体大小：15
32         this.setXLabels(Xshow);//设置X轴显示的刻度标签的个数
33         this.setYLabels(Yshow);//设置Y轴显示的刻度标签的个数
34         this.setShowGrid(ShowGrid); // 设置网格显示
35
36
37     }
38
39 }

 1  <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
