声明：试验环境，不与实际开发，勿混淆。（否则，责任自负）

第一步，构建服务。

新建 “WCF服务库项目”

IBasicMath.cs代码如下（别忘了添加引用了！）

 1 using System;
 2 using System.Runtime.Serialization;
 3 using System.ServiceModel;
 4
 5 namespace MathServiceLibrary
 6 {
 7     [ServiceContract(Namespace="www.Intertech.com")]
 8     public interface IBasicMath
 9     {
10         [OperationContract]
11         int Add(int x, int y);
12     }
13 }

MathService.cs代码如下

 1 using System;
 2 using System.Runtime.Serialization;
 3 using System.ServiceModel;
 4
 5 namespace MathServiceLibrary
 6 {
 7     public class MathService : IBasicMath
 8     {
 9
10         public int Add(int x, int y)
11         {
12             return x + y;
13         }
14     }
15 }

App.config代码如下（它应该会自动创建的...）

logs_code_hide('1554e0fa-5f6e-4560-bb61-09343e51abe8',event)" src="/Upload/Images/2014052310/2B1B950FA3DF188F.gif" alt="" />

 1 <?xml version="1.0" encoding="utf-8" ?>
 2 <configuration>
 3
 4   <appSettings>
 5     <add key="aspnet:UseTaskFriendlySynchronizationContext" value="true" />
 6   </appSettings>
 7   <system.web>
 8     <compilation debug="true" />
 9   </system.web>
10   <system.serviceModel>
11     <services>
12       <service name="MathServiceLibrary.MathService">
13         <endpoint address="" binding="wsHttpBinding" bindingConfiguration=""
14           contract="MathServiceLibrary.IBasicMath">
15           <identity>
16             <dns value="localhost" />
17           </identity>
18         </endpoint>
19         <endpoint address="mex" binding="mexHttpBinding" contract="IMetadataExchange" />
20         <host>
21           <baseAddresses>
22             <add baseAddress="http://localhost:8733/Design_Time_Addresses/MathServiceLibrary/Service1/" />
23           </baseAddresses>
24         </host>
25       </service>
26     </services>
27     <behaviors>
28       <serviceBehaviors>
29         <behavior>
30           <serviceMetadata httpGetEnabled="True" httpsGetEnabled="True"/>
31           <serviceDebug includeExceptionDetailInFaults="False" />
32         </behavior>
33       </serviceBehaviors>
34     </behaviors>
35   </system.serviceModel>
36
37 </configuration>

View Code

然后，生成。

第二步，使用 Windows 承载 WCF 服务

 新建 “Windows服务” 项目

MathWinService 代码如下

 1 using System;
 2 using System.ServiceProcess;
 3 using MathServiceLibrary;
 4 using System.ServiceModel;
 5
 6 namespace MathWindowsServiceHost
 7 {
 8     public partial class MathWinService : ServiceBase
 9     {
10         private ServiceHost myHost;
11         public MathWinService()
12         {
13             InitializeComponent();
14         }
15
16         protected override void OnStart(string[] args)
17         {
18             //确保安全
19             if (myHost != null) {
20                 myHost.Close();
21                 myHost = null;
22             }
23             //创建宿主
24             myHost = new ServiceHost(typeof(MathService));
25             //ABC
26             Uri address = new Uri("http://localhost:8080/MathServiceLibrary");
27             WSHttpBinding binding = new WSHttpBinding();
28             Type contract = typeof(IBasicMath);
29             //增加端点
30             myHost.AddServiceEndpoint(contract, binding, address);
31             //打开宿主
32             myHost.Open();
33         }
34
35         protected override void OnStop()
36         {
37             //关闭宿主
38             if (myHost != null)
39                 myHost.Close();
40         }
41     }
42 }

MathWinService.cs

App.config 代码如下

 1 <?xml version="1.0" encoding="utf-8" ?>
 2 <configuration>
 3     <startup>
 4         <supportedRuntime version="v4.0" sku=".NETFramework,Version=v4.5" />
 5     </startup>
 6   <system.serviceModel>
 7     <services>
 8       <service name="MathServiceLibrary.MathService"
 9                behaviorConfiguration ="MathServiceMEXBehavior">
10         <endpoint address="mex"
11                   binding="mexHttpBinding"
12                   contract="IMetadataExchange"/>
13         <host>
14           <baseAddresses>
15             <add baseAddress="http://localhost:8080/MathService"/>
16           </baseAddresses>
17         </host>
18       </service>
19     </services>
20
21     <behaviors>
22       <serviceBehaviors>
23         <behavior name="MathServiceMEXBehavior">
24           <serviceMetadata httpGetEnabled="true"/>
25         </behavior>
26       </serviceBehaviors>
27     </behaviors>
28   </system.serviceModel>
29 </configuration>

App.config

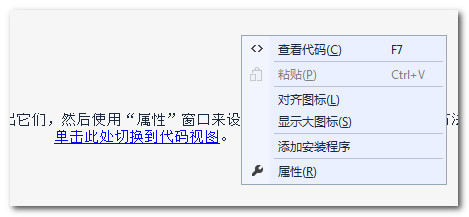

然后打开设计器，右键 “添加安装程序”

此时，窗体上应该会出现两个组件

第一个表示windows服务的类型，比如 Account 属性，指明了运行此服务的账户类型。 此处改为 “LocalSystem”

第二个表示此服务的类型，比如 ServiceName 属性，指明了 “服务名”， Description 指明了 “服务介绍”。生成它

最后，安装服务

找到 MathWindowsServiceHost.exe

使用开发人员命令提示： installutil MathWindowsServiceHost.exe

如果安装成功，服务里面就可以看到了

第三步，消费此服务

新建 “MathClient” 项目

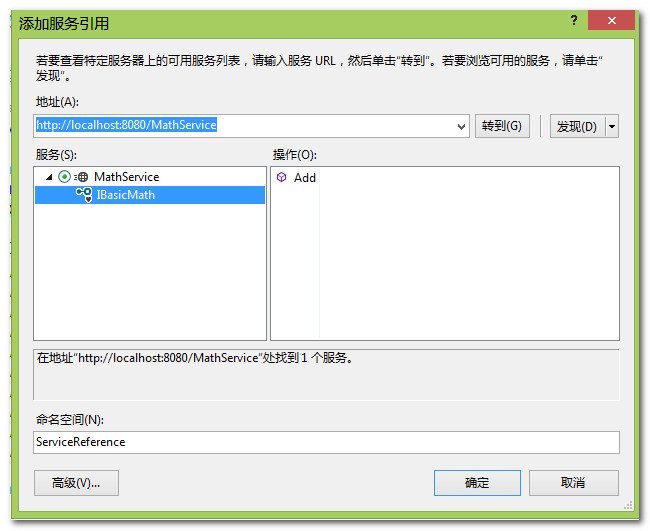

添加服务引用

Program.cs代码如下

 1 using System;
 2 using MathClient.ServiceReference;
 3
 4 namespace MathClient
 5 {
 6     class Program
 7     {
 8         static void Main(string[] args)
 9         {
10             Console.WriteLine("******* It's a new Day ! ********");
11             using (BasicMathClient proxy = new BasicMathClient()) {
12                 proxy.Open();
13                 Console.WriteLine("2 + 3 = {0}",proxy.Add(2, 3));
14             }
15             Console.ReadLine();
16         }
17     }
18 }

Program.cs

如果你的服务已经运行的话，那么启动它吧！
