模板中的 TemplateBinding 问题

 2014/4/17 16:16:47  段博琼  博客园  我要评论(0)
  • 摘要:昨天一个朋友向我求助一个自定义水印控件绑定的问题,问题出在文本框中输入的文本,不能绑定到相应的依赖属性上(自定义的依赖属性PassText),他纠结了很久找不出问题所在。问题帮他解决后,这里稍做总结。朋友有问题的文本框代码下载问题描述:1)默认显示效果:2)在“水印密码框”中输入四个‘a’:3)单击按钮,打印出密码框中的字符串,但是密码框中的文字并没有显示,显示的还是定义依赖属性时的默认值:他的部分源代码:1)密码框控件类继承自TextBox
  • 标签:模板 问题



昨天一个朋友向我求助一个自定义水印控件绑定的问题,问题出在文本框中输入的文本,不能绑定到

相应的依赖属性上(自定义的依赖属性 PassText),他纠结了很久找不出问题所在。问题帮他解决后,这里稍

做总结。



朋友有问题的文本框代码下载

问题描述:

1)默认显示效果:

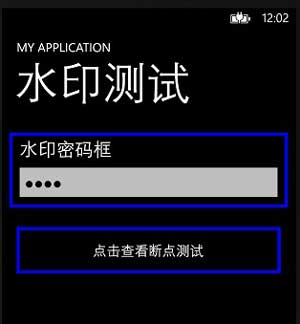

2)在“水印密码框”中输入四个 ‘a’:

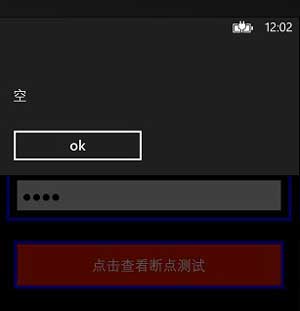

3)单击按钮,打印出密码框中的字符串,但是密码框中的文字并没有显示,显示的还是定义依赖属性时

的默认值:



他的部分源代码:

1)密码框控件类继承自 TextBox ,其中依赖属性 PassText 为绑定到密码框的属性:

class="code_img_closed" src="/Upload/Images/2014041716/0015B68B3C38AA5B.gif" alt="" />logs_code_hide('047b779e-1caa-43c7-9c13-d8e6e3ded0b0',event)" src="/Upload/Images/2014041716/2B1B950FA3DF188F.gif" alt="" />
public class WaterPasswordBox : TextBox
    {
        public static readonly DependencyProperty PassTextProperty = DependencyProperty.Register(
          "PassText", typeof( string ), typeof( WaterPasswordBox ), new PropertyMetadata( "" ) );

        public string PassText
        {
            get { return (string)GetValue( PassTextProperty ); }
            set { SetValue( PassTextProperty, value ); }
        }

        public static DependencyProperty WaterContentProprty = DependencyProperty.Register("WaterContent", typeof(object), typeof(WaterPasswordBox), new PropertyMetadata("水印密码框"));

        public object WaterContent
        {
            get
            {
                return GetValue(WaterContentProprty);
            }

            set
            {
                SetValue(WaterContentProprty, value);
            }
        }

        public static DependencyProperty WaterForegroundProprty = DependencyProperty.Register("WaterForeground", typeof(Brush), typeof(WaterPasswordBox), new PropertyMetadata(new SolidColorBrush(Colors.Gray)));

        public Brush WaterForeground
        {
            get
            {
                return (Brush)GetValue(WaterForegroundProprty);
            }

            set
            {
                SetValue(WaterForegroundProprty, value);
            }
        }

        public WaterPasswordBox()
        {
            DefaultStyleKey = typeof(WaterPasswordBox);
        }

        ContentControl WaterContentElement = null;
        PasswordBox PasswordBoxElement = null;

        public override void OnApplyTemplate()
        {
            base.OnApplyTemplate();
            WaterContentElement = this.GetTemplateChild("WaterCoElement") as ContentControl;
            PasswordBoxElement = this.GetTemplateChild("ContentElement") as PasswordBox;
            if (WaterContentElement != null && PasswordBoxElement != null)
            {
                if (string.IsNullOrEmpty(PasswordBoxElement.Password))
                    WaterContentElement.Visibility = System.Windows.Visibility.Visible;

                else
                    WaterContentElement.Visibility = System.Windows.Visibility.Collapsed;
            }
        }

        protected override void OnGotFocus(RoutedEventArgs e)
        {
            if (WaterContentElement != null && string.IsNullOrEmpty(PasswordBoxElement.Password))
                WaterContentElement.Visibility = Visibility.Collapsed;
            base.OnGotFocus(e);
        }

     //   public event TextChangedEventHandler TextChanged +=   ;
        protected override void OnLostFocus(RoutedEventArgs e)
        {

            if (WaterContentElement != null && string.IsNullOrEmpty(PasswordBoxElement.Password))
                WaterContentElement.Visibility = Visibility.Visible;
            base.OnLostFocus(e);
        }
    }
View Code


2)在 Generic.xaml 文件中定义该控件的样式:

<ResourceDictionary
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:local="clr-namespace:WaterTextBox"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d">

    <ControlTemplate x:Key="PhoneDisabledTextBoxTemplate" TargetType="TextBox">
        <ContentControl x:Name="ContentElement" BorderThickness="0" HorizontalContentAlignment="Stretch" Margin="{StaticResource PhoneTextBoxInnerMargin}" Padding="{TemplateBinding Padding}" VerticalContentAlignment="Stretch"/>
    </ControlTemplate>

    <Style TargetType="local:WaterPasswordBox">
        <Setter Property="FontFamily" Value="{StaticResource PhoneFontFamilyNormal}"/>
        <Setter Property="FontSize" Value="{StaticResource PhoneFontSizeMediumLarge}"/>
        <Setter Property="Background" Value="{StaticResource PhoneTextBoxBrush}"/>
        <Setter Property="Foreground" Value="{StaticResource PhoneTextBoxForegroundBrush}"/>
        <Setter Property="BorderBrush" Value="{StaticResource PhoneTextBoxBrush}"/>
        <Setter Property="SelectionBackground" Value="{StaticResource PhoneAccentBrush}"/>
        <Setter Property="SelectionForeground" Value="{StaticResource PhoneTextBoxSelectionForegroundBrush}"/>
        <Setter Property="BorderThickness" Value="{StaticResource PhoneBorderThickness}"/>
        <Setter Property="Padding" Value="2"/>

        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate TargetType="local:WaterPasswordBox">
                    <Grid Background="Transparent">
                        <VisualStateManager.VisualStateGroups>
                            <VisualStateGroup x:Name="CommonStates">
                                <VisualState x:Name="Normal"/>
                                <VisualState x:Name="MouseOver"/>
                                <VisualState x:Name="Disabled">
                                    <Storyboard>
                                        <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="EnabledBorder">
                                            <DiscreteObjectKeyFrame KeyTime="0">
                                                <DiscreteObjectKeyFrame.Value>
                                                    <Visibility>Collapsed</Visibility>
                                                </DiscreteObjectKeyFrame.Value>
                                            </DiscreteObjectKeyFrame>
                                        </ObjectAnimationUsingKeyFrames>
                                        <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="DisabledOrReadonlyBorder">
                                            <DiscreteObjectKeyFrame KeyTime="0">
                                                <DiscreteObjectKeyFrame.Value>
                                                    <Visibility>Visible</Visibility>
                                                </DiscreteObjectKeyFrame.Value>
                                            </DiscreteObjectKeyFrame>
                                        </ObjectAnimationUsingKeyFrames>
                                    </Storyboard>
                                </VisualState>
                                <VisualState x:Name="ReadOnly">
                                    <Storyboard>
                                        <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="EnabledBorder">
                                            <DiscreteObjectKeyFrame KeyTime="0">
                                                <DiscreteObjectKeyFrame.Value>
                                                    <Visibility>Collapsed</Visibility>
                                                </DiscreteObjectKeyFrame.Value>
                                            </DiscreteObjectKeyFrame>
                                        </ObjectAnimationUsingKeyFrames>
                                        <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="DisabledOrReadonlyBorder">
                                            <DiscreteObjectKeyFrame KeyTime="0">
                                                <DiscreteObjectKeyFrame.Value>
                                                    <Visibility>Visible</Visibility>
                                                </DiscreteObjectKeyFrame.Value>
                                            </DiscreteObjectKeyFrame>
                                        </ObjectAnimationUsingKeyFrames>
                                        <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Background" Storyboard.TargetName="DisabledOrReadonlyBorder">
                                            <DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource PhoneTextBoxBrush}"/>
                                        </ObjectAnimationUsingKeyFrames>
                                        <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="BorderBrush" Storyboard.TargetName="DisabledOrReadonlyBorder">
                                            <DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource PhoneTextBoxBrush}"/>
                                        </ObjectAnimationUsingKeyFrames>
                                        <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Foreground" Storyboard.TargetName="DisabledOrReadonlyContent">
                                            <DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource PhoneTextBoxReadOnlyBrush}"/>
                                        </ObjectAnimationUsingKeyFrames>
                                    </Storyboard>
                                </VisualState>
                            </VisualStateGroup>
                            <VisualStateGroup x:Name="FocusStates">
                                <VisualState x:Name="Focused">
                                    <Storyboard>
                                        <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Background" Storyboard.TargetName="EnabledBorder">
                                            <DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource PhoneTextBoxEditBackgroundBrush}"/>
                                        </ObjectAnimationUsingKeyFrames>
                                        <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="BorderBrush" Storyboard.TargetName="EnabledBorder">
                                            <DiscreteObjectKeyFrame KeyTime="0" Value="{StaticResource PhoneTextBoxEditBorderBrush}"/>
                                        </ObjectAnimationUsingKeyFrames>
                                    </Storyboard>
                                </VisualState>
                                <VisualState x:Name="Unfocused"/>
                            </VisualStateGroup>
                        </VisualStateManager.VisualStateGroups>
                        <Border x:Name="EnabledBorder" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" Background="{TemplateBinding Background}" Margin="{StaticResource PhoneTouchTargetOverhang}">
                            <Grid>
                                <ContentControl x:Name="WaterCoElement" Content="{TemplateBinding WaterContent}" FontStyle="Normal" Foreground="{TemplateBinding WaterForeground}" Margin="{StaticResource PhoneTextBoxInnerMargin}" d:LayoutOverrides="Height" Padding="{TemplateBinding Padding}" HorizontalContentAlignment="Stretch" VerticalContentAlignment="Stretch"/>
                                <!--重点这里的 Password="{Binding PassText}"绑定不了-->
                                <PasswordBox x:Name="ContentElement"  Password="{Binding PassText}" Background="{Binding Background}" BorderThickness="0" HorizontalContentAlignment="Stretch" Margin="-12" Padding="{TemplateBinding Padding}" VerticalContentAlignment="Stretch"/>
                            </Grid>
                        </Border>
                        <Border x:Name="DisabledOrReadonlyBorder" BorderBrush="{StaticResource PhoneDisabledBrush}" BorderThickness="{TemplateBinding BorderThickness}" Background="Transparent" Margin="{StaticResource PhoneTouchTargetOverhang}" Visibility="Collapsed">
                            <TextBox x:Name="DisabledOrReadonlyContent" Background="Transparent" Foreground="{StaticResource PhoneDisabledBrush}" FontWeight="{TemplateBinding FontWeight}" FontStyle="{TemplateBinding FontStyle}" FontSize="{TemplateBinding FontSize}" FontFamily="{TemplateBinding FontFamily}" IsReadOnly="True" SelectionForeground="{TemplateBinding SelectionForeground}" SelectionBackground="{TemplateBinding SelectionBackground}" TextAlignment="{TemplateBinding TextAlignment}" TextWrapping="{TemplateBinding TextWrapping}" Text="{TemplateBinding Text}" Template="{StaticResource PhoneDisabledTextBoxTemplate}"/>
                        </Border>
                    </Grid>
                </ControlTemplate>
            </Setter.Value>
        </Setter>
    </Style>

</ResourceDictionary>
View Code



 3)在引用该控件的页面中,添加该控件:

<Border BorderBrush="Blue" BorderThickness="5" Margin="0,10">
    <StackPanel>
        <TextBlock FontSize="30" Text="水印密码框" Margin="12,0"/>
        <my:WaterPasswordBox Name="WaterPasswordBox" />
    </StackPanel>
</Border>

<Button BorderBrush="Blue" Tap="UIElement_OnTap" BorderThickness="5" Margin="0,10" Height="100">
 点击查看断点测试
</Button>


4)按钮的 Tap 路由事件:

private void UIElement_OnTap(object sender, GestureEventArgs e)
{
    string temp = WaterPasswordBox.PassText.ToString();

    MessageBox.Show(temp);
}


之所以在密码框中输入的文本没有最终传递到 PassText 这个依赖属性上,是因为 TemplateBinding

为 Binding 的单向绑定形式,也就是 依赖属性 PassText 的默认值 “空” 可以绑定到 样式控件里面的

PasswordBox 控件的 Password 属性上,但是 不能反向绑定。

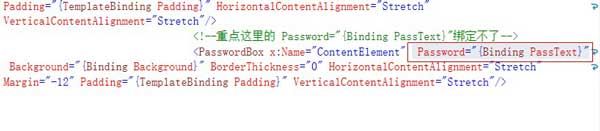

截图:

其中 msdn 对 TemplateBinding 的描述:



“您在模板中使用 TemplateBinding 绑定到模板所应用到的控件的值。  has less functionality.">

TemplateBinding   Binding 有效,但较少功能。  使用 TemplateBinding 使用与 RelativeSource 属性的 Binding 等效设置为

RelativeSource.TemplatedParent  ”



 “TemplateBindingBinding的一个轻量级版本,它失去了成熟版本Binding的很多功能,比如继承内容引用(inheritence context referencing),

RelativeSource引用,还有通过IValueConverter/TypeConverter机制的动态类型转换。它仅支持由模板产生的FrameworkElements,它的数据源引

用会指向模板中的父级元素。TemplateBinding最主要的用途是内置在模板中绑定模板化元素的属性,在这种情况下,比起成熟Binding效率要高得多。”



也就是:

<PasswordBox  Password="{TemplateBinding PassText}"/>

等价于:

<PasswordBox  Password="{Binding Path=PassText, Mode=OneWay, RelativeSource={RelativeSource TemplatedParent}}"/>

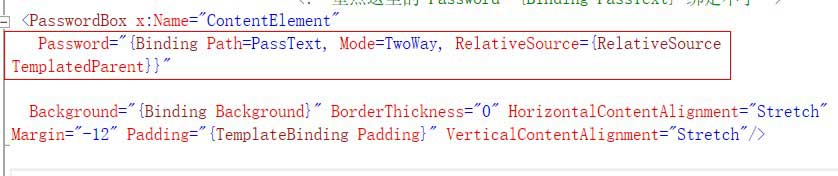

这时,把自定义密码框样式中的 PasswordBox 控件的绑定中,把 Binding 的设置 Mode=OneWay 改成 Mode=TwoWay,就可以实现双向绑定了,

截图:



此时虽然完成了双向绑定,但是遇到另一个问题,如果在自定义密码框中输入文本后,立即点击按钮时,弹出框

中显示的还是自定义密码框中之前绑定属性值;如果在填写完成自定义密码框后,单击屏幕其它地方,让密码框

失去焦点,然后再单击按钮,就能显示正确的内容了。



造成这个问题的原因,是因为 这里注册的是按钮的 Tap 这个路由事件,而它的执行时间要早于文本框 LostFocus

事件。这里再为按钮添加一个 Click 事件,为 自定义密码框控件添加一个 LostFocus 事件,同是在 C# 页面打印出

按钮的执行信息:

XAML:

<my:WaterPasswordBox  Name="WaterPasswordBox" LostFocus="WaterPasswordBox_LostFocus"/>

 <Button BorderBrush="Blue" Tap="UIElement_OnTap" BorderThickness="5" Margin="0,10" Height="100" Click="Button_Click">
      点击查看断点测试
 </Button>



C# :

 private void UIElement_OnTap(object sender, GestureEventArgs e)
 {
     Debug.WriteLine("UIElement_OnTap");

     //WaterPasswordBox.PassText = "asd";
     //string temp = WaterPasswordBox.PassText.ToString();

     //MessageBox.Show(temp);
 }

 private void Button_Click(object sender, RoutedEventArgs e)
 {
     Debug.WriteLine("Button_Click");

     string temp = WaterPasswordBox.PassText.ToString();

     MessageBox.Show(temp);
 }

 private void WaterPasswordBox_LostFocus(object sender, RoutedEventArgs e)
 {
     Debug.WriteLine("WaterPasswordBox_LostFocus");
 }


在 Debug 输出窗口中输出:

UIElement_OnTap
WaterPasswordBox_LostFocus
Button_Click

可以看出,Tap 路由事件的触发要早于 LostFocus 事件,最后触发 Click 事件。



此时再在 文本框中输入4个 ‘a’ ,从按钮的 Click 事件中把密码框中的文本打印出来:

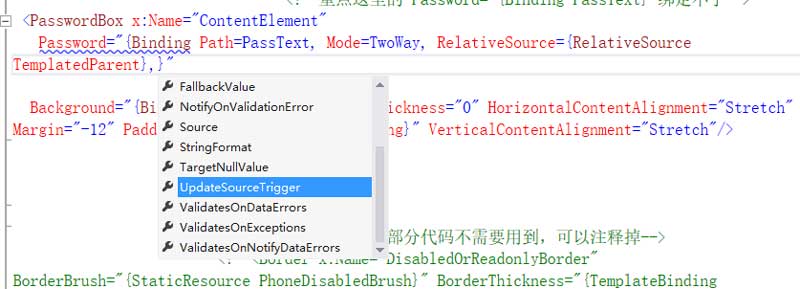

虽然实现了双向绑定,但是从 PasswordBox 的 Password 属性值反向同步并不是及时的,参考了一下

下面的其它属性,暂时还没有找到在 TextChanged 事件里就能触发的 update source 的设置:



 由于时间的关系,有时间再去查相应文档。如果有朋友不幸阅读了本文,并且知道原因,希望能指点一下。



 修改后的工程代码下载
