第一个Android应用 扫描宝 欲挑战传统扫描枪

 2014/3/31 17:01:35  小李飛菜刀  博客园  我要评论(0)
  • 摘要:前言很久没有上博客园,更是很久没更新过随笔了。这个小小的Android应用还是去年年底开发的,过完年后一直都很忙,也比较懒,今天在整理资料的时候,觉得这个小小的应用算是学习Android开发的一个毕业作业吧,也跟大家分享一下。本来一直在做.net平台的开发,但是项目的需要要做一个移动终端的版本,但是这个移动终端版本并不是用原生开发的,而是基于PhoneGap框架,开发人员能够使用熟悉的HTML,CSS和JavaScript构建跨平台的移动本地应用,也可以开发原生插件配合使用
  • 标签:android 传统 一个 应用

前言

      很久没有上博客园,更是很久没更新过随笔了。这个小小的Android应用还是去年年底开发的,过完年后一直都很忙,也比较懒,今天在整理资料的时候,觉得这个小小的应用算是学习Android开发的一个毕业作业吧,也跟大家分享一下。

      本来一直在做.net平台的开发,但是项目的需要要做一个移动终端的版本,但是这个移动终端版本并不是用原生开发的,而是基于PhoneGap框架, class="st"> 开发人员能够使用熟悉的HTML,CSS 和JavaScript 构建跨平台的移动本地应用,也可以开发原生插件配合使用。关于PhoneGap的具体介绍,大家可以google一下,这里只简短说一下优点和不足。

优点:

1、开发效率高,可以使用传统的web技术(html+css+javascript),开发人员不必学习原生开发语言;

2、成本低,一次开发维护一份代码可以打包发布多个平台,主要是Android和IOS平台;

3、可以开发原生插件,配合一些特殊功能实现,毕竟web可以做的事情还是有限的;

不足:

1、性能上和原生应用还是差一点,在IOS上明显比Android流畅,特别是运行动画和手势操作的时候,但是一般的应用型APP还是足够了;



     学习Android开发,纯粹是个人兴趣,在去年年底利用业余时间,自学了一下,并且现在移动应用开发这么热门,多学习一点,了解一下还是好的。对于想入门Android开发的童鞋,我也讲一下我学习的过程,供大家参考一下(仅供参考)。我没有买相关的书籍,因为有一点JAVA的基础,跳过了JAVA语言的学习,直接到http://developer.android.com/samples/index.html 上,按照里面的课程把初级和进阶的学习了,高级部分只挑选了一部分内容看了下,然后就去 一些Android论坛找一下相关的DEMO例子最多的还是有什么疑问不懂的就直接Google,初学的话基本上你遇到的问题,别人都遇到过,也会有很多的解决方法

      最后就是为什么要开发这样的一个应用,其实就是结合了生活的实际,有个朋友开了个淘宝小店,小卖家一天就10来单,但是每天点发货的时候,手工输入快递单号很麻烦,还要重复核对有没输错,所以就产生了开发一个 扫描宝 应用的想法,既可以满足不想购买市面上的扫描枪,不想手工输入条形码的盆友,又可以把之前学习的知识串联起来,重新巩固一下。



功能描述

  首先通过一张顺序图来描述一下该应用的功能:

JSsTdH5x8sw7ijjPn8oKbMtR938bYRwn+DaT7wBHP1P2ZA+Is7vvPOFwJ8UJ9tQ/vzMr+pFUtt/v77Q59zOEfW/sdYyduPhx6Nd93u5cOZ3eg+87VPebLOIcR3t0L8zxA0Jjunz8gxtoD0R2oxOGJ3pmC0OJjVzXtIz3JtPO6E3fXRX8gtIjuh/62maMK9+DM8xeC7gPSmPO65w+Ib6uspAxVwpsAKx3+tI9d1diP9HSzz/PYO/aRu+tRV2LZ4/Lp8zzBF/F13/djoftA0EzzPM8cEN9WmQsMVsKfAKMdVvafsKopH+lJFjG/H3i1w8/ac9bkCed1hz5pug+c5Izz+4FX8wYk+OL71xv8r9z/zf7lnFO0T1iVLfruP/kwTc7rGH8PrKd7r+O0PlzPsUJTqXYdE7p/9CoDuo8MPWv3ZwyIvGTTWmaoEqFYd69X2tNLT1mVJd/ue2sbmDc71n3vE8vx3bdGHlzPA5iW2X1fQAb7MVSJYKwD12o+ZVWjP9KTTOp+eBuf8cfWfiX+wsjDP/uEurf78nnuedyh7oePNWx0Hxka0f2FBMQzdeT0JVCJcKwPT3BLNXlVhiV1f+BaWecAZ/hsaveEsdfe+j/VJaL7yNDY7hOQ0c7Z/aO/IKu1tbt2JrUC++Vj+/+Y0X1kKBQpAvJkZx/vYwK6jwzx767Mju7HhO4jQ3R/dnQ/JnQfGaL7s6P7MaH7yBDdnx3djwndR4bo/uzofkzoPjJE92dH92NC95Ehuj87uh8Tuo8M0f3Z0f2Y0H1kiO7Pju7HhO4jQ3R/ds/Y/U+fPl1cXEy5wwWOu729fY6fFrBY6/X63P/ZpebVq1e73e45fljFc6z0mTCgAHAiDsc13QeQFbqv6T6ArNB9TfcBZIXua7oPICt0X9N9AFmh+zqu7n/zzTefP38+91YAiNiHDx+4zDqm7gMATkf3ASAvdB8A8kL3ASAvMXX/+vr6me5WASATDw8Pd3d3596KM4up+1zHCeBEXMep6T6ArNB9TfcBZIXua7oPICt0X9N9AFmh+5ruA8gK3ddxdZ/78wA4Effn0XF1HwBwOroPAHmh+wBS1k7sDMjw13fpPoCUFUUx3P3VavXw8HDuzXxRMXWf+/MAmKoojlRuvV7T/eXiOk4AU9F9ie4DSBndl+g+gJTRfYnuA0gZ3ZfoPoCU0X2J7gNIGd2XYuo+9+cBMBXdl2LqPgBMRfclug8gZXRfovsAUkb3JboPIGV0X4qp+9yfB8BUdF+KqftcxwlgKrov0X0AKaP7Et0HkDK6L9F9ACmj+xLdB5Ayui/RfQApo/tSTN3n/jwApqL7UkzdB4Cp6L5E9wGk7Gj337x5c3l5uT7ZN998E8svltJ9ACk72v2vvvrq7u7u4WSvX7+O5QQk3QeQsheb54nowpOYus/9eQBMRfelmLof0ccKYCHovkT3AaSM7kt0H0DK6L5E9wGkjO5LdB9Ayui+RPcBpIzuSzF1n/vzAJiK7ksxdR8ApqL7Et0HkDK6L9F9ACmj+xLdB5Ayui/F1H3uzwMko1aFqnVTlUVZNc/5QkebvtlsZgnLx48fHx8fT1/PC4ip+xHtToEsNVU5tuL77jfN/k+HNRR7ZdXUqnAdFm1XMvx61grKqjHXb62sVu6Kmqq0Xmvg8Qlv27O2w1PbL5y12VtcqMr+ev++pqH7AE7TVOW+oMEANiJWgZ53VW3XZO0StA7uIoL7hsMT9ptmVNtaWd/9/i28SPfNbTh8jNp939q3Y+qepaa/NN0HcBJj0D3UfecbgawOdt9YS1OVRVGWpdPHWtnD3+njfav7SskRtbXn6Bd13p3nQCW8k2s/QP9TfDsp86ML7Z2G0X0AJzgykrdH2/bzDt+zB72HTO9rd3iwP6wwg9j+uVZF4Rkl+8b7TdMY3zODq2r7/eyfst92dy8S7v4o7dObqiyruiqtyMsPyz8n9cRXpvsAnswZX4+d52nP6PbRtCdvBuZ5xqx4eGtDu4i+wUX3hvodkzOk9o/3rT3FOHV/MFFXZVlVvvF+u7Z+3+ZuQHD25wi6D+CJRObHzPN0nT+M5X2zKH33PSUcyKzxBFUfm20xVzAwvz+q+0+c3zdm5419nF1z813IqaqJO5tWTN3n/jzAsg11v4ta1/32IXdEL8f7lbFO7/j/+EGB7of4TVX6DwoGui9PMszVfavvoe7XqlSq3B+n+F5m1Pu3xdR9AIszPL/fdcpoUx/Jdhzrmck+PLdWbatFXgdf1XhRc/Tfsw4D+itoBs7revdM+tTu22/Vf3Bi74LoPoDFCQWwscfsh1lxsV/o/mDN73f59/VNvKQ7iB6aJLHPldb7M6zyOk5xNU27MafP81jbHTyva3bfPQ1QVhXdB3A+oQDaV6CY1+i44fR2P3CxjrG20CaMvH7fOPTwXb8vDzS6I5aTu9/th1Q9svviZQL7w0F0H8Bc/AE8JLcfZe+vUHHO8Rp/MLvfTsorN/3+fYE96zFmvG//0q/nLfRlta+rCXZ/5Onk9lcQ+uf5n9Xti6x5H/cNT97pxNT9m5sb7s8DLMeYwBVlVTnDVCuf+6aZ2T+Mvmtnfr1LpUi+sSXWa43+fd3hdyXCOvDOnzryH5im9473D5sw/Re3Yuo+13ECwOnoPgDkhe4DQF7oPoCUrdfr4QVubm42m83pL/TDDz/E8ouldB9Aygr+vS2B7gNIGd2XYur+l19+GcthFICFoPtSTN0HgKnovkT3AaSM7kt0H0DK6L5E9wGkjO5LMXWf+/MAmIruSzF1P6KPFcBCnNj93W43MjsRBYruA0jZk7u/2+1ub29fvXp1f38/5oUiChTdB5CyJ3S/L357n2O6f04RfawAFmJS953i0/3zi+hjBbAQI7vvLT7dP7+IPlYAC3G0+1999dWPP/7oLX7rzZs36xEuLi5iCVRM3ef+PACmGjPe/+WXX66urkLd//nnnx9G+Pjx48u8o9PF1H0AmGr8/P5ms/HWf+Q8T0ToPoCUTb2eR9af7gNATJ52/b5Zf7oPADE55fd12/rT/XPi/jwApnqx+/NEJKbucx0ngKnovkT3AaSM7kt0H0DK6L5E9wGkjO5LdB9Ayui+RPcBpIzuSzF1n/vzAJiK7ksxdR8ApqL7Et0HkDK6L9F9ACmj+xLdB5Ayui/F1H3uzwNgKrovxdR9ruMEMBXdl+g+gJTRfYnuA0gZ3ZfoPoCU0X1pud2/u7sL/fP2vaurq3NvJoBFW61Wwxm5uLj49OnTuTfzRS23+7e3t7e3twMLPDw8rNfrl9ocACm4v7+/vr4+91acGd0HkJEPHz7c3NyceyvOjO4DQF7oPgDkhe4DQF7oPgDkhe4DyMjHjx/fvXt37q04M7oPICNcx6npPoCs0H1N9wFkhe5rug8gK3Rf030AWaH7mu4DyArd13QfQFa4P4+m+wCQG7oPAHmh+wCQF7oPAHmh+wAy8vHjx/fv3597K86M7gPICNdxaroPICt0X0fd/d9///2LL764ncPDw8MLvSsAZ0X3Nd2/vb29vr7muAHIBN3XUXd/rnke5ouAfNB9TfdnXA+A5aP7mu7PuB4Ay/f+/Xvuz0P36T6Ql8fHx3NvwpnRfboPIC90n+4DyAvdp/sA8kL36T6QEe7Po+n+jOsBsHxcx6np/ozrAbB8dF/T/RnXA2D56L6m+zOuB8Dy0X1N92dcD4Dlo/t6yd1/eHgYvj3ydrv9z3/+c/oLzbUeAMtH9/W47jdVqeoxS5VVI76wHt4/UOyVVVOrwmW9Vq0K++mDLztpg6e8E+dVjPdQFEWhKvvr9q09fQMAPBfuz6Mndr8ReTMyPaH7qu6/USvR+cPX3tcL7xv6l+o32F37KOaTmqrsvvCsq1b+vDeVIvvAUnF/nhPH+0YM99UNt/qwIwh339hLNFVZFGVZOrWtlTGYNo8Wyqoe2C15jiv8+5H95rX7Ev+zuoWdHYT3zwCwNEe6b4XPM7jdp89YrD8yGD3Po2rzwcORhZHX9s+1ckf682uH8E1VdruRw1Y4b9/cROvbvpknAFiM2cf7o9fmn+fxLu8fmRuvWSvfHHt4dxXU7cDKqq7Ksqp84/12ff3eyHpT7TrIPoAFG9v9qioDMylm98sy2F9zOGx337Ok2XonovahRX+8YS11WnmN2Xljr2Sv055g8s5uEX9ggbg/jx7T/TZxgYr1YWz6SRHfFI95LCDH+5XxXe/4P3xQYF1tMzwbP5LV91D3a1UqVe4nn3wfzZNOKAN4dlzHqcfM76v6+DxPrfYTI03wIhyz+8Zj3Qv0F+JYp3VDDqmtVaFqa9TffnHYFUzqr71x/j2Jfc0Q3QdiQvf1c8zvHxvvd0+x5ve7/PtqKU4cmKltqrJUqpvlP7n74bfn9t3svnsaoKwqug8sEt3Xi+l++GIduTOw9wPtkNwYep/e/W7Q3x9IaD3cfTHeD+zBAJwb3deTuh+YefF0f2hqxjwj0He/qcqiUMpNv39fIFrenYGoQt0/cvG+PXvjzCKFFj28Tf/lrZzWBZaI7uuj3d/XLRgx6/p9MUdvrmb/mBliYwbd+gXZ/jemxD7ADW3/oG/o3W77Sf0dOFzwjvcPG8loH1gkuq+XfF82AJgd9+fRdB9Abrg/D90HgLwst/vcfx8AnsNyu8+/twUAz4Hu030gI9yfR9P9GdcDYPm4jlPT/RnXA2D56L6m+zOuB8Dy0X1N92dcD4Dlo/ua7s+4HgDLR/c13Z9xPQCWj+5ruj/jegAsH/fn0al2//Hx8e7u7ssvvxzzQnQfyAr350mt+23xX79+XRTFarUa80J0H0BW0um+WfwW3QcAKYXuy+LTfQAIibv7X3/9tbf4rdevXz+McHd3R/eBTHB/Hh179y8vLy8vL0P/ZO7FxcV6nPv7+xd6VwDOius4dezdb8fpHz588NZ/5DwPgHzQfZ1G91uy/nQfgIPu65S63zLrT/cBOOi+Tq/7rbb+dB+Ag+7rVLvfLzDvJgGIHd3XaXcfABzcn0fTfQC54f48dB8A8kL3ASAvdB8A8kL3AWSE+/Noug8gK1zHqek+gKzQfU33AWSF7mu6DyArdF/TfQBZofua7gPICt3XdB9AVt6/f/+3v/3t3FtxZnQfQF52u925N+HM6D4A5IXuA0Be6D4A5IXuA8jIp0+fuD8P3QeQEa7j1HQfQFbovqb7ALJC9zXdx2lqVVaNeKxQ9eCzmqpUtdZNVYolxQqDaxNLNlXpbkxTlcVeWTW1KlzWqmtVyHcjN10ss387iALd13Qfp2q77EnqobfiOV33m6ZWTnvdiIZ3InKXI/cj3craWrvrsr42dhFD+wZ92D30u4B+k4/v8TC7x8fHSf9OOt3XdB+ncwMs6hdOqreutSqrJvyc7sW6lw3scro0h7tvDN2bqiyKsnR3G7Wy91vmS5VV7dtEuv/Sttvt69ev7+7uRtaf7mu6j5mEOu2dODkyMXLYkQQG0HZ/G2fyxZiuEfM83fSSGWnzMKE//qgVEY/Ddrttf5oj68/9eTTdxwm6gI6ZkbcmdJqqNJ4UnB3pcx5Yoz0U7+dcjIeH53nC7ygweO9WXqtCVaEDkqOnCDCrvvvj68/9eeg+TtNUZVlVwel9o4OHcXWb1342R9VN04/vD709ZHqg+8PzQaL7noXMNcg9mL0L2G+IM7PlO7mNl+J0f3z9c7bo7q/X61vDjz/++H+Gy8vL1Wp1i/PZ7XZDg/Khgbyqa+UfHHfPCp0qNqdkjCG5PEOsfeP9yjgeCB2YhA8K2vXs37J/A1Wtz/1jyctPP/0U2PPv6/+vf/1reA1v377NbQ+x3O5vNhvnx/P999//n+37779/tr9OOM7tfjjSvW503U+0iyU84ZUnZPvRefhCInsqv5/fN6/C8ZwGkJyhfaFqa9TffnHYFdD9FzbQ/YuLi5ubm6IohtewWq0eHh7myVYkltt9KcPdcgTGjvf3bbUus9G+86fHLgw9TP74B+7mF92frfn9Lv++cb24PN+Zw2mqslSqm+UPdB8vyTvP0xb/8+fPWuuiOFK59XpN95drtVptt9tzbwVsTVWWVV2VSgXH+2JGx7mexx73Hx/vdw/uV9mP1vdT+Mai3u6HL9bx/gKAuEj18Lbo/gI43TeL36L7Et3HabpTs1Pm98N5bKqyUMr9vdkR1/OY80xyF2J2v93LKDf9/n2B75XbFyqriu4vQd99WfwW3ZfoPk5yGBAbzesT7J627b9x7HdwB6Z5iv0p4aKPuLvK7vjCnDEyzgVYl5P2928Q+wDPO7A3X04Bed4xntt2uw0Vv0X3JboPIGKPj4+h4rfovkT3AaSM7kt0H0DK6L4UU/ffvHkzfEAHAA66L8XUfe6qAWAqui/F1H0AmIruS3QfQMrovkT3AaSM7ksxdZ/78wCYiu5LMXWf6zgBTEX3JboPIGV0X6L7AFJG9yW6DyBldF+i+wBSRvclug8gZXRfiqn73J8HwFR0X4qp+9yfB8BUdF+KqfsAMNXR7q9Wq/C/7jbBarWKZWxK9wGk7MXG+xGdgKT7AFJG96WYus/9eQBMRfelmLof0ccKYCHovkT3AaSM7kt0H0DK6L5E9wGkjO5LdB9Ayui+RPcBpIzuSzF1n/vzAJiK7ksxdT+W34EGsBx0X4qp+wAwFd2X6D6AlNF9ie4DSBndl2LqPvfnATDV0aZvNptZzh1+/PgxlkDF1P2IdqdAwmpVqNr4uqnKsmrsBQ5UVZXyZvX9CmplP9f3AlJTlarWuqnKY0uOJd6E/P5cLzVAfBrBj0IseewNmOg+gElEYPzF6Yu1b7TxBztm7VfWvsLiq1nX/aapVTG1x8ZLlVXjeeHA+kJlbQZ3bO4S7SrsVz2stv+MzM/G/ybcbZmwZ6L7AKaQeTne/SNZdBsmauddxchaB9XK3KX0b+JQ3vCuKPCa9hoPDxbOC7W7uf6xpirdA6DwG+6e1X1mgY0cHvrTfQBTWKEpq+bk8f5eKHWhIfZpky77vdfxvk7h6X7ocMRe1FrqsBcMjPbNn0BZNc7n7935OOg+gAmMFnW92cczNDM90P0uu2Mmta02NlVpPOn4+QC5Ls8siTve717Iv4/y7+rEDFggwgPdF1sU+DjMFXdfjZzkp/sARmuqUk41tLFpG65q7U5n10fmeZqqLKtqYE7FmhAxdxjGqzbNhOH5YcA8Yn7fv4/w5lwsGj754M7zlFXTb5d7UDTQ/Scer8TU/Tdv3tB94IyaqizL0jOON2YmxCTFsXmegXFtcCDfVKWq3Znzp7wb84RqYFXeUbx3s6Z139/o7i2HTi50q2u/b0wOTTnBEVP3uSkbcF7dOceyaowmH5nf7wUm5c3uDx4Y9Iv337DPiI7VvWCt/MN9z+la5/qjEYP4flvHzPPY33BX7jxkTo6FTz0PfioxdR/AItSqKMvSnKcY6H5gKuLQpbHjffM0grELqdWxygntgD1w1OF/v9bIOrSg/FYw/Ee6P3ApUT/50z/feiOjznXQfQBT1cq55tzffRn44Hi/rkqlgkNvMaPjrCow7h8cbhunByaM+AcvkvfF3Djt0S/kXMfpruPIeL97cP/8/i3sD17G7ALpPoApurYMjLPb5PsSGOh+u6YJ8/vjruAJLyUvJBp3JczwRZKh71p7l/4Uh2fRpioLpTxnCY5dz2NOko34YGLq/rt372K5/QWQJDHa9c1HBH9T1dZl6xBco2/9en3Xw4+tWyj7h1Hx4HTKiF/besLJheENPnwSxzfM/vUDa6aH39sCAJjoPgDkhe4DQF7oPoCUrdfr4QVubm42m83pL/TDDz/E8jtGdB9Aygr+vS2B7gNIGd2XYuo+9+cBMBXdl2LqfixzZwCWg+5LMXUfAKai+xLdB5Ayui/RfQApo/tSTN3n/jwApqL7Ukzdj+hjBbAQJ3b/8+fPnz59GvNCEQWK7gNI2ZO7//nz55ubm4uLi/v7+zEvFFGg6D6AlD2h+33x21sc0/1ziuhjBbAQk7rvFJ/un19EHyuAhRjZfW/x6f75RfSxAliIo93/+uuvv/vuO2/xW2/evFmPcHFxEUugYuo+9+cBMNWY8f4vv/xydXUV6v7PP//8MMLHjx9f5h2dLqbuc38eAFONn9/fbDbe+o+c54lITN0HgKmmXs8j60/3ASAmT7t+36w/3QeAmJzy+7pt/en+OXF/HgBTvdj9eSISU/e5jhPAVHRfovsAUkb3JboPIGV0X6L7AFJG9yW6DyBldF+i+wBSRvelmLrP/XkATEX3pZi6z/15AExF96WYug8AU9F9ie4DSBndl+g+gJTRfSmm7nN/HgBT0X0ppu5zHWeialVWjf1AoepRSzZV6TwSWktwnea6jiyBGNF9KdnuPzw8rNfrzWbznFuEeTjFDSdadF83VRleWHS/qcoitJ8YWBNiRvelBLvfFj/Dn2XMalVWTVOVgX/gtGt11/1aDSzWBTww3q9VMbgSE/uBBNB9KanuU/x4HUbygdG+WemyapwZnj7mxlfT5nlqVSilCH166L6USPcpfir6nHs7bc/zdF/JSf6mKgulVKFUYExvL3+Y/rH3H0gB3Zei7z7Fj91+IN9PwuxrP9D94/NBnjUEil6roijKqj5M/LdrZ+CfDLovLbf7fdB7r1+/Lsuy//Krr7764x//+Kc//eny8rJ/8LfffuvXsN1uv/nmm7VgLrPb7W59zL8HoWXMk8Zjlnl8fHz79u3wMlrru7u7o8s8+Dj3sRizzMePH5+2zG63M5fZbDZPW+Z///uf1odEh6bcuwq33++bXKtgoN167/tu7xbsvlv7ifa7jP0TQPel5Xb/9vb2+vraG6/W3d3dn//859evX3/33Xe//vqrbNbj4+PR9o1p8ZhlTtl/jFnmw4cP5jJXV1dyf/b+/ft+mc+fP3v3eeYyu93Ou8y7d++OLmP+S9OPj4/eZe7u7sz1yAXW6/W///1vrb2De+ehboxfVs3ACdnDsUKhanMNtSpUNXDNZ8B///tf+SLX19fme/f+LN6+fXv08zGX0Vp713N7e3t0mX/84x/mMtfX18PLPD4+epdxttn7d975F8a9YxTz72poGWc99/f3R9czZpkPHz7IZYqi8P431VutVnR/KdofycACDw8P6/X68fHx7u5utVrd3Nxw47ZYtYkeuMCmD3pfbnd0Lr8wHtz/0d29tCcG2v+154EmXMv/6dOno8dM3mOdMcs4E5veZT59+jR1Ge8xnLPMXC0e0/0nL2OOLULLXF1dDUS/5RybJi/67rd/pv5xOz7e7x60JuHb8X9otqdbg3Fhvn2N/n6B/rSwcQFoO+PPJD/SlEj3W23937x5k+EOPGLdxTf2JMyI63nM8wGeRB8OIpxfCut3B/7Lgcwr/Sk/UpRU91vtFPlqtRp+Ohaib/nQ71Gp+nDZj3E5z9B5W/tCIe18w3fuwJ1VQoo+ffpkXtmRpwS739rtdm/fvmXOB4Dp/v7ePDOfp2S7DwAS3dd0H0BW6L6m+wCyQvc13QeQFbqv6T6ArNB9TfcBZIXua7oPICuPj49c3k33ASAvdB8A8kL3ASAvdB9ARrbb7UNmd9uX6D6AjHA9j6b7ALJC9zXdB5AVuq/pPoCs0H1N9wFkhe7rqLv/+++//+EPfwj/E00T8PcAyATd11F3f67xPscNQD7ovqb7M64HwPJxfx5N92dcDwBEge7TfQB5oft0H0Be6D7dBzLC/Xk03Z9xPQCWj+t5NN2fcT0Alo/ua7o/43oALB/d13R/xvUAWD66r+n+jOsBsHx0X9P9GdcDYPnovqb7M64HwPLRfU33Z1wPgOXj/jx6yd0HADyH5+5+U5WqHrNUWTXiC+thU62Kwv+d7ruCsXityqrRTVWa31eV/XUx9AoAEK8X634jsloURbdLmNR975rcTNeq6F/X/EZTle6C/rw3lSL7AFJ0xvF+n+Y+zqGiG01vqrIoy7KwV1qrQj4iut9UpbuYuRHWto47TgEQGe7Po5+1+9Z0i2dQvU+usZhbane831R98PuZnloVIuba033jud4VamvoH5xhAhA1rufRCxvvT12zPVnkX7ln1f022YcJ5qaGZn8AxI3u65fpflWVRVnVnkkcs/tl6Tu3ah4s2Odr+zDbD6vae1q3f7FD683lArNMxB9IDN3Xz939Nq2BeppD8n2WfVM8A8cCYw4mzKdblwHVqlSqfb5/dG9O/QNIA93Xzz2/r+rjaa5VWdXGJHx4vK/D1/KI4bl3ft84watq4//pPpALuq+XNr8/23h/4OnGuVyz+5Vy9yEV3WHaExAAAAy4SURBVAeSQ/d1pN3vxuf7lYtr8p2LN+3DAM+ZXO9433sBEIC40X39Yt0PzM94un9k/sa6Bt/Yc7RnEg7nC8wL8Y3TwnLoHzyBWytO6wLJ4f48+lm7v69qMJ7W9fv9AF4sbjzWj9b7YNtLt6m25+X3T/dW3DveP1zmw2gfQIq4LxsA5IXuA0Be6D6AjHB/Hr3k7vPvrgCYHdfzaLo/43oALB/d13R/xvUAWD66r+n+jOsBsHx0X9P9GdcDYPnovqb7M64HwPLRfU33Z1wPgOWj+5ruz7geAMvH/Xk03Z9xPQAQhWS7v9vt3r17N+aF6D6ArCTY/d1ud3t7++rVq9VqNeaF6D6ArCTV/b747X2U6T4AB/fn0cl03yk+3QfgxfU8OoHue4tP9wF40X0de/cvLy+9xZ+KvwdAJui+jr376/V6s9lcXV15az5yvA8gH3RfJ9D99s/e+tN9AA66r5PpfsupP90H4KD7OrHut/r6030ADrqvk+x+a7PZ3NzczL9ZAGLG/Xl0wt0HAHjRfQDIC90HgLzQfQAZ2W63m83m3FtxZnQfQEa4nkfTfQBZofua7gPICt3XdB9AVui+pvsAskL3Nd0HkBW6r+k+gKzQfU33AWRlt9ttt9tzb8WZ0X0AyAvdB4C80H08p1oVqtZaa91UZfunpiqL7sFumbJq9l80VWl+s6nKw/espxS+xw/fFYzFa9V/4a6/qUpnxU1VmqtRlf11MbQhwDLRfTyjQ/bNP7ZfGV/ate1bHIh+I8rr6W//cs5K7JfqlvLuKUL7CmdjFNk/q6n30+f+PJru4zkZre+H+8FFy6oJ5FfsIkrrmEC7uxHrpY3uu0cah22yd0r9d+UOwn0rx94Wnt12u724uLi5uRlZf67n0XQfzyg0MB8zSeIrsTkJ1M/01Kpwm289v8u3M4GkuyF8U5WFUsPjffu5A9NEeHnb7bb9aY2sP93XdB8vIzRNovs5Fuf73u5b+r2Kd7nQPM/+IVX3cztl1Rx5NTEp1X8x8LbwQvruj6w/3dd0Hy/CP4FjtbSsmoHjA88sfF9c+2FVh2aL2pezIl5X7Upq5R/zq9pefXeA4CD+Z+R0vzVQf7qvF9799Xp9G/bXv/71iy++GFgAZ/Tw8ND/KJuqVJV9/vPoZTujJs4HFvKO953LgA4j/koVSql216Nqbf5vrUqlyv1+J3Btkar1/f39uT/yTP3000+h0UJb/3/+85/m8t9+++3l5aWzkt1ud+wvW1KW2/3tduv8bF69evXTTz+Zj/z9739/hr9ImIHR/X2Ca2VOkdtjZN/llN6R9PApA7vpcn7fmK/fT/QYFw5V/u7rw+6F7i/RQPdfv359d3dXFMXwGlarlTlMycFyuy+tVit+wTo6RtL3LZbXyItBeff9piqHZlHC4/3DCsWhhDzB226Yb3pIdr9ylmqPFbik53y88zxt8R8fH7XWRXGkcuv1mu4vF1fdxsetrhl1uZj/u+7BwWHgvQ+y95etjLG9M7Vjzy/1ga+fNt737Ebwkpzum8Vv0X0ppu4jNkax94XtT4yaBe1G2mPyaV2Db/9amDk+t662L/uTt+7sfn8hZ62Huy8nkjzvEefQd18Wv0X3JbqP59JW2Qi+qWupqrt4D07dO9fiBOb/2wbbF2UeDiVCv3C73y+Yo3l7o73j/cO0EKP9s9put6Hit+i+RPcBROzx8TFU/Bbdl2Lq/m+//Tb8AwYAB92XYuo+1/MAmIruS3QfQMrovkT3AaSM7kt0H0DK6L5E9wGkjO5LdB9Ayui+RPcBpIzuSzF1n/vzAJiK7ksxdR8ApqL7Et0HkDK6L9F9ACmj+1JM3ef+PACmovtSTN3neh4AU9F9ie4DSBndl+g+gJTRfYnuA0jZ0e6vVqvwv/Q2watXr3a73cu8qRPRfQApe7HxfkSBovsAUkb3JboPIGV0X4qp+9yfB8BUdF+KqfsAMBXdl+g+gJTRfYnuA0gZ3Zdi6j735wEwFd2XYup+RB8rgIWg+xLdB5Ayui/RfQApo/sS3QeQMrov0X0AKaP7Et0HkDK6L9F9AMhLTN3n/jzA2TVVqer+q1oVxleOWhVFWTXhddXKcxt74xm16r9oqtJaVVOVzrqbqjRXoyr7a2vNcrNrVRQDb8XdnIF3dHSZ42s7vNlGvAnnI3Xfifs5+cXUfQBnZ3RfZttIjq9YolraCJdTLDvs3VLePUVoX+Fst+oft/dd/UvJaNvbZK3au8cbzr79FGtt9guNi7d3SboPYD5NVRaq7pq5/8r+tjk6L8rSWULXyjOk9nW/qUpryUOnfbW1UmcuYOa9+7O9OyqruiqN3YY76h/T/dAOzrdjMj+1w9qMz8XdvCMFFz8Fug9gXrUqSqVKVbVx6Ue3di6NGPUzPeFpFNF92bK2kE1VFkoNj/ft54amifrHayXmg9ovjfWNH+/LDffpV7lfmy/Uo2eLrMOf4OqkmLqf2799DCyQNUey785A7foBbGiZ0DzP4bW6uO13NQMvZh9QmFtqJrtWZVXbMz1Ht95LHM2MmG4ylw8tsX/D+4ORgRc2Pg1zr3n8SCGm7nM9D3B2TVWquuuhr532FLw9hWKXKzBZv1+rFfG66kfo3jG/qu3VdQcIjrJq2kAas1VOSwcGzEPjfXeILqoeerPyw6orpcpSKevowbPDa8wjk+71+rcX+Om06D6A8doahyPmaWYzOLb2jvedK4EOI/5KFUqpPtzm/9aqVKrc71B86W5fydo7KNWPkttvqdrcDGcfYK/WLHG3vYHPRV47dJjO90zy7OfR3COrdndrTqcdTqH0yxprHJgtovsAxmqb5KRm/50R1/L4dg3e+X1jfn2famM0W/m7b2zSUPe1sWJnvP/E7nunVkZdpenpfnc45S6xfzXjPdSqP3o5sieR6D6AcWplj0LtEfpQ58LjfetSdXlBvm+k7BtUy+5XzlLtsYJ57rkoirI8fbwvnnXs8/DMyhvfrNoZqn4/d5j16l5N7De7d+Ffow/dBzDGYYjsO3Xq6Zwx5dyNrcUywbGvc82neXq4ftp4f9/Qfq8x23jfs+RA961wW087fJjGIN+YtAmc/rbnxOg+gNn5R+9ObqwL8K25CWu6W8xXHy6vdHYB/YWctR7ufvg0gxvcffeN8b54J8cuzZ/afetjEU9zJ2usDT6szz0P0p/SHnOB0h7dBzCB233zKsvDI/bvSMmZie6yf/k7UsGzke6F792Dxgt4x/uHaSH5m2D78wWH8b673AA53nenltxZJs+a7T2LfwJNbn3/VO9Pwr9nssTUfa7fB4DTxdR9AMDp6D4A5IXuA0hZwb+7IsTUfeb3AUxF96WYuh/RxwpgIei+RPcBpIzuS3QfQMrovkT3AaSM7kt0H0DK6L5E9wGkjO5LdB9Ayui+FFP3uX4fwFQndn+z2Ww2mzEvRPcBYBGe3P3NZnN1dVUUxf39/ZgXovsAsAhP6H5f/BbdB4CYTOq+U3y6f37M7wOYamT3vcWn++cX0ccKYCGOdv/rr7/+y1/+EvynsorizZs36xEuLi4+f/78Mm/qRHQfQMrGjPd//fXXm5ubi4sLb/d//vnnhxFGXvazBHQfQMrGz+9//vzZW/+R8zwRofsAUjb1eh5Zf7p/TnQfwFRPu37frD/dPye6D2CqU35ft63/+/fv59+ss6L7AFL2YvfniUhM3c/tZwPgdHRfiqn7ADAV3ZfoPoCU0X2J7gNIGd2XYup+bj8bAKej+1JM3ed6HgBT0X2J7gNIGd2X6D6AlNF9ie4DSBndl+g+gJTRfYnuA0gZ3ZfoPoCU0X0ppu7n9rMBcDq6L8XUfQCYiu5LdB9Ayui+RPcBpIzuSzF1P7efDYDT0X0ppu5zPQ+Aqei+RPcBpIzuS3QfQMrovkT3AaSM7kt0H0DK6L5E9wGkjO5LdB9Ayui+FFP3c/vZADgd3Zdi6j4ATEX3JboPIGV0X6L7AFJG96WYup/bzwbA6ei+FFP3uZ4HwFR0X6L7AFJG9yW6DyBldF+i+wBSRvclug8gZXRfovsAUkb3JboPIGV0X4qp+7/99tvj4+O5twJATOi+FFP3AWAqui/RfQApo/sS3QeQMrovxdT9zWZz7k0AEBm6L8XUfa7nATAV3ZfoPoCU0X2J7gNIGd2X6D6AlBVFcTtotVrR/eWi+wCmuru7Myv/7bffXl5eOunf7Xbn3swXRfcBZOT+/v76+vrcW3FmdB9ARui+jqv73J8HwIm22y2/CRRT9wEAp6P7AJAXug8AeaH7ADKy2+24PITuA8gI1/Noug8gK3Rf030AWaH7mu4DyArd13QfQFY+fPhwc3Nz7q04M7oPAHn5fxgybq/ezfO9AAAAAElFTkSuQmCC" alt="" />

  这就是该应用的主要功能,其实就是传统扫描枪的功能,将条码扫描到电脑上,只是这里利用现在智能手机的便利性和高配置,使用无线局域网,把这该功能简单化了,还省了买扫描枪的钱。现在市面上一般的扫描枪都要几十RMB,我之前在朋友那里用过一款,从淘宝上买的80大洋,有时扫描条码要几秒十几秒,还有的就是扫描不出来,郁闷到只能手工输入。假如各位童鞋身边有这样需求的朋友,也可以推荐使用以下这个APP,不用花钱。

  其他的辅助小功能,在光线不好的情况下可以开启闪光灯,在夜深人静的时候还在埋头扫描,可以关闭提示音,当然后面如果我还继续给这个应用维护或新增功能的话,就可以检查更新,继续使用新功能了。

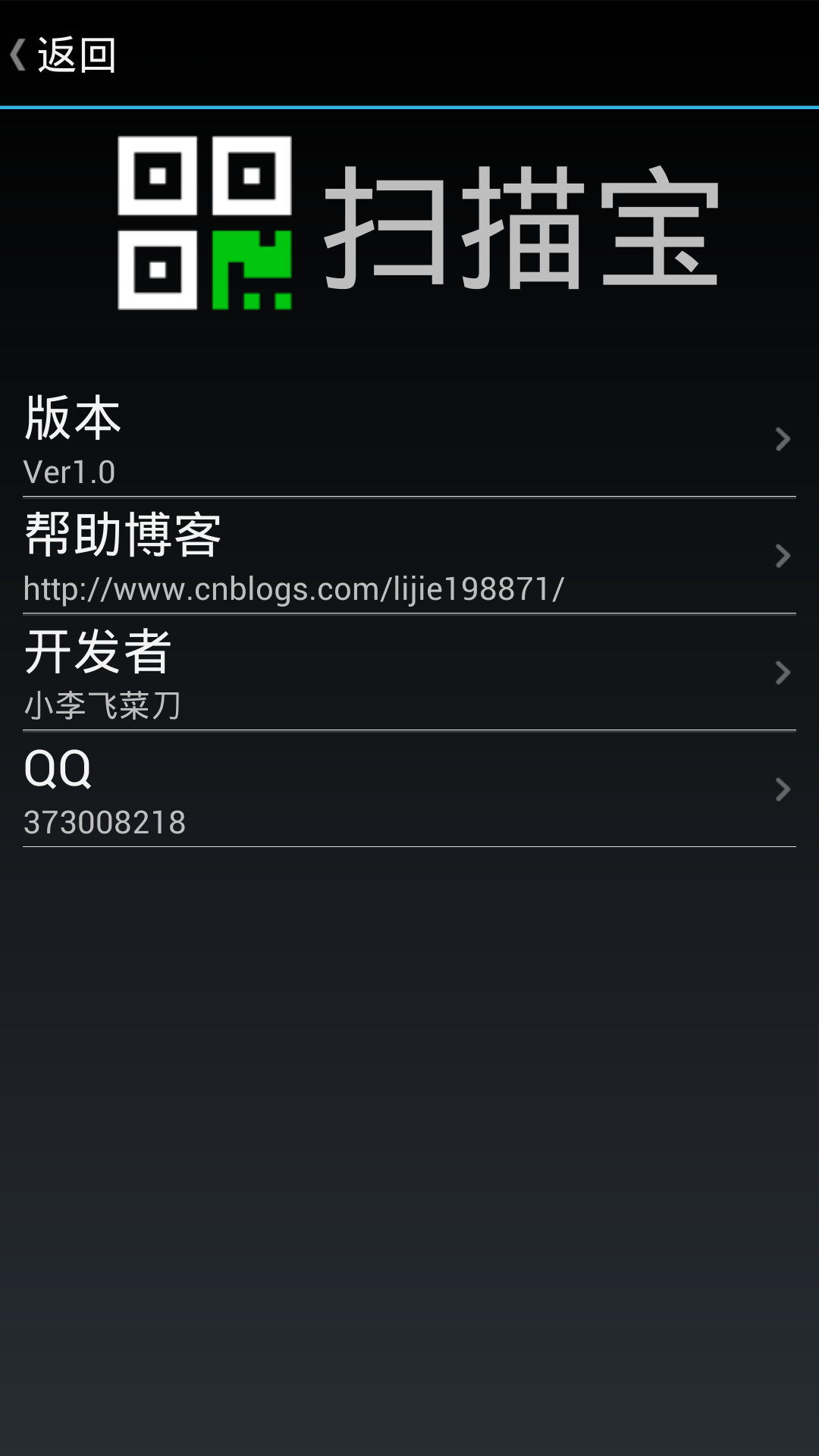

应用截图

开发思路和关键代码

  Client:

  1、摄像头扫描二维码和条形码

  这部分功能使用Google提供的ZXing开源项目,它提供二维码和条形码的扫描,就不需要自己再去详细研究具体实现了,只要知道怎么用就可以了。假如童鞋需要研究透切,可以下载源码:https://github.com/zxing/zxing ,相信对你的开发水平提高不少。这个开源项目内容很多,但是我这里要用的只是扫描二维码和条形码的功能,所以需要做一些精剪的操作,我也是主要参看以下这两篇博文,http://blog.csdn.net/ryantang03/article/details/7831826另一篇http://www.cnblogs.com/dolphin0520/p/3355728.html

  闪光灯的开启和关闭是用全局变量isLightVisiable标识,通过菜单选项控制,ZXing的CameraManager类已经公开了setTorch方法。

 1     @Override
 2     public boolean onOptionsItemSelected(MenuItem item) {
 3
 4         switch (item.getItemId()) {
 5         //闪光灯
 6         case ITEM_LIGHT_OFF:
 7             if (this.isLightVisiable) {
 8                 cameraManager.setTorch(false);
 9                 Toast.makeText(this, "闪光  已关", Toast.LENGTH_LONG).show();
10                 item.setTitle("闪光  开");
11             } else {
12                 cameraManager.setTorch(true);
13                 Toast.makeText(this, "闪光  已开", Toast.LENGTH_LONG).show();
14                 item.setTitle("闪光  关");
15             }
16             this.isLightVisiable = !this.isLightVisiable;
17             break;
18         //提示音
19         case ITEM_VOLUE_ON:
20             if (this.isBeepVolue) {
21                 Toast.makeText(this, "提示音   已关", Toast.LENGTH_LONG).show();
22                 item.setTitle("提示音 开");
23             } else {
24                 Toast.makeText(this, "提示音   已开", Toast.LENGTH_LONG).show();
25                 item.setTitle("提示音 关");
26             }
27             this.isBeepVolue = !this.isBeepVolue;
28             break;
29         //帮助
30         case ITEM_HELP:
31             Intent intent = new Intent(this, AboutActivity.class);
32             startActivity(intent);
33             break;
34         //检查更新
35         case ITEM_CHECK_UPDATE:
36             UpdateManager updateManager = new UpdateManager(CaptureActivity.this);
37             updateManager.checkUpdate();
38             break;
39         //退出
40         case ITEM_EXIT:
41             dialog_Exit(this);
42             break;
43         }
44
45         return false;
46     }

    提示音的开启和关闭时用全局变量isBeepVolue标识,通过菜单选项控制,在ZXing的CaptrueActivity类的方法handleDecode做判断。

 1 public void handleDecode(Result rawResult, Bitmap barcode, float scaleFactor) {
 2         inactivityTimer.onActivity();
 3         lastResult = rawResult;
 4         ResultHandler resultHandler = ResultHandlerFactory.makeResultHandler(
 5                 this, rawResult);
 6
 7         if (this.isBeepVolue) {
 8             beepManager.playBeepSoundAndVibrate();
 9         }
10         handleDecodeInternally(rawResult, resultHandler, barcode);
11     }



  2、扫描二维码与服务端建立连接

  这部分内容主要是socket网络编程的知识,具体的连接方式这里就不介绍了,Google里面有很多,也比较简单。这里介绍一下具体流程。首先,在电脑上启动服务端,生成二维码(后面再细讲),用手机扫描二维码并Decode,在handleDecodeInternally方法判断扫描结果是不是正确的服务器地址,再与服务器做TCP连接。

 1 // Put up our own UI for how to handle the decoded contents.
 2     private void handleDecodeInternally(Result rawResult,
 3             ResultHandler resultHandler, Bitmap barcode) {
 4         // statusView1.setText();
 5         String resultStr = resultHandler.getResult().getDisplayResult();
 6         if (!this.isContentServer) {
 7             if (resultStr != null && resultStr.length() > 0) {
 8                 if (this.socketThread != null) {
 9                     this.socketThread.interrupt();
10                     this.socketThread = null;
11                 }
12                 if (this.socketThread == null) {
13                     String ip = "";
14                     int port = 8099;
15
16                     String[] results = resultStr.split(":");
17                     if (results.length == 3) {
18                         if (results[0].equals("barcodeServer")) {
19                             if (this.isIPAdress(results[1])) {
20                                 ip = results[1];
21                                 try {
22                                     port = Integer.parseInt(results[2]);
23                                     this.socketThread = new SocketThread(
24                                             this.mHandler, new ProgressHandle(
25                                                     this), ip, port);
26                                     this.socketThread.start();
27                                 } catch (Exception en) {
28                                     showErrorDialog("请扫描正确的服务器二维码");
29                                 }
30
31                             } else {
32                                 showErrorDialog("请扫描正确的服务器二维码");
33                             }
34                         } else {
35                             showErrorDialog("请扫描正确的服务器二维码.");
36                         }
37                     } else {
38                         showErrorDialog("请扫描正确的服务器二维码");
39                     }
40                 }
41             } else {
42                 showErrorDialog("连接服务器失败");
43             }
44         } else {
45             if (this.socketThread != null) {
            //发送条形码到服务端
46 this.socketThread.SendMessage(resultStr); 47 ClipboardInterface.setText(resultStr, this); 48 Toast.makeText(this, "已经添加到剪切板", Toast.LENGTH_LONG).show(); 49 } else { 50 showErrorDialog("已断开服务器"); 51 ((TextView) findViewById(R.id.status_server)).setText("已断开服务器"); 52 this.isContentServer = false; 53 } 54 } 55 56 new Thread() { 57 public void run() { 58 try { 59 Thread.sleep(3000); 60 Message msg = new Message(); 61 msg.obj = 1; 62 wiatHandler.sendMessage(msg); 63 } catch (InterruptedException e) { 64 e.printStackTrace(); 65 } 66 67 } 68 }.start(); 69

   建立连接后,扫描条形码发送到服务端也是在此方法中进行,其实就是客户端与服务端的相互发送和接收信息,和局域网实时聊天实例原理是一样的。

  3、检查更新

  在Android和IOS两个平台中有比较大的区别,Android比较乱有很多的应用市场,但是IOS基本上就只有AppStore,所以Android应用的话可以在应用市场上做版本更新控制,也可以在应用内部提供检查更新功能,把版本更新文件放置在自己的服务器上。本应用是使用第二种方式,下面介绍一下实现的过程。

  首先将应用安装包APK和版本控制文件XML(主要包括versionCode,appName,appUrl属性),放置到web服务器上,我这里只是简单地放在了博客园的文件管理里。在检查版本更新时先从服务器上把版本控制文件XML获取下来(Android4.2之后不允许在主线程进行HttpConnection的操作,现在网上找的相关资料大部分都比较旧的直接在主线程上下载,4.2以上的需要开启新的线程异步下载,因为这个的提示错误不是很明显,所以说明一下,稍微注意一下就可以了),拿到versionCode与本地安装的应用versionCode比较,服务器的版本号比本地的新时提示下载更新。

 1     public void checkUpdate() {
 2         new DownloadWebpageText(this).execute("http://files.cnblogs.com/lijie198871/barcodeClientUpdate.xml");
 3     }
 4
 5 @SuppressWarnings("rawtypes")
 6     private class DownloadWebpageText extends AsyncTask {
 7         UpdateManager  updateManager = null;
 8
 9         public DownloadWebpageText(UpdateManager um){
10             this.updateManager = um;
11         }
12
13         @Override
14         protected Object doInBackground(Object... params) {
15             // TODO Auto-generated method stub
16             try {
17                 return downloadUrl(params[0].toString());
18             } catch (Exception en) {
19                 return en.getMessage();
20             }
21         }
22
23         @SuppressWarnings("unchecked")
24         @Override
25         protected void onPostExecute(Object result) {
26             // TODO Auto-generated method stub
27             super.onPostExecute(result);
28
29             this.updateManager.getVersionCode(Integer.parseInt(result.toString()));
30 //            ((TextView) findViewById(R.id.networkResult)).setText(result
31 //                    .toString());
32         }
33
34         private String downloadUrl(String myurl) throws IOException {
35             InputStream is = null;
36             HttpURLConnection httpConn = null;
37
38             try {
39                 URL url = new URL(myurl);
40                 httpConn = (HttpURLConnection) url.openConnection();
41                 httpConn.setReadTimeout(10000);
42                 httpConn.setConnectTimeout(15000);
43                 httpConn.setRequestMethod("GET");
44                 httpConn.setDoInput(true);
45
46                 httpConn.connect();
47                 int resultCode = httpConn.getResponseCode();
48                 if (resultCode == 200) {
49                     is = httpConn.getInputStream();
50
51                     PraseXmlService pxmlService = new PraseXmlService();
52                     HashMap<String,String> map = pxmlService.praseXml(is);
53                     return map.get("versionCode");
54                 } else {
55                     return "错误代码:" + resultCode;
56                 }
57
58             } finally {
59                 if (is != null) {
60                     is.close();
61                 }
62                 if (httpConn != null) {
63                     httpConn.disconnect();
64                 }
65             }
66         }
67
68         private String readIt(InputStream is, int len) throws IOException {
69             Reader reader = new InputStreamReader(is, "UTF-8");
70             char[] charBuffer = new char[len];
71             reader.read(charBuffer);
72
73             return new String(charBuffer);
74         }
75     }
从服务器上获取版本控制文件,并读取版本号
 1 public class PraseXmlService {
 2     public HashMap<String,String> praseXml(InputStream inStream) throws Exception
 3     {
 4         HashMap<String,String> updateMap = new HashMap<String,String>();
 5
 6         DocumentBuilderFactory factory = DocumentBuilderFactory.newInstance();
 7         DocumentBuilder builder = factory.newDocumentBuilder();
 8         Document document = builder.parse(inStream);
 9         Element element = document.getDocumentElement();
10
11         NodeList nodeList = element.getChildNodes();
12         int nodeCount = nodeList.getLength();
13         if(nodeList!=null && nodeCount>0){
14             for(int i=0;i<nodeCount;i++){
15                 Node node = nodeList.item(i);
16                 if(node.getNodeType() == Node.ELEMENT_NODE){
17                     Element childElement = (Element)node;
18                     if("versionCode".equals(childElement.getNodeName())){
19                         updateMap.put("versionCode", childElement.getFirstChild().getNodeValue());
20                     }else if("versionName".equals(childElement.getNodeName())){
21                         updateMap.put("versionName", childElement.getFirstChild().getNodeValue());
22                     }else if("url".equals(childElement.getNodeName())){
23                         updateMap.put("url", childElement.getFirstChild().getNodeValue());
24                     }
25                 }
26             }
27         }
28         return updateMap;
29     }
30 }
解析XML文件
 1 private int getAppVersionCode() {
 2         int appVersionCoode = 0;
 3         PackageManager pm = this.context.getPackageManager();
 4         try {
 5             appVersionCoode = pm.getPackageInfo("com.lijie.client.android", 0).versionCode;
 6         } catch (Exception e) {
 7             e.printStackTrace();
 8         }
 9
10         return appVersionCoode;
11     }
12
13     private boolean isUpdate(int newVersionCode) {
14         int appVersionCode = this.getAppVersionCode();
15
16         if (newVersionCode > appVersionCode) {
17             return true;
18         } else {
19             return false;
20         }
21
22     }
23
24     private void getVersionCode(int newVersionCode){
25         if (this.isUpdate(newVersionCode)) {
26             this.showNoticeDialog();
27         } else {
28             Toast.makeText(this.context, "当前已经是最新版本", Toast.LENGTH_LONG).show();
29         }
30     }
版本号比较



  Server:使用.net framework2.0

  1、生成服务器地址二维码

  首先获取服务器电脑IP,并随机生成端口号,拼接成服务器地址,如:192.168.1.123:8023 。同样使用ZXing的.net framew2.0版本将地址生成二维码。

  1 private void CreateBarcode()
  2         {
  3             serverIp = GetLocalIP();
  4
  5             Random random = new Random();
  6             while (true)
  7             {
  8                 int port = random.Next(8088, 20480);
  9                 if (!this.isPortUsed(port))
 10                 {
 11                     serverPort = port.ToString();
 12                     break;
 13                 }
 14             }
 15
 16             EncodingOptions options = null;
 17             BarcodeWriter writer = null;
 18             options = new QrCodeEncodingOptions
 19             {
 20                 DisableECI = true,
 21                 CharacterSet = "UTF-8",
 22                 Width = this.picBarCode.Width,
 23                 Height = this.picBarCode.Height
 24             };
 25             writer = new BarcodeWriter();
 26             writer.Format = BarcodeFormat.QR_CODE;
 27             writer.Options = options;
 28             Bitmap bitmap = writer.Write("barcodeServer:" + this.serverIp + ":" + this.serverPort);
 29             this.picBarCode.Image = bitmap;
 30         }
 31
 32
 33 /// <summary>
 34         /// 得到本机IP
 35         /// </summary>
 36         private string GetLocalIP()
 37         {
 38             NetworkInterface[] interfaces = NetworkInterface.GetAllNetworkInterfaces();
 39             foreach (NetworkInterface ni in interfaces)
 40             {
 41                 foreach (UnicastIPAddressInformation ip in
 42                     ni.GetIPProperties().UnicastAddresses)
 43                 {
 44                     if (ip.Address.AddressFamily == System.Net.Sockets.AddressFamily.InterNetwork)
 45                     {
 46                         return ip.Address.ToString();
 47                     }
 48                 }
 49             }
 50
 51             //本机IP地址
 52             string strLocalIP = "";
 53             //得到计算机名
 54             string strPcName = Dns.GetHostName();
 55             //得到本机IP地址数组
 56             IPAddress[] ipAddress = Dns.GetHostAddresses(strPcName);
 57             //遍历数组
 58             foreach (var IPadd in ipAddress)
 59             {
 60                 //判断当前字符串是否为正确IP地址
 61                 if (IsRightIP(IPadd.ToString()))
 62                 {
 63                     //得到本地IP地址
 64                     strLocalIP = IPadd.ToString();
 65                     //结束循环
 66                     break;
 67                 }
 68             }
 69
 70             //返回本地IP地址
 71             return strLocalIP;
 72         }
 73
 74         /// <summary>
 75         /// 判断是否为正确的IP地址
 76         /// </summary>
 77         /// <param name="strIPadd">需要判断的字符串</param>
 78         /// <returns>true = 是 false = 否</returns>
 79         public static bool IsRightIP(string strIPadd)
 80         {
 81             //利用正则表达式判断字符串是否符合IPv4格式
 82             if (Regex.IsMatch(strIPadd, "[0-9]{1,3}\\.[0-9]{1,3}\\.[0-9]{1,3}\\.[0-9]{1,3}"))
 83             {
 84                 //根据小数点分拆字符串
 85                 string[] ips = strIPadd.Split('.');
 86                 if (ips.Length == 4 || ips.Length == 6)
 87                 {
 88                     //如果符合IPv4规则
 89                     if (System.Int32.Parse(ips[0]) < 256 && System.Int32.Parse(ips[1]) < 256 & System.Int32.Parse(ips[2]) < 256 & System.Int32.Parse(ips[3]) < 256)
 90                         //正确
 91                         return true;
 92                     //如果不符合
 93                     else
 94                         //错误
 95                         return false;
 96                 }
 97                 else
 98                     //错误
 99                     return false;
100             }
101             else
102                 //错误
103                 return false;
104         }
105
106         private bool isPortUsed(int port)
107         {
108             bool isUsed = false;
109             IPGlobalProperties ipProperties = IPGlobalProperties.GetIPGlobalProperties();
110             IPEndPoint[] ipEndPoints = ipProperties.GetActiveTcpListeners();
111
112             foreach (IPEndPoint endPoint in ipEndPoints)
113             {
114                 if (endPoint.Port == port)
115                 {
116                     isUsed = true;
117                     break;
118                 }
119             }
120             return isUsed;
121         }
View Code

   2、与客户端建立连接

  这部分其实也是socket的编程,具体也不介绍了,然后输出到光标位置,直接使用 SendKeys.Send("内容") 就可以了。



使用方法目前版本需要手机和服务端电脑连接在同一个无线局域网 WIFI下)

  1、下载服务器端,http://files.cnblogs.com/lijie198871/BarcodeScannerServer.rar

  2、下载Android手机客户端到本地电脑再安装到手机,http://files.cnblogs.com/lijie198871/BarcodeClient.apk

    也可以直接扫描二维码安装,或者直接在 豌豆荚 上搜索 扫描宝,就可以直接下载安装了。

  BPMU1PlE5xIq6MxyVQaklxZkoqFVY9AJ5imt8onKIFXVnOCqDUkuKM1FQq7DoBfIU1/hE5RAr6s5wVAallhRnoqBWYdEL5Cmu8YnKIVbUneGoDEotKc5EQa3CohfIU1zjE5VDrKg7w1EZlFpSnImCWoVFr1xCoFPcOYd/s/v/DlNH9lFZsLwqOmxx6wxDMbPVKwflLvBicP3v4pyZjBXyyl2kdYahmNnqlYNyF3gxuP53cc5Mxgp55S7SOsNQzGz1ykG5C7wYXP+7OGcmY4W8chdpnWEoZrZ65aDcBV4Mrv9dnDOTsUJeuYu0zjAUM1u9clDuAi8G1/8uzpm3YWXO9bKU338XFl612FFkK86Zt2FlDp0RN8z1Ysi5313sqchWnDNvw8ocOiNumOvFkHO/u9hTka04Z96GlTl0Rtww14sh5353saciW3HOvA0rc+iMuGGuF0PO/e5iT0W24px5G1bm0Blxw1wvhpz73cWeimzFMXMwGPyIeVSDgYx5VIOBjHlUg4GMeVSDgYx5VIOBjHlUg4GMeVSDgYx5VIOBjHlUg4GMeVSDgYx5VIOBjHlUg4GMeVSDgYx5VIOBjHlUg4GMeVSDgYx5VIOBjHlUg4GMeVSDgYz/A7Hx6ujqZ4a+AAAAAElFTkSuQmCC" alt="" />使用UC浏览器扫描或其他扫描工具。

  3、解压BarcodeScannerServer.rar直接运行 扫描宝Server.exe,出现二维码;

  4、使用手机运行 扫描宝 应用,扫描服务端的二维码,与服务器成功连接;

  5、将电脑光标定位到任意输入框,手机随意找一个条形码或二维码 进行扫描,就可以将内容输入到电脑上了;



 后续版本畅想

  1、当前版本只局限在WIFI同一个无线局域网下,应该再加上USB的连接方式、蓝牙等等;

  2、如果要按一个产品的定位去发展的话,应该要开发IOS版本,可惜苹果的开发设备太贵,买不起啊,有人资助就好了;

  3、应该加入互联网的发展方式,支持扫描云同步,现在只是简单的扫描条码到电脑上,应该还有很多适用场景,比如超市的库存清点、商品信息查看和更新云同步;快递员送货信息及时更新,一个扫描枪成本不高,但是每个快递员都带一个扫描枪,成本就非常高了, 并且手机基本上每个人都有,而且是越来越新款的智能机,装上一个扫描软件成本几乎为零,只是服务端的成本;当然现在市面上已经有的扫描比价,扫描翻译等等的功能也可以集成进去;有朝一日把传统的扫描枪淘汰掉(貌似想法有点狂妄,但是按目前互联网的发展态势,很多传统行业都在逐步被淘汰,如 拍照开片机、GPS导航等)

  4、盈利模式,还没想到,如果只是靠广告的话利润太低了,而且这样的应用别人很容易仿照复制;

  只是这样想想,后续应该不会做太大的更新了,把源码共享出来,靠各位童鞋建设了,或者放到开源社区,大家一起添砖加瓦;



源码下载

  服务端源码:下载

  客户端源码:下载



  亲,记得点赞“推荐”哦!



  本文版权归作者和博客园共有,欢迎转载,但未经作者同意必须保留此段声明,且在文章页面明显位置给出原文连接。如有问题,可以邮件:373008218(at)qq(dot)com  联系我,非常感谢。

发表评论
用户名: 匿名
