不得不说listPicker是个有用但是很操蛋的控件,对于我这种完全不懂数据绑定的新手来说尤其操蛋。

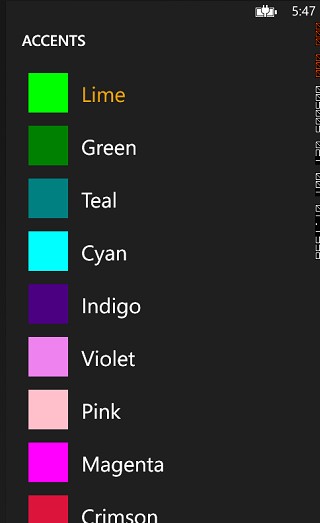

我要实现这样一个功能:在一个设置页面放置一个listPicker控件,用于选择颜色,其中ExpansionMode="FullScreenOnly",就是点击会全屏展开的那种。用户做出选择后,根据用户所选颜色做相应的响应事件,然后将选择结果保存。1 <toolkit: ListPicker x: Name="ChoseAccentColor" ItemsSource ="{Binding}" Header="{Binding Path =LocalizedResources.Setting_color, Source={ StaticResource LocalizedStrings}}" FullModeHeader="{ Binding Path=LocalizedResources.Setting_fullmodecolor, Source={StaticResource LocalizedStrings}}" ExpansionMode="FullScreenOnly" SelectionChanged="ChoseAccentColor_SelectionChanged" Margin ="0" Width="422"> 2 <toolkit: ListPicker.FullModeItemTemplate> 3 <DataTemplate> 4 <toolkit: WrapPanel> 5 <Rectangle Fill ="{Binding}" Width="60" Height ="60" Margin="10" /> 6 <TextBlock Text ="{Binding}" VerticalAlignment="Center" HorizontalAlignment="Center" FontSize ="32" Margin="10"/> 7 </toolkit: WrapPanel> 8 </DataTemplate> 9 </toolkit: ListPicker.FullModeItemTemplate> 10 <toolkit: ListPicker.ItemTemplate> 11 <DataTemplate> 12 <StackPanel Orientation ="Horizontal"> 13 <Rectangle Fill ="{Binding}" Width="20" Height ="20" /> 14 <TextBlock Text ="{Binding}" VerticalAlignment="Center" Margin="10, 0, 0, 0"/> 15 </StackPanel> 16 </DataTemplate> 17 </toolkit: ListPicker.ItemTemplate> 18 </toolkit: ListPicker>
1 this.ChoseAccentColor.ItemsSource = new List< string>() { "Lime" , "Green" , "Teal" , "Cyan" , "Indigo" , "Violet" , "Pink" , "Magenta" , "Crimson" , "Red" , "Orange" , "Yellow" , "Brown" , "Olive" , "Sienna" };

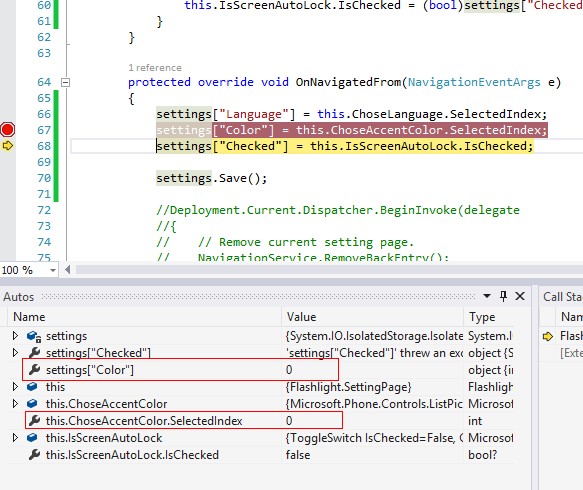

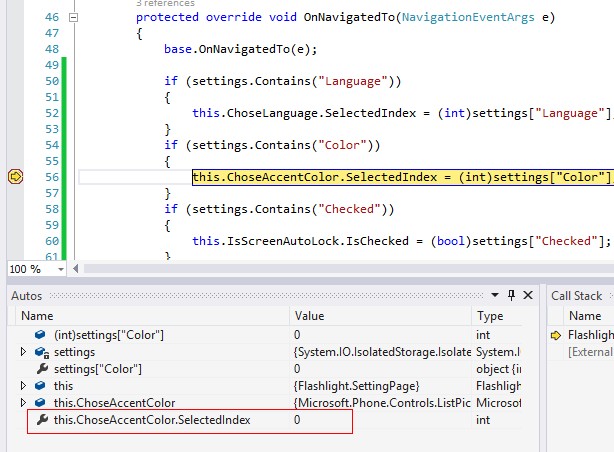

1 protected override void OnNavigatedTo(NavigationEventArgs e) 2 { 3 base.OnNavigatedTo(e); 4 5 if (settings.Contains("Color" )) 6 { 7 this.ChoseAccentColor.SelectedIndex= (int)settings[ "Color"]; 8 } 9 } 10 11 protected override void OnNavigatedFrom(NavigationEventArgs e) 12 { 13 settings[ "Color"] = this .ChoseAccentColor.SelectedIndex; 14 15 settings.Save(); 16 base.OnNavigatedFrom(e); 17 }
1 using System; 2 using System.Collections.Generic; 3 using System.Linq; 4 using System.Text; 5 using System.Threading.Tasks; 6 using System.IO.IsolatedStorage; 7 using Microsoft.Phone.Shell; 8 using System.Windows.Media; 9 10 namespace Flashlight.Helper 11 { 12 class ColorSettingHelper 13 { 14 /// <summary> 15 /// Save data of color to the local. 16 /// </summary> 17 /// <param name="data"></param> 18 public void SaveColorSetting(string data) 19 { 20 var localColorSetting = IsolatedStorageSettings.ApplicationSettings; 21 localColorSetting["Color"] = data; 22 } 23 24 /// <summary> 25 /// Read the local data of color. 26 /// </summary> 27 /// <returns></returns> 28 public string LoadColorSetting() 29 { 30 var localColorSetting = IsolatedStorageSettings.ApplicationSettings; 31 var result = localColorSetting.Where(a => a.Key == "Color"); 32 33 if (result.Any()) 34 { 35 var color = localColorSetting["Color"].ToString(); 36 return color; 37 } 38 return "PhoneAccentBrush"; 39 } 40 41 /// <summary> 42 /// Modify accent color of tile. 43 /// </summary> 44 /// <param name="color"></param> 45 public void ModifyTileAccent(string color) 46 { 47 byte r = 0; 48 byte g = 0; 49 byte b = 0; 50 51 switch (color) 52 { 53 case "Lime": 54 r = 164; 55 g = 196; 56 b = 0; 57 break; 58 case "Green": 59 r = 96; 60 g = 169; 61 b = 23; 62 break; 63 case "Teal": 64 r = 0; 65 g = 171; 66 b = 169; 67 break; 68 case "Cyan": 69 r = 27; 70 g = 161; 71 b = 226; 72 break; 73 case "Indigo": 74 r = 106; 75 g = 0; 76 b = 255; 77 break; 78 case "Violet": 79 r = 170; 80 g = 0; 81 b = 255; 82 break; 83 case "Pink": 84 r = 244; 85 g = 114; 86 b = 208; 87 break; 88 case "Magenta": 89 r = 216; 90 g = 0; 91 b = 115; 92 break; 93 case "Crimson": 94 r = 162; 95 g = 0; 96 b = 37; 97 break; 98 case "Red": 99 r = 229; 100 g = 20; 101 b = 0; 102 break; 103 case "Orange": 104 r = 250; 105 g = 104; 106 b = 0; 107 break; 108 case "Yellow": 109 r = 216; 110 g = 193; 111 b = 0; 112 break; 113 case "Brown": 114 r = 130; 115 g = 90; 116 b = 44; 117 break; 118 case "Olive": 119 r = 109; 120 g = 135; 121 b = 100; 122 break; 123 case "Sienna": 124 r = 122; 125 g = 59; 126 b = 63; 127 break; 128 default: 129 break; 130 } 131 132 changeIconicTileBackgroundColor(r, g, b); 133 } 134 135 /// <summary> 136 /// Change IconicTile BackgroundColor 137 /// </summary> 138 /// <param name="r"></param> 139 /// <param name="g"></param> 140 /// <param name="b"></param> 141 private void changeIconicTileBackgroundColor(byte r, byte g, byte b) 142 { 143 ShellTile tileToFind = ShellTile.ActiveTiles.First(); 144 145 if (tileToFind != null) 146 { 147 IconicTileData TileData = new IconicTileData() 148 { 149 //Title = AppResources.ApplicationTitle, 150 IconImage = new Uri("/Assets/Tiles/IconicTileMediumLarge.png", UriKind.Relative), 151 BackgroundColor = new Color { A = 255, R = r, G = g, B = b } 152 }; 153 tileToFind.Update(TileData); 154 } 155 } 156 } 157 }
1 private void ChoseAccentColor_SelectionChanged( object sender, SelectionChangedEventArgs e) 2 { 3 var listPicker = sender as ListPicker ; 4 var selectIndex = listPicker.SelectedIndex; 5 6 if (selectIndex != 0) 7 { 8 var color = listPicker.SelectedItem as string; 9 var manager = new Flashlight.Helper. ColorSettingHelper (); 10 11 manager.ModifyTileAccent(color); 12 manager.SaveColorSetting(color); 13 } 14 } 15 16 protected override void OnNavigatedTo( NavigationEventArgs e) 17 { 18 base.OnNavigatedTo(e); 19 20 var color = new Flashlight.Helper.ColorSettingHelper ().LoadColorSetting(); 21 22 for ( int i = 0; i < this.ChoseAccentColor.Items.Count; i++) 23 { 24 if ( this.ChoseAccentColor.Items[i].ToString() == color) 25 { 26 this.ChoseAccentColor.SelectedIndex = i; 27 } 28 } 29 }注:ColorSettingHelper 类是放在一个Helper文件夹中的 这样就万事大吉了。 转载请注明住处:http://www.cnblogs.com/aerodynamics/
