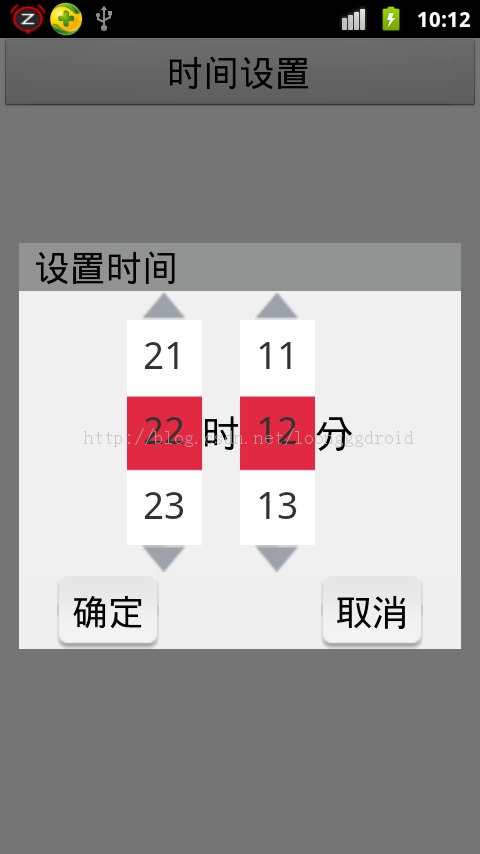

看到正点闹钟上的设置时间的滑动效果非常好看，自己就想做一个那样的，在网上就开始搜资料了，看到网上有的齿轮效果的代码非常多，也非常难懂，我就决定自己研究一下，现在我就把我的研究成果分享给大家。我研究的这个效果出来了，而且代码也非常简单，通俗易懂。效果图如下：

首先是MainActivity的布局文件，这个布局文件非常简单，就是一个Button：activity_main.xml文件，代码如下：

[html] view plaincopy

class="dp-xml" start="1">
1. <?xml version="1.0" encoding="utf-8"?>
2. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
3.     android:id="@+id/ll_timeset"
4.     android:layout_width="fill_parent"
5.     android:layout_height="fill_parent"
6.     android:background="#ffffff"
7.     android:orientation="vertical" >
8.
9.     <Button
10.         android:id="@+id/btn"
11.         android:layout_width="fill_parent"
12.         android:layout_height="wrap_content"
13.         android:gravity="center"
14.         android:text="时间设置"
15.         android:textSize="24sp" />
16.
17. </LinearLayout>

紧接着就是MainActivity的代码，代码如下： [java] view plaincopy

1. package net.loonggg.test;
2.
3. import net.loonggg.view.CustomerDateDialog;
4. import net.loonggg.view.CustomerDateDialog.DateDialogListener;
5. import android.app.Activity;
6. import android.os.Bundle;
7. import android.text.format.DateFormat;
8. import android.view.View;
9. import android.view.Window;
10. import android.widget.Button;
11. import android.widget.Toast;
12.
13. public class MainActivity extends Activity {
14.     private int h, m;
15.     private CustomerDateDialog dialog;
16.     private Button btn;
17.
18.     @Override
19.     protected void onCreate(Bundle savedInstanceState) {
20.         super.onCreate(savedInstanceState);
21.         requestWindowFeature(Window.FEATURE_NO_TITLE);
22.         setContentView(R.layout.activity_main);
23.         btn = (Button) findViewById(R.id.btn);
24.         btn.setOnClickListener(new View.OnClickListener() {
25.
26.             @Override
27.             public void onClick(View v) {
28.                 String datetime = DateFormat.format("kk:mm",
29.                         System.currentTimeMillis()).toString();
30.                 String[] strs = datetime.split(":");
31.                 h = Integer.parseInt(strs[0]);
32.                 m = Integer.parseInt(strs[1]);
33.                 dialog = new CustomerDateDialog(MainActivity.this, h, m);
34.                 dialog.show();
35.                 dialog.setOnDateDialogListener(new DateDialogListener() {
36.                     @Override
37.                     public void getDate() {
38.                         Toast.makeText(
39.                                 MainActivity.this,
40.                                 "时间是:" + dialog.getSettingHour() + "点"
41.                                         + dialog.getSettingMinute() + "分",
42.                                 Toast.LENGTH_LONG).show();
43.                     }
44.                 });
45.
46.             }
47.         });
48.
49.     }
50.
51. }

再就是我自定义了一个时钟的Dialog,自定义Dialog也非常简单，自己可以学一下，这方面网上的资料非常多。现在我把我自定义时钟的Dialog的代码分享一下，代码如下： [java] view plaincopy

1. package net.loonggg.view;
2.
3. import net.loonggg.test.R;
4. import android.annotation.SuppressLint;
5. import android.app.Dialog;
6. import android.content.Context;
7. import android.os.Bundle;
8. import android.os.Handler;
9. import android.view.LayoutInflater;
10. import android.view.MotionEvent;
11. import android.view.View;
12. import android.view.View.OnTouchListener;
13. import android.view.ViewTreeObserver;
14. import android.view.ViewTreeObserver.OnGlobalLayoutListener;
15. import android.widget.Button;
16. import android.widget.LinearLayout;
17. import android.widget.ScrollView;
18. import android.widget.TextView;
19.
20. @SuppressLint("HandlerLeak")
21. public class CustomerDateDialog extends Dialog {
22.     private View customView;
23.     private Button setBtn;
24.     private Button cancleBtn;
25.     private TextView arrow_up;
26.     private TextView tv01, tv02;
27.     private ScrollView sv01, sv02;
28.     private LinearLayout llTimeWheel;
29.     private DateDialogListener listener;
30.     private int lastY;
31.     private int flag;// 标记时分
32.     private int itemHeight;// 每一行的高度
33.     private int pHour, pMinute;// 初始化时显示的时分时间
34.     private int setHour, setMinute;
35.
36.     public CustomerDateDialog(Context context, int hour, int minute) {
37.         super(context, R.style.CustomerDateDialog);
38.         customView = LayoutInflater.from(context).inflate(R.layout.time_wheel,
39.                 null);
40.         init(context, hour, minute);
41.     }
42.
43.     @Override
44.     protected void onCreate(Bundle savedInstanceState) {
45.         super.onCreate(savedInstanceState);
46.         this.setContentView(customView);
47.     }
48.
49.     private void init(Context context, final int hour, final int minute) {
50.         tv01 = (TextView) customView.findViewById(R.id.tv01);
51.         tv02 = (TextView) customView.findViewById(R.id.tv02);
52.         sv01 = (ScrollView) customView.findViewById(R.id.sv01);
53.         sv02 = (ScrollView) customView.findViewById(R.id.sv02);
54.         setBtn = (Button) customView.findViewById(R.id.setBtn);
55.         cancleBtn = (Button) customView.findViewById(R.id.cancleBtn);
56.         arrow_up = (TextView) customView.findViewById(R.id.arrow_up);
57.         this.pHour = hour;
58.         this.pMinute = minute;
59.         setHour = pHour;
60.         setMinute = pMinute;
61.
62.         llTimeWheel = (LinearLayout) customView
63.                 .findViewById(R.id.ll_time_wheel);
64.         setHourDial(tv01);
65.         setMinuteDial(tv02);
66.
67.         sv01.setOnTouchListener(tListener);
68.         sv02.setOnTouchListener(tListener);
69.
70.         final ViewTreeObserver observer = sv01.getViewTreeObserver();// observer
71.                                                                         // 作用当视图完全加载进来的时候再取控件的高度，否则取得值是0
72.         observer.addOnGlobalLayoutListener(new OnGlobalLayoutListener() {
73.
74.             @SuppressWarnings("deprecation")
75.             public void onGlobalLayout() {
76.                 int tvHeight = tv02.getHeight();
77.                 itemHeight = tvHeight / 180;
78.                 if (sv01.getViewTreeObserver().isAlive()) {
79.                     sv01.getViewTreeObserver().removeGlobalOnLayoutListener(
80.                             this);
81.                 }
82.                 LinearLayout.LayoutParams params = new LinearLayout.LayoutParams(
83.                         LinearLayout.LayoutParams.FILL_PARENT, (itemHeight * 3)
84.                                 + arrow_up.getHeight() * 2);
85.                 llTimeWheel.setLayoutParams(params);
86.                 sv01.setLayoutParams(new LinearLayout.LayoutParams(tv02
87.                         .getWidth(), (itemHeight * 3)));
88.                 sv02.setLayoutParams(new LinearLayout.LayoutParams(tv02
89.                         .getWidth(), (itemHeight * 3)));
90.                 sv01.scrollTo(0, (pHour + 23) * itemHeight);
91.                 sv02.scrollTo(0, (pMinute + 59) * itemHeight);
92.
93.             }
94.         });
95.
96.         setBtn.setOnClickListener(new View.OnClickListener() {
97.
98.             @Override
99.             public void onClick(View v) {
100.                 getSettingDate();
101.                 CustomerDateDialog.this.cancel();
102.             }
103.         });
104.
105.         cancleBtn.setOnClickListener(new View.OnClickListener() {
106.
107.             @Override
108.             public void onClick(View v) {
109.                 CustomerDateDialog.this.cancel();
110.             }
111.         });
112.     }
113.
114.     private OnTouchListener tListener = new OnTouchListener() {
115.
116.         public boolean onTouch(View v, MotionEvent event) {
117.             if (v == sv01) {
118.                 flag = 1;
119.             } else {
120.                 flag = 2;
121.             }
122.             if (event.getAction() == MotionEvent.ACTION_UP) {
123.                 final ScrollView sv = (ScrollView) v;
124.                 lastY = sv.getScrollY();
125.                 System.out.println("lastY" + lastY);
126.                 handler.sendMessageDelayed(handler.obtainMessage(0, v), 50);
127.             }
128.             return false;
129.         }
130.     };
131.
132.     private Handler handler = new Handler() {
133.         @SuppressLint("HandlerLeak")
134.         public void handleMessage(android.os.Message msg) {
135.             ScrollView sv = (ScrollView) msg.obj;
136.
137.             if (msg.what == 0) {
138.                 if (lastY == sv.getScrollY()) {
139.
140.                     int num = lastY / itemHeight;
141.                     int over = lastY % itemHeight;
142.                     if (over > itemHeight / 2) {// 超过一半滚到下一格
143.                         locationTo((num + 1) * itemHeight, sv, flag);
144.                     } else {// 不到一半滚回上一格
145.                         locationTo(num * itemHeight, sv, flag);
146.                     }
147.                 } else {
148.                     lastY = sv.getScrollY();
149.                     handler.sendMessageDelayed(handler.obtainMessage(0, sv), 50);// 滚动还没停止隔50毫秒再判断
150.                 }
151.             }
152.
153.         };
154.     };
155.
156.     private void locationTo(int position, ScrollView scrollview, int flag) {
157.         switch (flag) {
158.         case 1:
159.             int mPosition = 0;
160.             if (position <= 23 * itemHeight) {
161.                 mPosition = position + 24 * itemHeight;
162.                 scrollview.scrollTo(0, mPosition);
163.             } else if (position >= 48 * itemHeight) {
164.                 mPosition = position - 24 * itemHeight;
165.                 scrollview.scrollTo(0, mPosition);
166.             } else {
167.                 mPosition = position;
168.                 scrollview.smoothScrollTo(0, position);
169.             }
170.             setHour = (mPosition / itemHeight - 23) % 24;
171.             break;
172.
173.         case 2:
174.             int hPosition = 0;
175.             if (position <= 57 * itemHeight) {
176.                 hPosition = position + 60 * itemHeight;
177.                 scrollview.scrollTo(0, hPosition);
178.             } else if (position >= 120 * itemHeight) {
179.                 hPosition = position - 60 * itemHeight;
180.                 scrollview.scrollTo(0, hPosition);
181.             } else {
182.                 hPosition = position;
183.                 scrollview.smoothScrollTo(0, position);
184.             }
185.             setMinute = (hPosition / itemHeight) % 60 + 1;
186.             break;
187.         }
188.
189.     }
190.
191.     /**
192.      * 设置分刻度盘
193.      *
194.      * @param tv
195.      */
196.
197.     private void setMinuteDial(TextView tv) {
198.         StringBuffer buff = new StringBuffer();
199.         for (int i = 0; i < 3; i++) {
200.             for (int j = 0; j < 60; j++) {
201.                 if (j <= 9) {
202.                     buff.append("0" + j);
203.                 } else {
204.                     buff.append(j + "");
205.                 }
206.             }
207.         }
208.
209.         tv.setText(buff);
210.     }
211.
212.     /**
213.      * 设置时刻度盘
214.      *
215.      * @param tv
216.      */
217.     private void setHourDial(TextView tv) {
218.         StringBuffer buff = new StringBuffer();
219.         for (int i = 0; i < 3; i++) {
220.             for (int j = 0; j < 24; j++) {
221.                 if (j <= 9) {
222.                     buff.append("0" + j);
223.                 } else {
224.                     buff.append(j + "");
225.                 }
226.             }
227.
228.         }
229.
230.         tv.setText(buff);
231.     }
232.
233.     public void setpHour(int pHour) {
234.         this.pHour = pHour;
235.     }
236.
237.     public void setpMinute(int pMinute) {
238.         this.pMinute = pMinute;
239.     }
240.
241.     public void setOnDateDialogListener(DateDialogListener listener) {
242.         this.listener = listener;
243.     }
244.
245.     public interface DateDialogListener {
246.         void getDate();
247.     }
248.
249.     public void getSettingDate() {
250.         if (listener != null) {
251.             listener.getDate();
252.         }
253.     }
254.
255.     public int getSettingHour() {
256.         return setHour;
257.     }
258.
259.     public int getSettingMinute() {
260.         return setMinute;
261.     }
262.
263. }

这里光有java代码还不够，还有自定义Dialog的布局文件，time_wheel.xml代码如下： [html] view plaincopy

1. <?xml version="1.0" encoding="utf-8"?>
2. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
3.     android:layout_width="fill_parent"
4.     android:layout_height="wrap_content"
5.     android:background="#efefef"
6.     android:orientation="vertical" >
7.
8.     <TextView
9.         android:layout_width="fill_parent"
10.         android:layout_height="wrap_content"
11.         android:background="@color/light_black"
12.         android:paddingLeft="10dp"
13.         android:text="设置时间"
14.         android:textColor="@color/black"
15.         android:textSize="24sp" />
16.
17.     <!-- 时间的相关设置 -->
18.
19.     <LinearLayout
20.         android:id="@+id/ll_time_wheel"
21.         android:layout_width="fill_parent"
22.         android:layout_height="wrap_content"
23.         android:layout_marginTop="15dp"
24.         android:background="#f0f0f0"
25.         android:gravity="center_horizontal"
26.         android:orientation="horizontal" >
27.
28.         <LinearLayout
29.             android:layout_width="wrap_content"
30.             android:layout_height="wrap_content"
31.             android:orientation="vertical" >
32.
33.             <TextView
34.                 android:layout_width="30dp"
35.                 android:layout_height="wrap_content"
36.                 android:layout_gravity="center_horizontal"
37.                 android:background="@drawable/wheel_arrow_up" />
38.
39.             <ScrollView
40.                 android:id="@+id/sv01"
41.                 android:layout_width="50dp"
42.                 android:layout_height="wrap_content"
43.                 android:layout_gravity="center_horizontal"
44.                 android:background="@drawable/time_bg"
45.                 android:scrollbars="none" >
46.
47.                 <LinearLayout
48.                     android:id="@+id/ll01"
49.                     android:layout_width="50dp"
50.                     android:layout_height="wrap_content"
51.                     android:gravity="center"
52.                     android:orientation="horizontal"
53.                     android:paddingTop="5dp" >
54.
55.                     <TextView
56.                         android:id="@+id/tv01"
57.                         android:layout_width="50dp"
58.                         android:layout_height="wrap_content"
59.                         android:gravity="center"
60.                         android:lineSpacingExtra="20dp"
61.                         android:paddingLeft="10dp"
62.                         android:paddingRight="10dp"
63.                         android:textSize="26sp" />
64.                 </LinearLayout>
65.             </ScrollView>
66.
67.             <TextView
68.                 android:layout_width="30dp"
69.                 android:layout_height="wrap_content"
70.                 android:layout_gravity="center_horizontal"
71.                 android:background="@drawable/wheel_arrow_down" />
72.         </LinearLayout>
73.
74.         <TextView
75.             android:layout_width="wrap_content"
76.             android:layout_height="fill_parent"
77.             android:layout_gravity="center"
78.             android:background="#f0f0f0"
79.             android:gravity="center"
80.             android:text="时"
81.             android:textColor="#000000"
82.             android:textSize="25sp" />
83.
84.         <LinearLayout
85.             android:layout_width="wrap_content"
86.             android:layout_height="wrap_content"
87.             android:orientation="vertical" >
88.
89.             <TextView
90.                 android:id="@+id/arrow_up"
91.                 android:layout_width="30dp"
92.                 android:layout_height="wrap_content"
93.                 android:layout_gravity="center_horizontal"
94.                 android:background="@drawable/wheel_arrow_up" />
95.
96.             <ScrollView
97.                 android:id="@+id/sv02"
98.                 android:layout_width="50dp"
99.                 android:layout_height="wrap_content"
100.                 android:layout_gravity="center_horizontal"
101.                 android:background="@drawable/time_bg"
102.                 android:scrollbars="none" >
103.
104.                 <LinearLayout
105.                     android:id="@+id/ll02"
106.                     android:layout_width="50dp"
107.                     android:layout_height="wrap_content"
108.                     android:gravity="center"
109.                     android:paddingTop="5dp" >
110.
111.                     <TextView
112.                         android:id="@+id/tv02"
113.                         android:layout_width="50dp"
114.                         android:layout_height="wrap_content"
115.                         android:gravity="center"
116.                         android:lineSpacingExtra="20dp"
117.                         android:paddingLeft="10dp"
118.                         android:paddingRight="10dp"
119.                         android:textSize="26sp" />
120.                 </LinearLayout>
121.             </ScrollView>
122.
123.             <TextView
124.                 android:id="@+id/arrow_down"
125.                 android:layout_width="30dp"
126.                 android:layout_height="wrap_content"
127.                 android:layout_gravity="center_horizontal"
128.                 android:background="@drawable/wheel_arrow_down" />
129.         </LinearLayout>
130.
131.         <TextView
132.             android:layout_width="wrap_content"
133.             android:layout_height="fill_parent"
134.             android:layout_gravity="center"
135.             android:background="#f0f0f0"
136.             android:gravity="center"
137.             android:text="分"
138.             android:textColor="#000000"
139.             android:textSize="25sp" />
140.     </LinearLayout>
141.
142.     <!-- 设置时钟的按钮 -->
143.
144.     <RelativeLayout
145.         android:layout_width="fill_parent"
146.         android:layout_height="50dp" >
147.
148.         <Button
149.             android:id="@+id/setBtn"
150.             android:layout_width="wrap_content"
151.             android:layout_height="wrap_content"
152.             android:layout_alignParentLeft="true"
153.             android:layout_gravity="center_horizontal"
154.             android:layout_marginLeft="25dp"
155.             android:background="@drawable/btn_clock_normal"
156.             android:gravity="center"
157.             android:paddingLeft="10dp"
158.             android:paddingRight="10dp"
159.             android:text="确定"
160.             android:textColor="#000000"
161.             android:textSize="24sp" />
162.
163.         <Button
164.             android:id="@+id/cancleBtn"
165.             android:layout_width="wrap_content"
166.             android:layout_height="wrap_content"
167.             android:layout_alignParentRight="true"
168.             android:layout_gravity="center_horizontal"
169.             android:layout_marginRight="25dp"
170.             android:background="@drawable/btn_clock_normal"
171.             android:gravity="center"
172.             android:paddingLeft="10dp"
173.             android:paddingRight="10dp"
174.             android:text="取消"
175.             android:textColor="#000000"
176.             android:textSize="24sp" />
177.     </RelativeLayout>
178.
179. </LinearLayout>

为了让自定义的Dialog的样式更好看，这里还需要自定义样式的Style，Style的代码如下； [html] view plaincopy

1. <style name="CustomerDateDialog" parent="@android:Theme.Dialog">
2.         <item name="android:windowFrame">@null</item>
3.         <item name="android:windowNoTitle">true</item>
4.         <item name="android:windowBackground">@color/light_grey</item>
5.         <item name="android:windowIsFloating">true</item>
6.         <item name="android:windowContentOverlay">@null</item>
7.     </style>

到这里基本上就完了。你看懂了吗？好好研究吧！
