Android 抽屉效果的导航菜单实现

 2013/7/25 11:43:11  圣骑士wind  博客园  我要评论(0)
  • 摘要:Android抽屉效果的导航菜单实现抽屉效果的导航菜单看了很多应用,觉得这种侧滑的抽屉效果的菜单很好。不用切换到另一个页面,也不用去按菜单的硬件按钮,直接在界面上一个按钮点击,菜单就滑出来,而且感觉能放很多东西。关于实现,搜索了一下,有如下两种:1.用SlidingDrawer:http://developer.android.com/reference/android/widget/SlidingDrawer.html但是不知道为什么这个类官方不建议再继续用了
  • 标签:android 实现 菜单



Android 抽屉效果的导航菜单实现

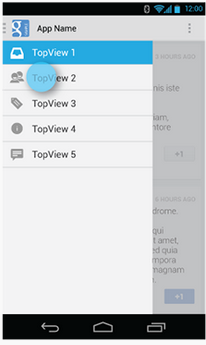

抽屉效果的导航菜单

  看了很多应用,觉得这种侧滑的抽屉效果的菜单很好。

  不用切换到另一个页面,也不用去按菜单的硬件按钮,直接在界面上一个按钮点击,菜单就滑出来,而且感觉能放很多东西。



  关于实现,搜索了一下,有如下两种:

  1.用SlidingDrawer:

  http://developer.android.com/reference/android/widget/SlidingDrawer.html

  但是不知道为什么这个类官方不建议再继续用了:

  Deprecated since API level 17

  2.用DrawerLayout:

  http://developer.android.com/reference/android/support/v4/widget/DrawerLayout.html

  Guide在这里:

  http://developer.android.com/training/implementing-navigation/nav-drawer.html



库的引用

   首先, DrawerLayout这个类是在Support Library里的,需要加上android-support-v4.jar这个包。

  然后程序中用时在前面导入import android.support.v4.widget.DrawerLayout;

  如果找不到这个类,首先用SDK Manager更新一下Android Support Library,然后在Android SDK\extras\android\support\v4路径下找到android-support-v4.jar,复制到项目的libs路径,将其Add to Build Path.



代码1

  布局:

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent" >

    <android.support.v4.widget.DrawerLayout
        xmlns:android="http://schemas.android.com/apk/res/android"
        android:id="@+id/drawer_layout"
        android:layout_width="match_parent"
        android:layout_height="match_parent" >

        <!-- The main content view -->
        <!-- main content must be the first element of DrawerLayout because it will be drawn first and drawer must be on top of it -->

        <FrameLayout
            android:id="@+id/content_frame"
            android:layout_width="match_parent"
            android:layout_height="match_parent" />

        <!-- The navigation drawer -->

        <ListView
            android:id="@+id/left_drawer"
            android:layout_width="240dp"
            android:layout_height="match_parent"
            android:layout_gravity="left"
            android:background="#111"
            android:choiceMode="singleChoice"
            android:divider="@android:color/transparent"
            android:dividerHeight="0dp" />
    </android.support.v4.widget.DrawerLayout>

</RelativeLayout>



  DrawerLayout的第一个子元素是主要内容,即抽屉没有打开时显示的布局。这里采用了一个FrameLayout,里面什么也没放。

  DrawerLayout的第二个子元素是抽屉中的内容,即抽屉布局,这里采用了一个ListView。





  主要的Activity(从官方实例中扒出来的):



package com.example.hellodrawer;

import android.os.Bundle;
import android.app.Activity;
import android.content.res.Configuration;
import android.view.MenuItem;
import android.view.View;
import android.widget.AdapterView;
import android.widget.AdapterView.OnItemClickListener;
import android.widget.ArrayAdapter;
import android.widget.ListView;
import android.support.v4.app.ActionBarDrawerToggle;
import android.support.v4.view.GravityCompat;
import android.support.v4.widget.DrawerLayout;

public class HelloDrawerActivity extends Activity
{

    private String[] mPlanetTitles;
    private DrawerLayout mDrawerLayout;
    private ActionBarDrawerToggle mDrawerToggle;
    private ListView mDrawerList;

    @Override
    public void onCreate(Bundle savedInstanceState)
    {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_hello_drawer);

        mDrawerLayout = (DrawerLayout) findViewById(R.id.drawer_layout);

        // init the ListView and Adapter, nothing new
        initListView();

        // set a custom shadow that overlays the main content when the drawer
        // opens
        mDrawerLayout.setDrawerShadow(R.drawable.drawer_shadow,
                GravityCompat.START);

        mDrawerToggle = new ActionBarDrawerToggle(this, mDrawerLayout,
                R.drawable.ic_drawer, R.string.drawer_open,
                R.string.drawer_close)
        {

            /** Called when a drawer has settled in a completely closed state. */
            public void onDrawerClosed(View view)
            {

                invalidateOptionsMenu(); // creates call to
                                            // onPrepareOptionsMenu()
            }

            /** Called when a drawer has settled in a completely open state. */
            public void onDrawerOpened(View drawerView)
            {

                invalidateOptionsMenu(); // creates call to
                                            // onPrepareOptionsMenu()
            }
        };

        // Set the drawer toggle as the DrawerListener
        mDrawerLayout.setDrawerListener(mDrawerToggle);

        // enable ActionBar app icon to behave as action to toggle nav drawer
        getActionBar().setDisplayHomeAsUpEnabled(true);
        // getActionBar().setHomeButtonEnabled(true);
        // Note: getActionBar() Added in API level 11
    }

    private void initListView()
    {
        mDrawerList = (ListView) findViewById(R.id.left_drawer);

        mPlanetTitles = getResources().getStringArray(R.array.planets_array);

        // Set the adapter for the list view
        mDrawerList.setAdapter(new ArrayAdapter<String>(this,
                R.layout.list_item, mPlanetTitles));
        // Set the list's click listener
        mDrawerList.setOnItemClickListener(new OnItemClickListener()
        {

            @Override
            public void onItemClick(AdapterView<?> parent, View view,
                    int position, long id)
            {
                // Highlight the selected item, update the title, and close the
                // drawer
                mDrawerList.setItemChecked(position, true);
                setTitle(mPlanetTitles[position]);
                mDrawerLayout.closeDrawer(mDrawerList);
            }
        });
    }

    @Override
    protected void onPostCreate(Bundle savedInstanceState)
    {
        super.onPostCreate(savedInstanceState);
        // Sync the toggle state after onRestoreInstanceState has occurred.
        mDrawerToggle.syncState();
    }

    @Override
    public void onConfigurationChanged(Configuration newConfig)
    {
        super.onConfigurationChanged(newConfig);
        mDrawerToggle.onConfigurationChanged(newConfig);
    }

    @Override
    public boolean onOptionsItemSelected(MenuItem item)
    {
        // Pass the event to ActionBarDrawerToggle, if it returns
        // true, then it has handled the app icon touch event
        if (mDrawerToggle.onOptionsItemSelected(item))
        {
            return true;
        }
        // Handle your other action bar items...

        return super.onOptionsItemSelected(item);
    }

}



  比较纠结的是用了Level 11的一个API,这样minSdkVersion就有限制,不能太低。

  图片资源Android官网示例处提供下载了。

  程序运行后效果如下:

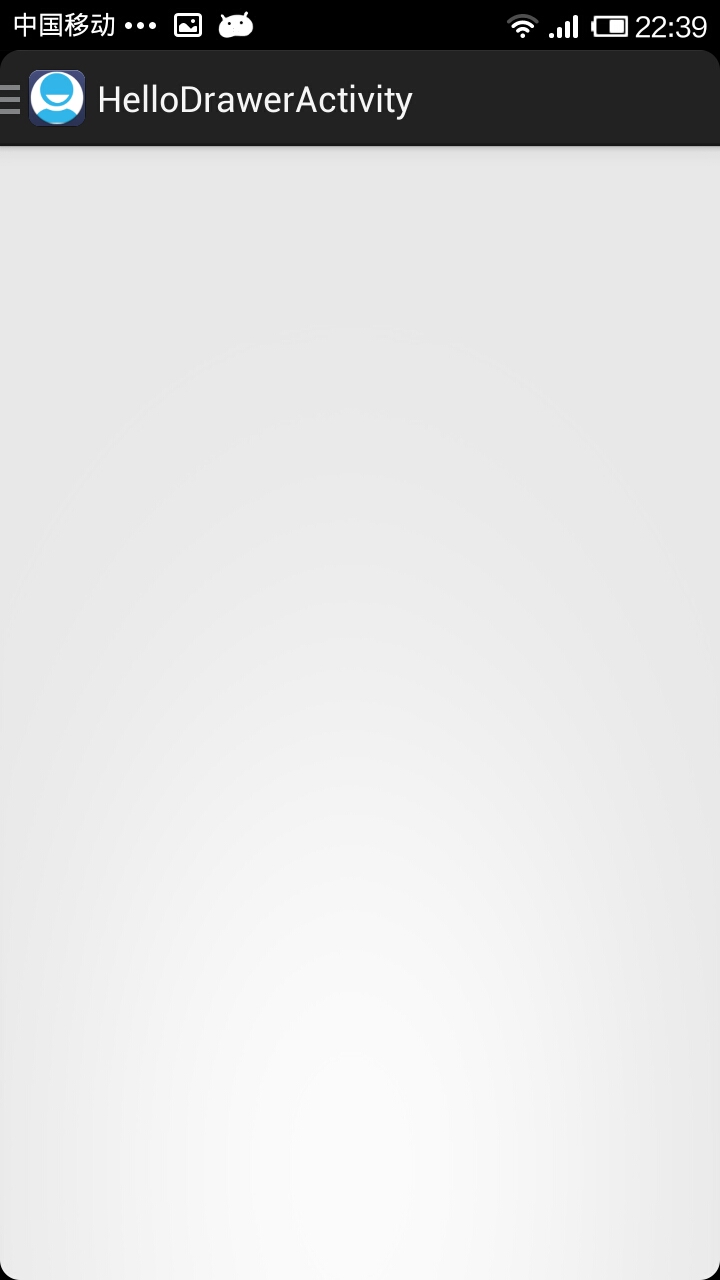

  抽屉打开前:

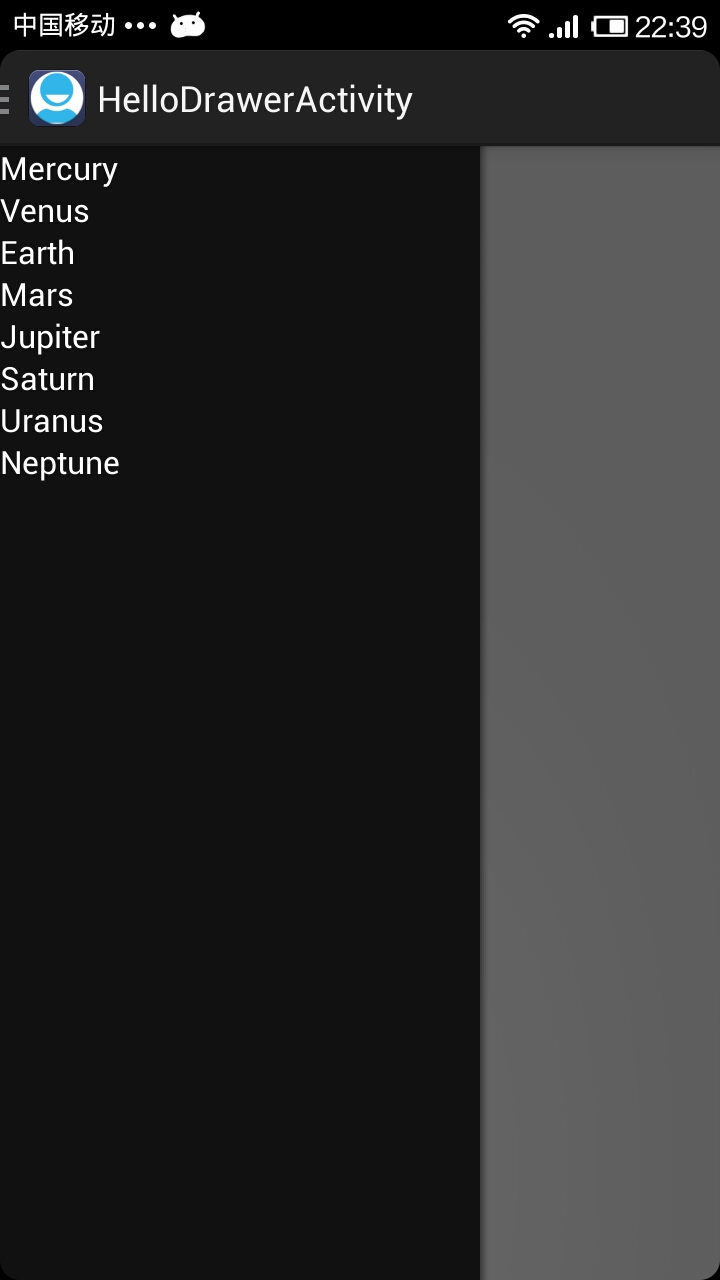

  抽屉打开后:





代码2

  今天又看了一下DrawerLayout的类,发现有很多方法可以直接用的。

  重新试了一下,其实不用上面那么麻烦,随便自己定义一个按钮控制抽屉的打开就行:

  布局:

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:paddingBottom="@dimen/activity_vertical_margin"
    android:paddingLeft="@dimen/activity_horizontal_margin"
    android:paddingRight="@dimen/activity_horizontal_margin"
    android:paddingTop="@dimen/activity_vertical_margin"
    tools:context=".DrawerActivity" >

    <android.support.v4.widget.DrawerLayout
        android:id="@+id/drawer_layout"
        android:layout_width="match_parent"
        android:layout_height="match_parent" >

        <!-- The main content view -->

        <FrameLayout
            android:id="@+id/content_frame"
            android:layout_width="match_parent"
            android:layout_height="match_parent" >

            <Button
                android:id="@+id/btn"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text="open"
                />
        </FrameLayout>

        <!-- The navigation drawer -->

        <ListView
            android:id="@+id/left_drawer"
            android:layout_width="240dp"
            android:layout_height="match_parent"
            android:layout_gravity="start"
            android:background="#111"
            android:choiceMode="singleChoice"
            android:divider="@android:color/transparent"
            android:dividerHeight="0dp" />
    </android.support.v4.widget.DrawerLayout>

</RelativeLayout>



  主要代码:

package com.example.hellodrawer;

import android.os.Bundle;
import android.app.Activity;
import android.support.v4.widget.DrawerLayout;
import android.view.Gravity;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;

public class DrawerActivity extends Activity
{
    private DrawerLayout mDrawerLayout = null;

    @Override
    protected void onCreate(Bundle savedInstanceState)
    {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_drawer);

        mDrawerLayout = (DrawerLayout) findViewById(R.id.drawer_layout);

        Button button = (Button) findViewById(R.id.btn);
        button.setOnClickListener(new OnClickListener()
        {

            @Override
            public void onClick(View v)
            {
                // 按钮按下,将抽屉打开
                mDrawerLayout.openDrawer(Gravity.LEFT);

            }
        });
    }

}





参考资料

  官方教程:

  http://developer.android.com/design/patterns/navigation-drawer.html

  http://developer.android.com/training/implementing-navigation/nav-drawer.html

  其他参考资料:

  http://blog.chengyunfeng.com/?p=493

  http://my.eoe.cn/appadventure/archive/3826.html
