手写 tomcat (nio)

?

下载 ：demo

?

?

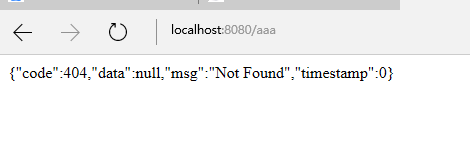

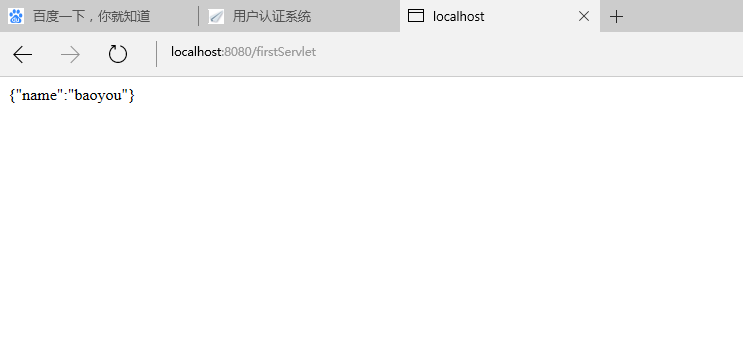

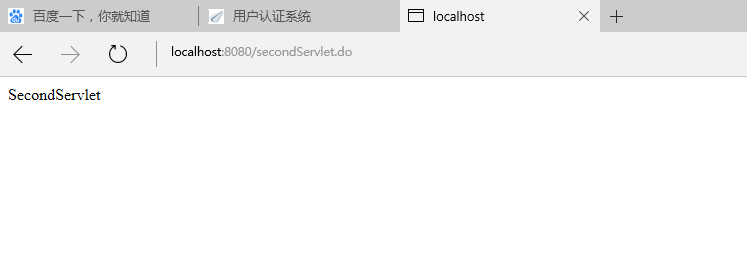

测试：

?


?
?

?

?

?

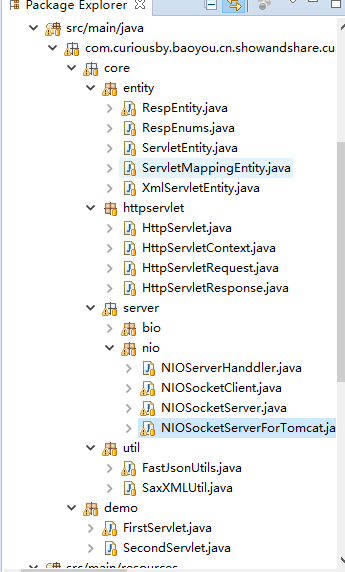

项目结构：

?

?

?

?

class="java" name="code">public class NIOSocketServerForTomcat {

	 private String host = "127.0.0.1";
	 private int port = 8080;

	 //private ExecutorService exec = Executors.newFixedThreadPool(60);
	private ExecutorService exec =   new ThreadPoolExecutor(60, 60, 0L, TimeUnit.MILLISECONDS, new LinkedBlockingQueue<Runnable>(2000));
	private ServerSocketChannel  serverSocketChannel;
	private Selector selector;
	private  NIOSocketServerForTomcat init(){
		this.host = "127.0.0.1";
		this.port = 8080;
		return this;
	}

	private void start()  {

		try {
			serverSocketChannel= ServerSocketChannel.open();
			serverSocketChannel.configureBlocking(false);
			serverSocketChannel.bind(new InetSocketAddress(8080));


			selector = Selector.open();
			serverSocketChannel.register(selector, SelectionKey.OP_ACCEPT);

			while (true) {

				selector.select(1000);

				Set<SelectionKey> selectedKeys = selector.selectedKeys();


				Iterator<SelectionKey> iterator = selectedKeys.iterator();
				while (iterator.hasNext()) {
					SelectionKey key = iterator.next();
					iterator.remove();
					 if(key.isAcceptable()){
						SocketChannel channel = serverSocketChannel.accept();
						channel.configureBlocking(false);
						channel.register(selector,SelectionKey.OP_READ   );

					} else if(key.isReadable()) {
						SocketChannel channel = (SocketChannel) key.channel();
						channel.configureBlocking(false);
						exec.submit(new NIOServerHanddler(channel));
						key.cancel();
					}
				}
			}
		} catch (IOException e) {
			e.printStackTrace();
		}
	}


	public static void main(String[] args) {
		new NIOSocketServerForTomcat().init().start() ;

	}


}

?

public class NIOServerHanddler implements Runnable {

	private SocketChannel channel;


	public NIOServerHanddler(SocketChannel channel) {
		this.channel = channel;
	}


	@Override
	public void run() {
		try {
			ByteBuffer bb = ByteBuffer.allocate(1024);
			channel.read(bb);
			bb.flip();
			byte[] array = bb.array();
			bb.clear();
			System.out.println(new String(array));
			HttpServletRequest req = new HttpServletRequest(new String (array));
			System.out.println(FastJsonUtils.toJSONString(req));
			HttpServletResponse resp = new HttpServletResponse(channel);
			Map<String, XmlServletEntity> handdlerMapping = HttpServletContext.getInstace().getHanddlerMapping();

			XmlServletEntity target = null;
			for (XmlServletEntity entity : handdlerMapping.values()) {
				if (!"".equals(req.getUrl()) &&!"/".equals(req.getUrl()) &&  req.getUrl().startsWith(entity.getServletpattern())) {
					target = entity;
				}
			}
			if (null == target) {
				RespEntity respEntity = new RespEntity();
				respEntity.setCode(RespEnums.RESP_ERROR_NOT_FOUND.getCode());
				respEntity.setMsg(RespEnums.RESP_ERROR_NOT_FOUND.getDesc());
				resp.write(FastJsonUtils.toJSONString(respEntity));
			}else{
				try {
					Class<?> clazz = Class.forName(target.getServletClass());
					HttpServlet httpServlet =(HttpServlet) clazz.newInstance();
					httpServlet.service(req, resp);
				} catch (ClassNotFoundException e) {
					e.printStackTrace();
				} catch (InstantiationException e) {
					e.printStackTrace();
				} catch (IllegalAccessException e) {
					e.printStackTrace();
				}
			}

		} catch (IOException e) {
			e.printStackTrace();
		}finally{
			try {
				if (channel != null) {
					channel.close();
				}
			} catch (IOException e) {
				e.printStackTrace();
			}
		}
	}
}

?

public  class HttpServlet {

   public void service(HttpServletRequest reqest,HttpServletResponse response){
	   String method =  reqest.getMethod();
	   if ("GET".equalsIgnoreCase(method)){
			 this.doGet(reqest, response);
	   } else  if ("POST".equalsIgnoreCase(method)) {
			this.doPost(reqest, response);
	   }
   }

   public void doGet(HttpServletRequest reqest,HttpServletResponse response){

   }

   public void doPost(HttpServletRequest reqest,HttpServletResponse response){

   }
}

?

public class HttpServletRequest {

	private String CHAR_ENTER = "\r\n";
	private String CHAR_SPACE = " ";
	private String CHAR_GET = "GET";
	private String CHAR_POST = "POST";
	private String CHAR_URL_SPLIT = "?";
	private String CHAR_PARAMS_SPLIT = "&";
	private String CHAR_PARAMS_KEY_VALUE_SPLIT = "=";
	private String CHAR_HEADS_KEY_VALUE_SPLIT = ": ";

	private String method;
	private String url;
	private String host;
	private Map<String,Object> parameters =   new HashMap<String, Object>();
	private Map<String,Object> headers =  new HashMap<String, Object>();


//	GET /web/users/user?userName=baoyou&pwd=123456 HTTP/1.1
//	Host: localhost:8080
//	Connection: keep-alive
//	Upgrade-Insecure-Requests: 1
//	User-Agent: Mozilla/5.0 (Windows NT 10.0; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/55.0.2883.87 Safari/537.36
//	Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/webp,*/*;q=0.8
//	Accept-Encoding: gzip, deflate, sdch, br
//	Accept-Language: zh-CN,zh;q=0.8
//	Cookie: __guid=111872281.3385020722635865000.1513231215978.7585

//	POST /web/users/user HTTP/1.1
//	Host: localhost:8080
//	Connection: keep-alive
//	Content-Length: 26
//	Cache-Control: max-age=0
//	Origin: null
//	Upgrade-Insecure-Requests: 1
//	User-Agent: Mozilla/5.0 (Windows NT 10.0; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/55.0.2883.87 Safari/537.36
//	Content-Type: application/x-www-form-urlencoded
//	Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/webp,*;q=0.8
//	Accept-Encoding: gzip, deflate, br
//	Accept-Language: zh-CN,zh;q=0.8
//	Cookie: __guid=111872281.3385020722635865000.1513231215978.7585
//
//	userName=111&password=1111


	public HttpServletRequest(String requestString) {

		String[] arr = requestString.split(CHAR_ENTER);
		String[] firstArr = arr[0].split(CHAR_SPACE);
		this.method = firstArr[0];
		try {
			this.host = arr[1].split(CHAR_HEADS_KEY_VALUE_SPLIT)[1];
			if (CHAR_GET.equals(this.method)) {
				 String urlAndParams = firstArr[1];
				 if (urlAndParams.contains(CHAR_URL_SPLIT)) {
					this.url = firstArr[1].split(CHAR_URL_SPLIT)[0];
					String params = firstArr[1].split(CHAR_URL_SPLIT)[1];
					String[] paramsArr = params.split(CHAR_PARAMS_SPLIT);
					for (String param : paramsArr) {
						String[] paramsKeyValue = param.split(CHAR_PARAMS_KEY_VALUE_SPLIT);
						this.parameters.put(paramsKeyValue[0], paramsKeyValue.length == 2 ?paramsKeyValue[1] : "");
					}
					for (int i = 1; i< arr.length &&  !"".equals(arr[i]) ;i++) {
						String headerKeyValue  = arr[i];
						String[] headerKeyValues = headerKeyValue.split(CHAR_HEADS_KEY_VALUE_SPLIT);
						this.parameters.put(headerKeyValues[0], headerKeyValues.length == 2 ?headerKeyValues[1] : "");
					}

				}else{
					this.url = firstArr[1];
				}
			}else if(CHAR_POST.equals(this.method)){
				String[] postArr = requestString.split(CHAR_ENTER+CHAR_ENTER);
				if (postArr.length == 2 ) {
					String[] paramsArr =postArr[1].split(CHAR_PARAMS_SPLIT);
					for (String param : paramsArr) {
						String[] paramsKeyValue = param.split(CHAR_PARAMS_KEY_VALUE_SPLIT);
						this.parameters.put(paramsKeyValue[0], paramsKeyValue.length == 2 ?paramsKeyValue[1] : "");
					}
				}
				for (int i = 1; i< postArr.length &&  !"".equals(postArr[i]) ;i++) {
					String headerKeyValue  = postArr[i];
					String[] headerKeyValues = headerKeyValue.split(CHAR_HEADS_KEY_VALUE_SPLIT);
					this.parameters.put(headerKeyValues[0], headerKeyValues.length == 2 ?headerKeyValues[1] : "");
				}


			}
		} catch (Exception e) {
			e.printStackTrace();
		}
	}




	public String getMethod() {
		return method;
	}

	public void setMethod(String method) {
		this.method = method;
	}

	public String getUrl() {
		return url;
	}

	public void setUrl(String url) {
		this.url = url;
	}

	public Map<String,Object> getParameters() {
		return parameters;
	}

	public void setParameters(Map<String,Object> parameters) {
		this.parameters = parameters;
	}
	public String getHost() {
		return host;
	}

	public void setHost(String host) {
		this.host = host;
	}
	public Map<String, Object> getHeaders() {
		return headers;
	}

	public void setHeaders(Map<String, Object> headers) {
		this.headers = headers;
	}
}

?

?

public class HttpServletResponse {

	private SocketChannel channel;
    private String CHAR = "UTF-8";

    private static final String ENTER = "\r\n";
    private static final String SPACE = " ";


	public HttpServletResponse(SocketChannel channel) {
		this.channel = channel;
		this.CHAR = "UTF-8";
	}

	private String  bulidHeader(String s){

		 StringBuilder contextText = new StringBuilder();
        contextText.append(s);

		StringBuilder sb = new StringBuilder();
        /*通用头域begin*/
        sb.append("HTTP/1.1").append(SPACE).append("200").append(SPACE).append("OK").append(ENTER);
        sb.append("Server:myServer").append(SPACE).append("0.0.1v").append(ENTER);
        sb.append("Date:Sat,"+SPACE).append(new Date()).append(ENTER);
        sb.append("Content-Type:text/html;charset=UTF-8").append(ENTER);
        sb.append("Content-Length:").append(contextText.toString().getBytes().length).append(ENTER);
        /*通用头域end*/
        sb.append(ENTER);//空一行
        sb.append(contextText);//正文部分
        System.out.println(sb.toString());
		return sb.toString();
	}


	public void write(String s) {

		try {
			ByteBuffer bb2 = ByteBuffer.allocate(1024);
			bb2.put((bulidHeader(s)).getBytes(CHAR));
			bb2.flip();
			channel.write(bb2);
			bb2.clear();
		    channel.close();

		} catch (IOException e) {
			e.printStackTrace();
		}
	}

}

?

public class HttpServletContext {


	private static Map<String,XmlServletEntity> haddlerMapping ;

	private HttpServletContext (){
		haddlerMapping = new SaxXMLUtil().init().getHaddlerMapping();
	}
	private static HttpServletContext instance;
	public  static HttpServletContext getInstace(){
		if (instance == null) {
			synchronized (HttpServletContext.class) {
				if (instance == null) {
					instance = new HttpServletContext();
				}
			}
		}
		return instance;
	}

	public   Map<String,XmlServletEntity> getHanddlerMapping(){
		return haddlerMapping ;
	}

}

?

?

public class SaxXMLUtil extends DefaultHandler{


	//private Map<String,XmlServletEntity> map;
	private List<ServletEntity> listServlet;
	private List<ServletMappingEntity> listMapping;
	private String tagName;
	ServletEntity entityServlet;
	ServletMappingEntity entityServletMapping;

	private int flag = 0;


	public SaxXMLUtil init(){
		SAXParser parser = null;
        try {
			parser = SAXParserFactory.newInstance().newSAXParser();

			InputStream stream=SaxXMLUtil.class.getClassLoader().getResourceAsStream("web.xml");
            //调用parse()方法
            parser.parse(stream, this);

		} catch (ParserConfigurationException e) {
			e.printStackTrace();
		} catch (SAXException e) {
			e.printStackTrace();
		} catch (IOException e) {
			e.printStackTrace();
		}
        return this;
	}

    public Map<String,XmlServletEntity> getHaddlerMapping()  {
        Map<String,XmlServletEntity> map = new HashMap<String, XmlServletEntity>();
    	for (ServletEntity servlet : listServlet) {
    		XmlServletEntity entity =new  XmlServletEntity();
    		entity.setServletName(servlet.getServletName());
    		entity.setServletClass(servlet.getServletClass());
	    	  String servletName = servlet.getServletName();
			  for (ServletMappingEntity mapping : listMapping) {
				  if (servletName.equals(mapping.getServletName())) {
					  entity.setServletpattern(mapping.getServletpattern());
					  map.put(entity.getServletName(), entity);
					  break;
				  }

			  }
		}

		return map;
    }


	@Override
	public void startDocument() throws SAXException {
		super.startDocument();
		listServlet 	= new ArrayList<ServletEntity>();
		listMapping 	= new ArrayList<ServletMappingEntity>();
	}

	@Override
	public void startElement(String uri, String localName, String qName,
			Attributes attributes) throws SAXException {
		//super.startElement(uri, localName, qName, attributes);

		if(qName.equals("servlet")){

			entityServlet = new ServletEntity();
			this.flag = 1;
		}
		if(qName.equals("servlet-mapping")){
			entityServletMapping = new ServletMappingEntity();
			this.flag = 2;
		}
		this.tagName = qName;
	}

	@Override
	public void endElement(String uri, String localName, String qName)
			throws SAXException {
		//super.endElement(uri, localName, qName);
		if(qName.equals("servlet")){
			listServlet.add( entityServlet);

			flag = 0;
		}
		if(qName.equals("servlet-mapping")){
			listMapping.add( entityServletMapping);

			flag = 0;
		}
		this.tagName = null;
	}


	@Override
	public void characters(char[] ch, int start, int length)
			throws SAXException {
		//super.characters(ch, start, length);
		 if(this.tagName!=null){
			 if(this.flag == 1){
				 String data=new String(ch,start,length);
				 if(this.tagName.equals("servlet-name")){
					 this.entityServlet.setServletName(data);
				 }
				 if(this.tagName.equals("servlet-class")){
					 this.entityServlet.setServletClass(data);
				 }
			 }else if (this.flag == 2) {
				 String data=new String(ch,start,length);
				 if(this.tagName.equals("servlet-name")){
					 this.entityServletMapping.setServletName(data);
				 }
				 if(this.tagName.equals("url-pattern")){
					 this.entityServletMapping.setServletpattern(data);
				 }

			}
		 }

	}

	@Override
	public void endDocument() throws SAXException {
		super.endDocument();
	}

	public static void main(String[] args) {
		SaxXMLUtil util = new SaxXMLUtil();
		Map<String, XmlServletEntity> map = util.init().getHaddlerMapping();
		for (XmlServletEntity entity : map.values()) {
			System.out.println(entity.getServletName() +"\r\t" + entity.getServletClass() +"\r\t" + entity.getServletpattern());
		}
		/*
		secondServlet
		com.curiousby.baoyou.cn.showandshare.customized.tomcat.demo.SecondServlet
		/secondServlet
		firstServlet
		com.curiousby.baoyou.cn.showandshare.customized.tomcat.demo.FirstServlet
		/firstServlet
		*/
	}

}

?

public class FirstServlet extends HttpServlet{

	@Override
	public void doGet(HttpServletRequest reqest, HttpServletResponse response) {
		super.doGet(reqest, response);
		doPost(reqest, response);
	}


	@Override
	public void doPost(HttpServletRequest reqest, HttpServletResponse response) {
		super.doPost(reqest, response);
		Map<String, Object> parameters = reqest.getParameters();
		response.write("{\"name\":\"baoyou\"}");
	}

}

?

public class SecondServlet extends HttpServlet{

	@Override
	public void doGet(HttpServletRequest reqest, HttpServletResponse response) {
		super.doGet(reqest, response);
		doPost(reqest, response);
	}


	@Override
	public void doPost(HttpServletRequest reqest, HttpServletResponse response) {
		super.doPost(reqest, response);
		response.write("SecondServlet");

	}

}

?

?

<web-app>

  <!-- ===========================firstServlet======================  -->
    <servlet>
        <servlet-name>firstServlet</servlet-name>
        <servlet-class>com.curiousby.baoyou.cn.showandshare.customized.tomcat.demo.FirstServlet</servlet-class>
    </servlet>
    <servlet-mapping>
        <servlet-name>firstServlet</servlet-name>
        <url-pattern>/firstServlet</url-pattern>
   </servlet-mapping>
   <!-- ===========================firstServlet======================  -->


   <!-- ===========================secondServlet======================  -->
    <servlet>
        <servlet-name>secondServlet</servlet-name>
        <servlet-class>com.curiousby.baoyou.cn.showandshare.customized.tomcat.demo.SecondServlet</servlet-class>
    </servlet>
    <servlet-mapping>
        <servlet-name>secondServlet</servlet-name>
        <url-pattern>/secondServlet.do</url-pattern>
   </servlet-mapping>
  <!-- ===========================secondServlet======================  -->

</web-app>

?

?

?

?

?

?

?

?

?

?

?

捐助开发者?

在兴趣的驱动下,写一个免费的东西，有欣喜，也还有汗水，希望你喜欢我的作品，同时也能支持一下。 当然，有钱捧个钱场（支持支付宝和微信 以及扣扣群），没钱捧个人场，谢谢各位。

?

个人主页：http://knight-black-bob.iteye.com/

?
?
?谢谢您的赞助，我会做的更好！

•
• 大小: 29.5 KB

•
• 大小: 11.9 KB

•
• 大小: 10.8 KB

•
• 大小: 5.9 KB

• 查看图片附件
