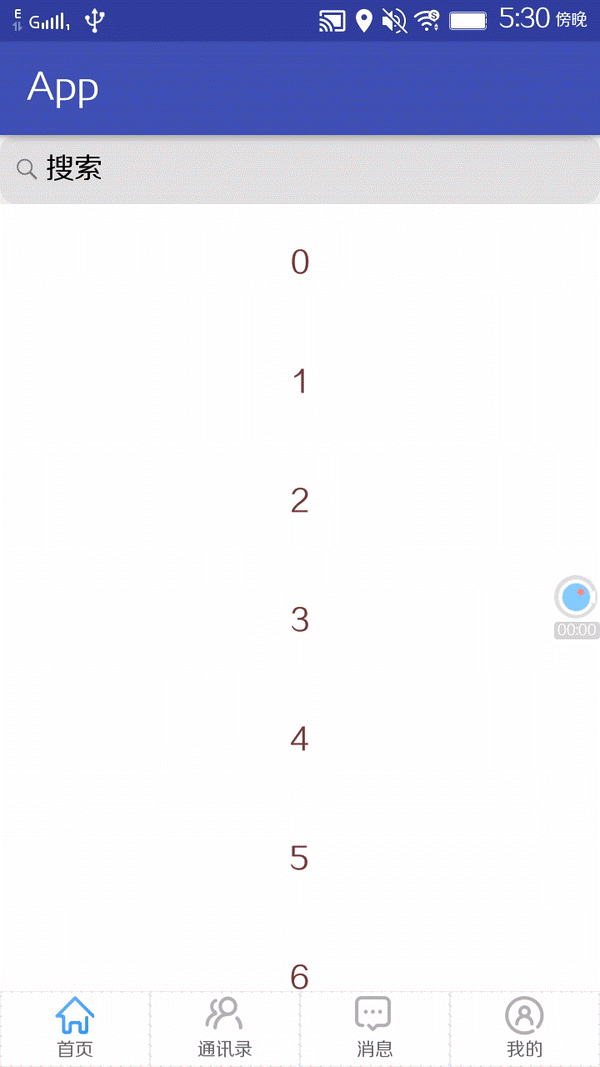

最近写了个下拉控件，和几个下拉的头部样式，下拉控件可以连续添加叠加几个头部视图

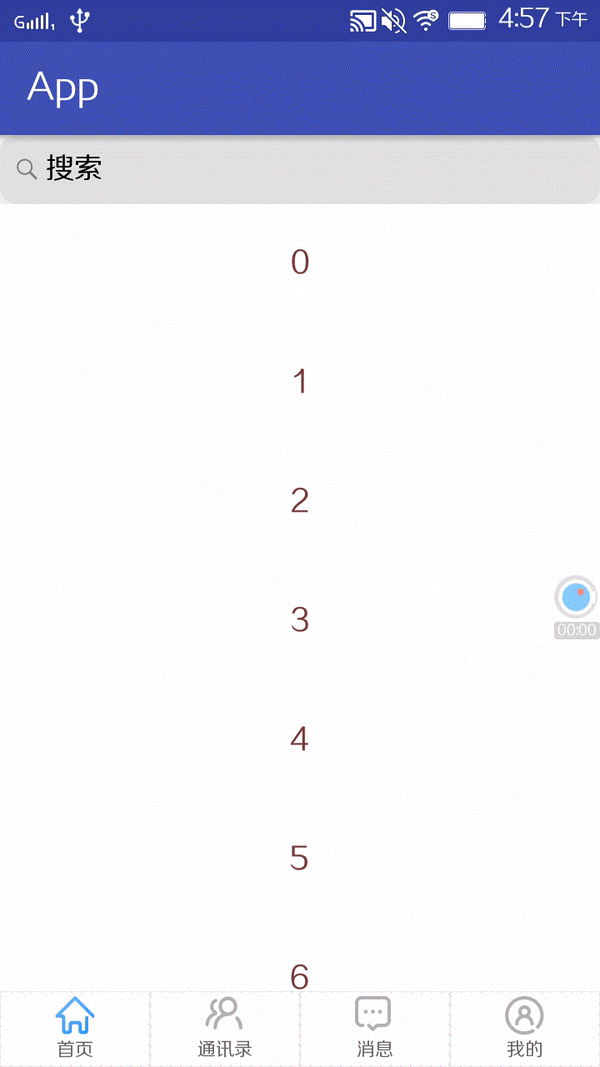

下面是没有添加任何头部尾部的视图下拉效果

一步一步来介绍，先介绍这个下拉效果，在介绍自定义的头部

首先在使用上，和普通的控件没有两样，拿recyclerview来做例子，因为recyclerview使用比较多，而且可以替代很多的列表控件

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:orientation="vertical">

    <com.fragmentapp.view.refresh.RefreshLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        app:_height="@dimen/dp_60"
        android:id="@+id/refreshLayout" >

        <android.support.v7.widget.RecyclerView
            android:id="@+id/recyclerView"
            android:divider="@color/color_e1e1e1"
            android:dividerHeight="10dp"
            android:background="#ffffff"
            android:layout_width="match_parent"
            android:layout_height="match_parent" />
    </com.fragmentapp.view.refresh.RefreshLayout>

</LinearLayout>

protected void init() {
        for (int i = 0; i < 20; i++) {
            list.add("" + i);
        }

        recyclerView.setLayoutManager(new LinearLayoutManager(getActivity()));
        recyclerView.setAdapter(new HomeAdapter(getActivity(), R.layout.item_home, list));
        refreshLayout
                .setCallBack(new RefreshLayout.CallBack() {
                    @Override
                    public void refreshHeaderView(int state, String stateVal) {

                        switch (state) {
                            case RefreshLayout.DOWN_REFRESH: // 下拉刷新状态

                                break;
                            case RefreshLayout.RELEASE_REFRESH: // 松开刷新状态

                                break;
                            case RefreshLayout.LOADING: // 正在刷新中状态

                                break;
                        }
                    }

                    @Override
                    public void pullListener(int y) {

                    }
                });
    }

  1 package com.fragmentapp.view.refresh;
  2
  3 import android.content.Context;
  4 import android.content.res.TypedArray;
  5 import android.graphics.Color;
  6 import android.graphics.Rect;
  7 import android.support.v4.view.ViewCompat;
  8 import android.support.v7.widget.LinearLayoutManager;
  9 import android.support.v7.widget.RecyclerView;
 10 import android.support.v7.widget.StaggeredGridLayoutManager;
 11 import android.util.AttributeSet;
 12 import android.util.Log;
 13 import android.view.Gravity;
 14 import android.view.MotionEvent;
 15 import android.view.View;
 16 import android.view.ViewConfiguration;
 17 import android.widget.AbsListView;
 18 import android.widget.FrameLayout;
 19
 20 import com.fragmentapp.R;
 21
 22 import java.lang.reflect.Field;
 23 import java.util.ArrayList;
 24 import java.util.List;
 25
 26 /**
 27  * Created by LiuZhen on 2017/3/24.
 28  */
 29 public class RefreshLayout extends FrameLayout {
 30
 31     private String TAG = "tag";
 32     private int downY;// 按下时y轴的偏移量
 33     private final static float RATIO = 3f;
 34     //头部的高度
 35     protected int mHeadHeight = 120;
 36     //头部layout
 37     protected FrameLayout mHeadLayout,mFootLayout;//头部容器
 38     private List<IHeadView> heads = new ArrayList<>();//支持添加多个头部
 39     private List<IFootView> foots = new ArrayList<>();
 40
 41     public static final int DOWN_REFRESH = 0;// 下拉刷新状态
 42     public static final int RELEASE_REFRESH = 1;// 松开刷新
 43     public static final int LOADING = 2;// 正在刷新中
 44     private int currentState = DOWN_REFRESH;// 头布局的状态: 默认为下拉刷新状态
 45
 46     private View list;//子节点中的 recyclerview 视图
 47     private LayoutParams listParam,footParam;//用于控制下拉动画展示
 48     private boolean isLoadingMore = false;// 是否进入加载状态，防止多次重复的启动
 49     private boolean isStart = false;//表示正在加载刷新中，还没停止
 50     private boolean isTop = false,isBottom = false;
 51     private int mTouchSlop;
 52     private CallBack callBack;
 53
 54     public RefreshLayout(Context context) {
 55         this(context, null, 0);
 56     }
 57
 58     public RefreshLayout(Context context, AttributeSet attrs) {
 59         this(context, attrs, 0);
 60     }
 61
 62     public RefreshLayout(Context context, AttributeSet attrs, int defStyleAttr) {
 63         super(context, attrs, defStyleAttr);
 64
 65         TypedArray a = context.obtainStyledAttributes(attrs, R.styleable.RefreshLayout, defStyleAttr, 0);
 66         try {
 67             mHeadHeight = a.getDimensionPixelSize(R.styleable.RefreshLayout__height, 120);
 68         } finally {
 69             a.recycle();
 70         }
 71         mTouchSlop = ViewConfiguration.get(getContext()).getScaledTouchSlop();
 72
 73         init();
 74     }
 75
 76     private void initHeaderContainer() {
 77         mHeadLayout = new FrameLayout(getContext());
 78         LayoutParams layoutParams = new LayoutParams(LayoutParams.MATCH_PARENT,mHeadHeight);
 79         this.addView(mHeadLayout,layoutParams);
 80     }
 81
 82     public void initFootContainer() {
 83         footParam = new LayoutParams(LayoutParams.MATCH_PARENT,mHeadHeight);
 84         mFootLayout = new FrameLayout(getContext());//底部布局
 85         mFootLayout.setBackgroundColor(Color.BLACK);
 86         footParam.gravity = Gravity.BOTTOM | Gravity.CENTER_HORIZONTAL;
 87         footParam.setMargins(0,0,0,-mHeadHeight);
 88         this.addView(mFootLayout,footParam);
 89     }
 90
 91     private void init(){
 92         initHeaderContainer();
 93     }
 94
 95     @Override
 96     protected void onFinishInflate() {//布局加载成xml时触发
 97         super.onFinishInflate();
 98
 99         initFootContainer();
100         if (list == null) {
101             list = getChildAt(1);
102             listParam = (LayoutParams) list.getLayoutParams();
103             list.setOnTouchListener(new OnTouchListener() {
104                 @Override
105                 public boolean onTouch(View v, MotionEvent event) {
106                     return onFingerTouch(event);
107                 }
108             });
109         }
110     }
111
112     /**
113      * 设置头部View
114      */
115     public RefreshLayout setHeaderView(final IHeadView headView) {
116         if (headView != null) {
117             mHeadLayout.addView(headView.getView());
118             heads.add(headView);
119         }
120         return this;
121     }
122
123     /**
124      * 设置尾部View
125      */
126     public RefreshLayout setFootView(final IFootView footView) {
127         if (footView != null) {
128             mFootLayout.addView(footView.getView());
129             foots.add(footView);
130         }
131         return this;
132     }
133
134     public boolean onFingerTouch(MotionEvent ev) {
135         isTop = isViewToTop(list,mTouchSlop);
136         isBottom = isViewToBottom(list,mTouchSlop);
137 //        Log.e(TAG,"isTop "+isTop+" isBottom "+isBottom);
138         switch (ev.getAction()) {
139             case MotionEvent.ACTION_DOWN :
140                 currentState = LOADING;
141                 downY = (int) ev.getY();
142                 break;
143             case MotionEvent.ACTION_MOVE :
144                 if (!isTop && !isBottom)//没有到顶，无需计算操作
145                     break;
146                 int moveY = (int) ev.getY();
147                 int diff = (int) (((float)moveY - (float)downY) / RATIO);
148 //                int paddingTop = -mHeadLayout.getHeight() + diff;
149                 int paddingTop = diff;
150                 if (paddingTop>0 && isTop) {
151                     //向下滑动多少后开始启动刷新,Margin判断是为了限制快速用力滑动的时候导致头部侵入的高度不够就开始加载了
152                     if (paddingTop >= mHeadHeight && (listParam.topMargin >= mHeadHeight) && currentState == DOWN_REFRESH) { // 完全显示了.
153 //                        Log.i(TAG, "松开刷新 RELEASE_REFRESH");
154                         currentState = RELEASE_REFRESH;
155                         refreshHeaderView();
156                         start();
157                     } else if (currentState == LOADING) { // 没有显示完全
158 //                        Log.i(TAG, "下拉刷新 DOWN_PULL_REFRESH");
159                         currentState = DOWN_REFRESH;
160                         refreshHeaderView();
161                     }
162                     if (paddingTop <= (mHeadHeight+10) && !isStart) {//已经处于运行刷新状态的时候禁止设置
163                         listParam.setMargins(0, paddingTop, 0, 0);
164                         list.setLayoutParams(listParam);
165                         if (callBack != null)
166                             callBack.pullListener(paddingTop);
167                     }
168
169                 }else if (isBottom){
170                     //限制上滑时不能超过底部的宽度，不然会超出边界
171                     //mHeadHeight+20 上滑设置的margin要超过headheight，不然下面判断的大于headheight不成立，下面的margin基础上面设置后的参数
172                     if (Math.abs(paddingTop) <= (mHeadHeight+10) && !isStart) {//已经处于运行刷新状态的时候禁止设置
173                         listParam.setMargins(0, 0, 0, -paddingTop);
174                         footParam.setMargins(0,0,0,-paddingTop-mHeadHeight);
175                         list.setLayoutParams(listParam);
176                     }
177                     //如果滑动的距离大于头部或者底部的高度，并且设置的margin也大于headheight
178                     //listParam用来限制recyclerview列表迅速滑动，footParam用来限制bottom foothead迅速滑动导致没有达到head的高度就开始加载了
179                     if (Math.abs(paddingTop) >= mHeadHeight && (listParam.bottomMargin >= mHeadHeight || footParam.bottomMargin >= 0))
180                         isLoadingMore = true;//头部是否拉取到位，然后执行加载动画
181
182                 }
183 //                Log.e(TAG,"paddingTop "+paddingTop +" mHeadHeight "+mHeadHeight+ " topMargin "+listParam.topMargin+" bottomMargin "+listParam.bottomMargin
184 //                        +" footParam bottom "+footParam.bottomMargin);
185 //                Log.i(TAG,"paddingTop "+paddingTop);
186                 break;
187             case MotionEvent.ACTION_UP :
188                 currentState = LOADING;
189                 refreshHeaderView();
190                 if (isLoadingMore){
191                     isLoadingMore = false;
192                     isStart = true;//是否开始加载
193                     postDelayed(new Runnable() {
194                         @Override
195                         public void run() {
196 //                            Log.i(TAG, "停止 END");
197 //                            currentState = END;
198                             refreshHeaderView();
199                             listParam.setMargins(0, 0, 0, 0);
200                             footParam.setMargins(0,0,0,-mHeadHeight);
201                             list.setLayoutParams(listParam);
202                             stop();
203                         }
204                     },2000);
205                 }else{
206                     if (!isStart){
207                         // 隐藏头布局
208                         listParam.setMargins(0, 0,0,0);
209                         footParam.setMargins(0,0,0,-mHeadHeight);
210                         list.setLayoutParams(listParam);
211                     }
212                 }
213 //                Log.i(TAG, "松开 REFRESHING");
214                 break;
215             default :
216                 break;
217         }
218         return super.onTouchEvent(ev);
219     }
220
221     /**
222      * 根据currentState刷新头布局的状态
223      */
224     private void refreshHeaderView() {
225         if (callBack == null || isStart)
226             return;
227         String val = "准备刷新";
228         switch (currentState) {
229             case DOWN_REFRESH : // 下拉刷新状态
230                 val = "下拉刷新";
231                 break;
232             case RELEASE_REFRESH : // 松开刷新状态
233                 val = "开始刷新...";
234                 break;
235             case LOADING : // 正在刷新中状态
236                 val = "正在刷新中...";
237                 break;
238         }
239         callBack.refreshHeaderView(currentState,val);
240     }
241
242     public static boolean isViewToTop(View view, int mTouchSlop){
243         if (view instanceof AbsListView) return isAbsListViewToTop((AbsListView) view);
244         if (view instanceof RecyclerView) return isRecyclerViewToTop((RecyclerView) view);
245         return  (view != null && Math.abs(view.getScrollY()) <= 2 * mTouchSlop);
246     }
247
248     public static boolean isViewToBottom(View view, int mTouchSlop){
249         if (view instanceof AbsListView) return isAbsListViewToBottom((AbsListView) view);
250         if (view instanceof RecyclerView) return isRecyclerViewToBottom((RecyclerView) view);
251 //        if (view instanceof WebView) return isWebViewToBottom((WebView) view,mTouchSlop);
252 //        if (view instanceof ViewGroup) return isViewGroupToBottom((ViewGroup) view);
253         return false;
254     }
255
256     public static boolean isAbsListViewToTop(AbsListView absListView) {
257         if (absListView != null) {
258             int firstChildTop = 0;
259             if (absListView.getChildCount() > 0) {
260                 // 如果AdapterView的子控件数量不为0，获取第一个子控件的top
261                 firstChildTop = absListView.getChildAt(0).getTop() - absListView.getPaddingTop();
262             }
263             if (absListView.getFirstVisiblePosition() == 0 && firstChildTop == 0) {
264                 return true;
265             }
266         }
267         return false;
268     }
269
270     public static boolean isRecyclerViewToTop(RecyclerView recyclerView) {
271         if (recyclerView != null) {
272             RecyclerView.LayoutManager manager = recyclerView.getLayoutManager();
273             if (manager == null) {
274                 return true;
275             }
276             if (manager.getItemCount() == 0) {
277                 return true;
278             }
279
280             if (manager instanceof LinearLayoutManager) {
281                 LinearLayoutManager layoutManager = (LinearLayoutManager) manager;
282
283                 int firstChildTop = 0;
284                 if (recyclerView.getChildCount() > 0) {
285                     // 处理item高度超过一屏幕时的情况
286                     View firstVisibleChild = recyclerView.getChildAt(0);
287                     if (firstVisibleChild != null && firstVisibleChild.getMeasuredHeight() >= recyclerView.getMeasuredHeight()) {
288                         if (android.os.Build.VERSION.SDK_INT < 14) {
289                             return !(ViewCompat.canScrollVertically(recyclerView, -1) || recyclerView.getScrollY() > 0);
290                         } else {
291                             return !ViewCompat.canScrollVertically(recyclerView, -1);
292                         }
293                     }
294
295                     // 如果RecyclerView的子控件数量不为0，获取第一个子控件的top
296
297                     // 解决item的topMargin不为0时不能触发下拉刷新
298                     View firstChild = recyclerView.getChildAt(0);
299                     RecyclerView.LayoutParams layoutParams = (RecyclerView.LayoutParams) firstChild.getLayoutParams();
300                     firstChildTop = firstChild.getTop() - layoutParams.topMargin - getRecyclerViewItemTopInset(layoutParams) - recyclerView.getPaddingTop();
301                 }
302
303                 if (layoutManager.findFirstCompletelyVisibleItemPosition() < 1 && firstChildTop == 0) {
304                     return true;
305                 }
306             } else if (manager instanceof StaggeredGridLayoutManager) {
307                 StaggeredGridLayoutManager layoutManager = (StaggeredGridLayoutManager) manager;
308
309                 int[] out = layoutManager.findFirstCompletelyVisibleItemPositions(null);
310                 if (out[0] < 1) {
311                     return true;
312                 }
313             }
314         }
315         return false;
316     }
317
318     /**
319      * 通过反射获取RecyclerView的item的topInset
320      */
321     private static int getRecyclerViewItemTopInset(RecyclerView.LayoutParams layoutParams) {
322         try {
323             Field field = RecyclerView.LayoutParams.class.getDeclaredField("mDecorInsets");
324             field.setAccessible(true);
325             // 开发者自定义的滚动监听器
326             Rect decorInsets = (Rect) field.get(layoutParams);
327             return decorInsets.top;
328         } catch (Exception e) {
329             e.printStackTrace();
330         }
331         return 0;
332     }
333
334     public static boolean isAbsListViewToBottom(AbsListView absListView) {
335         if (absListView != null && absListView.getAdapter() != null && absListView.getChildCount() > 0 && absListView.getLastVisiblePosition() == absListView.getAdapter().getCount() - 1) {
336             View lastChild = absListView.getChildAt(absListView.getChildCount() - 1);
337
338             return lastChild.getBottom() <= absListView.getMeasuredHeight();
339         }
340         return false;
341     }
342
343     public static boolean isRecyclerViewToBottom(RecyclerView recyclerView) {
344         if (recyclerView != null) {
345             RecyclerView.LayoutManager manager = recyclerView.getLayoutManager();
346             if (manager == null || manager.getItemCount() == 0) {
347                 return false;
348             }
349
350             if (manager instanceof LinearLayoutManager) {
351                 // 处理item高度超过一屏幕时的情况
352                 View lastVisibleChild = recyclerView.getChildAt(recyclerView.getChildCount() - 1);
353                 if (lastVisibleChild != null && lastVisibleChild.getMeasuredHeight() >= recyclerView.getMeasuredHeight()) {
354                     if (android.os.Build.VERSION.SDK_INT < 14) {
355                         return !(ViewCompat.canScrollVertically(recyclerView, 1) || recyclerView.getScrollY() < 0);
356                     } else {
357                         return !ViewCompat.canScrollVertically(recyclerView, 1);
358                     }
359                 }
360
361                 LinearLayoutManager layoutManager = (LinearLayoutManager) manager;
362                 if (layoutManager.findLastCompletelyVisibleItemPosition() == layoutManager.getItemCount() - 1) {
363                     return true;
364                 }
365             } else if (manager instanceof StaggeredGridLayoutManager) {
366                 StaggeredGridLayoutManager layoutManager = (StaggeredGridLayoutManager) manager;
367
368                 int[] out = layoutManager.findLastCompletelyVisibleItemPositions(null);
369                 int lastPosition = layoutManager.getItemCount() - 1;
370                 for (int position : out) {
371                     if (position == lastPosition) {
372                         return true;
373                     }
374                 }
375             }
376         }
377         return false;
378     }
379
380     public void start(){
381         isLoadingMore = true;
382         for (IHeadView head : heads) {
383             head.startAnim();
384         }
385     }
386
387     public void stop(){
388         isLoadingMore = false;
389         isStart = false;
390         for (IHeadView head : heads) {
391             head.stopAnim();
392         }
393     }
394
395     public RefreshLayout setCallBack(CallBack callBack) {
396         this.callBack = callBack;
397         return this;
398     }
399
400     public interface CallBack{
401         /**监听下拉时的状态*/
402         void refreshHeaderView(int state,String stateVal);
403         /**监听下拉时的距离*/
404         void pullListener(int y);
405     }
406
407
408 }

注释估计也没有我写的这么详细的了，相信不是完全不懂的话肯定一眼就看懂了

至于 refreshLayout 这个下拉控件里面的代码是完整的，没有去截取，不过写了非常非常详细的注释，然后控件里面的添加头部视图是通过接口来控制添加的，外加对外提供的状态回调，建造者模式返回本身对象，这样方便扩展

然后现在开始定义头部效果，说到头部效果，扇形的下拉回弹首选了，因为已经有很多例子了，所以我也模仿做了一个，还有一个原因是为了后面的头部做铺垫，叠加头部，那么最先添加的头部肯定要有当背景的觉悟了，先看效果图

 上代码，同样是非常非常详细的注释

package com.fragmentapp.view.refresh;

import android.animation.ValueAnimator;
import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Paint;
import android.graphics.Path;
import android.util.AttributeSet;
import android.view.View;
import android.view.animation.DecelerateInterpolator;
import android.view.animation.OvershootInterpolator;

import com.fragmentapp.R;

/**
 * Created by liuzhen on 2017/11/29.
 */

public class DownHeadView extends View implements IHeadView{

    private int pull_height;
    private Path mPath;
    private Paint mBackPaint;
    private int backColor;
    private int mWidth;
    private int mHeight;
    private DecelerateInterpolator decelerateInterpolator = new DecelerateInterpolator(10);

    public DownHeadView(Context context) {
        this(context, null);
    }

    public DownHeadView(Context context, AttributeSet attrs) {
        this(context, attrs, 0);
    }

    public DownHeadView(Context context, AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        init();
    }

    private void init(){
        setWillNotDraw(false);
        backColor = getResources().getColor(R.color.color_8b90af);
        mPath = new Path();
        mBackPaint = new Paint();
        mBackPaint.setAntiAlias(true);
        mBackPaint.setStyle(Paint.Style.FILL);
        mBackPaint.setColor(backColor);
    }

    @Override
    protected void onLayout(boolean changed, int left, int top, int right, int bottom) {
        super.onLayout(changed, left, top, right, bottom);
        if (changed) {
            mWidth = getWidth();
            mHeight = getHeight();
        }
    }

    @Override
    protected void onDraw(Canvas canvas) {
        canvas.drawRect(0, 0, mWidth, pull_height, mBackPaint);

        mPath.reset();
        mPath.moveTo(0, pull_height);//起点
        mPath.quadTo(mWidth/2,pull_height*2,mWidth,pull_height);//控制点和终点

        canvas.drawPath(mPath, mBackPaint);//绘制二级贝塞尔弧形
        invalidate();
    }

    @Override
    public View getView() {
        return this;
    }


    @Override
    public void startAnim() {
        backColor = getResources().getColor(R.color.color_8babaf);
        mBackPaint.setColor(backColor);
        ValueAnimator va = ValueAnimator.ofFloat(mHeight, mHeight/2);
        va.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
            @Override
            public void onAnimationUpdate(ValueAnimator animation) {
                float val = (float) animation.getAnimatedValue();
                val = decelerateInterpolator.getInterpolation(val / mHeight) * val;
                pull_height = (int)val;
                requestLayout();
            }
        });
        va.setInterpolator(new OvershootInterpolator(3));//甩动差值器
        va.setDuration(500);
        va.start();
    }

    @Override
    public void stopAnim() {
        backColor = getResources().getColor(R.color.color_8b90af);
        mBackPaint.setColor(backColor);
    }
    /**改变控制点*/
    public void setPull_height(int y){
        pull_height = y;
        invalidate();
    }

}

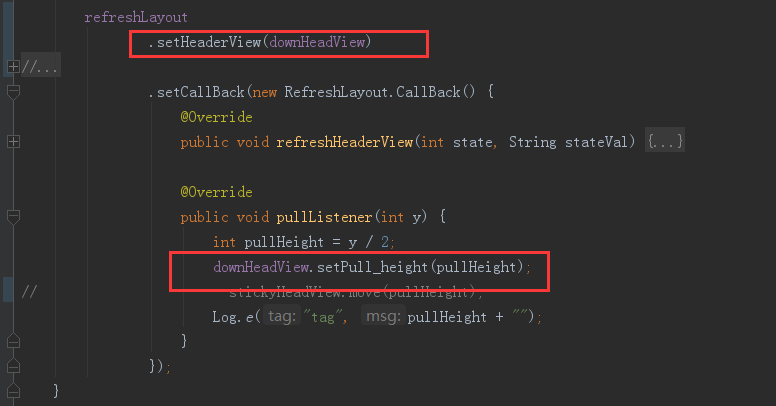

使用也是很简单的一两行代码

只需要添加一个头部和在回调中把拉伸的值传进去就可以了，到这里背景头部就好了，下面就是继续叠加头部效果了
