Java NIO ByteBuffer详解

 2017/2/15 5:31:57  Donald_Draper  程序员俱乐部  我要评论(0)
  • 摘要:JavaSocket编程实例:http://donald-draper.iteye.com/blog/2356695javaSocket读写缓存区Writer和Reader:http://donald-draper.iteye.com/blog/2356885前一篇文章中,我们讲了javaSocketio的Writer和Reader,在上一篇中,在流解码器和编码器中,经常用到字节缓冲ByteBuffer,今天我们就来看一ByteBuffer。ByteBuffer有两个实现一个为
  • 标签:详解 Java
Java Socket编程实例:http://donald-draper.iteye.com/blog/2356695
java Socket读写缓存区Writer和Reader:http://donald-draper.iteye.com/blog/2356885
前一篇文章中,我们讲了java Socket io的Writer和Reader,在上一篇中,在流解码器和编码器中,经常用到字节缓冲ByteBuffer,今天我们就来看一ByteBuffer。
ByteBuffer有两个实现一个为,HeapByteBuffer,另一个为DirectByteBuffer,这两个有什么区别呢?
我们引入原文,不翻译以免都是原味;
1.HeapByteBuffer
class="java" name="code">//ByteBuffer,创建方法
 public static ByteBuffer allocate(int capacity) {
        if (capacity < 0)
            throw new IllegalArgumentException();
        return new HeapByteBuffer(capacity, capacity);
    }

HeapByteBuffer使用的java堆内存
2.DirectByteBuffer
//ByteBuffer,创建方法
public static ByteBuffer allocateDirect(int capacity) {
        return new DirectByteBuffer(capacity);
    }
* <p> A byte buffer is either <i>direct</i> or <i>non-direct</i>.  Given a
 * direct byte buffer, the Java virtual machine will make a best effort to
 * perform native I/O operations directly upon it.  That is, it will attempt to
 * avoid copying the buffer's content to (or from) an intermediate buffer
 * before (or after) each invocation of one of the underlying operating
 * system's native I/O operations.
 *
 * <p> A direct byte buffer may be created by invoking the {@link
 * #allocateDirect(int) allocateDirect} factory method of this class.  The
 * buffers returned by this method typically have somewhat higher allocation
 * and deallocation costs than non-direct buffers.  The contents of direct
 * buffers may reside outside of the normal garbage-collected heap, and so
 * their impact upon the memory footprint of an application might not be
 * obvious.  It is therefore recommended that direct buffers be allocated
 * primarily for large, long-lived buffers that are subject to the underlying
 * system's native I/O operations.  In general it is best to allocate direct
 * buffers only when they yield a measureable gain in program performance.
 *
 * <p> A direct byte buffer may also be created by {@link
 * java.nio.channels.FileChannel#map </code>mapping<code>} a region of a file
 * directly into memory.  An implementation of the Java platform may optionally
 * support the creation of direct byte buffers from native code via JNI.  If an
 * instance of one of these kinds of buffers refers to an inaccessible region
 * of memory then an attempt to access that region will not change the buffer's
 * content and will cause an unspecified exception to be thrown either at the
 * time of the access or at some later time.


DirectByteBuffer使用的是:the Java virtual machine will make a best effort to
perform native I/O operations directly upon it.
使用时要注意:It is therefore recommended that direct buffers be allocated
primarily for large, long-lived buffers that are subject to the underlying
system's native I/O operations


今天我们只讲HeapByteBuffer,ByteBuffer,Buffer,我们先从测试实例来看

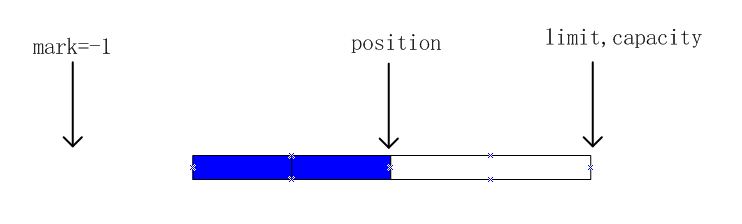

 public abstract class Buffer {

    // Invariants: mark <= position <= limit <= capacity
    private int mark = -1;//标记,用于reset函数,是复位position到mark位置
    private int position = 0;//Buffer缓冲区读写位置
    private int limit;//读写上限
    private int capacity;//缓冲区容量
    }


mark,position,limit,capacity大小关系:

-1 <= mark <= position <= limit <= capacity;
0<= position <= limit <= capacity;



测试主类:


 package socket;

import java.nio.BufferOverflowException;
import java.nio.ByteBuffer;
/**
 * 测试ByteBuffer
 * @author donald
 * 2017年2月14日
 * 下午5:23:32
 */
public class TestByteBuffer {
	private static ByteBuffer byteBuffer = null;
	public  static void main(String[] args) {
		    /* 以下顺序不要改变*/
			initByteBuffer();
			testByte();
			testChar();
			testMark();
			testInt();
			testFloat();
			testDouble();
			testLong();
			testRemaining();
			testOverFlow();
			testReset();
			testClear();
//			testCompact();
	}
	/**
	 * 初始化缓存空间
	 */
	 public static void initByteBuffer(){
		 byteBuffer  = ByteBuffer.allocate(32);
         System.out.println("===============init status============");
         System.out.println("position:"+byteBuffer.position());
         System.out.println("limit:"+byteBuffer.limit());
         System.out.println("capacity:"+byteBuffer.capacity());
	  }
	 /**
	  * 测试Byte,占用一个字节
	  */
	 public static void testByte(){
   	  	 System.out.println("===============put byte============");
         //字节
         byte bbyte = 102;
         byteBuffer.put(bbyte);//ByteBuffer
         byteBuffer.get(0);//byte
         System.out.println("position:"+byteBuffer.position());
         System.out.println("limit:"+byteBuffer.limit());
         System.out.println("capacity:"+byteBuffer.capacity());
         System.out.println("======get byte:"+byteBuffer.get(0));
     }
	 /**
	  * 测试Char,占用2个字节
	  */
	 public static void testChar(){
   	  System.out.println("===============put char============");
         //字符
         char aChar= 'a';
         byteBuffer.putChar(aChar);
         System.out.println("position:"+byteBuffer.position());
         System.out.println("limit:"+byteBuffer.limit());
         System.out.println("capacity:"+byteBuffer.capacity());
         System.out.println("======get Char:"+byteBuffer.getChar(1));
     }
	 /**

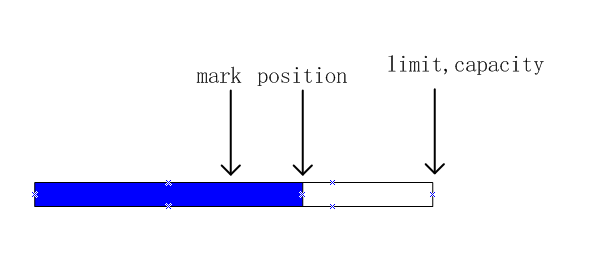

	  * 标记位置,以便reset,返回这个标记位置
	  */
	  public static void testMark(){
    	  //标记位置
          byteBuffer.mark();
          System.out.println("===============mark============");
          System.out.println("position:"+byteBuffer.position());
          System.out.println("limit:"+byteBuffer.limit());
          System.out.println("capacity:"+byteBuffer.capacity());
      }
	  /**
	   * 测试int,占用4个字节
	   */
	  public static void testInt(){
    	  System.out.println("===============put int============");
          //int
          int int4 = 4;
          byteBuffer.putInt(int4);
          System.out.println("position:"+byteBuffer.position());
          System.out.println("limit:"+byteBuffer.limit());
          System.out.println("capacity:"+byteBuffer.capacity());
          //这里为什么从第三个字节开始读取,因为前面一个字节和一个字符总共三个字节
          System.out.println("======get int:"+byteBuffer.getInt(3));
      }
	  /**
	   * 测试float,占用4个字节
	   */
	  public static void testFloat(){
    	  System.out.println("===============put float============");
          //float
          float float5 = 10;
          byteBuffer.putFloat(float5);
          System.out.println("position:"+byteBuffer.position());
          System.out.println("limit:"+byteBuffer.limit());
          System.out.println("capacity:"+byteBuffer.capacity());
          //这里为什么从第7个字节开始读取,因为前面一个字节和一个字符,一个int总共7个字节
          System.out.println("======get float:"+byteBuffer.getFloat(7));
      }
	  /**
	   * 测试double,占用8个字节
	   */
	  public static void testDouble(){
    	  System.out.println("===============put double============");
          //double
          double double6 = 20.0;
          byteBuffer.putDouble(double6);
          System.out.println("position:"+byteBuffer.position());
          System.out.println("limit:"+byteBuffer.limit());
          System.out.println("capacity:"+byteBuffer.capacity());
          //这里为什么从第11个字节开始读取,因为前面一个字节和一个字符,一个int,一个float总共11个字节
          System.out.println("======get double:"+byteBuffer.getDouble(11));
      }
	  /**
	   * 测试Long,占用8个字节
	   */
	  public static void testLong(){
    	  System.out.println("===============put long============");
          //long
          long long7 = (long) 30.0;
          byteBuffer.putLong(long7);
          System.out.println("position:"+byteBuffer.position());
          System.out.println("limit:"+byteBuffer.limit());
          System.out.println("capacity:"+byteBuffer.capacity());
          //这里为什么从第19个字节开始读取,因为前面一个字节和一个字符,一个int,一个float,一个double总共19个字节
          System.out.println("======get long:"+byteBuffer.getLong(19));
      }
	  /**
	   * 测试字节缓冲的剩余空间函数
	   */
	  public static void testRemaining(){
    	  System.out.println("======buffer 剩余空间大小:"+byteBuffer.remaining());
      }
	  /**
	   * 测试添加元素字节长度,大于剩余空间时的情况
	   */
	  public static void testOverFlow(){
    	  /*Exception in thread "main" java.nio.BufferOverflowException
	      	at java.nio.Buffer.nextPutIndex(Buffer.java:519)
	      	at java.nio.HeapByteBuffer.putLong(HeapByteBuffer.java:417)
	      	at socket.TestByteBuffer.main(TestByteBuffer.java:60)
	      	超出空间,则抛出BufferOverflowException异常
	      	*/
         try{
      	   byteBuffer.putLong((long)30.0);
         }
         catch(BufferOverflowException e){
      	   e.printStackTrace();
         }
      }
	  /**

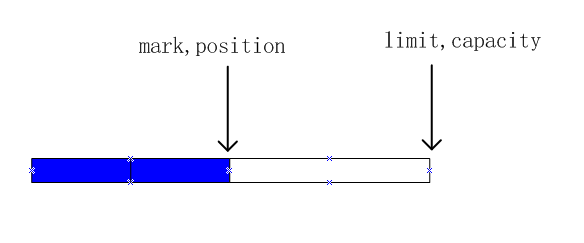

	   * 测试回到标记,position为标记的mark
	   */
	  public static void testReset(){
     	 System.out.println("===============reset============");
          //回到mark标记位置,position为标记的mark
          byteBuffer.reset();
          System.out.println("position:"+byteBuffer.position());
          System.out.println("limit:"+byteBuffer.limit());
          System.out.println("capacity:"+byteBuffer.capacity());
          System.out.println("======get  int from mark:"+byteBuffer.getInt(3));
          //重新,从标记位置put一个int值,原来的内容被覆盖掉
          int int5 = 5;
          byteBuffer.putInt(int5);
          System.out.println("position:"+byteBuffer.position());
          System.out.println("limit:"+byteBuffer.limit());
          System.out.println("capacity:"+byteBuffer.capacity());
          System.out.println("======get int from mark after put new int value:"+byteBuffer.getInt(3));
      }
	  /**

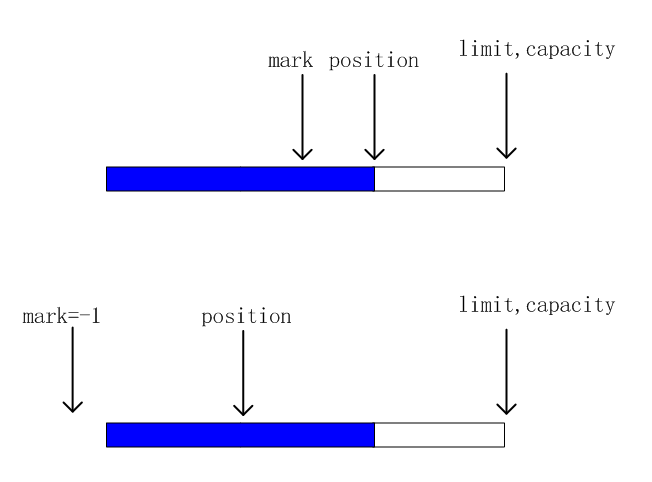

	   * clear重置position,mark,limit位置,原始缓存区内容并不清掉
	   */
	  public static void testClear(){
    	  System.out.println("===============clear============");
          //clear重置position,mark,limit位置,原始缓存区内容并不清掉
          byteBuffer.clear();
          System.out.println("position:"+byteBuffer.position());
          System.out.println("limit:"+byteBuffer.limit());
          System.out.println("capacity:"+byteBuffer.capacity());
          System.out.println("======get int  after clear:"+byteBuffer.getInt(3));

      }

	  public static void testCompact(){
			 System.out.println("===============compact============");
	            /*

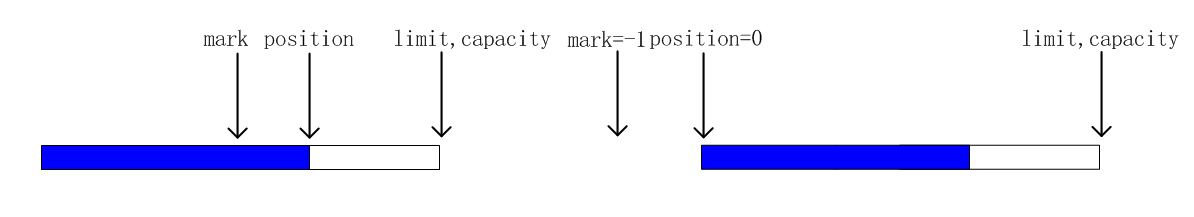

	             * compact操作用于当
	             *  while (in.read(buf) >= 0 || buf.position != 0) {
	             *     buf.flip();
	             *     out.write(buf);
	             *     buf.compact();    // In case of partial write
	             *    }
	             * 当out发送数据,即读取buf的数据,write方法可能只发送了部分数据,buf里还有剩余,
	             * 这时调用buf.compact()函数将position与limit之间的数据,copy到buf的0到limit-position,进行压缩(非实际以压缩,只是移动),
	             * 以便下次 向写入缓存。
	             */

	            byteBuffer.compact();
	            System.out.println("position:"+byteBuffer.position());
	            System.out.println("limit:"+byteBuffer.limit());
	            System.out.println("capacity:"+byteBuffer.capacity());
	            System.out.println("======get int:"+byteBuffer.getInt(3));
	            System.out.println("===============flip============");
	           /*
	            * buf.put(magic);    // Prepend header
	            * in.read(buf);      // Read data into rest of buffer
	            * buf.flip();        // Flip buffer
	            * out.write(buf);

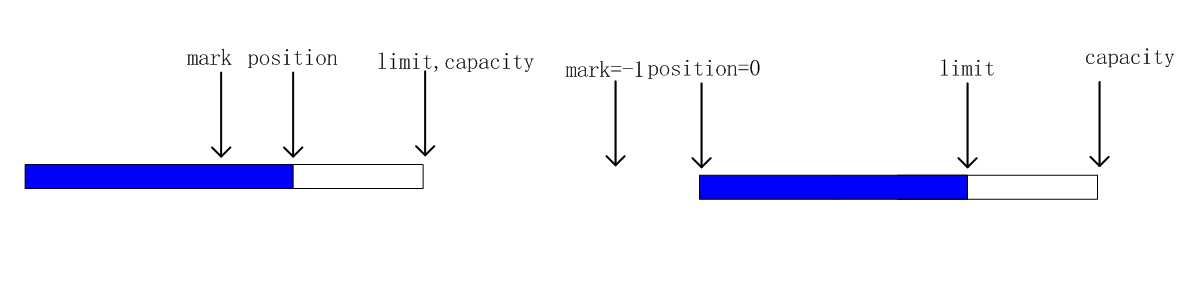

	            * 当in从缓冲中读取数据后,如果想要将缓存中的数据发送出去,则调用buf.flip()函数,limit为当前position,position为0,
	            * /
//	            byteBuffer.flip();
	            System.out.println("===============rewind============");
	            /*
	            * out.write(buf);    // Write remaining data
	            * buf.rewind();      // Rewind buffer
	            * buf.get(array);    // Copy data into array</pre></blockquote>
	            * 当out写出数据,即读取buf的数据后,如果想要从缓存中,从0位置,获取缓存数据,则调用buf.rewind()
	            */
//	            byteBuffer.rewind();

		}

}

注意 main里面方法的调用顺序不要变,第一次测试我们先注释掉testCompact方法,控制台输出:
===============init status============
position:0
limit:32
capacity:32
===============put byte============
position:1
limit:32
capacity:32
======get byte:102
===============put char============
position:3
limit:32
capacity:32
======get Char:a
===============mark============
position:3
limit:32
capacity:32
===============put int============
position:7
limit:32
capacity:32
======get int:4
===============put float============
position:11
limit:32
capacity:32
======get float:10.0
===============put double============
position:19
limit:32
capacity:32
======get double:20.0
===============put long============
position:27
limit:32
capacity:32
======get long:30
======buffer 剩余空间大小:5
java.nio.BufferOverflowException
at java.nio.Buffer.nextPutIndex(Buffer.java:519)
at java.nio.HeapByteBuffer.putLong(HeapByteBuffer.java:417)
at socket.TestByteBuffer.testOverFlow(TestByteBuffer.java:150)
at socket.TestByteBuffer.main(TestByteBuffer.java:24)
===============reset============
position:3
limit:32
capacity:32
======get  int from mark:4
position:7
limit:32
capacity:32
======get int from mark after put new int value:5
===============clear============
position:0
limit:32
capacity:32
======get int  after clear:5
从控制台输出可看出,ByteBuffer的put*和get*(int index)方法不改变mark,limit和capacity的值;put则回改变position的位置,put操作后position的位置为,put操作之前position+length(put 操作数);mark操作会改变mark的值,reset操作,则是将position定位到mark;clear操作并不会清空缓冲空间,而是将position复位0,limit为capacity,mark为-1;remain操作返回的是可用的空间大小为capacity-position;
如put后,超出缓冲区大小,则抛出BufferOverflowException异常。


下面我们将mark,reset和clear注释掉,测试Compact操作如下:
	public  static void main(String[] args) {
		    /* 以下顺序不要改变*/
			initByteBuffer();
			testByte();
			testChar();
//			testMark();
			testInt();
			testFloat();
			testDouble();
			testLong();
			testRemaining();
			testOverFlow();
//			testReset();
//			testClear();
			testCompact();
	}


关注控制的compact部分输出:
===============put long============
position:27
limit:32
capacity:32
======get long:30
======buffer 剩余空间大小:5
java.nio.BufferOverflowException
at java.nio.Buffer.nextPutIndex(Buffer.java:519)
at java.nio.HeapByteBuffer.putLong(HeapByteBuffer.java:417)
at socket.TestByteBuffer.testOverFlow(TestByteBuffer.java:150)
at socket.TestByteBuffer.main(TestByteBuffer.java:24)
===============compact============
position:5
limit:32
capacity:32
======get int:4
===============flip============
===============rewind============
从控制台输出可以看出,compact操作一般在一下情况调用,
 /*
 * compact操作用于当
 *  while (in.read(buf) >= 0 || buf.position != 0) {
 *     buf.flip();
 *     out.write(buf);
 *     buf.compact();    // In case of partial write
 *    }
 */

当out发送数据,即读取buf的数据,write方法可能只发送了部分数据,buf里还有剩余,
这时调用buf.compact()函数将position与limit之间的数据,copy到buf的0到limit-position,
进行压缩(非实际以压缩,只是移动),以便下次 向写入缓存。当position与limit之间的数据为空时,则不改变原缓冲区,否则copy相应数据。
//HeapByteBuffer
public ByteBuffer compact() {

        System.arraycopy(hb, ix(position()), hb, ix(0), remaining());
        position(remaining());
        limit(capacity());
        discardMark();
        return this;
    }

/*
If <code>src</code> is <code>null</code>, then a
* <code>NullPointerException</code> is thrown and the destination
* array is not modified.
*/
//System
 public static native void arraycopy(Object src,  int  srcPos,
                                        Object dest, int destPos,
                                        int length);



线面我们来看一下Buffer的相关操作:
public abstract class Buffer {

    // Invariants: mark <= position <= limit <= capacity
    private int mark = -1;
    private int position = 0;
    private int limit;
    private int capacity;

   //返回position
    public final int position() {
        return position;
    }
    //返回capacity
    public final int capacity() {
        return capacity;
    }
    //重新定义position位置,如mark位置大于新position,则废弃mark位置
    public final Buffer position(int newPosition) {
        if ((newPosition > limit) || (newPosition < 0))
            throw new IllegalArgumentException();
        position = newPosition;
        if (mark > position) mark = -1;
        return this;
    }
    //返回limit
     public final int limit() {
        return limit;
    }
    //标记位置
    public final Buffer mark() {
        mark = position;
        return this;
    }
    //复位position到mark位置
    public final Buffer reset() {
        int m = mark;
        if (m < 0)
            throw new InvalidMarkException();
        position = m;
        return this;
    }
    //clear操作并不会清空缓冲空间,而是将
    //position复位0,limit为capacity,mark为-1;
    public final Buffer clear() {
        position = 0;
        limit = capacity;
        mark = -1;
        return this;
    }
   /*
    * buf.put(magic);    // Prepend header
    * in.read(buf);      // Read data into rest of buffer
    * buf.flip();        // Flip buffer
    * out.write(buf);
    * 当in从缓冲中读取数据后,如果想要将缓存中的数据发送出去,
    * 则调用buf.flip()函数,limit为当前position,position为0,
    */
    public final Buffer flip() {
        limit = position;
        position = 0;
        mark = -1;
        return this;
    }
    /*
     * out.write(buf);    // Write remaining data
     * buf.rewind();      // Rewind buffer
     * buf.get(array);    // Copy data into array</pre></blockquote>
     * 当out写出数据,即读取buf的数据后,如果想要从缓存中,从0位置,获取缓存数据,则调用buf.rewind()
     */
    public final Buffer rewind() {
        position = 0;
        mark = -1;
        return this;
    }
    //返回可用空间
    public final int remaining() {
        return limit - position;
    }
    //废弃标记位置
    final void discardMark() {                          // package-private
        mark = -1;
    }
    Buffer(int mark, int pos, int lim, int cap) {       // package-private
        if (cap < 0)
            throw new IllegalArgumentException("Negative capacity: " + cap);
        this.capacity = cap;
        limit(lim);
        position(pos);
        if (mark >= 0) {
            if (mark > pos)
                throw new IllegalArgumentException("mark > position: ("
                                                   + mark + " > " + pos + ")");
            this.mark = mark;
        }
    }
}

再来看ByteBuffer
public abstract class ByteBuffer
    extends Buffer
    implements Comparable<ByteBuffer>
{

    // These fields are declared here rather than in Heap-X-Buffer in order to
    // reduce the number of virtual method invocations needed to access these
    // values, which is especially costly when coding small buffers.
    //
    final byte[] hb;  // Non-null only for heap buffers,缓存空间
    final int offset;
    boolean isReadOnly;
     ByteBuffer(int mark, int pos, int lim, int cap,   // package-private
                 byte[] hb, int offset)
    {
        super(mark, pos, lim, cap);
        this.hb = hb;
        this.offset = offset;
    }
}

再来看
class HeapByteBuffer
    extends ByteBuffer
{
    HeapByteBuffer(byte[] buf, int off, int len) { // package-private
        super(-1, off, off + len, buf.length, buf, 0);
        /*
        hb = buf;
        offset = 0;
        */
    }
}

来看压缩函数
/*
 * compact操作用于当
 *  while (in.read(buf) >= 0 || buf.position != 0) {
 *     buf.flip();
 *     out.write(buf);
 *     buf.compact();    // In case of partial write
 *    }
 * 当out发送数据,即读取buf的数据,write方法可能只发送了部分数据,buf里还有剩余,
 * 这时调用buf.compact()函数将position与limit之间的数据,copy到buf的0到limit-position,
 * 进行压缩(非实际以压缩,只是移动),
 * 以便下次 向写入缓存。
 */
public ByteBuffer compact() {
        //将position与limit之间的数据,copy到buf的0到limit-position
        System.arraycopy(hb, ix(position()), hb, ix(0), remaining());
	//重新定位position
        position(remaining());
	//重新赋值limit
        limit(capacity());
	//废弃标记位置
        discardMark();
        return this;
    }

在来看一下put函数
 public ByteBuffer putChar(char x) {
        //Char,占两字节
        Bits.putChar(this, ix(nextPutIndex(2)), x, bigEndian);
        return this;
    }

 public ByteBuffer putInt(int x) {
        //int占4个字节
        Bits.putInt(this, ix(nextPutIndex(4)), x, bigEndian);
        return this;
    }

我们,详看一下putInt
//Buffer
//判断是否有足够空间存放nb个字节,并返回position的原先位置,同时移动position
 final int nextPutIndex(int nb) {                    // package-private
        if (limit - position < nb)
            throw new BufferOverflowException();
        int p = position;
        position += nb;
        return p;
    }

//HeapByteBuffer
  //定位到缓存写开始的位置
  protected int ix(int i) {
        return i + offset;
    }

//Bits
将int值x,从bb的bi位置,写入
 static void putInt(ByteBuffer bb, int bi, int x, boolean bigEndian) {
        if (bigEndian)
            putIntB(bb, bi, x);
        else
            putIntL(bb, bi, x);
    }

    //由于int占4个字节,将int的每个字节,拆分放入缓存ByteBuffer中
    static void putIntL(ByteBuffer bb, int bi, int x) {
        bb._put(bi + 3, int3(x));
        bb._put(bi + 2, int2(x));
        bb._put(bi + 1, int1(x));
        bb._put(bi    , int0(x));
    }
    private static byte int3(int x) { return (byte)(x >> 24); }
    private static byte int2(int x) { return (byte)(x >> 16); }
    private static byte int1(int x) { return (byte)(x >>  8); }
    private static byte int0(int x) { return (byte)(x      ); }


从ByteBuffer bb的比位置获取int值
static int getIntL(ByteBuffer bb, int bi) {
        return makeInt(bb._get(bi + 3),
                       bb._get(bi + 2),
                       bb._get(bi + 1),
                       bb._get(bi    ));
 static private int makeInt(byte b3, byte b2, byte b1, byte b0) {
        return (((b3       ) << 24) |
                ((b2 & 0xff) << 16) |
                ((b1 & 0xff) <<  8) |
                ((b0 & 0xff)      ));
    }

从上面可以看出向缓存中写入占多字节的原始类型Char,int,float等时,
HeapByteBuffer,通过Bit将原始类型字节拆分存入到ByteBuffer的缓存中。


总结:
get*(int index)方法不改变mark,limit和capacity的值;put则回改变position的位置,put操作后position的位置为,put操作之前position+length(put 操作数);
mark操作会改变mark的值,reset操作,则是将position定位到mark;clear操作并不会清空缓冲空间,而是将position复位0,limit为capacity,mark为-1;remain操作返回的是可用的空间大小为capacity-position;如put后,超出缓冲区大小,则抛出BufferOverflowException异常。
compact操作一般在一下情况调用,当out发送数据,即读取buf的数据,write方法可能只发送了部分数据,buf里还有剩余,这时调用buf.compact()函数将position与limit之间的数据,copy到buf的0到limit-position,进行压缩(非实际以压缩,只是移动),以便下次 向写入缓存。当position与limit之间的数据为空时,则不改变原缓冲区,否则copy相应数据。HeapByteBuffer向缓存中写入占多字节的原始类型Char,int,float等时,HeapByteBuffer,通过Bit将原始类型字节拆分存入到ByteBuffer的缓存中。

下面用图来模仿相关操作:
初始化:



写数据:



mark:



再次写数据:



reset操作:





flip操作,左图为操作前,右图为操作后;



rewind操作,左图为操作前,右图为操作后;



clear操作,上图为操作前,下图为操作后;



compact操作,有数据的情况下,上图为操作前,下图为操作后;



compact操作,无数据的情况下,上图为操作前,下图为操作后;








  • 大小: 5.1 KB
  • 大小: 5.4 KB
  • 大小: 5 KB
  • 大小: 5 KB
  • 大小: 4.6 KB
  • 大小: 9.6 KB
  • 大小: 6.8 KB
  • 大小: 9.6 KB
  • 大小: 10.1 KB
  • 大小: 9.9 KB
  • 查看图片附件
发表评论
用户名: 匿名
