经常有朋友问起,JSP和Servlet之间有什么区别,两者之间又有什么联系?其实Servlet技术的出现时间很早,是当时为了Java的服务器端应用而开发的。大家都知道Applet是应用小程序,Servlet就是服务器端小程序了。但在Microsoft公司的ASP技术出现后,使用Servlet进行响应输出时一行行的输出语句就显得非常笨拙,对于复杂布局或者显示页面更是如此。JSP就是为了满足这种需求在Servlet技术之上开发的。可见,JSP和Servlet之间有着内在的血缘关系,在学习JSP时,如果能够抓住这种联系,就能更深刻地理解JSP的运行机理,达到事半功倍的效果。
本文将通过对一个JSP运行过程的剖析,深入JSP运行的内幕,并从全新的视角阐述一些JSP中的技术要点。
HelloWorld.jsp
我们以Tomcat 4.1.17服务器为例,来看看最简单的HelloWorld.jsp是怎么运行的。
代码清单1:HelloWorld.jsp
HelloWorld.jsp
<%
String message = "Hello World!";
%>
<%=message%>
package org.apache.jsp;
import javax.servlet.*;
import javax.servlet.http.*;
import javax.servlet.jsp.*;
import org.apache.jasper.runtime.*;
public class HelloWorld_jsp extends HttpJspBase {
......
public void _jspService(HttpServletRequest request, HttpServletResponse response)throwsjava.io.IOException, ServletException
{
JspFactory _jspxFactory = null;
javax.servlet.jsp.PageContext pageContext = null;
HttpSession session = null;
ServletContext application = null;
ServletConfig config = null;
JspWriter out = null;
Object page = this;
JspWriter _jspx_out = null;
try {
_jspxFactory = JspFactory.getDefaultFactory();
response.setContentType("text/html;charset=ISO-8859-1");
pageContext = _jspxFactory.getPageContext(this, request, response,null, true, 8192, true);
application = pageContext.getServletContext();
config = pageContext.getServletConfig();
session = pageContext.getSession();
out = pageContext.getOut();
_jspx_out = out;
String message = "Hello World!";
out.print(message);
}
catch (Throwable t) {
out = _jspx_out;
if (out != null && out.getBufferSize() != 0)
out.clearBuffer();
if (pageContext != null) pageContext.handlePageException(t);
} finally {
if (_jspxFactory != null) _jspxFactory.releasePageContext(pageContext);
}
}
}
经常有朋友问起,JSP和Servlet之间有什么区别,两者之间又有什么联系?其实Servlet技术的出现时间很早,是当时为了Java的服务器端应用而开发的。大家都知道Applet是应用小程序,Servlet就是服务器端小程序了。但在Microsoft公司的ASP技术出现后,使用Servlet进行响应输出时一行行的输出语句就显得非常笨拙,对于复杂布局或者显示页面更是如此。JSP就是为了满足这种需求在Servlet技术之上开发的。可见,JSP和Servlet之间有着内在的血缘关系,在学习JSP时,如果能够抓住这种联系,就能更深刻地理解JSP的运行机理,达到事半功倍的效果。
本文将通过对一个JSP运行过程的剖析,深入JSP运行的内幕,并从全新的视角阐述一些JSP中的技术要点。
HelloWorld.jsp
我们以Tomcat 4.1.17服务器为例,来看看最简单的HelloWorld.jsp是怎么运行的。
代码清单1:HelloWorld.jsp
HelloWorld.jsp
<%
String message = "Hello World!";
%>
<%=message%>
package org.apache.jsp;
import javax.servlet.*;
import javax.servlet.http.*;
import javax.servlet.jsp.*;
import org.apache.jasper.runtime.*;
public class HelloWorld_jsp extends HttpJspBase {
......
public void _jspService(HttpServletRequest request, HttpServletResponse response)throwsjava.io.IOException, ServletException
{
JspFactory _jspxFactory = null;
javax.servlet.jsp.PageContext pageContext = null;
HttpSession session = null;
ServletContext application = null;
ServletConfig config = null;
JspWriter out = null;
Object page = this;
JspWriter _jspx_out = null;
try {
_jspxFactory = JspFactory.getDefaultFactory();
response.setContentType("text/html;charset=ISO-8859-1");
pageContext = _jspxFactory.getPageContext(this, request, response,null, true, 8192, true);
application = pageContext.getServletContext();
config = pageContext.getServletConfig();
session = pageContext.getSession();
out = pageContext.getOut();
_jspx_out = out;
String message = "Hello World!";
out.print(message);
}
catch (Throwable t) {
out = _jspx_out;
if (out != null && out.getBufferSize() != 0)
out.clearBuffer();
if (pageContext != null) pageContext.handlePageException(t);
} finally {
if (_jspxFactory != null) _jspxFactory.releasePageContext(pageContext);
}
}
}
String message = "Hello World!";
out.print(message);

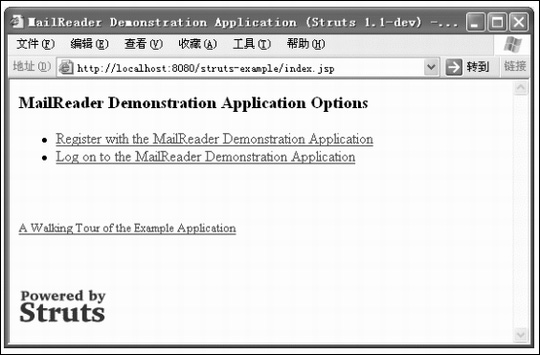

图一 应用的首页
代码清单4:index.jsp
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@ taglib uri="/WEB-INF/struts-bean.tld" prefix="bean" %>
<%@ taglib uri="/WEB-INF/struts-html.tld" prefix="html" %>
<%@ taglib uri="/WEB-INF/struts-logic.tld" prefix="logic" %>
<html:html locale="true">
<head>
<title><bean:message key="index.title"/></title>
<html:base/>
</head>
<body bgcolor="white">
……
</body>
</html:html>
<html lang="zh">
<head>
<title>MailReader Demonstration Application (Struts 1.0)</title>
</head>
<body bgcolor="white">
……
</body>
</html>
package org.apache.jsp;
import javax.servlet.*;
import javax.servlet.http.*;
import javax.servlet.jsp.*;
import org.apache.jasper.runtime.*;
public class index_jsp extends HttpJspBase {
file: //为所有的定制标签定义处理器池类的引用
private org.apache.jasper.runtime.TagHandlerPool ;
_jspx_tagPool_bean_message_key;
……
file: //页面类构造方法
public index_jsp() {
_jspx_tagPool_bean_message_key =
new org.apache.jasper.runtime.TagHandlerPool();
……
}
public void _jspService(HttpServletRequest request,
HttpServletResponse response)
throws java.io.IOException, ServletException {
……
_jspxFactory = JspFactory.getDefaultFactory();
response.setContentType("text/html;charset=UTF-8");
pageContext = _jspxFactory.getPageContext(this,
request, response,null, true, 8192, true);
application = pageContext.getServletContext();
config = pageContext.getServletConfig();
session = pageContext.getSession();
out = pageContext.getOut();
_jspx_out = out;
……
if (_jspx_meth_html_html_0(pageContext))
return;
……
}
file: //页面在处理退出时释放所有定制标签的属性
public void _jspDestroy() {
_jspx_tagPool_bean_message_key.release();
……
}
}
//对message定制标签的处理方法
private boolean _jspx_meth_bean_message_0(
javax.servlet.jsp.tagext.Tag _jspx_th_html_html_0,
javax.servlet.jsp.PageContext pageContext) throws Throwable {
JspWriter out = pageContext.getOut();
/* ---- bean:message ---- */
org.apache.struts.taglib.bean.MessageTag
_jspx_th_bean_message_0 =(org.apache.struts.taglib.bean.MessageTag)
_jspx_tagPool_bean_message_key.get(org.apache.struts.taglib.bean.MessageTag.class);
_jspx_th_bean_message_0.setPageContext(pageContext);
_jspx_th_bean_message_0.setParent(_jspx_th_html_html_0);
_jspx_th_bean_message_0.setKey("index.title");
int _jspx_eval_bean_message_0 = _jspx_th_bean_message_0.doStartTag();
if (_jspx_th_bean_message_0.doEndTag()== javax.servlet.jsp.tagext.Tag.SKIP_PAGE)
return true;
_jspx_tagPool_bean_message_key.reuse(_jspx_th_bean_message_0);
return false;
}
public class TagHandlerPool {
private static final int MAX_POOL_SIZE = 5;
private Tag[] handlers;
public synchronized Tag get(Class handlerClass) throws JspException {……}
public synchronized void reuse(Tag handler) {……}
}
