1.关联库
compile 'com.android.support:design:23.3.0'
2.布局写上TabLayout
class="brush:java;gutter:true;"> <android.support.design.widget.TabLayout android:id="@+id/tabLayout" android:layout_width="0dp" android:layout_height="wrap_content" android:layout_gravity="center_vertical" android:layout_weight="1" />
3.TabLayout和ViewPager关联
tabLayout.setupWithViewPager(viewPager); //注意以后监听页面的变化 ,TabPageIndicator监听页面的变化 // tabPagerIndicator.setOnPageChangeListener(new MyOnPageChangeListener()); viewPager.addOnPageChangeListener(new MyOnPageChangeListener()); tabLayout.setTabMode(TabLayout.MODE_SCROLLABLE)
4.解决TabLayout和ViewPagerIndicator的兼容问题
4.1 <activity android:name=".activity.MainActivity" android:theme="@style/Theme.PageIndicatorDefaults" />
4.2 ViewPagerIndicator库修改成如下
<style name="Theme.PageIndicatorDefaults" parent="Theme.AppCompat.Light.NoActionBar"> <item name="vpiIconPageIndicatorStyle">@style/Widget.IconPageIndicator</item> <item name="vpiTabPageIndicatorStyle">@style/Widget.TabPageIndicator</item> </style>
4.3添加V7包 compile 'com.android.support:appcompat-v7:23.3.0'
5.TabLayout设置指针颜色和高度&文字颜色
5.1.添加样式
<android.support.design.widget.TabLayout android:id="@+id/tabLayout" android:layout_width="wrap_content" style="@style/MyCustomTabLayout" android:layout_height="wrap_content" android:layout_weight="1" />
5.2. values目录下styles.xml里面
<style name="MyCustomTabLayout" parent="Widget.Design.TabLayout"> <item name="tabMaxWidth">72dp</item> <item name="tabMinWidth">72dp</item> <item name="tabIndicatorColor">#ff0000</item> <item name="tabIndicatorHeight">2dp</item> <item name="tabTextAppearance">@style/MyCustomTabTextAppearance</item> <item name="tabSelectedTextColor">@android:color/holo_red_light</item> </style> <style name="MyCustomTabTextAppearance" parent="TextAppearance.Design.Tab"> <item name="android:textSize">16sp</item> <item name="android:textColor">@android:color/black</item> <item name="textAllCaps">false</item> </style>

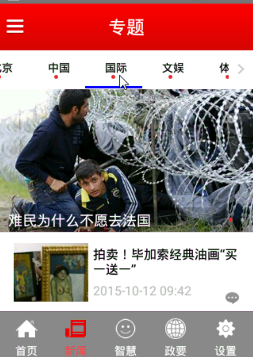

6.TabLayout自定义样式
1.设置的样式
vp_news_menu_detailpager.setAdapter(adapter); tabLayout.setupWithViewPager(vp_news_menu_detailpager); //设置滚动模式 tabLayout.setTabMode(TabLayout.MODE_SCROLLABLE); for (int i = 0; i < tabLayout.getTabCount(); i++) { TabLayout.Tab tab = tabLayout.getTabAt(i); tab.setCustomView(getTabView(i)); } //注意了setupWithViewPager必须在ViewPager.setAdapter()之后调用
2.在适配器中添加getTabView()方法
public View getTabView(int position){ View view = LayoutInflater.from(context).inflate(R.layout.tab_item, null); TextView tv= (TextView) view.findViewById(R.id.textView); tv.setText(childrenDatas.get(position).getTitle()); ImageView img = (ImageView) view.findViewById(R.id.imageView); img.setImageResource(R.drawable.dot_focus); return view; }
布局文件tab_item.xml文件
<?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="wrap_content" android:layout_height="wrap_content" android:gravity="center_horizontal" android:orientation="vertical"> <TextView android:text="text" android:id="@+id/textView" android:textColor="#000000" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginLeft="3dp" /> <ImageView android:src="@drawable/dot_focus" android:id="@+id/imageView" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_centerVertical="true" /> </LinearLayout>
