ViewPager之Fragment页面切换

 2016/8/8 5:31:41  Snser  程序员俱乐部  我要评论(0)
  • 摘要:一、概述ViewPager是android-support-v4中提供的类,它是一个容器类,常用于页面之间的切换。继上篇文章《ViewPager之引导页》之后,本文主要介绍ViewPager更为通用的实践:ViewPager搭配Fragment实现页面切换。这种实现方式相对于上篇文章而言,可以更好的支持不同页面各自的复杂逻辑,与此同时,也能够保障页面之间的耦合度尽可能的低。按照惯例,先晒出效果图:二、实现思路首先分析一下不同区域的交互需求:中间灰色区域除了要支持三套完全不同的逻辑之外
  • 标签:view

一、概述

ViewPager是android-support-v4中提供的类,它是一个容器类,常用于页面之间的切换。

继上篇文章《ViewPager之引导页》之后,本文主要介绍ViewPager更为通用的实践:ViewPager搭配Fragment实现页面切换。

这种实现方式相对于上篇文章而言,可以更好的支持不同页面各自的复杂逻辑,与此同时,也能够保障页面之间的耦合度尽可能的低。

按照惯例,先晒出效果图:





二、实现思路

首先分析一下不同区域的交互需求:

中间灰色区域除了要支持三套完全不同的逻辑之外,还要支持左右滑动切换。而顶部ActionBar和底部Tab切换都只需要更新状态,无需整体变换,也不需要整体滑动;

因此,中间灰色区域用ViewPager实现,它包含三个Fragment子页面。而顶部ActionBar和底部Tab切换各自是一个Fragment,直接隶属于Activity。

然后解决不同Fragment之间的依赖关系:

五个Fragment之间沟通的唯一纽带就是ViewPager页面的切换,因此,ViewPager页面切换时通知到不同的Fragment即可。

 [转载请保留本文地址:http://www.cnblogs.com/snser/p/5700754.html]

三、开始干活

3.1 搭建整体框架

本文的五个Fragment采用三种方式载入:

ViewPager中的三个Fragment自然是通过其Adatper进行载入,顶部的TitleFragment(ActionBar)直接声明在layout布局中,而底部的TabFragment采用动态载入。

这样做的目的是方便后续分析不同载入方式的实际载入实际。

ok,整体的layout布局自然也就成了下面的样子:

viewpager_fragment.xml(activity的布局):

 1 <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
 2     xmlns:tools="http://schemas.android.com/tools"
 3     android:layout_width="match_parent"
 4     android:layout_height="match_parent"
 5     android:background="@color/background_default"
 6     tools:context="${relativePackage}.${activityClass}" >
 7
 8     <fragment
 9         android:id="@+id/viewpager_fragment_title"
10         android:name="cc.snser.cnblog5700754.TitleFragment"
11         android:layout_width="match_parent"
12         android:layout_height="wrap_content"
13         android:layout_alignParentTop="true" />
14
15     <android.support.v4.view.ViewPager
16         android:id="@+id/viewpager_fragment_pager"
17         android:layout_width="match_parent"
18         android:layout_height="match_parent"
19         android:layout_above="@+id/viewpager_fragment_container"
20         android:layout_below="@+id/viewpager_fragment_title" />
21
22     <FrameLayout
23         android:id="@id/viewpager_fragment_container"
24         android:layout_width="match_parent"
25         android:layout_height="wrap_content"
26         android:layout_alignParentBottom="true" >
27     </FrameLayout>
28
29 </RelativeLayout>

对应的,主界面的逻辑如下:

ViewPagerFragmentActivity.java:

  1 public class ViewPagerFragmentActivity extends FragmentActivity {
  2     private FragmentManager mManager = getSupportFragmentManager();
  3
  4     private TitleFragment mTitleFragment;
  5     private TabFragment mTabFragment;
  6     private ViewPager mPager;
  7
  8     private ViewPagerAdapter mAdapter;
  9
 10     private static final int DEFAULT_PAGE = 1; //默认页面
 11
 12     @Override
 13     protected void onCreate(Bundle savedInstanceState) {
 14         Log.d("Snser", "ViewPagerFragmentActivity onCreate");
 15         super.onCreate(savedInstanceState);
 16         Log.d("Snser", "ViewPagerFragmentActivity onCreate setContentView");
 17         setContentView(R.layout.viewpager_fragment);
 18         Log.d("Snser", "ViewPagerFragmentActivity onCreate initView");
 19         initView();
 20     }
 21
 22     private void initView() {
 23         mTitleFragment = (TitleFragment)mManager.findFragmentById(R.id.viewpager_fragment_title);
 24         mTabFragment = new TabFragment();
 25         mTabFragment.setOnTabClickListenser(new ViewPageTabClickListenser());
 26         mManager.beginTransaction().replace(R.id.viewpager_fragment_container, mTabFragment).commit();
 27         mPager = (ViewPager)findViewById(R.id.viewpager_fragment_pager);
 28         mPager.setAdapter(mAdapter = new ViewPagerAdapter(mManager));
 29         mPager.setOnPageChangeListener(new ViewPageChangeListener());
 30         setCurrentItem(DEFAULT_PAGE);
 31     }
 32
 33     @Override
 34     protected void onResume() {
 35         Log.d("Snser", "ViewPagerFragmentActivity onResume");
 36         super.onResume();
 37     }
 38
 39     private class ViewPageChangeListener implements OnPageChangeListener {
 40         @Override
 41         public void onPageSelected(int position) {
 42             setCurrentItem(position);
 43         }
 44
 45         @Override
 46         public void onPageScrolled(int position, float positionOffset, int positionOffsetPixels) {
 47         }
 48
 49         @Override
 50         public void onPageScrollStateChanged(int state) {
 51         }
 52     }
 53
 54     private class ViewPagerAdapter extends FragmentPagerAdapter {
 55         private ArrayList<PagerFragment> mFragments = new ArrayList<PagerFragment>();
 56
 57         public ViewPagerAdapter(FragmentManager fm) {
 58             super(fm);
 59             mFragments.add(new ClickFragment());
 60             mFragments.add(new DateFragment());
 61             mFragments.add(new AnimFragment());
 62         }
 63
 64         @Override
 65         public Fragment getItem(int position) {
 66             return mFragments.get(position);
 67         }
 68
 69         @Override
 70         public int getCount() {
 71             return mFragments.size();
 72         }
 73     }
 74
 75     private class ViewPageTabClickListenser implements OnTabClickListenser {
 76         @Override
 77         public void onTabClick(int tab) {
 78             setCurrentItem(tab);
 79         }
 80     }
 81
 82     private void setCurrentItem(int item) {
 83         if (item == mPager.getCurrentItem()) {
 84             //此时是源于initView或onPageSelected的调用
 85             notifyPageChangeToFragments(item);
 86         } else {
 87             //此时是源于initView或onTabClick的调用,后续会自动触发一次onPageSelected
 88             mPager.setCurrentItem(item);
 89         }
 90     }
 91
 92     private void notifyPageChangeToFragments(int item) {
 93         for (int page = 0; page != mAdapter.getCount(); ++page) {
 94             final Fragment fragment = mAdapter.getItem(page);
 95             if (fragment instanceof PagerFragment) {
 96                 if (page == item) {
 97                     ((PagerFragment)fragment).onPageIn();
 98                 } else {
 99                     ((PagerFragment)fragment).onPageOut();
100                 }
101             }
102         }
103         mTitleFragment.setCurrentTab(item);
104         mTabFragment.setCurrentTab(item);
105     }
106 }

可以看到,包含三种完全不同功能的Activity,其主界面代码居然只有区区106行,这甚至比上篇文章《ViewPager之引导页》还要少。

这必须要归功于Fragment的使用。

三个页面的具体逻辑分别由DateFragment、ClickFragment、AnimFragment进行维护,而ViewPager要做的,只是进行Fragment的切换和通知。

具体来说,ViewPagerAdapter负责根据不同的postion取出不同的Fragment。而三个页面Fragment都继承自PagerFragment:

PagerFragment.java:

1 public class PagerFragment extends Fragment{
2
3     public void onPageIn() {
4     }
5
6     public void onPageOut() {
7     }
8
9 }

亦即在页面切换的时候(不管是来自滑动还是点击tab),activity都会通知三个fragment它们各自是否可见。

同时,在 notifyPageChangeToFragments 方法中,也会通知TitleFragment和TabFragment,它们该切换状态了。

3.2 Fragment的各自实现

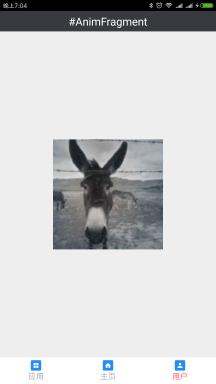

拿AnimFragment举例,这个动画Fragment的功能是在其切入(onPageIn)的时候播放淡入的动画,而在其切出(onPageOut)的时候销毁动画。

 1 public class AnimFragment extends PagerFragment {
 2     private View mViewRoot;
 3     private ImageView mImg;
 4
 5     private Animation mAnim;
 6
 7     @Override
 8     public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
 9         Log.d("Snser", "AnimFragment onCreateView");
10         mViewRoot = inflater.inflate(R.layout.viewpager_fragment_anim, container, false);
11         mAnim = AnimationUtils.loadAnimation(getActivity(), R.anim.anim_fade_in);
12         mAnim.setInterpolator(new LinearInterpolator());
13         initView(mViewRoot);
14         return mViewRoot;
15     }
16
17     private void initView(View root) {
18         mImg = (ImageView)root.findViewById(R.id.viewpager_fragment_anim_img);
19         startAnim();
20     }
21
22     @Override
23     public void onDestroy() {
24         super.onDestroy();
25         stopAnim();
26     }
27
28     @Override
29     public void onPageIn() {
30         super.onPageIn();
31         startAnim();
32     }
33
34     @Override
35     public void onPageOut() {
36         super.onPageOut();
37         stopAnim();
38     }
39
40     private void startAnim() {
41         if (mImg != null && mAnim != null) {
42             mImg.startAnimation(mAnim);
43         }
44     }
45
46     private void stopAnim() {
47         if (mImg != null && mAnim != null) {
48             mImg.clearAnimation();
49         }
50     }
51
52 }

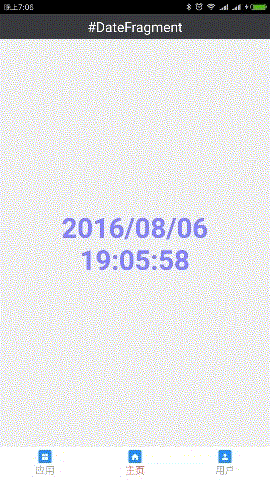

DateFragment的作用是在切入的时候刷新当前日期和时间:

DateFragment.java:

 1 public class DateFragment extends PagerFragment {
 2
 3     private View mViewRoot;
 4     private TextView mTxtDate;
 5
 6     private SimpleDateFormat mFormat = new SimpleDateFormat("yyyy/MM/dd\nHH:mm:ss", Locale.CHINA);
 7
 8     @Override
 9     public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
10         Log.d("Snser", "DateFragment onCreateView");
11         mViewRoot = inflater.inflate(R.layout.viewpager_fragment_date, container, false);
12         initView(mViewRoot);
13         return mViewRoot;
14     }
15
16     @Override
17     public void onPageIn() {
18         super.onPageIn();
19         refreshDate();
20     }
21
22     private void initView(View root) {
23         mTxtDate = (TextView)root.findViewById(R.id.viewpager_fragment_date_txt);
24         refreshDate();
25     }
26
27     private void refreshDate() {
28         if (mTxtDate != null) {
29             mTxtDate.setText(mFormat.format(new Date()));
30         }
31     }
32
33 }
View Code

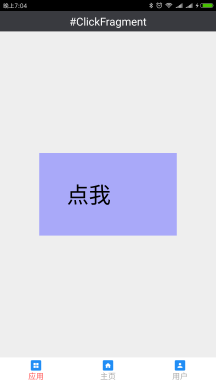

ClickFragment则搞定了一个多次连续点击“中彩蛋”的效果:

ClickFragment.java:

 1 public class ClickFragment extends PagerFragment {
 2     private View mViewRoot;
 3     private Button mBtnClick;
 4
 5     @Override
 6     public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
 7         Log.d("Snser", "ClickFragment onCreateView");
 8         mViewRoot = inflater.inflate(R.layout.viewpager_fragment_click, container, false);
 9         initView(mViewRoot);
10         return mViewRoot;
11     }
12
13     private void initView(View root) {
14         mBtnClick = (Button)root.findViewById(R.id.viewpager_fragment_click_btn);
15         mBtnClick.setOnClickListener(new MultiClickListener());
16     }
17
18     private static class MultiClickListener implements View.OnClickListener {
19         private int mCount = 0;
20         private long mLastClickTime = 0;
21
22         private static final long MAX_CLICK_COUNT = 4;
23         private static final long TIMEOUT_CLICK = 500;
24         private static final int MSG_TIMEOUT_CLICK = 0x1001;
25
26         private static Handler sHandler = new Handler() {
27             @Override
28             public void handleMessage(Message msg) {
29                 if (msg.what == MSG_TIMEOUT_CLICK && msg.obj instanceof Button) {
30                     Log.d("Snser", "MultiClickListener 连续点击超时");
31                     ((Button)msg.obj).setText("点我");
32                 }
33             }
34         };
35
36         @Override
37         public void onClick(View v) {
38             if (v instanceof Button) {
39                 final long time = System.currentTimeMillis();
40                 if (mCount == 0 || time - mLastClickTime < TIMEOUT_CLICK) {
41                     //这是连续点击
42                     Log.d("Snser", "MultiClickListener 连续点击 mCount=" + (mCount + 1));
43                     ++mCount;
44                     mLastClickTime = time;
45                     sHandler.removeMessages(MSG_TIMEOUT_CLICK);
46                     sHandler.sendMessageDelayed(Message.obtain(sHandler, MSG_TIMEOUT_CLICK, v), TIMEOUT_CLICK);
47                     if (mCount < MAX_CLICK_COUNT) {
48                         ((Button)v).setText("点我   +" + mCount);
49                     } else {
50                         ((Button)v).setText("死机了!");
51                     }
52                 } else {
53                     //这是新的点击
54                     Log.d("Snser", "MultiClickListener 新的点击 mCount=0");
55                     mCount = 0;
56                     onClick(v);
57                 }
58             }
59         }
60     }
61
62 }
View Code

除了页面Fragment之外,TabFragment和TitleFragment都会在 setCurrentTab 方法中更新自己的状态。

不同的是,TabFragment会将点击tab的事件通过 OnTabClickListenser 反馈给activity:

 1 public class TabFragment extends Fragment {
 2     private View mRootView;
 3
 4     private TextView mTxtTabApp;
 5     private TextView mTxtTabHome;
 6     private TextView mTxtTabUser;
 7
 8     private OnTabClickInternalListener mTabClickInternalListener = new OnTabClickInternalListener();
 9     private OnTabClickListenser mOnTabClickListenser;
10
11     private int mDefaultTab = 0;
12     private int mCurrentTab = -1;
13
14     @Override
15     public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
16         Log.d("Snser", "TabFragment onCreateView");
17         mRootView = inflater.inflate(R.layout.viewpager_fragment_tab, container, false);
18         initView(mRootView);
19         return mRootView;
20     }
21
22     private void initView(View root) {
23         mTxtTabApp = (TextView)root.findViewById(R.id.viewpager_fragment_tab_app);
24         mTxtTabApp.setTag(Integer.valueOf(0));
25         mTxtTabApp.setOnClickListener(mTabClickInternalListener);
26         mTxtTabHome = (TextView)root.findViewById(R.id.viewpager_fragment_tab_home);
27         mTxtTabHome.setTag(Integer.valueOf(1));
28         mTxtTabHome.setOnClickListener(mTabClickInternalListener);
29         mTxtTabUser = (TextView)root.findViewById(R.id.viewpager_fragment_tab_user);
30         mTxtTabUser.setTag(Integer.valueOf(2));
31         mTxtTabUser.setOnClickListener(mTabClickInternalListener);
32         setCurrentTab(mDefaultTab);
33     }
34
35     public interface OnTabClickListenser {
36         public void onTabClick(int tab);
37     }
38
39     private class OnTabClickInternalListener implements View.OnClickListener {
40         @Override
41         public void onClick(View v) {
42             if (v != null && v.getTag() instanceof Integer) {
43                 final int tab = (Integer)v.getTag();
44                 if (tab != mCurrentTab && mOnTabClickListenser != null) {
45                     setCurrentTab(tab);
46                     mOnTabClickListenser.onTabClick(tab);
47                 }
48             }
49         }
50     }
51
52     public void setOnTabClickListenser(OnTabClickListenser listenser) {
53         mOnTabClickListenser = listenser;
54     }
55
56     public void setCurrentTab(int tab) {
57         if (mTxtTabApp != null && mTxtTabHome != null && mTxtTabUser != null) {
58             mCurrentTab = tab;
59             mTxtTabApp.setTextColor(getResources().getColor(R.color.viewpager_fragment_tab_normal));
60             mTxtTabHome.setTextColor(getResources().getColor(R.color.viewpager_fragment_tab_normal));
61             mTxtTabUser.setTextColor(getResources().getColor(R.color.viewpager_fragment_tab_normal));
62             switch (tab) {
63                 case 0:
64                     mTxtTabApp.setTextColor(getResources().getColor(R.color.viewpager_fragment_tab_current));
65                     break;
66                 case 1:
67                     mTxtTabHome.setTextColor(getResources().getColor(R.color.viewpager_fragment_tab_current));
68                     break;
69                 case 2:
70                     mTxtTabUser.setTextColor(getResources().getColor(R.color.viewpager_fragment_tab_current));
71                     break;
72                 default:
73                     break;
74             }
75         } else {
76             //TabFragment在Activity的onResume之后才会onCreateView
77             //setCurrentTab的时候控件还没初始化,存一下初始值在initView里再初始化
78             mDefaultTab = tab;
79         }
80     }
81 }
 1 public class TitleFragment extends Fragment {
 2     private View mRootView;
 3     private TextView mTxt;
 4
 5     @Override
 6     public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
 7         Log.d("Snser", "TitleFragment onCreateView");
 8         mRootView = inflater.inflate(R.layout.viewpager_fragment_title, container, false);
 9         initView(mRootView);
10         return mRootView;
11     }
12
13     private void initView(View root) {
14         mTxt = (TextView)root.findViewById(R.id.viewpager_fragment_title_txt);
15     }
16
17     public void setCurrentTab(int tab) {
18         if (mTxt != null) {
19             switch (tab) {
20                 case 0:
21                     mTxt.setText("#ClickFragment");
22                     break;
23                 case 1:
24                     mTxt.setText("#DateFragment");
25                     break;
26                 case 2:
27                     mTxt.setText("#AnimFragment");
28                     break;
29                 default:
30                     break;
31             }
32         }
33     }
34 }

3.3 Fragment的加载顺序

回归到3.1节中介绍到本文采用三种方式进行Fragment的载入,目的就是为了比较不同方式下Fragment的加载时机。

在 DEFAULT_PAGE = 1 时,各个Fragment的加载顺序为:

//          ViewPagerFragmentActivity onCreate
//          ViewPagerFragmentActivity onCreate setContentView
//          TitleFragment onCreateView (声明在layout布局中的Fragment在setContentView之后就会被加载)
//          ViewPagerFragmentActivity onCreate initView
//          TabFragment onCreateView (动态replace的Fragment在replace之后、onResume之前被加载)
//          ViewPagerFragmentActivity onResume
//          DateFragment onCreateView (ViewPager最先加载默认页)
//          ClickFragment onCreateView (ViewPager默认页左边的页面会被预加载)
//          AnimFragment onCreateView (ViewPager默认页右边的页面会被预加载)

  DEFAULT_PAGE = 0 时,各个Fragment的加载顺序为:

//          ViewPagerFragmentActivity onCreate
//          ViewPagerFragmentActivity onCreate setContentView
//          TitleFragment onCreateView (声明在layout布局中的Fragment在setContentView之后就会被加载)
//          ViewPagerFragmentActivity onCreate initView
//          TabFragment onCreateView (动态replace的Fragment在replace之后、onResume之前被加载)
//          ViewPagerFragmentActivity onResume
//          ClickFragment onCreateView (ViewPager最先加载默认页)
//          DateFragment onCreateView(ViewPager默认页右边的页面会被预加载)
//          AnimFragment onCreateView(ViewPager切换到DateFragment时才会预加载AnimFragment)

 [转载请保留本文地址:http://www.cnblogs.com/snser/p/5700754.html]

四、demo工程

先晒一下本文的动图效果:

工程源码如下(下载下面的图片,扩展名改成zip即可):

 [转载请保留本文地址:http://www.cnblogs.com/snser/p/5700754.html]



发表评论
用户名: 匿名
