Android RecyclerView 和 CardView简单使用

 2016/7/7 5:31:17  Linccy  程序员俱乐部  我要评论(0)
  • 摘要:Android5.0之后Android新增加的两个UI控件RecyclerView,CardView。RecyclerView可以看出是ListView的加强版,能够更加灵活的使用、支持动画等CardView则是Google提供的一个卡片式视图组件,可以定义如边角的弧度、阴影等属性。从本质上看,可以将CardView看做是FrameLayout在自身之上添加了圆角和阴影效果。要使用这两个UI控件我们需要先在AndroidStudio中添加相应的库:之后要有两个布局文件
  • 标签:android 使用 view

Android 5.0之后Android新增加的两个UI控件RecyclerView,CardView。

RecyclerView可以看出是ListView的加强版,能够更加灵活的使用、支持动画等

CardView则是Google提供的一个卡片式视图组件,可以定义如边角的弧度、阴影等属性。从本质上看,可以将CardView看做是FrameLayout在自身之上添加了圆角和阴影效果。

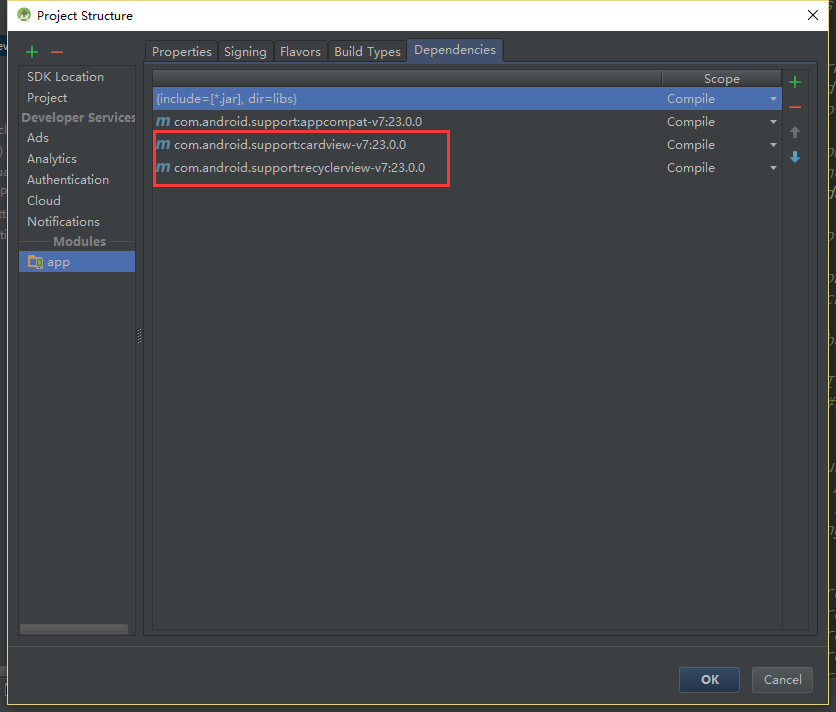

要使用这两个UI控件我们需要先在Android Studio 中添加相应的库:



之后要有两个布局文件:



main_activity.xml:

 1 <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
 2     xmlns:tools="http://schemas.android.com/tools"
 3     android:layout_width="match_parent"
 4     android:layout_height="match_parent"
 5     android:orientation="vertical"
 6     android:paddingLeft="@dimen/activity_horizontal_margin"
 7     android:paddingRight="@dimen/activity_horizontal_margin"
 8     android:paddingTop="@dimen/activity_vertical_margin"
 9     android:paddingBottom="@dimen/activity_vertical_margin"
10     tools:context=".MainActivity">
11
12     <TextView
13         android:id="@+id/tvTitle"
14         android:layout_width="wrap_content"
15         android:layout_height="wrap_content"
16         android:layout_gravity="center_horizontal"
17         android:textSize="20sp"
18         android:text="@string/tvTitle" />
19
20     <android.support.v7.widget.RecyclerView
21         android:id="@+id/recyclerView"
22         android:layout_width="match_parent"
23         android:layout_height="wrap_content" />
24
25 </LinearLayout>

recyclerview_cardview_item.xml:

 1 <android.support.v7.widget.CardView
 2     xmlns:android="http://schemas.android.com/apk/res/android"
 3     xmlns:card_view="http://schemas.android.com/apk/res-auto"
 4     android:id="@+id/cardview"
 5     android:layout_width="match_parent"
 6     android:layout_height="match_parent"
 7     android:layout_margin="6dp"
 8     android:padding="6dp"
 9     card_view:cardBackgroundColor="#ffdddddd"
10     card_view:cardCornerRadius="28dp"
11     card_view:cardElevation="6dp">
12
13     <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
14         android:layout_width="match_parent"
15         android:layout_height="match_parent"
16         android:orientation="vertical">
17
18         <ImageView
19             android:id="@+id/ivImage"
20             android:layout_width="120dp"
21             android:layout_height="160dp"
22             android:layout_marginLeft="16dp" />
23
24         <LinearLayout
25             android:layout_width="wrap_content"
26             android:layout_height="wrap_content"
27             android:orientation="horizontal">
28
29             <TextView
30                 android:id="@+id/tvId"
31                 android:layout_width="wrap_content"
32                 android:layout_height="wrap_content"
33                 android:layout_marginBottom="12dp"
34                 android:layout_marginLeft="20dp" />
35
36             <TextView
37                 android:id="@+id/tvName"
38                 android:layout_width="wrap_content"
39                 android:layout_height="wrap_content"
40                 android:layout_marginBottom="12dp"
41                 android:layout_marginLeft="24dp" />
42         </LinearLayout>
43
44     </LinearLayout>
45 </android.support.v7.widget.CardView>

然后再在MainActivity中

  1 package idv.ron.recyclercardviewdemo;
  2
  3 import android.content.Context;
  4 import android.os.Bundle;
  5 import android.support.v7.app.AppCompatActivity;
  6 import android.support.v7.widget.RecyclerView;
  7 import android.support.v7.widget.StaggeredGridLayoutManager;
  8 import android.view.LayoutInflater;
  9 import android.view.View;
 10 import android.view.ViewGroup;
 11 import android.widget.ImageView;
 12 import android.widget.TextView;
 13 import android.widget.Toast;
 14
 15 import java.util.ArrayList;
 16 import java.util.List;
 17
 18 public class MainActivity extends AppCompatActivity {
 19     @Override
 20     protected void onCreate(Bundle savedInstanceState) {
 21         super.onCreate(savedInstanceState);
 22         setContentView(R.layout.main_activity);
 23         RecyclerView recyclerView = (RecyclerView) findViewById(R.id.recyclerView);
 24         recyclerView.setLayoutManager(
 25                 new StaggeredGridLayoutManager(
 26                         2, StaggeredGridLayoutManager.HORIZONTAL));
 27         List<Member> memberList = new ArrayList<>();
 28         memberList.add(new Member(92, R.drawable.p05, "James"));
 29         memberList.add(new Member(103, R.drawable.p06, "David"));
 30         memberList.add(new Member(234, R.drawable.p09, "Jerry"));
 31         memberList.add(new Member(35, R.drawable.p10, "Maggie"));
 32         memberList.add(new Member(23, R.drawable.p01, "John"));
 33         memberList.add(new Member(75, R.drawable.p02, "Jack"));
 34         memberList.add(new Member(65, R.drawable.p03, "Mark"));
 35         memberList.add(new Member(12, R.drawable.p04, "Ben"));
 36         memberList.add(new Member(45, R.drawable.p07, "Ken"));
 37         memberList.add(new Member(78, R.drawable.p08, "Ron"));
 38         memberList.add(new Member(57, R.drawable.p11, "Sue"));
 39         memberList.add(new Member(61, R.drawable.p12, "Cathy"));
 40         recyclerView.setAdapter(new MemberAdapter(this, memberList));
 41     }
 42
 43     private class MemberAdapter extends
 44             RecyclerView.Adapter<MemberAdapter.ViewHolder> {
 45         private Context context;
 46         private LayoutInflater layoutInflater;
 47         private List<Member> memberList;
 48
 49         public MemberAdapter(Context context, List<Member> memberList) {
 50             this.context = context;
 51             layoutInflater = LayoutInflater.from(context);
 52             this.memberList = memberList;
 53         }
 54
 55         public class ViewHolder extends RecyclerView.ViewHolder {
 56             ImageView ivImage;
 57             TextView tvId, tvName;
 58             View itemView;
 59
 60             public ViewHolder(View itemView) {
 61                 super(itemView);
 62                 this.itemView = itemView;
 63                 ivImage = (ImageView) itemView.findViewById(R.id.ivImage);
 64                 tvId = (TextView) itemView.findViewById(R.id.tvId);
 65                 tvName = (TextView) itemView.findViewById(R.id.tvName);
 66             }
 67         }
 68
 69         @Override
 70         public int getItemCount() {
 71             return memberList.size();
 72         }
 73
 74         @Override
 75         public ViewHolder onCreateViewHolder(ViewGroup viewGroup, int viewType) {
 76             View itemView = layoutInflater.inflate(
 77                     R.layout.recyclerview_cardview_item, viewGroup, false);
 78             return new ViewHolder(itemView);
 79         }
 80
 81         @Override
 82         public void onBindViewHolder(ViewHolder viewHolder, final int position) {
 83             final Member member = memberList.get(position);
 84             viewHolder.ivImage.setImageResource(member.getImage());
 85             viewHolder.tvId.setText(String.valueOf(member.getId()));
 86             viewHolder.tvName.setText(member.getName());
 87             viewHolder.itemView.setOnClickListener(new View.OnClickListener() {
 88                 @Override
 89                 public void onClick(View v) {
 90                     ImageView imageView = new ImageView(context);
 91                     imageView.setImageResource(member.getImage());
 92                     Toast toast = new Toast(context);
 93                     toast.setView(imageView);
 94                     toast.setDuration(Toast.LENGTH_SHORT);
 95                     toast.show();
 96                 }
 97             });
 98         }
 99     }
100 }

下面是效果图:
