　　前段时间，做服务器端监控系统，为了界面好看，采用WPF。硬件相关监控，比如CPU、内存等，想用仪表盘控件。网上找了很多这种控件，基本上都是第三方商业控件（虽然很漂亮，不过得money...)。最后在CodeProject上找到了一款还不错的开源的仪表盘控件CircularGauge。

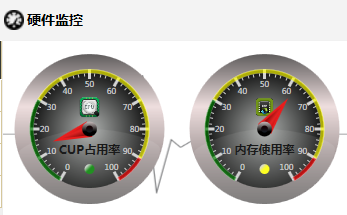

　　用了下该控件，感觉还不错，由于很多参数（比如圆盘半径大小、指针大小等等），进行大小调整时需要多试几次才能达到想要的效果。由于项目中监控重点是数据库相关内容，硬件监控只是简单点缀，显得好看而已，没有调的比较大。效果图如下：

<UserControl x:Class="Monitor.UC.UCGauge"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
             xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
             mc:Ignorable="d"
             d:DesignHeight="300" d:DesignWidth="300"
             xmlns:gauge="clr-namespace:CircularGauge;assembly=CircularGauge" Loaded="UserControl_Loaded">
    <Grid>
        <gauge:CircularGaugeControl x:Name="myGauge1" Grid.Column="0" Grid.Row="0"
                                        Radius="75"
                                        ScaleRadius="55"
                                        ScaleStartAngle="120"
                                        ScaleSweepAngle="300"
                                        PointerLength="35"
                                        PointerCapRadius="15"
                                        MinValue="0"
                                        MaxValue="100"
                                        MajorDivisionsCount="10"
                                        MinorDivisionsCount="5"
                                        ImageSize="20,30"
                                        RangeIndicatorThickness="4"
                                        RangeIndicatorRadius="56"
                                        RangeIndicatorLightRadius="5"
                                        RangeIndicatorLightOffset="40"
                                        ScaleLabelRadius="45"
                                        ScaleLabelSize="18,10"
                                        ScaleLabelFontSize="8"
                                        ScaleLabelForeground="LightGray"
                                        MajorTickSize="10,3"
                                        MinorTickSize="3,1"
                                        MajorTickColor="LightGray"
                                        MinorTickColor="LightGray"
                                        ImageOffset="-22"
                                        GaugeBackgroundColor="Black"
                                        PointerThickness ="16"
                                        OptimalRangeStartValue="30"
                                        OptimalRangeEndValue="90"
                                        DialTextOffset="20"
                                        DialTextColor="Black"
                                        BelowOptimalRangeColor="Green" OptimalRangeColor="Yellow">

        </gauge:CircularGaugeControl>
    </Grid>
</UserControl>

<UserControl xmlns:my="clr-namespace:Monitor.UC"  x:Class="Monitor.UC.UCMonitor"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
             xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
             mc:Ignorable="d"
             d:DesignHeight="300" d:DesignWidth="300">
    <Grid Margin="0,2,0,0">
        <!--定义框-->
        <Grid.RowDefinitions>
            <RowDefinition Height="40"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>

        <Image Style="{StaticResource HardwareImage}" Grid.Row="0" Margin="2,0,0,0"></Image>
        <Label Style="{StaticResource BlackContentText}" Content="硬件监控" Grid.Row="0"  Margin="20,5,2,2"></Label>

        <Grid Grid.Row="1" Style="{StaticResource HardwareBackgroundGrid}">
            <Grid.ColumnDefinitions>
                <ColumnDefinition Width="0.5*"></ColumnDefinition>
                <ColumnDefinition Width="0.5*"></ColumnDefinition>
            </Grid.ColumnDefinitions>
            <my:UCGauge  x:Name="ucGaugeCUP" Grid.Column="0"/>
            <my:UCGauge x:Name="ucGaugeMemory" Grid.Column="1"/>
        </Grid>
    </Grid>
</UserControl>
