Hyperlink
WPF中超链接类型是Hyperlink,除了能在页面之间导航,还能再同一个页面下进行段落导航

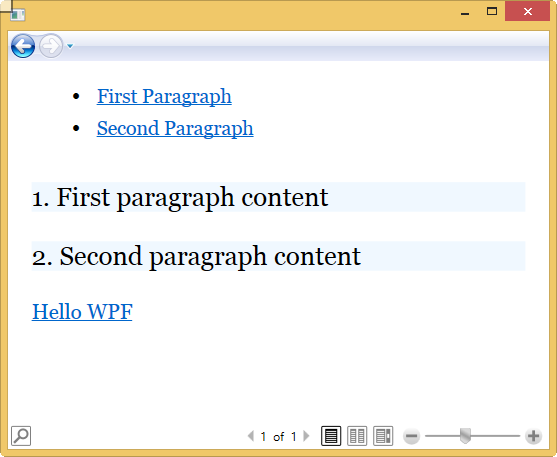

实例:
<Grid> <FlowDocumentReader> <FlowDocument> <Section LineHeight="25" FontSize="15"> <List> <ListItem> <Paragraph> <Hyperlink NavigateUri="CustomPage.xaml#first"> First Paragraph </Hyperlink> </Paragraph> </ListItem> <ListItem> <Paragraph> <Hyperlink NavigateUri="CustomPage.xaml#second"> Second Paragraph </Hyperlink> </Paragraph> </ListItem> </List> </Section> <Paragraph x:Name="first" FontSize="20" Background="AliceBlue"> 1. First paragraph content </Paragraph> <Paragraph x:Name="second" FontSize="20" Background="AliceBlue"> 2. Second paragraph content </Paragraph> <Paragraph> <Hyperlink NavigateUri="SimplePage.xaml" > Hello WPF </Hyperlink> </Paragraph> </FlowDocument> </FlowDocumentReader> </Grid>
如果页面寄宿窗口不是NavigationWindow,超链接是无法导航的
通过编写代码导航
在某些情况下Hyperlink不能实现,需要通过NavigationService来实现
1.导航需要传值
2.导航到页面之前要设置属性
3.运行时才知道要导航到哪个页面
实例:
DemoPage.xaml
<Page.Resources> <Style TargetType="TextBlock"> <Setter Property="FontSize" Value="15" /> <Setter Property="Margin" Value="5" /> </Style> </Page.Resources> <StackPanel> <TextBlock> Navigate to <Hyperlink x:Name="link1" Click="link_click"> SimplePage.xaml </Hyperlink> </TextBlock> <TextBlock> Navigate to <Hyperlink x:Name="link2" Click="link_click"> SimplePage.xaml </Hyperlink> (Call a constructor with parameter) </TextBlock> <TextBlock> Navigate to <Hyperlink x:Name="link3" Click="link_click"> .Net Object </Hyperlink> </TextBlock> <TextBlock> Navigate to site <Hyperlink x:Name="link4" Click="link_click"> http://www.bing.com </Hyperlink> </TextBlock> </StackPanel>
class Person { public string Name { get; set; } public int Age { get; set; } public override string ToString() { return "Name: " + Name + "\nAge: " + Age; } }
Page.xaml.cs
private void link_click(object sender, RoutedEventArgs e) { Hyperlink link = sender as Hyperlink; if (link == link1) { NavigationService.Navigate(new Uri("pack://application:,,,/SimplePage.xaml")); } else if (link == link2) { NavigationService.Navigate(new SimplePage("Hello Navigation")); }else if (link == link3) { NavigationService.Navigate(new Person() { Name = "Alex", Age = 25 }); } else if (link == link4) { NavigationService.Navigate(new Uri("http://www.bing.com")); } }
其他导航方式
导航工具栏
导航命令
添加Button控制导航,相当于自定义导航工具栏
<Button Height="50" Width="100" Content="Back" Command="NavigationCommands.BrowseBack" /> <Button Height="50" Width="100" Content="Forward" Command="NavigationCommands.BrowseForward" />
历史记录
WPF中Jaurnal记录了每一次导航操作,从而实现导航工具栏的功能
Journal 包含两个数据栈用来记录前进和后退页面的显示状态,每个相关 Page 都会对应一个 JournalEntry。日志状态自动恢复仅对单击导航条上前进后退按钮有效。
To be continue...
