例子

    一个可移动的白色框：

    XAML代码：

<Window x:Class="Shape.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" Background="#019aff"
        Title="Shape" Height="350" Width="525" KeyUp="Window_KeyUp">
    <Canvas>
        <Rectangle Stroke="White" Width="80" Height="80" Name="DisplayRectangle"/>
    </Canvas>
</Window>

    C#代码：

private double RectangleCanvasLeft = 0;
private double RectangleCanvasTop  = 0;

private void Window_KeyUp(object sender, KeyEventArgs e)
{
    switch (e.Key)
    {
        case Key.Up:
            RectangleCanvasTop += 10;
            break;
        case Key.Down:
            RectangleCanvasTop -= 10;
            break;
        case Key.Right:
            RectangleCanvasLeft += 10;
            break;
        case Key.Left:
            RectangleCanvasLeft -= 10;
            break;
        default:
            break;
        }
        Canvas.SetLeft(DisplayRectangle, RectangleCanvasLeft);
        Canvas.SetTop(DisplayRectangle, RectangleCanvasTop);
    }

Shape简介

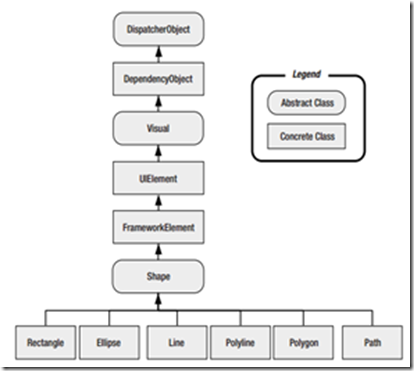

    我们可以使用WPF提供的各类Shape进行2D绘图，Shape的继承关系如下图：

    在通用功能上与其它控件无异,这是基于Shape进行绘图非常方便的地方。

    我们可以方便的在各种Layout控件中对Shape进行布局，使用焦点捕获，鼠标移动等事件。

    但是和开文的例子一样，Shape经常是伴随着Canvas出现的，并不是说Shape不能存于Grid等控件，而是因为Canvas 的Top, Left, Bottom, Right为我们对于图形定位，提供了很大的便利，此处需要注意的是，如果设定了Top,就不要设定Bottom,设定了Right,就不要设定Left。控件是基于一个参考点进行定位的，默认参考点为0,0，左上。4个参数中指定2个，即可确定点的位置。

    我们可以通过XAML与后台代码的方式，改变这个参考点。

    XAML代码:

<Rectangle Stroke="White" Width="80" Canvas.Top="50" Canvas.Left="50" Height="80" Name="DisplayRectangle"/>

    实现同样功能的C#代码：

Canvas.SetLeft(DisplayRectangle, 50);
Canvas.SetTop(DisplayRectangle, 50);

Line:

    XAML实现：

<Line X1="0" Y1="100" X2="100" Y2="0" Stroke="Black"></Line>

    c#实现：

var line = new Line()
{
    X1 = 0,
    X2 = 100,
    Y1 = 100,
    Y2 = 0,
    Stroke = new SolidColorBrush(Colors.Black)
};
MainCanvas.Children.Add(line);

Ellipse:

   XAML实现:

<Ellipse Stroke="Black" Height="100" Width="100" ></Ellipse>
<Ellipse Stroke="Black" Canvas.Left="100" Height="100" Width="50" ></Ellipse>

    C#实现：

var circle = new Ellipse()
{
    Width = 100,
    Height = 100,
    Stroke = new SolidColorBrush(Colors.Black)
};
var ellipse = new Ellipse()
{
    Width = 50,
    Height = 100,
    Stroke = new SolidColorBrush(Colors.Black)
};
Canvas.SetLeft(ellipse, 100);
MainCanvas.Children.Add(circle);
MainCanvas.Children.Add(ellipse);

Polygon:

    XAML实现:

<Polygon Points="0,0 50,50 50,100" Stroke="Black"></Polygon>
<Polygon Canvas.Left="100" Points="0,0 50,50 50,100 100,50" Fill="White" Stroke="Black"></Polygon>

    C#实现:

var polygon1PointsCollection = new PointCollection();
polygon1PointsCollection.Add(new Point() { X = 0, Y = 0 });
polygon1PointsCollection.Add(new Point() { X = 50, Y = 50 });
polygon1PointsCollection.Add(new Point() { X = 50, Y = 100 });

var polygon1 = new Polygon()
{
    Stroke = new SolidColorBrush(Colors.Black),
    Points = polygon1PointsCollection
};
MainCanvas.Children.Add(polygon1);

var polygon2PointsCollection = new PointCollection();
polygon2PointsCollection.Add(new Point() { X = 0, Y = 0 });
polygon2PointsCollection.Add(new Point() { X = 50, Y = 50 });
polygon2PointsCollection.Add(new Point() { X = 50, Y = 100 });
polygon2PointsCollection.Add(new Point() { X = 100, Y = 50 });
var polygon2 = new Polygon()
{
    Stroke = new SolidColorBrush(Colors.Black),
    Points = polygon2PointsCollection,
    Fill = new SolidColorBrush(Colors.White)
};
Canvas.SetLeft(polygon2, 100);
MainCanvas.Children.Add(polygon2);
