c# 实现串口编程-操作LED屏幕

 2015/2/4 18:30:43  胡双挺  程序员俱乐部  我要评论(0)
  • 摘要:串口编程主要用到SerialPort这个类,主要实现对串口发送字节数组然后点阵屏显示相关信息,其实这个功能很简单下面给大家把整体思路用流程图展现如下:、其实整体思路就如流程图。下面是整个流程图的一个实现代码如下:usingSystem;usingSystem.Collections.Generic;usingSystem.Linq;usingSystem.Text;usingSystem.IO.Ports;usingSystem.Threading;namespaceportchart
  • 标签:C# 实现 操作 编程

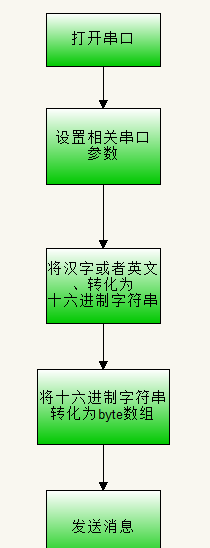

串口编程主要用到SerialPort这个类,主要实现对串口发送字节数组然后点阵屏显示相关信息,其实这个功能很简单下面给大家把整体思路用流程图展现如下:、

其实整体思路就如流程图。下面是整个流程图的一个实现代码如下:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.IO.Ports;
using System.Threading;

namespace portchart
{
    class Serilaztion
    {
        SerialPort _serialPort;
        public Serilaztion(string com)
        {
            _serialPort = new SerialPort();
            _serialPort.PortName = com;
            _serialPort.BaudRate = 4800;
            _serialPort.Parity = Parity.None;
            _serialPort.DataBits = 8;
            _serialPort.StopBits = StopBits.One;
            _serialPort.ReadBufferSize = 4096;
            _serialPort.Handshake = Handshake.None;
            _serialPort.ReadTimeout = 500;
            _serialPort.WriteTimeout = 500;
            _serialPort.Open();
        }
        private static byte[] strToToHexByte(string hexString)
        {
            hexString = hexString.Replace(" ", "");
            if ((hexString.Length % 2) != 0)
                hexString += " ";
            byte[] returnBytes = new byte[hexString.Length / 2];
            for (int i = 0; i < returnBytes.Length; i++)
                returnBytes[i] = Convert.ToByte(hexString.Substring(i * 2, 2), 16);
            return returnBytes;
        }
        public static string StringToHexString(string s, Encoding encode)
        {
            byte[] b = encode.GetBytes(s);//按照指定编码将string编程字节数组
            string result = string.Empty;
            for (int i = 0; i < b.Length; i++)//逐字节变为16进制字符,以%隔开
            {
                result += Convert.ToString(b[i], 16);

            }
            return result;
        }


        public void SendMessage(string message, string com,string type)
        {
            System.Text.Encoding GB2312 = System.Text.Encoding.GetEncoding("GB2312");
            message = message.Trim();
            string kzm = "1B0104"; //开始码
            string hh = StringToHexString(message, GB2312);
            string js = "0D00"; //结束码
            string zf = kzm + hh + js;
            string s = "1B010320202020C7EB20C9CF20CFDF202020200D00";

            byte[] by = strToToHexByte(zf);
            byte[] bt = strToToHexByte(s);


                _serialPort.Write(by, 0, by.Length);
                _serialPort.Write(bt, 0, bt.Length);


        }
        public void Close()
        {
            _serialPort.Close();
        }
        public static string SetPortName(string defaultPortName)
        {
            string portName;

            Console.WriteLine("验证端口:");
            foreach (string s in SerialPort.GetPortNames())
            {
                Console.WriteLine("   {0}", s);
            }

            Console.Write("请输入Com端口(默认: {0}): ", defaultPortName);
            portName = Console.ReadLine();

            if (portName == "" || !(portName.ToLower()).StartsWith("com"))
            {
                portName = defaultPortName;
            }
            return portName;
        }

        public static int SetPortBaudRate(int defaultPortBaudRate)
        {
            string baudRate;

            Console.Write("设置波特率(默认:{0}): ", defaultPortBaudRate);
            baudRate = Console.ReadLine();

            if (baudRate == "")
            {
                baudRate = defaultPortBaudRate.ToString();
            }

            return int.Parse(baudRate);
        }


        public static Parity SetPortParity(Parity defaultPortParity)
        {
            string parity;

            Console.WriteLine("验证奇偶校验位:");
            foreach (string s in Enum.GetNames(typeof(Parity)))
            {
                Console.WriteLine("   {0}", s);
            }

            Console.Write("进入校验位 (默认: {0}):", defaultPortParity.ToString(), true);
            parity = Console.ReadLine();

            if (parity == "")
            {
                parity = defaultPortParity.ToString();
            }

            return (Parity)Enum.Parse(typeof(Parity), parity, true);
        }

        public static int SetPortDataBits(int defaultPortDataBits)
        {
            string dataBits;
            Console.Write("设置每个字节的标准数据位长度 (默认: {0}): ", defaultPortDataBits);
            dataBits = Console.ReadLine();
            if (dataBits == "")
            {
                dataBits = defaultPortDataBits.ToString();
            }
            return int.Parse(dataBits.ToUpperInvariant());
        }

        public static StopBits SetPortStopBits(StopBits defaultPortStopBits)
        {
            string stopBits;
            Console.WriteLine("设置每个字节的标准停止位数:");
            foreach (string s in Enum.GetNames(typeof(StopBits)))
            {
                Console.WriteLine("   {0}", s);
            }


            stopBits = Console.ReadLine();
            if (stopBits == "")
            {
                stopBits = defaultPortStopBits.ToString();
            }
            return (StopBits)Enum.Parse(typeof(StopBits), stopBits, true);
        }
        public static Handshake SetPortHandshake(Handshake defaultPortHandshake)
        {
            string handshake;

            Console.WriteLine("设置串行端口数据传输的握手协议:");
            foreach (string s in Enum.GetNames(typeof(Handshake)))
            {
                Console.WriteLine("   {0}", s);
            }
            Console.Write("端口数据传输的握手协议(默认: {0}):", defaultPortHandshake.ToString());
            handshake = Console.ReadLine();
            if (handshake == "")
            {
                handshake = defaultPortHandshake.ToString();
            }
            return (Handshake)Enum.Parse(typeof(Handshake), handshake, true);
        }
    }

}

上面我把串口的参数固定了,可以根据自己的需求设置自己要传的参数。
