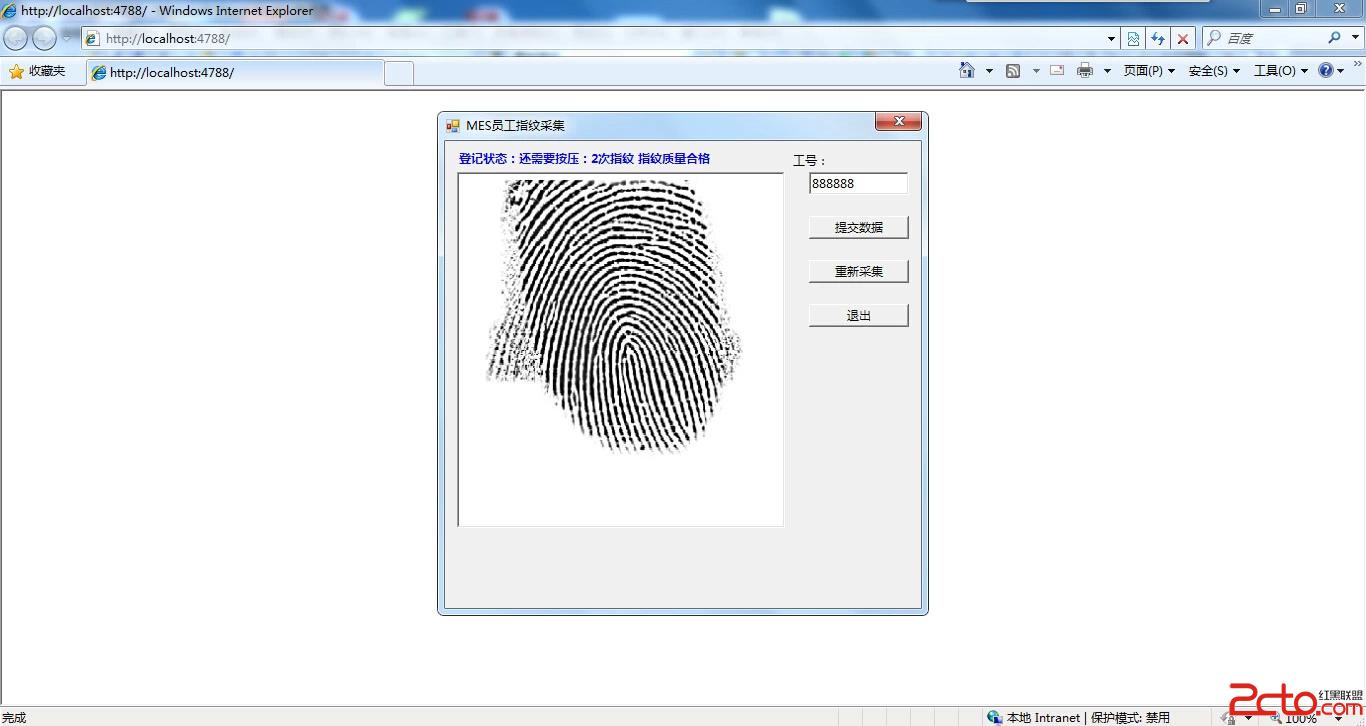

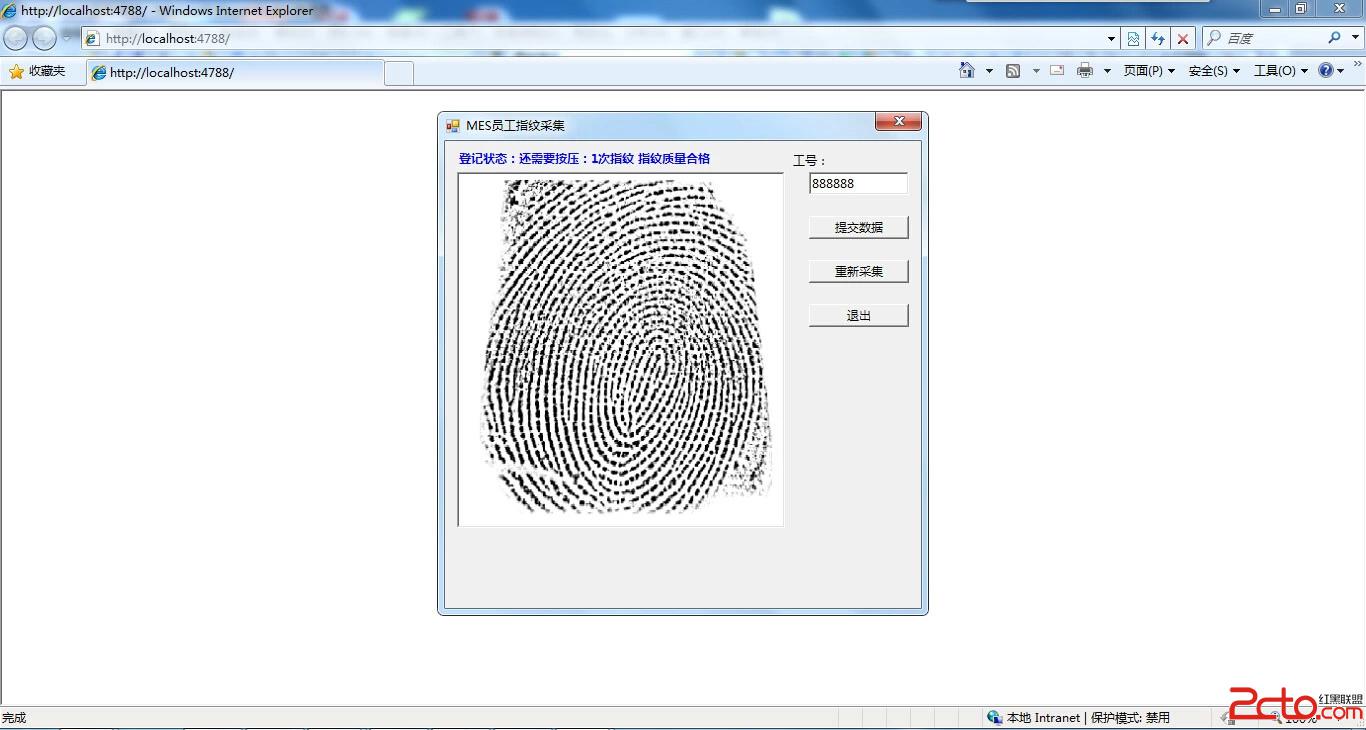

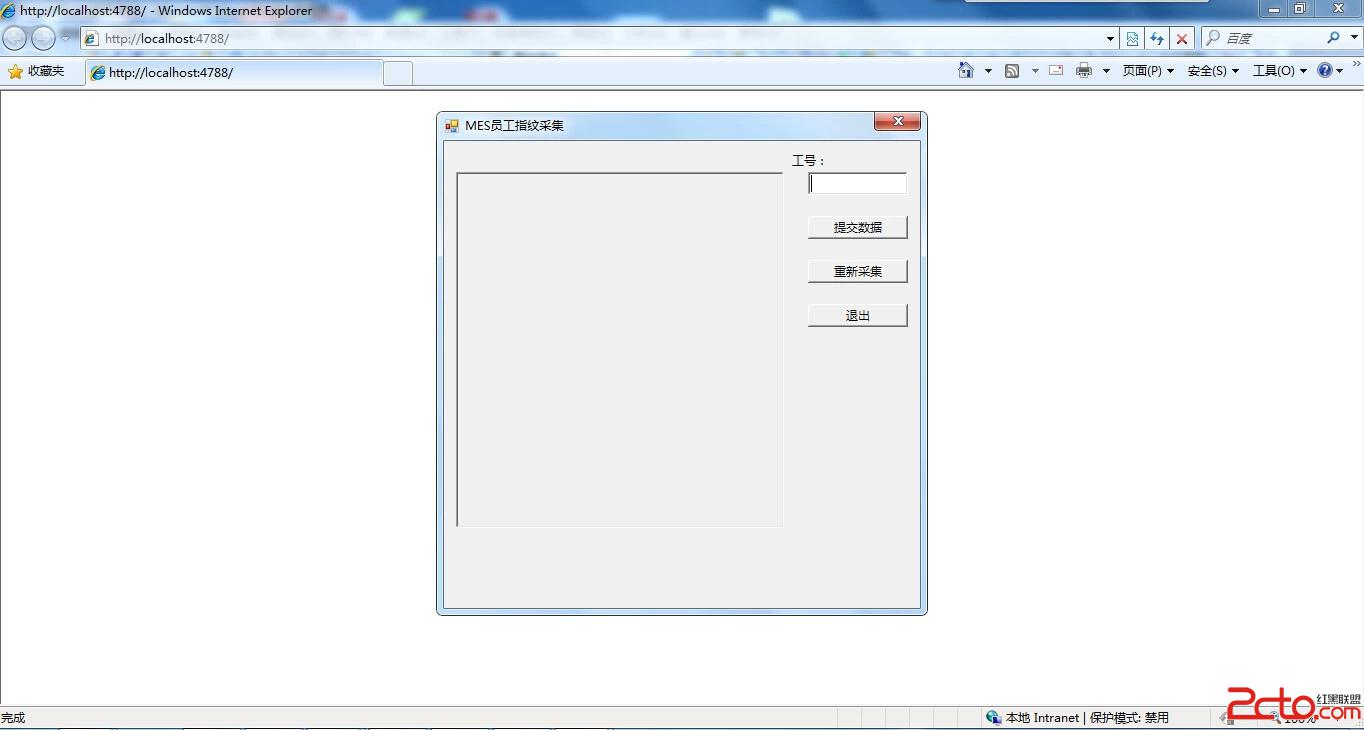

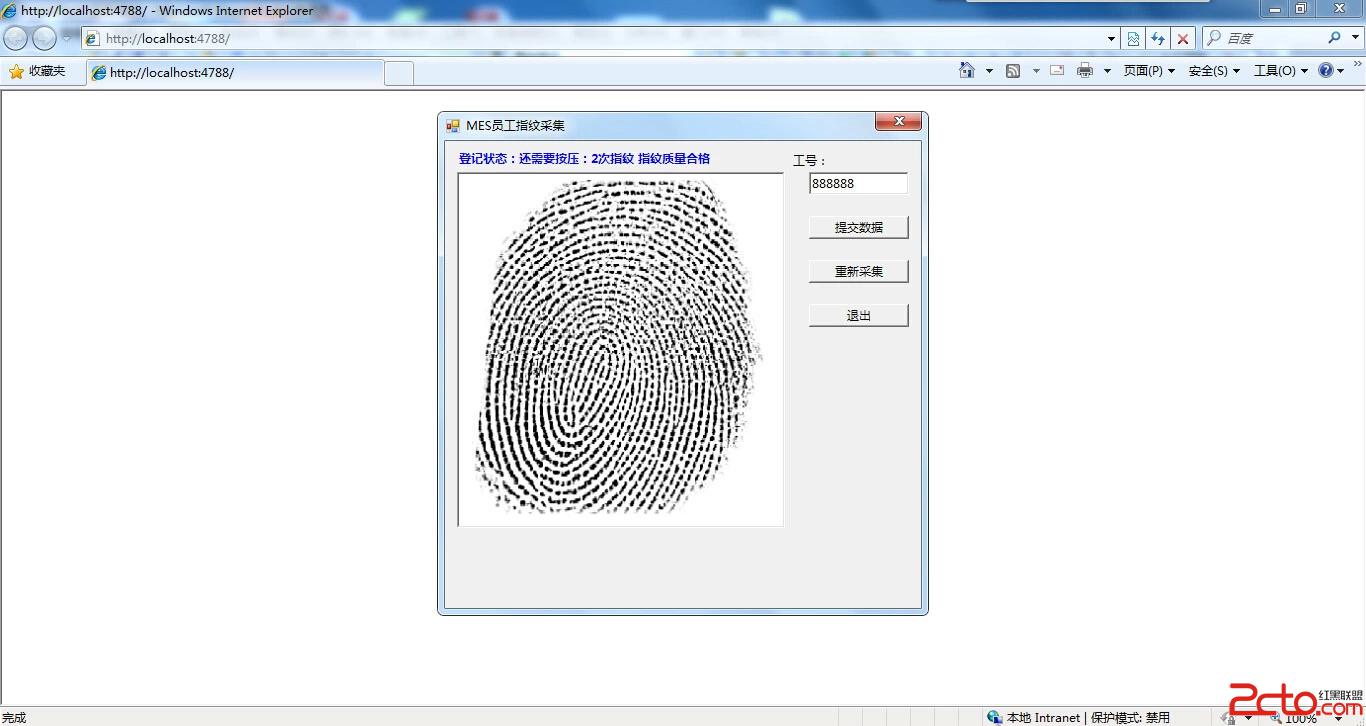

class="FocusMe">最近做一个指纹采集和比对的功能,因为公司整个项目是WEB类型的,所以指纹采集的模块要嵌套在网页中,那只有用ActiveX了,以下是一些操作及效果,做个笔记!
新建用户控件,编写CS代码,如下:
? 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118
monospace !important; font-size: 1em !important; font-style: normal !important; font-weight: normal !important; vertical-align: baseline !important; float: none !important; position: static !important; min-height: inherit !important; box-sizing: content-box !important;">using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Drawing;
using System.Data;
using System.Text;
using System.Runtime.InteropServices;
using System.Windows.Forms;
using System.IO;
using System.Reflection;
namespace FingerTool
{
[Guid(
"5136CBA1-59B0-4A96-B2DC-64062A81F377"
)]
public
partial
class
FingerToolUC : UserControl,IObjectSafety
{
public
FingerToolUC()
{
InitializeComponent();
}
FrmMain fm =
null
;
public
void
ShowSettingForm()
{
if
(fm ==
null
)
{
fm =
new
FrmMain();
}
fm.ShowDialog();
}
#region 调用JS接口
[ComImport, Guid(
"00000118-0000-0000-C000-000000000046"
), InterfaceType(ComInterfaceType.InterfaceIsIUnknown)]
public
interface
IOleClientSite
{
void
SaveObject();
void
GetMoniker(uint dwAssign, uint dwWhichMoniker, object ppmk);
void
GetContainer(out IOleContainer ppContainer);
void
ShowObject();
void
OnShowWindow(bool fShow);
void
RequestNewObjectLayout();
}
[ComImport, Guid(
"0000011B-0000-0000-C000-000000000046"
), InterfaceTypeAttribute(ComInterfaceType.InterfaceIsIUnknown)]
public
interface
IOleContainer
{
void
EnumObjects([In, MarshalAs(UnmanagedType.U4)]
int
grfFlags,
[Out, MarshalAs(UnmanagedType.LPArray)] object[] ppenum);
void
ParseDisplayName([In, MarshalAs(UnmanagedType.Interface)] object pbc,
[In, MarshalAs(UnmanagedType.BStr)] string pszDisplayName,
[Out, MarshalAs(UnmanagedType.LPArray)]
int
[] pchEaten,
[Out, MarshalAs(UnmanagedType.LPArray)] object[] ppmkOut);
void
LockContainer([In, MarshalAs(UnmanagedType.I4)]
int
fLock);
}
#endregion
#region IE 安全接口
private
const
string _IID_IDispatch =
"{00020400-0000-0000-C000-000000000046}"
;
private
const
string _IID_IDispatchEx =
"{a6ef9860-c720-11d0-9337-00a0c90dcaa9}"
;
private
const
string _IID_IPersistStorage =
"{0000010A-0000-0000-C000-000000000046}"
;
private
const
string _IID_IPersistStream =
"{00000109-0000-0000-C000-000000000046}"
;
private
const
string _IID_IPersistPropertyBag =
"{37D84F60-42CB-11CE-8135-00AA004BB851}"
;
private
const
int
INTERFACESAFE_FOR_UNTRUSTED_CALLER =
0x00000001
;
private
const
int
INTERFACESAFE_FOR_UNTRUSTED_DATA =
0x00000002
;
private
const
int
S_OK =
0
;
private
const
int
E_FAIL = unchecked((
int
)
0x80004005
);
private
const
int
E_NOINTERFACE = unchecked((
int
)
0x80004002
);
private
bool _fSafeForScripting =
true
;
private
bool _fSafeForInitializing =
true
;
public
int
GetInterfaceSafetyOptions(ref Guid riid, ref
int
pdwSupportedOptions, ref
int
pdwEnabledOptions)
{
int
Rslt = E_FAIL;
string strGUID = riid.ToString(
"B"
);
pdwSupportedOptions = INTERFACESAFE_FOR_UNTRUSTED_CALLER | INTERFACESAFE_FOR_UNTRUSTED_DATA;
switch
(strGUID)
{
case
_IID_IDispatch:
case
_IID_IDispatchEx:
Rslt = S_OK;
pdwEnabledOptions =
0
;
if
(_fSafeForScripting ==
true
)
pdwEnabledOptions = INTERFACESAFE_FOR_UNTRUSTED_CALLER;
break
;
case
_IID_IPersistStorage:
case
_IID_IPersistStream:
case
_IID_IPersistPropertyBag:
Rslt = S_OK;
pdwEnabledOptions =
0
;
if
(_fSafeForInitializing ==
true
)
pdwEnabledOptions = INTERFACESAFE_FOR_UNTRUSTED_DATA;
break
;
default
:
Rslt = E_NOINTERFACE;
break
;
}
return
Rslt;
}
指纹采集关键代码:
? 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61private
void
axZKFPEngX1_OnImageReceived(object sender, AxZKFPEngXControl.IZKFPEngXEvents_OnImageReceivedEvent e)
{
if
(!e.aImageValid)
return
;
if
(axZKFPEngX1.IsDisposed)
return
;
try
{
if
(pictureBox1.Image !=
null
)
{
pictureBox1.Image.Dispose();
//释放文件资源
pictureBox1.Image =
null
;
//清除图片
}
if
(!System.IO.Directory.Exists(mvPath))
{
System.IO.Directory.CreateDirectory(mvPath);
}
string FilePath = mvPath +
"\\"
+ Guid.NewGuid().ToString() +
".bmp"
;
axZKFPEngX1.SaveBitmap(FilePath);
//保存新文件
pictureBox1.Image = System.Drawing.Bitmap.FromFile(FilePath);
//显示图片
pictureBox1.Refresh();
if
(
this
.txtValue.Text.Trim() !=
""
)
{
SetMsg(
""
,
"Control"
);
}
}
catch
(Exception ex)
{
MessageBox.Show(ex.Message);
}
}
private
void
axZKFPEngX1_OnFeatureInfo(object sender, AxZKFPEngXControl.IZKFPEngXEvents_OnFeatureInfoEvent e)
{
string sTemp =
""
;
if
(axZKFPEngX1.IsRegister)
{
sTemp =
"登记状态:还需要按压:"
+ (axZKFPEngX1.EnrollIndex -
1
).ToString() +
"次指纹 "
;
}
sTemp = sTemp +
"指纹质量"
;
if
(e.aQuality !=
0
)
{
if
(e.aQuality ==
1
)
{
sTemp = sTemp +
"特征点不够"
;
}
else
{
sTemp = sTemp +
"其它原因导致不能取到指纹特征"
;
}
}
else
{
sTemp = sTemp +
"合格"
;
}
this
.lblMessage.Text = sTemp;
}
指纹校验部分,最后保存起来的指纹是转换之后的BASE64字符串
? 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24string Value_Old=
""
;
//已经登记的指纹
string Value_Curr=
""
;
//当前的指纹
bool IsOK =
false
;
bool bRegChange =
false
;
if
(axZKFPEngX1.VerFingerFromStr(ref Value_Old, Value_Curr,
false
, ref bRegChange))
{
IsOK =
true
;
}
if
(axZKFPEngX1.VerFingerFromStr(ref Value_Old2, Value_Curr,
false
, ref bRegChange))
{
IsOK =
true
;
}
if
(IsOK)
{
MessageBox.Show(
"OK"
);
}
else
{
MessageBox.Show(
"NG"
);
}

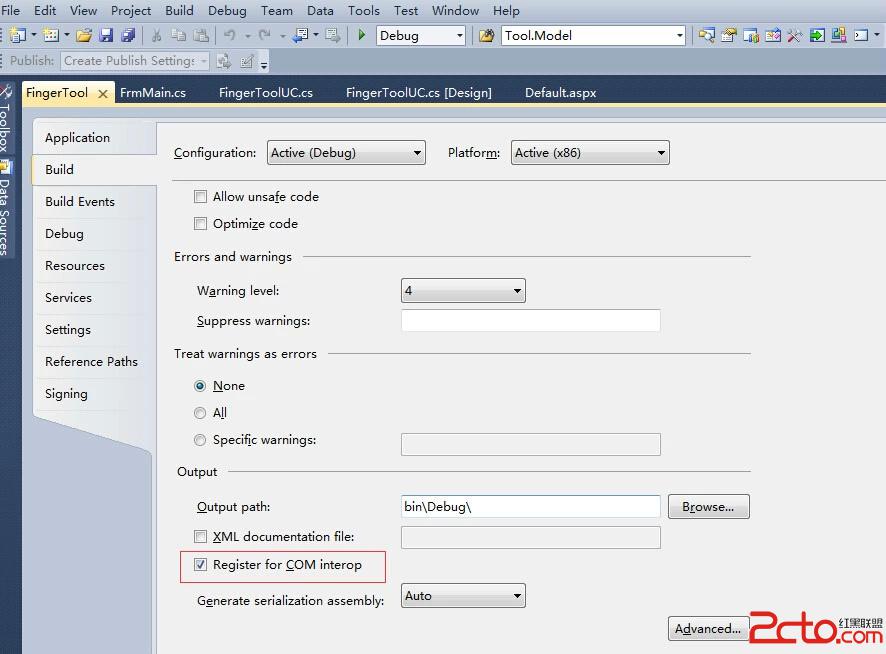

设置项目的COM属性
在页面中注册此插件
DBA.jpg" alt="图片" />
