【WP开发学习笔记】之pivot控件

 2014/9/27 14:51:22  马and康  程序员俱乐部  我要评论(0)
  • 摘要:博主wp开发小白,学习中...欢迎交流,微博@马and康pivot控件中文也称为枢纽,是wp系统中最常用的控件之一,几乎所有个软件多多少少都会运用这个控件,比如设置、日历等等;该控件可以实现页面左右的快速切换,运行也十分流畅。如在设置中通过左右滑动可以切换为应用程序、系统,日历中通过左右滑动可以切换年、月、日;首先可以通过项目模板直接建立一个pivot应用程序,或者通过拖动工具箱中的pivot控件,当然也可以直接通过xaml代码来直接写出来,这一点就不多说了
  • 标签:笔记 学习 开发 控件 学习笔记

博主wp开发小白,学习中...欢迎交流,微博@马and康

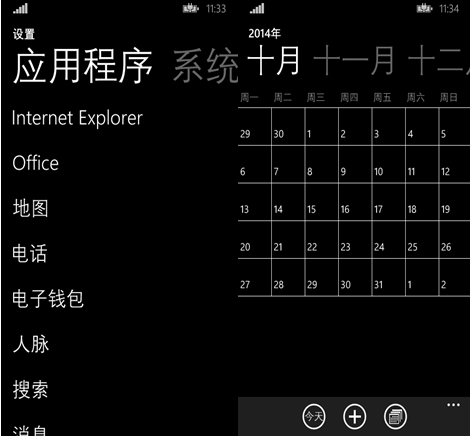

pivot控件中文也称为枢纽,是wp系统中最常用的控件之一,几乎所有个软件多多少少都会运用这个控件,比如设置、日历等等;该控件可以实现页面左右的快速切换,运行也十分流畅。如在设置中通过左右滑动可以切换为应用程序、系统,日历中通过左右滑动可以切换年、月、日;

首先可以通过项目模板直接建立一个pivot应用程序,或者通过拖动工具箱中的pivot控件,当然也可以直接通过xaml代码来直接写出来,这一点就不多说了;

我在用pivot控件时遇到的第一个问题就是更改PivotItem字体以及字体大小的问题,因为默认的字体实在太大,如果直接用默认字体写的话,效果的确很丑,就像wp系统部分内置应用的大写字体,简直给人老人机的感觉;

其修改字体代码如下;

            <phone:PivotItem>
                <phone:PivotItem.Header>
                    <TextBlock Text="星期一" FontSize="40" FontFamily="宋体”/>
                </phone:PivotItem.Header>
            </phone:PivotItem>

我运用Pivot控件写了一个课程表;

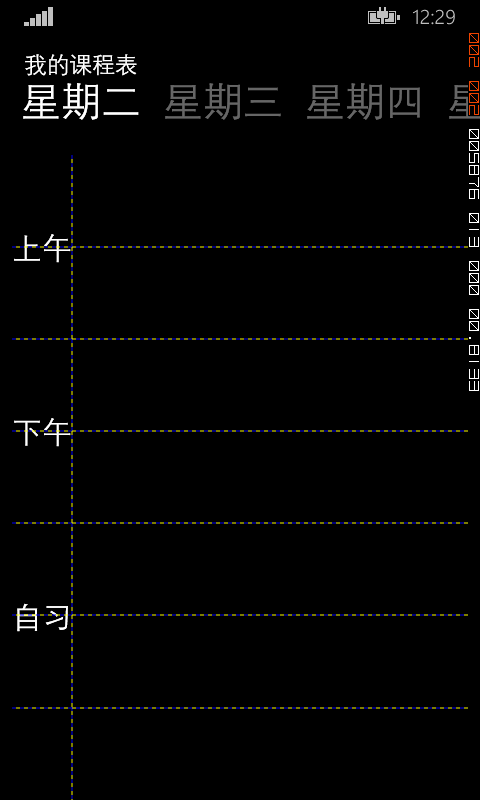

其中Pivot效果(尚未完工)如下;

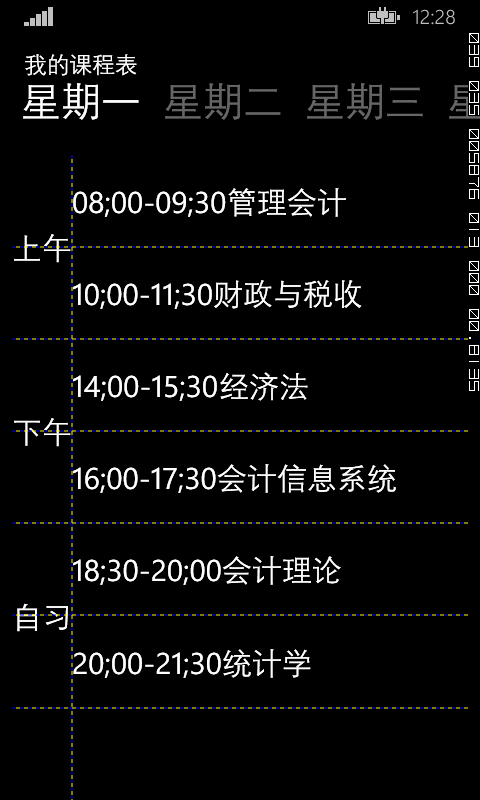

填写完星期一的课程内容后效果如下,其星期二至星期日的课表尚未完成;

完整源代码如下;

<phone:PhoneApplicationPage
    x:Class="Pivot.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"
    xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d"
    FontFamily="{StaticResource PhoneFontFamilyNormal}"
    FontSize="{StaticResource PhoneFontSizeNormal}"
    Foreground="{StaticResource PhoneForegroundBrush}"
    SupportedOrientations="Portrait" Orientation="Portrait"
    shell:SystemTray.IsVisible="True">
    <Grid >
        <phone:Pivot Title="我的课程表">
            <phone:PivotItem>
                <phone:PivotItem.Header>
                    <TextBlock Text="星期一" FontSize="40"/>
                </phone:PivotItem.Header>
                <Grid ShowGridLines="True">
                    <Grid.RowDefinitions>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                    </Grid.RowDefinitions>
                    <Grid.ColumnDefinitions>
                        <ColumnDefinition Width="auto"/>
                        <ColumnDefinition Width="auto"/>
                    </Grid.ColumnDefinitions>
                    <TextBlock Grid.Row="0" Grid.Column="0" Grid.RowSpan="2" Text="上午" VerticalAlignment="Center" FontSize="30"/>
                    <TextBlock Grid.Row="2" Grid.Column="0" Grid.RowSpan="2" Text="下午" VerticalAlignment="Center" FontSize="30"/>
                    <TextBlock Grid.Row="4" Grid.Column="0" Grid.RowSpan="2" Text="自习" VerticalAlignment="Center" FontSize="30"/>
                    <StackPanel  Grid.Row="0" Grid.Column="1" Orientation="Horizontal" >
                        <TextBlock Text="08;00-09;30" FontSize="30" VerticalAlignment="Center"/>
                        <TextBlock Text="管理会计" FontSize="30" VerticalAlignment="Center"/>
                    </StackPanel>
                    <StackPanel Grid.Row="1" Grid.Column="1" Orientation="Horizontal">
                        <TextBlock Text="10;00-11;30" FontSize="30" VerticalAlignment="Center"/>
                        <TextBlock Text="财政与税收" FontSize="30" VerticalAlignment="Center"/>
                    </StackPanel>
                    <StackPanel  Grid.Row="2" Grid.Column="1" Orientation="Horizontal" >
                        <TextBlock Text="14;00-15;30" FontSize="30" VerticalAlignment="Center"/>
                        <TextBlock Text="经济法" FontSize="30" VerticalAlignment="Center"/>
                    </StackPanel>
                    <StackPanel Grid.Row="3" Grid.Column="1" Orientation="Horizontal">
                        <TextBlock Text="16;00-17;30" FontSize="30" VerticalAlignment="Center"/>
                        <TextBlock Text="会计信息系统" FontSize="30" VerticalAlignment="Center"/>
                    </StackPanel>
                    <StackPanel  Grid.Row="4" Grid.Column="1" Orientation="Horizontal" >
                        <TextBlock Text="18;30-20;00" FontSize="30" VerticalAlignment="Center"/>
                        <TextBlock Text="会计理论" FontSize="30" VerticalAlignment="Center"/>
                    </StackPanel>
                    <StackPanel Grid.Row="5" Grid.Column="1" Orientation="Horizontal">
                        <TextBlock Text="20;00-21;30" FontSize="30" VerticalAlignment="Center"/>
                        <TextBlock Text="统计学" FontSize="30" VerticalAlignment="Center"/>
                    </StackPanel>
                </Grid>
            </phone:PivotItem>
            <phone:PivotItem >
                <phone:PivotItem.Header>
                    <TextBlock Text="星期二" FontSize="40"/>
                </phone:PivotItem.Header>
                <Grid ShowGridLines="True">
                    <Grid.RowDefinitions>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                    </Grid.RowDefinitions>
                    <Grid.ColumnDefinitions>
                        <ColumnDefinition Width="auto"/>
                        <ColumnDefinition Width="auto"/>
                    </Grid.ColumnDefinitions>
                    <TextBlock Grid.Row="0" Grid.Column="0" Grid.RowSpan="2" Text="上午" VerticalAlignment="Center" FontSize="30"/>
                    <TextBlock Grid.Row="2" Grid.Column="0" Grid.RowSpan="2" Text="下午" VerticalAlignment="Center" FontSize="30"/>
                    <TextBlock Grid.Row="4" Grid.Column="0" Grid.RowSpan="2" Text="自习" VerticalAlignment="Center" FontSize="30"/>
                </Grid>
            </phone:PivotItem>
            <phone:PivotItem>
                <phone:PivotItem.Header>
                    <TextBlock Text="星期三" FontSize="40"/>
                </phone:PivotItem.Header>
                <Grid ShowGridLines="True">
                    <Grid.RowDefinitions>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                    </Grid.RowDefinitions>
                    <Grid.ColumnDefinitions>
                        <ColumnDefinition Width="auto"/>
                        <ColumnDefinition Width="auto"/>
                    </Grid.ColumnDefinitions>
                    <TextBlock Grid.Row="0" Grid.Column="0" Grid.RowSpan="2" Text="上午" VerticalAlignment="Center" FontSize="30"/>
                    <TextBlock Grid.Row="2" Grid.Column="0" Grid.RowSpan="2" Text="下午" VerticalAlignment="Center" FontSize="30"/>
                    <TextBlock Grid.Row="4" Grid.Column="0" Grid.RowSpan="2" Text="自习" VerticalAlignment="Center" FontSize="30"/>
                </Grid>
            </phone:PivotItem>
            <phone:PivotItem>
                <phone:PivotItem.Header>
                    <TextBlock Text="星期四" FontSize="40"/>
                </phone:PivotItem.Header>
                <Grid ShowGridLines="True">
                    <Grid.RowDefinitions>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                    </Grid.RowDefinitions>
                    <Grid.ColumnDefinitions>
                        <ColumnDefinition Width="auto"/>
                        <ColumnDefinition Width="auto"/>
                    </Grid.ColumnDefinitions>
                    <TextBlock Grid.Row="0" Grid.Column="0" Grid.RowSpan="2" Text="上午" VerticalAlignment="Center" FontSize="30"/>
                    <TextBlock Grid.Row="2" Grid.Column="0" Grid.RowSpan="2" Text="下午" VerticalAlignment="Center" FontSize="30"/>
                    <TextBlock Grid.Row="4" Grid.Column="0" Grid.RowSpan="2" Text="自习" VerticalAlignment="Center" FontSize="30"/>
                </Grid>
            </phone:PivotItem>
            <phone:PivotItem >
                <phone:PivotItem.Header>
                    <TextBlock Text="星期五" FontSize="40"/>
                </phone:PivotItem.Header>
                <Grid ShowGridLines="True">
                    <Grid.RowDefinitions>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                    </Grid.RowDefinitions>
                    <Grid.ColumnDefinitions>
                        <ColumnDefinition Width="auto"/>
                        <ColumnDefinition Width="auto"/>
                    </Grid.ColumnDefinitions>
                    <TextBlock Grid.Row="0" Grid.Column="0" Grid.RowSpan="2" Text="上午" VerticalAlignment="Center" FontSize="30"/>
                    <TextBlock Grid.Row="2" Grid.Column="0" Grid.RowSpan="2" Text="下午" VerticalAlignment="Center" FontSize="30"/>
                    <TextBlock Grid.Row="4" Grid.Column="0" Grid.RowSpan="2" Text="自习" VerticalAlignment="Center" FontSize="30"/>
                </Grid>
            </phone:PivotItem>
            <phone:PivotItem >
                <phone:PivotItem.Header>
                    <TextBlock Text="星期六" FontSize="40"/>
                </phone:PivotItem.Header>
                <Grid ShowGridLines="True">
                    <Grid.RowDefinitions>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                    </Grid.RowDefinitions>
                    <Grid.ColumnDefinitions>
                        <ColumnDefinition Width="auto"/>
                        <ColumnDefinition Width="auto"/>
                    </Grid.ColumnDefinitions>
                    <TextBlock Grid.Row="0" Grid.Column="0" Grid.RowSpan="2" Text="上午" VerticalAlignment="Center" FontSize="30"/>
                    <TextBlock Grid.Row="2" Grid.Column="0" Grid.RowSpan="2" Text="下午" VerticalAlignment="Center" FontSize="30"/>
                    <TextBlock Grid.Row="4" Grid.Column="0" Grid.RowSpan="2" Text="自习" VerticalAlignment="Center" FontSize="30"/>
                </Grid>
            </phone:PivotItem>
            <phone:PivotItem >
                <phone:PivotItem.Header >
                    <TextBlock Text="星期日" FontSize="40"/>
                </phone:PivotItem.Header>
                <Grid ShowGridLines="True">
                    <Grid.RowDefinitions>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                    </Grid.RowDefinitions>
                    <Grid.ColumnDefinitions>
                        <ColumnDefinition Width="auto"/>
                        <ColumnDefinition Width="auto"/>
                    </Grid.ColumnDefinitions>
                    <TextBlock Grid.Row="0" Grid.Column="0" Grid.RowSpan="2" Text="上午" VerticalAlignment="Center" FontSize="30"/>
                    <TextBlock Grid.Row="2" Grid.Column="0" Grid.RowSpan="2" Text="下午" VerticalAlignment="Center" FontSize="30"/>
                    <TextBlock Grid.Row="4" Grid.Column="0" Grid.RowSpan="2" Text="自习" VerticalAlignment="Center" FontSize="30"/>
                </Grid>
            </phone:PivotItem>
        </phone:Pivot>
    </Grid>
</phone:PhoneApplicationPage>
