Develop系列-API Guides-应用组件-Services-Bound Services

 2014/8/20 3:16:29  konger  程序员俱乐部  我要评论(0)
  • 摘要:BoundServicesCS架构,其中C是调用组件,S是BoundServices;C通过bindService来绑定,这个方法立即返回,没有返回值,C需要实现ServiceConnection里面的onServiceConnected和onServiceDisconnected接口。多个C绑定同一个S时,S只调用一次onBind返回IBinder,后续来绑定S的C,直接得到同一个IBinder,onBind不再重复执行。创建BoundServices扩展Binder类
  • 标签:API Service ide 应用

Bound Services

CS架构,其中C是调用组件,S是Bound Services;

C通过bindService来绑定,这个方法立即返回,没有返回值,C需要实现ServiceConnection里面的onServiceConnected和onServiceDisconnected接口

多个C绑定同一个S时,S只调用一次onBind返回IBinder,后续来绑定S的C,直接得到同一个IBinder,onBind不再重复执行。

创建Bound Services

  • 扩展Binder类:只在应用内部调用的服务,不会被其他应用或者跨进程调用。
  • 使用Messenger:Service定义Handler来接收Message,Client发送Message。这是IPC调用最简单的实现方式,但是Messenger队列在一个线程中排队处理所有请求,没法同时多线程处理。
  • 用AIDL:如果是跨进程的并且需要同时处理多个请求,那么请直接使用AIDL

扩展Binder类

Service代码:

public class LocalService extends Service {
    // Binder given to clients
    private final IBinder mBinder = new LocalBinder();
    // Random number generator
    private final Random mGenerator = new Random();
    /**
     * Class used for the client Binder.  Because we know this service always
     * runs in the same process as its clients, we don't need to deal with IPC.
     */
    public class LocalBinder extends Binder {
        LocalService getService() {
            // Return this instance of LocalService so clients can call public methods
            return LocalService.this;
        }
    }
    @Override
    public IBinder onBind(Intent intent) {
        return mBinder;
    }
    /** method for clients */
    public int getRandomNumber() {
      return mGenerator.nextInt(100);
    }
}

Client代码:

public class BindingActivity extends Activity {
    LocalService mService;
    boolean mBound = false;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);
    }
    @Override
    protected void onStart() {
        super.onStart();
        // Bind to LocalService
        Intent intent = new Intent(this, LocalService.class);
        bindService(intent, mConnection, Context.BIND_AUTO_CREATE);
    }
    @Override
    protected void onStop() {
        super.onStop();
        // Unbind from the service
        if (mBound) {
            unbindService(mConnection);
            mBound = false;
        }
    }
    /** Called when a button is clicked (the button in the layout file attaches to
      * this method with the android:onClick attribute) */
    public void onButtonClick(View v) {
        if (mBound) {
            // Call a method from the LocalService.
            // However, if this call were something that might hang, then this request should
            // occur in a separate thread to avoid slowing down the activity performance.
            int num = mService.getRandomNumber();
            Toast.makeText(this, "number: " + num, Toast.LENGTH_SHORT).show();
        }
    }

    /** Defines callbacks for service binding, passed to bindService() */
    private ServiceConnection mConnection = new ServiceConnection() {
        @Override
        public void onServiceConnected(ComponentName className,
                IBinder service) {
            // We've bound to LocalService, cast the IBinder and get LocalService instance
            LocalBinder binder = (LocalBinder) service;
            mService = binder.getService();
            mBound = true;
        }
        @Override
        public void onServiceDisconnected(ComponentName arg0) {
            mBound = false;
        }
    };
}

使用Messenger

Service代码:

public class MessengerService extends Service {
    /** Command to the service to display a message */
    static final int MSG_SAY_HELLO = 1;
    /**
     * Handler of incoming messages from clients.
     */
    class IncomingHandler extends Handler {
        @Override
        public void handleMessage(Message msg) {
            switch (msg.what) {
                case MSG_SAY_HELLO:
                    Toast.makeText(getApplicationContext(), "hello!", Toast.LENGTH_SHORT).show();
                    break;
                default:
                    super.handleMessage(msg);
            }
        }
    }
    /**
     * Target we publish for clients to send messages to IncomingHandler.
     */
    final Messenger mMessenger = new Messenger(new IncomingHandler());
    /**
     * When binding to the service, we return an interface to our messenger
     * for sending messages to the service.
     */
    @Override
    public IBinder onBind(Intent intent) {
        Toast.makeText(getApplicationContext(), "binding", Toast.LENGTH_SHORT).show();
        return mMessenger.getBinder();
    }
}

Client代码:

public class ActivityMessenger extends Activity {
    /** Messenger for communicating with the service. */
    Messenger mService = null;
    /** Flag indicating whether we have called bind on the service. */
    boolean mBound;
    /**
     * Class for interacting with the main interface of the service.
     */
    private ServiceConnection mConnection = new ServiceConnection() {
        public void onServiceConnected(ComponentName className, IBinder service) {
            // This is called when the connection with the service has been
            // established, giving us the object we can use to
            // interact with the service.  We are communicating with the
            // service using a Messenger, so here we get a client-side
            // representation of that from the raw IBinder object.
            mService = new Messenger(service);
            mBound = true;
        }
        public void onServiceDisconnected(ComponentName className) {
            // This is called when the connection with the service has been
            // unexpectedly disconnected -- that is, its process crashed.
            mService = null;
            mBound = false;
        }
    };
    public void sayHello(View v) {
        if (!mBound) return;
        // Create and send a message to the service, using a supported 'what' value
        Message msg = Message.obtain(null, MessengerService.MSG_SAY_HELLO, 0, 0);
        try {
            mService.send(msg);
        } catch (RemoteException e) {
            e.printStackTrace();
        }
    }

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);
    }
    @Override
    protected void onStart() {
        super.onStart();
        // Bind to the service
        bindService(new Intent(this, MessengerService.class), mConnection,
            Context.BIND_AUTO_CREATE);
    }
    @Override
    protected void onStop() {
        super.onStop();
        // Unbind from the service
        if (mBound) {
            unbindService(mConnection);
            mBound = false;
        }
    }
}

绑定服务

只有activities、Services、content providers能绑定到服务,broadcast receiver不能绑定!

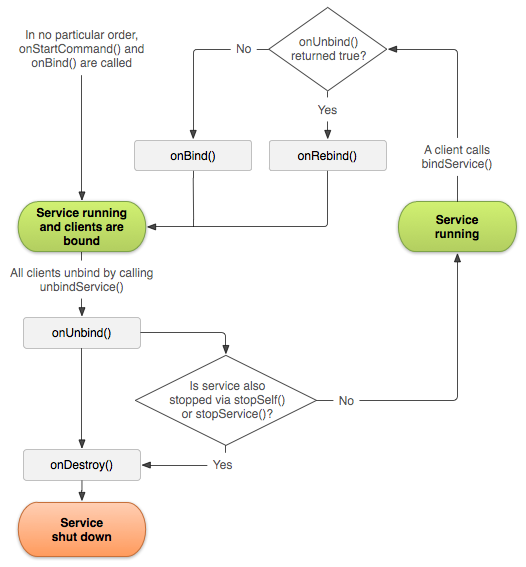

生命周期
