    这些天由于公司需要开发一个类似CRM的会员管理系统，我的技术选型为 Extjs+Yii+Mysql实现，发现Extjs3.x后推出了Direct组件，可以很方便的将服务器端的方法暴露给客户端调用，非常方便，于是就有了整合Yii框架的想法。

    说干就干，花了一天时间进行研究、实现代码，Yii的组件架构和OOP的特性，让我比较方便的就实现了这个目标：兼容RPC批量调用和正常的MVC页面流程。

    具体实现了几个类：

• ExtApplication，是CApplication的继承类，覆盖了ProcessRequest方法，区分普通页面action和RPC调用action等。
• Controller，是CController的继承类，覆盖若干方法以调用ExtAction
• ExtAction，是CAction的继承类，用于执行RPC方法
• ApiAction，也是CAction的继承类，用于暴露服务器端方法
• ExtDirect_API和ExtDirect_CacheProvider这两个类是direct自带的类，稍作修改。

将以上类文件放入项目的protected/components下即可，然后修改入口文件index.php为：

<?php

// change the following paths if necessary
$yii=dirname(__FILE__).'/../yii-trunk/framework/yii.php';
$config=dirname(__FILE__).'/protected/config/main.php';

// remove the following lines when in production mode
defined('YII_DEBUG') or define('YII_DEBUG',true);
// specify how many levels of call stack should be shown in each log message
defined('YII_TRACE_LEVEL') or define('YII_TRACE_LEVEL',3);

require_once($yii);
require(dirname(__FILE__).'/protected/components/ExtApplication.php');
Yii::createApplication('ExtApplication',$config)->run();

然后修改 protected/views/layouts/main.php，加入extjs引用和代码：

<link rel="stylesheet" type="text/css" href="/ext3/resources/css/ext-all.css" />
	<link rel="stylesheet" type="text/css" href="/css/main.css" />

	<script type="text/javascript" src="/ext3/adapter/ext/ext-base-debug.js"></script>
	<script type="text/javascript" src="/ext3/ext-all-debug.js"></script>
	<script type="text/javascript" src="/ext3/src/locale/ext-lang-zh_CN.js"></script>
	<script src="<?php echo $this->createUrl('/site/api') ?>"></script>
	<script type="text/javascript">
		Ext.BLANK_IMAGE_URL = '/ext3/resources/images/default/s.gif';
		var mk;
		Ext.onReady(function(){
		    // Notice that Direct requests will batch together if they occur
		    // within the enableBuffer delay period (in milliseconds).
		    // Slow the buffering down from the default of 10ms to 100ms
		    Ext.app.REMOTING_API.enableBuffer = 100;
		    Ext.Direct.addProvider(Ext.app.REMOTING_API);
		    // provide feedback for any errors
		    Ext.QuickTips.init();
			// turn on validation errors beside the field globally
		    Ext.form.Field.prototype.msgTarget = 'side';
		});
</script>

这段代码“<script src="<?php echo $this->createUrl('/site/api') ?>"></script>”就是调用了接口页面，得到了服务器端暴露的方法列表，如：

Ext.ns('Ext.app'); Ext.app.REMOTING_API = {"url":"\/index.php","type":"remoting","actions":{"Site":[{"name":"DoLogin","len":1,"formHandler":true},{"name":"Logout","len":0},{"name":"updateBasicInfo","len":1,"formHandler":true},{"name":"getBasicInfo","len":2},{"name":"GetPhoneInfo","len":0},{"name":"getLocationInfo","len":1}],"Test":[{"name":"Index","len":0}]}};

然后这句：“Ext.Direct.addProvider(Ext.app.REMOTING_API);“就是向extjs注册了rpc的api。

这样准备工作就完成了。

接着添加apiAction的定义到 SiteController.php中：

	/**
	 * Declares class-based actions.
	 */
	public function actions()
	{
		return array(
            'api'=>array(
                'class'=>'ApiAction',
            ),
		);
	}

然后在Controllers中定义普通action和rpc方法：

	public function actionLogin()
	{
		$this->render('login');
	}

	/**
	 * @remotable
	 * @formHandler
	 */
	public function actionDoLogin($formPacket)
	{
		$model=new LoginForm;

		// collect user input data
		if(isset($formPacket['username']))
		{
			$model->username = $formPacket['username'];
			$model->password = $formPacket['password'];

			// validate user input and redirect to the previous page if valid
			if($model->validate() && $model->login())
				$output['success'] = true;
			else
			{
				$output['success'] = false;
				$output['errors'] = $model->errors;
			}
			return $output;
		}
	}

注意上面的 “
/**
* @remotable
* @formHandler
*/”
注释，表示DoLogin这个方法是可以远程调用的，且是表单处理方法，这里的备注可以在反射的时候用到。而且可以发现普通页面action和RPC的action的写法上的区别：一个是没有参数的，render页面或者直接输出内容的；一个是有参数的，然后有返回值的。

actionLogin对应的视图文件中就可以调用DoLogin方法来登录用户了：

var indexUrl = '<?php echo $this->createUrl('index') ?>';

Ext.onReady(function(){
	function login(){
		if(form.getForm().isValid()){
			form.getForm().submit({
				waitMsg: '正在登录，请稍候...',
				waitTitle:'登录中',
				success: function(form,action){
					loginwin.hide();
					window.location = indexUrl;
				}
			});
		}
	}
	var form = new Ext.form.FormPanel({
        baseCls: 'x-plain',
        labelWidth: 55,
        defaultType: 'textfield',
		title: '<div style="padding:10px;text-align:center;font-size:22px;  border-bottom:silver solid 1px; margin-bottom:5px;">会员管理系统</div>',
		api: {submit: Site.DoLogin },
        items: [{
            fieldLabel: '用户名',
            name: 'username',
			allowBlank: false,
			blankText: "请输入您的用户名",
            anchor:'92%',
            listeners: {
            	specialkey : function(field, e) {
                    if (e.getKey() == Ext.EventObject.ENTER) {
                        login();
                    }
                }
            }
        },{
			inputType: "password",
            fieldLabel: '密　码',
			allowBlank: false,
			blankText: "请输入您的密码",
            name: 'password',
            anchor: '92%' ,
            listeners: {
            	specialkey : function(field, e) {
                    if (e.getKey() == Ext.EventObject.ENTER) {
                        login();
                    }
                }
            }
        }],
		buttons: [{
			text: '登录',
			handler: login
			},
			{text: '重设', handler: function(){form.getForm().reset();}}
		],
		buttonAlign:'center'
    });

	var loginwin = new Ext.Window({
			title: "管理登录",
			width: 300,
			height: 180,
			modal: true,
			draggable: false,
			closable: false,
			tools: [{id: "help", handler: function(){Ext.Msg.alert('帮助','输入您的用户名和密码登录系统。')}}],
			layout: 'fit',
			plain:true,
			bodyStyle:'padding:5px;',
			items: form,
			resizable: false
		});
	loginwin.show();
});

注意FormPanel中的 “api: {submit: Site.DoLogin },”，这样表单的处理请求就自动被发送到了SiteController的actionDoLogin方法，其处理结果也自动返回给客户端了，是不是很方便？

以上涉及到的完整代码已附上，需要的朋友拿去吧，有问题别忘了反馈，一起改进完善。

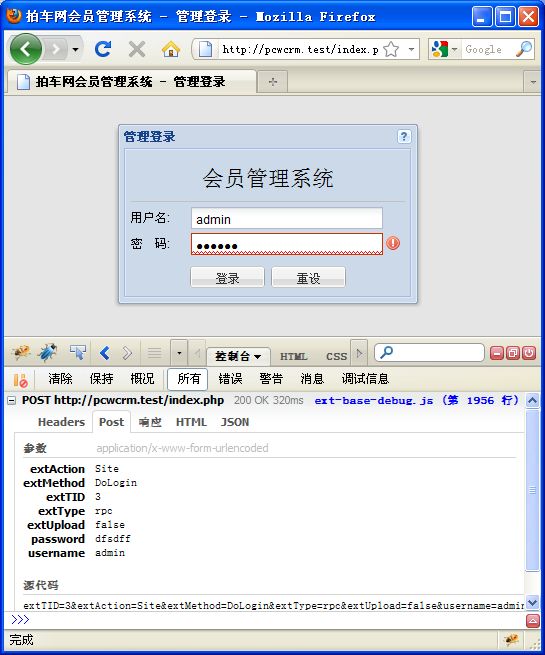

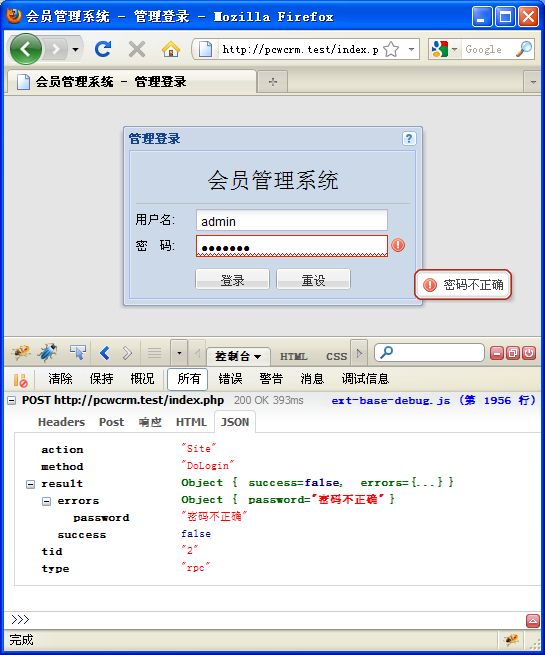

效果截图：





以上截图表现的是如何处理表单，下面说说如何调用服务器端其他方法，如我们在SiteController中定义：

    /**
    * @remotable
    * put your comment there...
    * This method configured with len=2, so 2 arguments will be sent
    * in the order according to the client side specified paramOrder
    * @param Number $userId
    * @param String $foo
    * @return Array response packet
    */
    function actiongetBasicInfo($userId, $foo){
        return array(
            'success'=>true,
            'data'=>array(
                'foo'=>$foo,
                'name'=>'Aaron Conran',
                'company'=>'Ext JS, LLC',
                'email'=>'aaron@extjs.com'
             )
        );
    }

    /**
    * Handler for client side form sumbit
    * @formHandler
    * @remotable
    *
    * @param Array $formPacket Collection of form items along with direct data
    * @return Array response packet
    *
    */
    function actionUpdateBasicInfo($formPacket){
        $response = array();
        $email = $formPacket['email'];
        if ($email == 'aaron@extjs.com') {
            $success = false;
            $response['errors'] = array(
                'email'=>'already taken'
            );
        } else {
            $success = true;
        }
        $response['success'] = $success;
        // return form packet for demonstration/testing purposes
        $response['debug_formPacket'] = $formPacket;
        return $response;
    }

接下来就可以在客户端js中这么调用：

var basicInfo = new Ext.form.FormPanel({
        // configs for FormPanel
        title: 'Basic Information',
        border: false,
        padding: 10,
        buttons:[{
            text: 'Submit',
            handler: function(){
                basicInfo.getForm().submit({
                    params: {
                        foo: 'bar',
                        uid: 34
                    }
                });
            }
        }],

        // configs apply to child items
        defaults: {anchor: '-20'}, // provide some room on right for validation errors
        defaultType: 'textfield',
        items: [{
            fieldLabel: 'Name',
            name: 'name'
        },{
            fieldLabel: 'Email',
            msgTarget: 'side',
            name: 'email'
        },{
            fieldLabel: 'Company',
            name: 'company'
        }],

        // configs for BasicForm
        api: {
            // The server-side method to call for load() requests
            load: Site.getBasicInfo,
            // The server-side must mark the submit handler as a 'formHandler'
            submit: Site.UpdateBasicInfo
        },
        // specify the order for the passed params
        paramOrder: ['uid', 'foo']
    });

这样一来，这个表单的初始数据加载和提交，就都是RPC自动调用了，是不是很赞？呵呵
