这两天需要给Datagrid加个分页，查找了一些相关的文章，发现有一个写了一个控件比较好，地址是 http://blog.csdn.net/zdw_wym/article/details/8221894

感谢这位大神12年的帖子，但是照着做了以后，发现除了点击数字和GO按钮好使意外，神马“首页、上一页、下一页、末页”都不好使。

继续找寻相关的资料和查看大神的源码，发现有的地方写的不对，因为textblock没有click事件，而大神写了click事件，所以没有得到触发，介于这个问题，我稍作了修改。

即给textblock添加里MouseLeftButtonUp事件，操作得以实现。

下面贴出全部源码，有需要的，可以使用

翻页控件xml文件

class="code_img_closed" src="/Upload/Images/2014080613/0015B68B3C38AA5B.gif" alt="" />logs_code_hide('9967839f-2ee9-4846-b57d-5b0950ccbedd',event)" src="/Upload/Images/2014080613/2B1B950FA3DF188F.gif" alt="" />

<UserControl x:Class="ImgProWPF.Paging"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
             xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
             mc:Ignorable="d">
    <UserControl.Resources>
        <Style x:Key="PageTextBlock1" TargetType="{x:Type TextBlock}">
            <Setter Property="VerticalAlignment" Value="Center"/>
            <Setter Property="HorizontalAlignment" Value="Left"/>
            <Setter Property="FontSize" Value="13"/>
            <Setter Property="FontWeight" Value="Bold"/>
            <Setter Property="Foreground" Value="#FF333333"/>
        </Style>
        <!--首页上一页等-->
        <Style x:Key="PageTextBlock2" TargetType="{x:Type TextBlock}">
            <Setter Property="VerticalAlignment" Value="Center"/>
            <Setter Property="HorizontalAlignment" Value="Left"/>
            <Setter Property="Margin" Value="0,10,0,0"/>
            <Setter Property="Width" Value="40"/>
            <Setter Property="Height" Value="23"/>
            <Setter Property="FontSize" Value="13"/>
            <Setter Property="Cursor" Value="Hand"/>
            <Setter Property="Foreground" Value="#FF333333"/>
            <Style.Triggers>
                <Trigger Property="IsMouseOver" Value="True">
                    <Setter Property="Foreground" Value="#FF000000"/>
                    <Setter Property="FontWeight" Value="Bold"/>
                </Trigger>
            </Style.Triggers>
        </Style>
        <!--中间页数-->
        <Style x:Key="PageTextBlock3" TargetType="{x:Type TextBlock}">
            <Setter Property="VerticalAlignment" Value="Center"/>
            <Setter Property="HorizontalAlignment" Value="Left"/>
            <Setter Property="Margin" Value="0,10,0,0"/>
            <Setter Property="Height" Value="23"/>
            <Setter Property="Width" Value="30"/>
            <Setter Property="FontSize" Value="10"/>
            <Setter Property="Cursor" Value="Hand"/>
            <Setter Property="Foreground" Value="#FF333333"/>
            <Style.Triggers>
                <Trigger Property="IsMouseOver" Value="True">
                    <Setter Property="Foreground" Value="#FF000000"/>
                    <Setter Property="FontWeight" Value="Bold"/>
                </Trigger>
                <Trigger Property="IsEnabled" Value="False">
                    <Setter Property="Foreground" Value="#FF000000"/>
                    <Setter Property="FontWeight" Value="Bold"/>
                </Trigger>
            </Style.Triggers>
        </Style>
        <Style x:Key="PageTextBox" TargetType="{x:Type TextBox}">
            <Setter Property="Height" Value="25"/>
            <Setter Property="Width" Value="40"/>
            <Setter Property="BorderBrush" Value="{x:Null}"/>
            <Setter Property="HorizontalAlignment" Value="Left"/>
            <Setter Property="VerticalAlignment" Value="Bottom"/>

            <Style.Triggers>
                <Trigger Property="IsReadOnly" Value="True">
                    <Setter Property="Background" Value="#FFCCCCCC"/>
                </Trigger>
            </Style.Triggers>
        </Style>
        <Style x:Key="PageButton" TargetType="{x:Type Button}">
            <Setter Property="Height" Value="25"/>
            <Setter Property="Width" Value="30"/>
            <Setter Property="HorizontalAlignment" Value="Left"/>
            <Setter Property="VerticalAlignment" Value="Bottom"/>
        </Style>
    </UserControl.Resources>
    <Grid>
        <Border CornerRadius="3" Background="Transparent" BorderBrush="{x:Null}">
            <Grid HorizontalAlignment="Stretch" Margin="5 0 5 0" VerticalAlignment="Top" Width="Auto" Height="30">
                <Grid.ColumnDefinitions>
                    <ColumnDefinition Width="150"/>
                    <ColumnDefinition Width="500" MinWidth="500"/>
                </Grid.ColumnDefinitions>
                <TextBlock Name="tbkRecords" Grid.Column="0" Style="{StaticResource PageTextBlock1}"/>
                <StackPanel Orientation="Horizontal" HorizontalAlignment="Right" Grid.Column="1">
                    <Grid>
                        <Grid.RowDefinitions>
                            <RowDefinition Height="30"/>
                        </Grid.RowDefinitions>
                        <Grid.ColumnDefinitions>
                            <ColumnDefinition Width="50"/>
                            <ColumnDefinition Width="50"/>
                            <ColumnDefinition Width="*"/>
                            <ColumnDefinition Width="50"/>
                            <ColumnDefinition Width="50"/>
                            <ColumnDefinition Width="50"/>
                            <ColumnDefinition Width="30"/>
                        </Grid.ColumnDefinitions>
                        <TextBlock Grid.Column="0" Name="btnFirst" Text="首页" IsEnabled="False" Style="{StaticResource PageTextBlock2}" MouseLeftButtonDown="btnFirst_MouseLeftButtonDown" MouseLeftButtonUp="btnFirst_MouseLeftButtonUp"/>
                        <TextBlock Grid.Column="1" Name="btnPrev" Text="上一页" IsEnabled="False" Style="{StaticResource PageTextBlock2}" MouseLeftButtonDown="btnPrev_MouseLeftButtonDown" MouseLeftButtonUp="btnPrev_MouseLeftButtonUp"/>
                        <Grid Grid.Column="2" Name="grid">
                            <Grid.RowDefinitions>
                                <RowDefinition Height="30"/>
                            </Grid.RowDefinitions>
                        </Grid>
                        <TextBlock Grid.Column="3" x:Name="btnNext" Text="下一页" IsEnabled="False" Style="{StaticResource PageTextBlock2}" MouseLeftButtonDown="btnNext_MouseLeftButtonDown" MouseLeftButtonUp="btnNext_MouseLeftButtonUp"/>
                        <TextBlock Grid.Column="4" x:Name="btnLast" Text="末页" IsEnabled="False" Style="{StaticResource PageTextBlock2}" MouseLeftButtonDown="btnLast_MouseLeftButtonDown" MouseLeftButtonUp="btnLast_MouseLeftButtonUp"/>
                        <TextBox Grid.Column="5" x:Name="pageGo" MaxLength="6" IsReadOnly="True" Style="{StaticResource PageTextBox}"/>
                        <Button Grid.Column="6" x:Name="btnGo" Content="GO" IsEnabled="False" Style="{StaticResource PageButton}" Click="btnGo_Click"/>
                    </Grid>
                </StackPanel>
            </Grid>
        </Border>
    </Grid>
</UserControl>

Paging.xaml

翻页控件.cs文件

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;
using System.Data;
using System.Text.RegularExpressions;

namespace ImgProWPF
{
    /// <summary>
    /// Paging.xaml 的交互逻辑
    /// </summary>
    public partial class Paging : UserControl
    {
        public Paging()
        {
            InitializeComponent();

        }

        #region 参数
        private DataTable _dt = new DataTable();
        //每页显示多少条
        private int pageNum = 10;
        //当前是第几页
        private int pIndex = 1;
        //对象
        private DataGrid grdList;
        //最大页数
        private int MaxIndex = 1;
        //一共多少条
        private int allNum = 0;
        #endregion

        #region 初始化数据
        public void ShowPages(DataGrid grd, DataTable ds, int Num)
        {
            if (ds == null || ds.Rows.Count == 0)
                return;
            if (ds.Rows.Count == 0)
                return;
            DataTable dt = ds;
            this._dt = dt.Clone();
            this.grdList = grd;
            this.pageNum = Num;
            this.pIndex = 1;
            foreach (DataRow r in dt.Rows)
                this._dt.ImportRow(r);
            SetMaxIndex();
            ReadDataTable();
            if(this.MaxIndex>1)
            {
                this.pageGo.IsReadOnly = false;
                this.btnGo.IsEnabled = true;
            }
        }
        #endregion

        #region 画数据
        private void ReadDataTable()
        {
            try
            {
                DataTable tmpTable = new DataTable();
                tmpTable = this._dt.Clone();
                int first = this.pageNum * (this.pIndex - 1);
                first = (first > 0) ? first : 0;
                //如果总数量大于每页显示数量
                if (this._dt.Rows.Count >= this.pageNum * this.pIndex)
                {
                    for (int i = first; i < pageNum * this.pIndex; i++)
                    {
                        tmpTable.ImportRow(this._dt.Rows[i]);
                    }
                }
                else
                {
                    for (int i = first; i < this._dt.Rows.Count; i++)
                    {
                        tmpTable.ImportRow(this._dt.Rows[i]);
                    }
                }
                this.grdList.ItemsSource = tmpTable.DefaultView;
                tmpTable.Dispose();
            }
            catch
            {
                MessageBox.Show("错误");
            }
            finally
            {
                DisplayPagingInfo();
            }
        }
        #endregion

        #region 画每页显示的数据
        private void DisplayPagingInfo()
        {
            if (this.pIndex == 1)
            {
                this.btnPrev.IsEnabled = false;
                this.btnFirst.IsEnabled = false;
            }
            else
            {
                this.btnPrev.IsEnabled = true;
                this.btnFirst.IsEnabled = true;
            }
            if (this.pIndex == this.MaxIndex)
            {
                this.btnNext.IsEnabled = false;
                this.btnLast.IsEnabled = false;
            }
            else
            {
                this.btnNext.IsEnabled = true;
                this.btnLast.IsEnabled = true;
            }
            this.tbkRecords.Text = string.Format("每页{0}条/共{1}条", this.pageNum, this.allNum);
            int first = (this.pIndex - 4) > 0 ? (this.pIndex - 4) : 1;
            int last = (first + 9) > this.MaxIndex ? this.MaxIndex : (first + 9);
            this.grid.Children.Clear();
            for (int i = first; i <= last; i++)
            {
                ColumnDefinition cdf = new ColumnDefinition();
                this.grid.ColumnDefinitions.Add(cdf);
                TextBlock tbl = new TextBlock();
                tbl.Text = i.ToString();
                tbl.Style = FindResource("PageTextBlock3") as Style;
                tbl.MouseLeftButtonUp += new MouseButtonEventHandler(tbl_MouseLeftButtonUp);
                tbl.MouseLeftButtonDown += new MouseButtonEventHandler(tbl_MouseLeftButtonDown);
                if (i == this.pIndex)
                    tbl.IsEnabled = false;
                Grid.SetColumn(tbl, this.grid.ColumnDefinitions.Count - 1);
                Grid.SetRow(tbl, 0);
                this.grid.Children.Add(tbl);
            }
        }
        #endregion

        #region 首页
        /// <summary>
        /// 首页
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void btnFirst_MouseLeftButtonUp(object sender, MouseButtonEventArgs e)
        {
            this.pIndex = 1;
            ReadDataTable();
        }
        private void btnFirst_MouseLeftButtonDown(object sender, MouseButtonEventArgs e)
        {
            e.Handled = true;
        }
        #endregion

        #region 上一页
        /// <summary>
        /// 上一页
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void btnPrev_MouseLeftButtonUp(object sender, MouseButtonEventArgs e)
        {
            if (this.pIndex <= 1)
                return;
            this.pIndex--;
            ReadDataTable();
        }
        private void btnPrev_MouseLeftButtonDown(object sender, MouseButtonEventArgs e)
        {
            e.Handled = true;
        }
        #endregion

        #region 下一页
        /// <summary>
        /// 下一页
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void btnNext_MouseLeftButtonUp(object sender, MouseButtonEventArgs e)
        {
            if (this.pIndex >= this.MaxIndex)
                return;
            this.pIndex++;
            ReadDataTable();
        }

        private void btnNext_MouseLeftButtonDown(object sender, MouseButtonEventArgs e)
        {
            e.Handled = true;
        }
        #endregion

        #region 末页
        /// <summary>
        /// 末页
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void btnLast_MouseLeftButtonUp(object sender, MouseButtonEventArgs e)
        {
            this.pIndex = this.MaxIndex;
            ReadDataTable();
        }
        private void btnLast_MouseLeftButtonDown(object sender, MouseButtonEventArgs e)
        {
            e.Handled = true;
        }
        #endregion

        #region 设置最多页面
        /// <summary>
        /// 设置最多页面
        /// </summary>
        private void SetMaxIndex()
        {
            //多少页
            int Pages = this._dt.Rows.Count / pageNum;
            if (this._dt.Rows.Count != (Pages * pageNum))
            {
                if (_dt.Rows.Count < (Pages * pageNum))
                    Pages--;
                else
                    Pages++;
            }
            this.MaxIndex = Pages;
            this.allNum = this._dt.Rows.Count;
        }
        #endregion

        #region 跳转到多少页
        /// <summary>
        /// 跳转到多少页
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void btnGo_Click(object sender, RoutedEventArgs e)
        {
            if(IsNumber(this.pageGo.Text))
            {
                int pageNum = int.Parse(this.pageGo.Text);
                if(pageNum>0&&pageNum<=this.MaxIndex)
                {
                    this.pIndex = pageNum;
                    ReadDataTable();
                }
                else if(pageNum>this.MaxIndex)
                {
                    this.pIndex = this.MaxIndex;
                    ReadDataTable();
                }
            }
            this.pageGo.Text = "";
        }
        #endregion

        #region 分页数字的点击触发事件
        private void tbl_MouseLeftButtonUp(object sender, MouseButtonEventArgs e)
        {
            TextBlock tbl = sender as TextBlock;
            if (tbl == null)
                return;
            int index = int.Parse(tbl.Text.ToString());
            this.pIndex = index;
            if (index > this.MaxIndex)
                this.pIndex = this.MaxIndex;
            if (index < 1)
                this.pIndex = 1;
            ReadDataTable();
        }

        private void tbl_MouseLeftButtonDown(object sender, MouseButtonEventArgs e)
        {
            e.Handled = true;
        }
        #endregion

        private static Regex RegNumber = new Regex("^[0-9]+$");

        #region 判断是否是数字
        public static bool IsNumber(string valString)
        {
            Match m = RegNumber.Match(valString);
            return m.Success;
        }
        #endregion
    }
}

Paging.xaml.cs

主页调用xml文件

<local:Paging x:Name="GridPaging"/>

主页调用.cs文件

        public void Band()
        {
            DBConfig DB = new DBConfig();
            ds = DB.SearchAll(txtSearch.Text);
            DGInformation.ItemsSource = null;
            DGInformation.ItemsSource = ds.Tables[0].DefaultView;//Datagrid数据绑定
            GridPaging.ShowPages(this.DGInformation, ds.Tables[0], 20);//分页部分
        }

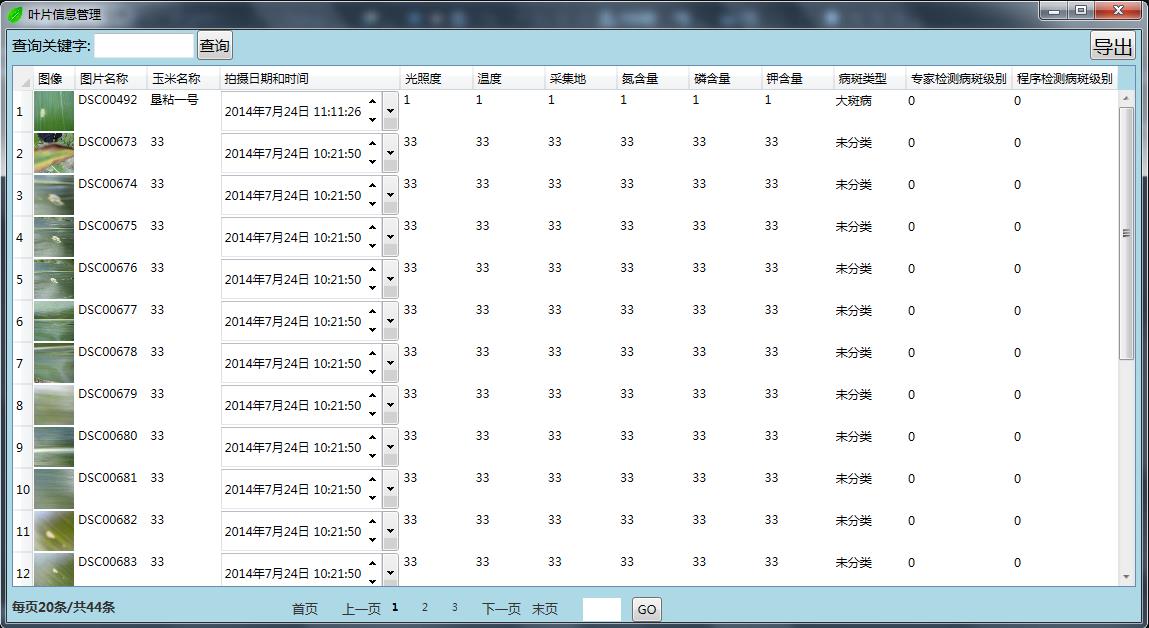

效果图展示

不知道是数据源里包含图片的原因还是什么原因，在翻页的时候，会很慢，等很长时间才能翻页，这个问题，不知道是控件引起的，还是我绑定数据引起的，等解决了，我会在本帖说明。

还有一点就是，我启用了WPF里的datagrid的序号，不过这个不像WEB里的分页以后序号是连贯的，这个是重新分配，这个也是一个需要解决的问题。
