????? 写完Java节拍器，本以为能够很容易的过渡到Android节拍器。后来发现不对。在网上查询了之后，才知道，Android考虑到线程安全问题，不允许在线程中执行UI线程。这里我们要学到一个Android中重要的类：android.os.Handler,这个可以实现各处线程间的消息传递。

????? 我们可以在原先的TimerTask子类MyTimerTask的方法run()中，只是给Handler发送一个Message。我们让Handler进行UI线程上的操作（在节拍器的例子中，指的是更新那个显示节拍的控件的数值）。

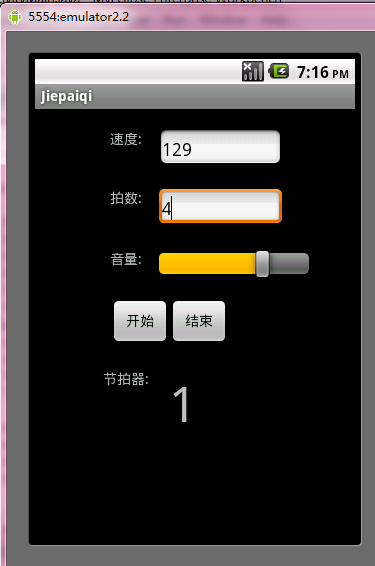

????? 最终节拍器打节拍的同时发生。（由于时间原因，音量控制尚未实现）实现截图如下：

?
????
?

?

package com.Android.Jiapaiqi;

import android.app.Activity;
import android.content.Context;
import android.media.AudioManager;
import android.media.SoundPool;
import android.os.Bundle;
import android.os.Handler;
import android.os.Message;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.EditText;
import android.widget.SeekBar;
import android.widget.TextView;
import android.widget.SeekBar.OnSeekBarChangeListener;

import java.util.Timer;
import java.util.TimerTask;

public class ActivityMain extends Activity {

	Button button_start;
	Button button_stop;
	EditText edit_sudu;
	EditText edit_paishu;
	TextView result;
	SeekBar seekbar;
	public float tempo;
	public int section;
	public int pp;
	Handler handler;
	Timer mytimer;

	private SoundPool sndHigh;
	private SoundPool sndLow;
	private int hitOfHigh;
	private int hitOfLow;

	//声音控制
	private AudioManager audioManager;
	//声音变量
	private int volume=0;
	//声音模式
	//private int mode;
	//是否有声音
	private int flag=1;

	//内部类
	class MyTimerTask extends TimerTask{

		@Override
		public void run() {
			Message message=new Message();
			message.what=1;
			handler.sendMessage(message);
		}
	};

    /** Called when the activity is first created. */
    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);

        pp=1;
        setContentView(R.layout.main);

		final EditText edit_sudu = (EditText)this.findViewById(R.id.edit_sudu);
		final EditText edit_paishu = (EditText)this.findViewById(R.id.edit_paishu);
		final TextView result = (TextView)findViewById(R.id.result);

		handler = new Handler()
		{
			public void handleMessage(Message msg)
			{
				switch(msg.what)
				{
				case 1:
					result.setText(String.valueOf(pp));
						if(pp==1)
							// play (int soundID, float leftVolume, float rightVolume, int priority, int loop, float rate)
							//播放音频，可以对左右音量分别设置，还可以设置优先级，循环次数以及速率
							sndHigh.play(hitOfHigh, 1, 1, 0, 0, 1);
						else
							sndLow.play(hitOfLow, 1, 1, 0, 0, 1);
					if(pp!=section)
					{
						pp++;
					}
					else
					{
						pp=1;
					}
						break;
				}
				super.handleMessage(msg);
			}
		};

		button_start = (Button) findViewById(R.id.button_start);
		button_start.setOnClickListener(new OnClickListener() {
			public void onClick(View v) {
				tempo=Float.parseFloat(edit_sudu.getText().toString());
				section=Integer.parseInt(edit_paishu.getText().toString());
				mytimer=new Timer();
				float tempFloat=60/tempo*1000;
				mytimer.schedule(new MyTimerTask(),0, (long)tempFloat);
			}
		});

		button_stop = (Button) findViewById(R.id.button_stop);
		button_stop.setOnClickListener(new OnClickListener() {
			public void onClick(View v) {
				mytimer.cancel();
				sndHigh.pause(hitOfHigh);
				sndLow.pause(hitOfLow);
			}
		});

		final SeekBar seekbar = (SeekBar) findViewById(R.id.seekbar);
		//设置拖动条的初始值和文本框的初始值
		seekbar.setMax(7);
		seekbar.setProgress(5);
		seekbar.setOnSeekBarChangeListener(new OnSeekBarChangeListener()
		{
			@Override
			public void onProgressChanged(SeekBar seekBar, int progress,
					boolean fromUser) {
				// TODO Auto-generated method stub
			}
			@Override
			public void onStartTrackingTouch(SeekBar seekBar) {
				// TODO Auto-generated method stub

			}
			@Override
			public void onStopTrackingTouch(SeekBar seekBar) {
				// TODO Auto-generated method stub
			}
		});
		audioManager = (AudioManager) getBaseContext().getSystemService(Context.AUDIO_SERVICE);
		//通过getStreamVolume获得当前音量大小
		volume=audioManager.getStreamVolume(AudioManager.STREAM_RING);
		//把当前音量的值 设置给进度条
		//seekbar.setProgress(volume);

		sndHigh = new SoundPool(10, AudioManager.STREAM_SYSTEM,5);
		//载入音频流
		hitOfHigh = sndHigh.load(getBaseContext(), R.drawable.high, 0);

		sndLow = new SoundPool(10, AudioManager.STREAM_SYSTEM,5);
		//载入音频流
		hitOfLow = sndLow.load(getBaseContext(), R.drawable.low, 0);
    }
}

?

再给出一篇比较好的文章：

Android计时器正确应用方式解析

http://developer.51cto.com/art/201001/180254.htm

?

?

?
