今天记录的内容不多，只是简单用一下Model first，新建项目，然后添加新建项，选择数据中的ado.net实体数据模型

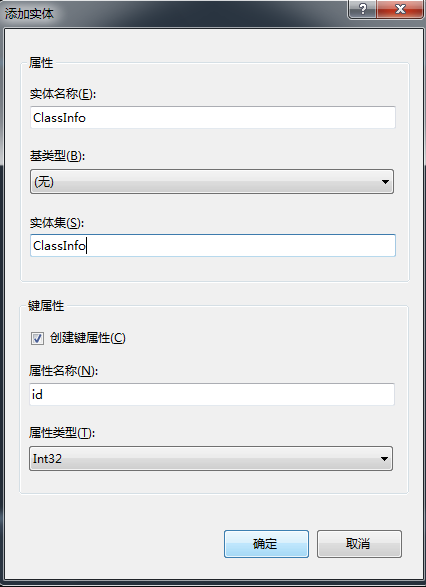

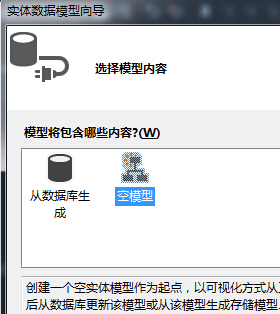

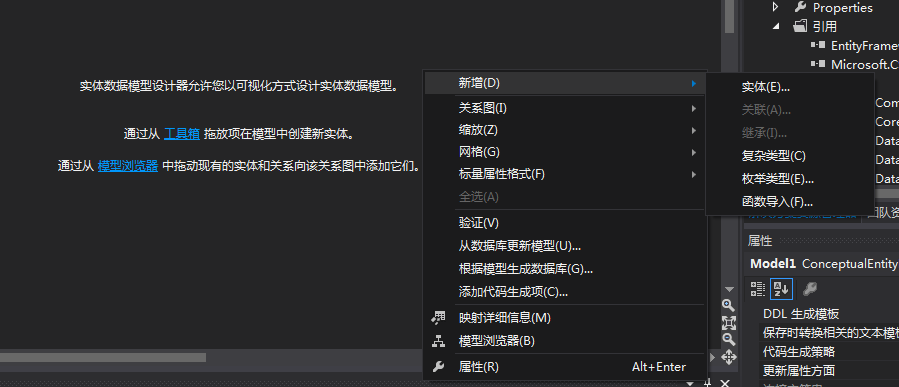

这次我们选择空模型，然后右键，新增，实体

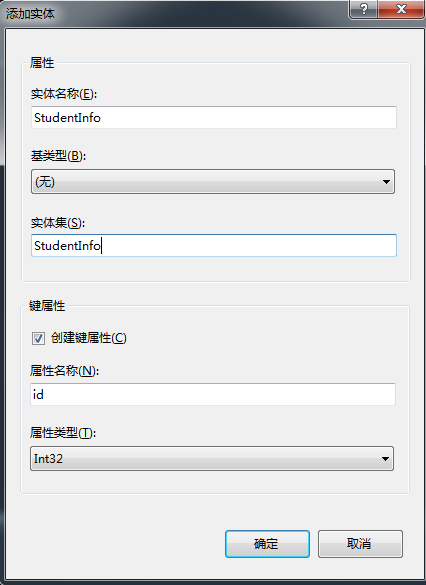

在这项demo中我打算建两个数据实体，一个studentInfo，classInfo。

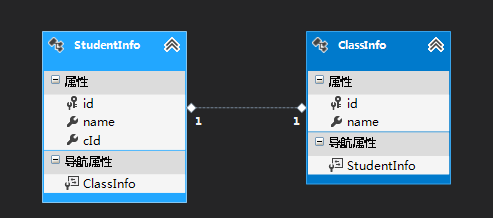

得到类似uml图

我们可以在每个图上新增属性，各新增了name属性，在studentInfo上新增cId，空白处右键，新增关联，

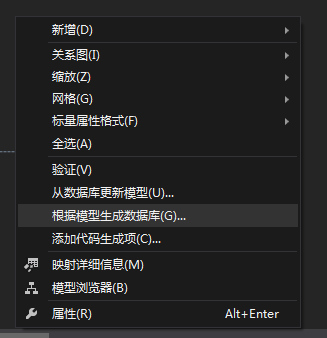

右键根据模型生成数据库

实现在数据库建好库，然后选择数据库，就会生成sql语句了。下面是我生成的sql语句

 1 -- --------------------------------------------------
 2 -- Entity Designer DDL Script for SQL Server 2005, 2008, and Azure
 3 -- --------------------------------------------------
 4 -- Date Created: 06/15/2014 22:37:13
 5 -- Generated from EDMX file: C:\Users\admin\documents\visual studio 2012\Projects\EFConsole\ConsoleApplication1\Model1.edmx
 6 -- --------------------------------------------------
 7
 8 SET QUOTED_IDENTIFIER OFF;
 9 GO
10 USE [EFtest];
11 GO
12 IF SCHEMA_ID(N'dbo') IS NULL EXECUTE(N'CREATE SCHEMA [dbo]');
13 GO
14
15 -- --------------------------------------------------
16 -- Dropping existing FOREIGN KEY constraints
17 -- --------------------------------------------------
18
19
20 -- --------------------------------------------------
21 -- Dropping existing tables
22 -- --------------------------------------------------
23
24
25 -- --------------------------------------------------
26 -- Creating all tables
27 -- --------------------------------------------------
28
29 -- Creating table 'Student'
30 CREATE TABLE [dbo].[Student] (
31     [id] int IDENTITY(1,1) NOT NULL,
32     [name] nvarchar(max)  NOT NULL,
33     [cId] nvarchar(max)  NOT NULL,
34     [ClassInfo_id] int  NOT NULL
35 );
36 GO
37
38 -- Creating table 'ClassInfo'
39 CREATE TABLE [dbo].[ClassInfo] (
40     [id] int IDENTITY(1,1) NOT NULL,
41     [name] nvarchar(max)  NOT NULL
42 );
43 GO
44
45 -- --------------------------------------------------
46 -- Creating all PRIMARY KEY constraints
47 -- --------------------------------------------------
48
49 -- Creating primary key on [id] in table 'Student'
50 ALTER TABLE [dbo].[Student]
51 ADD CONSTRAINT [PK_Student]
52     PRIMARY KEY CLUSTERED ([id] ASC);
53 GO
54
55 -- Creating primary key on [id] in table 'ClassInfo'
56 ALTER TABLE [dbo].[ClassInfo]
57 ADD CONSTRAINT [PK_ClassInfo]
58     PRIMARY KEY CLUSTERED ([id] ASC);
59 GO
60
61 -- --------------------------------------------------
62 -- Creating all FOREIGN KEY constraints
63 -- --------------------------------------------------
64
65 -- Creating foreign key on [ClassInfo_id] in table 'Student'
66 ALTER TABLE [dbo].[Student]
67 ADD CONSTRAINT [FK_StudentInfoClassInfo]
68     FOREIGN KEY ([ClassInfo_id])
69     REFERENCES [dbo].[ClassInfo]
70         ([id])
71     ON DELETE NO ACTION ON UPDATE NO ACTION;
72
73 -- Creating non-clustered index for FOREIGN KEY 'FK_StudentInfoClassInfo'
74 CREATE INDEX [IX_FK_StudentInfoClassInfo]
75 ON [dbo].[Student]
76     ([ClassInfo_id]);
77 GO
78
79 -- --------------------------------------------------
80 -- Script has ended
81 -- --------------------------------------------------

将代码复制到数据库中执行以下就可以了，这就是Model first。code first与Model first并不是一样的。code first 需要我们自己写类，用的不是很多。
