?? ?? 今天偶然看到一个圆盘形的菜单，还可以转动，感觉挺有意思，然后想了想，做了个简单的效果。
????? 思路是这样的，定一个原点和一个半径，圆的四周均匀分布每个菜单。为了方便计算，菜单的坐标用度数表示，然后转化为极坐标计算。
????? 定某个点为起始点，根据总菜单数确定每个点增加的度数，然后依次确定每个点的度数，也就确定了坐标。

?

package chroya.demo.roundspin;

import android.content.Context;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.util.Log;
import android.view.MotionEvent;
import android.view.View;

/**
 * 圆盘式的view
 * @author chroya
 *
 */
public class RoundSpinView extends View {
	private Paint mPaint = new Paint();

	//stone列表
	private BigStone[] mStones;
	//数目
	private static final int STONE_COUNT = 6;

	//圆心坐标
	private int mPointX=0, mPointY=0;
	//半径
	private int mRadius = 0;
	//每两个点间隔的角度
	private int mDegreeDelta;

	public RoundSpinView(Context context, int px, int py, int radius) {
		super(context);
		mPaint.setColor(Color.RED);
		mPaint.setStrokeWidth(2);
		setBackgroundResource(R.drawable.menubkground);

		mPointX = px;
		mPointY = py;
		mRadius = radius;

		setupStones();
		computeCoordinates();
	}

	/**
	 * 初始化每个点
	 */
	private void setupStones() {
		mStones = new BigStone[STONE_COUNT];
		BigStone stone;
		int angle = 0;
		mDegreeDelta = 360/STONE_COUNT;

		for(int index=0; index<STONE_COUNT; index++) {
			stone = new BigStone();
			stone.angle = angle;
			stone.bitmap = BitmapFactory.decodeResource(getResources(), R.drawable.menu1+index);
			angle += mDegreeDelta;

			mStones[index] = stone;
		}
	}

	/**
	 * 重新计算每个点的角度
	 */
	private void resetStonesAngle(float x, float y) {
		int angle = computeCurrentAngle(x, y);
		Log.d("RoundSpinView", "angle:"+angle);
		for(int index=0; index<STONE_COUNT; index++) {
			mStones[index].angle = angle;
			angle += mDegreeDelta;
		}
	}

	/**
	 * 计算每个点的坐标
	 */
	private void computeCoordinates() {
		BigStone stone;
		for(int index=0; index<STONE_COUNT; index++) {
			stone = mStones[index];
			stone.x = mPointX+ (float)(mRadius * Math.cos(stone.angle*Math.PI/180));
			stone.y = mPointY+ (float)(mRadius * Math.sin(stone.angle*Math.PI/180));
		}
	}

	/**
	 * 计算第一个点的角度
	 * @param x
	 * @param y
	 * @return
	 */
	private int computeCurrentAngle(float x, float y) {
		float distance = (float)Math.sqrt(((x-mPointX)*(x-mPointX) + (y-mPointY)*(y-mPointY)));
		int degree = (int)(Math.acos((x-mPointX)/distance)*180/Math.PI);
		if(y < mPointY) {
			degree = -degree;
		}

		Log.d("RoundSpinView", "x:"+x+",y:"+y+",degree:"+degree);
		return degree;
	}

	@Override
	public boolean dispatchTouchEvent(MotionEvent event) {
		resetStonesAngle(event.getX(), event.getY());
		computeCoordinates();
		invalidate();
		return true;
	}

	@Override
	public void onDraw(Canvas canvas) {
		canvas.drawPoint(mPointX, mPointY, mPaint);

		for(int index=0; index<STONE_COUNT; index++) {
			if(!mStones[index].isVisible) continue;
			drawInCenter(canvas, mStones[index].bitmap, mStones[index].x, mStones[index].y);
			//不想有红线，就注掉下面这句
//			canvas.drawLine(mPointX, mPointY, mStones[index].x, mStones[index].y, mPaint);
		}
	}

	/**
	 * 把中心点放到中心处
	 * @param canvas
	 * @param bitmap
	 * @param left
	 * @param top
	 */
	void drawInCenter(Canvas canvas, Bitmap bitmap, float left, float top) {
		canvas.drawPoint(left, top, mPaint);
		canvas.drawBitmap(bitmap, left-bitmap.getWidth()/2, top-bitmap.getHeight()/2, null);
	}

	class BigStone {

		//图片
		Bitmap bitmap;

		//角度
		int angle;

		//x坐标
		float x;

		//y坐标
		float y;

		//是否可见
		boolean isVisible = true;
	}
}

??? ?? 代码里注释也很清楚。STONE_COUNT表示菜单的数目，可以设置为1到7，更大的数字需要图片支持，我只放了7张图片。

?????? 如果触摸的点不在圆周上，会自动计算出点到圆心的直线跟圆的交点，然后映射上去。

?????? 5个菜单的效果，画了线的：

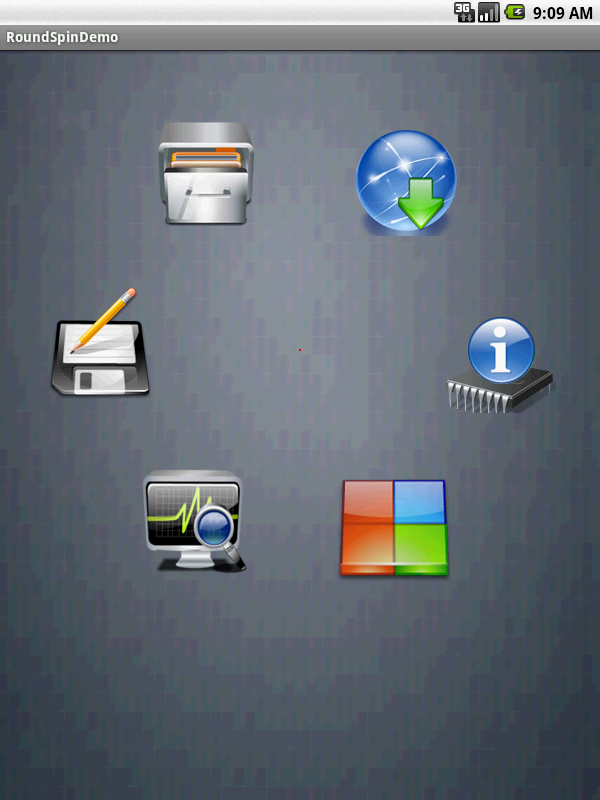

?????? 6个菜单的效果：

????????? Ok，代码也贡献出来。
