Google为Android平台开发Web Service客户端提供了ksoap2-android项目，在这个网址下载开发包http://code.google.com/p/ksoap2-android/source/browse/m2-repo/com/google/code/ksoap2-android/ksoap2-android-assembly/3.1.0/ksoap2-android-assembly-3.1.0-jar-with-dependencies.jar

使用 kspoap2-android调用webserice操作的步骤如下：

  1、创建HttpTransportSE传输对象 传入webservice服务器地址

class="dp-j" start="1">
1. final HttpTransportSE httpSE = new HttpTransportSE(SERVER_URL);

  2、 创建SoapObject对象，创建该对象时需要传入所要调用Wb Service的命名空间、Web Service方法名；如果有参数要传给Web Service服务器，调用SoapObject对象的addProperty(String name,Object value)方法来设置参数，该方法的name参数指定参数名；value参数指定参数值

1. SoapObject soapObject = new SoapObject(PACE, M_NAME);

1. soapObject.addProperty("byProvinceName ", citys);

3、创建SoapSerializationEnelope对象，并传入SOAP协议的版本号；并设置对象的bodyOut属性

1. final SoapSerializationEnvelope soapserial = new SoapSerializationEnvelope(
2.             SoapEnvelope.VER11);
3.     soapserial.bodyOut = soapObject;
4.     // 设置与.NET提供的Web service保持有良好的兼容性
5.     soapserial.dotNet = true;

  6、调用HttpTransportSE对象的call()方法，其中call的第一个参数soapAction，第二个为SoapSerializationEvelope对象 调用远程Web Service；

1. // 调用HttpTransportSE对象的call方法来调用 webserice
2.    httpSE.call(PACE + M_NAME, soapserial);

   7、获取返回的信息,并解析

1. // 获取服务器响应返回的SOAP消息
2. SoapObject result = (SoapObject) soapserial.bodyIn;
3. SoapObject detail = (SoapObject) result.getProperty("getSupportProvinceResult");
4. //解析返回信息
5. for (int i = 0; i < detail.getPropertyCount(); i++) {
6. citys.add(detail.getProperty(i).toString());
7. }

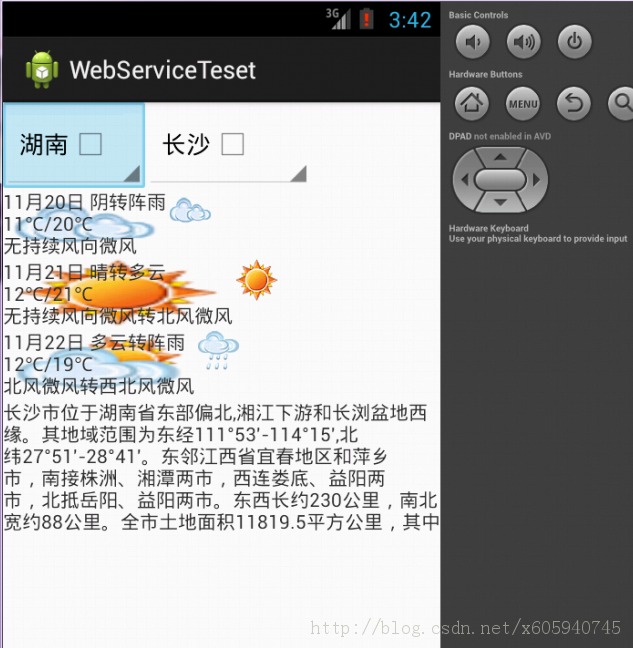

实例：通过天气预报 Web 服务 http://www.webxml.com.cn/WebServices/WeatherWebService.asmx

MainActivity.java

1. package com.example.webserviceteset;
2.
3. import java.util.List;
4.
5. import android.app.Activity;
6. import android.os.Bundle;
7. import android.view.Menu;
8. import android.view.View;
9.
10. import android.widget.AdapterView;
11. import android.widget.ImageView;
12. import android.widget.TextView;
13. import android.widget.AdapterView.OnItemSelectedListener;
14. import android.widget.ArrayAdapter;
15.
16. import android.widget.Spinner;
17.
18. public class MainActivity extends Activity {
19.
20.     private Spinner city, citys;
21.     private List<String> listcity, listcitys, weater;
22.     // 分别显示近三天的天气信息和城市介绍
23.     private TextView cityNames1, cityNames2, cityNames3, cityjie;
24.     private ImageView weateImage1, weateImage2, weateImage3;
25.
26.     @Override
27.     protected void onCreate(Bundle savedInstanceState) {
28.         super.onCreate(savedInstanceState);
29.         setContentView(R.layout.activity_main);
30.         citys = (Spinner) findViewById(R.id.citys);
31.         city = (Spinner) findViewById(R.id.city);
32.         cityNames1 = (TextView) findViewById(R.id.cityNames1);
33.         cityNames2 = (TextView) findViewById(R.id.cityNames2);
34.         cityNames3 = (TextView) findViewById(R.id.cityNames3);
35.         cityjie = (TextView) findViewById(R.id.cityjie);
36.         weateImage1 = (ImageView) findViewById(R.id.weateImage1);
37.         weateImage2 = (ImageView) findViewById(R.id.weateImage2);
38.         weateImage3 = (ImageView) findViewById(R.id.weateImage3);
39.
40.         // cityNames1=(TextView)findViewById(R.i)
41.         listcitys = WebServiceTest.getCitys();
42.         ArrayAdapter<String> citysAdater = new ArrayAdapter<String>(this,
43.                 android.R.layout.simple_list_item_multiple_choice, listcitys);
44.         citys.setAdapter(citysAdater);
45.         listcity = WebServiceTest.getCity(citys.getSelectedItem().toString());
46.         ArrayAdapter<String> cityAdater = new ArrayAdapter<String>(this,
47.                 android.R.layout.simple_list_item_multiple_choice, listcity);
48.         city.setAdapter(cityAdater);
49.         citys.setOnItemSelectedListener(new OnItemSelectedListener() {
50.
51.             @Override
52.             public void onItemSelected(AdapterView<?> arg0, View arg1,
53.                     int arg2, long arg3) {
54.                 listcity = WebServiceTest.getCity(citys.getSelectedItem()
55.                         .toString());
56.                 ArrayAdapter<String> cityAdater1 = new ArrayAdapter<String>(
57.                         MainActivity.this,
58.                         android.R.layout.simple_list_item_multiple_choice,
59.                         listcity);
60.                 city.setAdapter(cityAdater1);
61.
62.             }
63.
64.             @Override
65.             public void onNothingSelected(AdapterView<?> arg0) {
66.                 // TODO Auto-generated method stub
67.
68.             }
69.         });
70.         city.setOnItemSelectedListener(new OnItemSelectedListener() {
71.             // 返回数据： 一个一维数组 String(22)，共有23个元素。
72.             @Override
73.             public void onItemSelected(AdapterView<?> arg0, View arg1,
74.                     int arg2, long arg3) {
75.                 weater = WebServiceTest.getWeather(city.getSelectedItem()
76.                         .toString());
77.
78.                 for (int i = 0; i < weater.size(); i++) {
79.                     System.out.println("i=" + i + ":" + weater.get(i));
80.                 }
81.
82.                 cityNames1.setText(weater.get(6) + "\n" + weater.get(5) + "\n"
83.                         + weater.get(7));
84.                 cityNames1.setBackgroundResource(ChangeImageView.imageId(weater
85.                         .get(8)));
86.                 weateImage1.setImageResource(ChangeImageView.imageId(weater
87.                         .get(8)));
88.                 cityNames2.setText(weater.get(13) + "\n" + weater.get(12) + "\n"
89.                         + weater.get(14));
90.                 cityNames2.setBackgroundResource(ChangeImageView.imageId(weater
91.                         .get(15)));
92.                 weateImage2.setImageResource(ChangeImageView.imageId(weater
93.                         .get(15)));
94.                 cityNames3.setText(weater.get(18) + "\n" + weater.get(17) + "\n"
95.                         + weater.get(19));
96.                 cityNames3.setBackgroundResource(ChangeImageView.imageId(weater
97.                         .get(20)));
98.                 weateImage3.setImageResource(ChangeImageView.imageId(weater
99.                         .get(21)));
100.                 cityjie.setText(weater.get(22));
101.
102.
103.             }
104.
105.             @Override
106.             public void onNothingSelected(AdapterView<?> arg0) {
107.                 // TODO Auto-generated method stub
108.
109.             }
110.         });
111.
112.     }
113.
114.     @Override
115.     public boolean onCreateOptionsMenu(Menu menu) {
116.         getMenuInflater().inflate(R.menu.main, menu);
117.         return true;
118.     }
119.
120. }

WebServiceTest.java

1. package com.example.webserviceteset;
2.
3. import java.util.ArrayList;
4. import java.util.List;
5. import java.util.concurrent.Callable;
6. import java.util.concurrent.ExecutionException;
7. import java.util.concurrent.FutureTask;
8.
9. import org.ksoap2.SoapEnvelope;
10. import org.ksoap2.serialization.SoapObject;
11. import org.ksoap2.serialization.SoapSerializationEnvelope;
12. import org.ksoap2.transport.HttpTransportSE;
13.
14. public class WebServiceTest {
15.
16.     // Webservice服务器地址
17.     private static final String SERVER_URL = "http://www.webxml.com.cn/WebServices/WeatherWebService.asmx";
18.     // 调用的webservice命令空间
19.     private static final String PACE = "http://WebXml.com.cn/";
20.     // 获取所有省份的方法名
21.     private static final String M_NAME = "getSupportProvince";
22.     // 获取省份包含的城市的方法名
23.     private static final String MC_NAME = "getSupportCity";
24.     // 获取天气详情的方法名
25.     private static final String W_NAME = "getWeatherbyCityName";
26.
27.     /**
28.      *
29.      * @return 所有省份
30.      */
31.
32.     public static List<String> getCitys() {
33.         // 创建HttpTransportSE传说对象 传入webservice服务器地址
34.         final HttpTransportSE httpSE = new HttpTransportSE(SERVER_URL);
35.         httpSE.debug = true;
36.         // 创建soapObject对象并传入命名空间和方法名
37.         SoapObject soapObject = new SoapObject(PACE, M_NAME);
38.
39.         // 创建SoapSerializationEnvelope对象并传入SOAP协议的版本号
40.         final SoapSerializationEnvelope soapserial = new SoapSerializationEnvelope(
41.                 SoapEnvelope.VER11);
42.         soapserial.bodyOut = soapObject;
43.         // 设置与.NET提供的Web service保持有良好的兼容性
44.         soapserial.dotNet = true;
45.         // 使用Callable与Future来创建启动线程
46.         FutureTask<List<String>> future = new FutureTask<List<String>>(
47.                 new Callable<List<String>>() {
48.                     @Override
49.                     public List<String> call() throws Exception {
50.                         List<String> citys = new ArrayList<String>();
51.                         // 调用HttpTransportSE对象的call方法来调用 webserice
52.                         httpSE.call(PACE + M_NAME, soapserial);
53.                         if (soapserial.getResponse() != null) {
54.                             // 获取服务器响应返回的SOAP消息
55.                             SoapObject result = (SoapObject) soapserial.bodyIn;
56.                             SoapObject detail = (SoapObject) result
57.                                     .getProperty("getSupportProvinceResult");
58.                             // 解析返回信息
59.                             for (int i = 0; i < detail.getPropertyCount(); i++) {
60.                                 citys.add(detail.getProperty(i).toString());
61.                             }
62.                             return citys;
63.                         }
64.                         return null;
65.                     }
66.                 });
67.         new Thread(future).start();
68.         try {
69.             return future.get();
70.         } catch (InterruptedException e) {
71.             // TODO Auto-generated catch block
72.             e.printStackTrace();
73.         } catch (ExecutionException e) {
74.             // TODO Auto-generated catch block
75.             e.printStackTrace();
76.         }
77.         return null;
78.     }
79.
80.     /**
81.      *
82.      * @param citys
83.      *            省份
84.      * @return 该省下的所有城市
85.      */
86.     public static List<String> getCity(String citys) {
87.
88.         // 创建HttpTransportSE对象
89.         final HttpTransportSE httpSE = new HttpTransportSE(SERVER_URL);
90.         httpSE.debug = true;
91.         // 创建SoapObject对象
92.         SoapObject soapObject = new SoapObject(PACE, MC_NAME);
93.         // 添加参数
94.         soapObject.addProperty("byProvinceName ", citys);
95.         // 创建SoapSerializationEnvelope
96.         final SoapSerializationEnvelope serializa = new SoapSerializationEnvelope(
97.                 SoapEnvelope.VER11);
98.         serializa.bodyOut = soapObject;
99.         serializa.dotNet = true;
100.         FutureTask<List<String>> future = new FutureTask<List<String>>(
101.                 new Callable<List<String>>() {
102.
103.                     @Override
104.                     public List<String> call() throws Exception {
105.                         List<String> city = new ArrayList<String>();
106.                         // 调用Web Service
107.                         httpSE.call(PACE + MC_NAME, serializa);
108.                         // 获取返回信息
109.                         if (serializa.getResponse() != null) {
110.                             SoapObject restul = (SoapObject) serializa.bodyIn;
111.                             SoapObject detial = (SoapObject) restul
112.                                     .getProperty("getSupportCityResult");
113.                             // 解析返回信息
114.                             for (int i = 0; i < detial.getPropertyCount(); i++) {
115.                                 // 获取城市名
116.                                 String str = detial.getPropertyAsString(i)
117.                                         .toString();
118.                                 String strCity = str.substring(0,
119.                                         str.indexOf("(") - 1);
120.                                 city.add(strCity);
121.                             }
122.                             return city;
123.                         }
124.                         return null;
125.                     }
126.                 });
127.         new Thread(future).start();
128.         try {
129.             return future.get();
130.         } catch (InterruptedException e) {
131.             // TODO Auto-generated catch block
132.             e.printStackTrace();
133.         } catch (ExecutionException e) {
134.             // TODO Auto-generated catch block
135.             e.printStackTrace();
136.         }
137.         return null;
138.     }
139.
140.     // 获取三天之内的天气详情
141.     public static List<String> getWeather(String citys) {
142.         final HttpTransportSE httpSe = new HttpTransportSE(SERVER_URL);
143.         httpSe.debug = true;
144.         SoapObject soapObject = new SoapObject(PACE, W_NAME);
145.         soapObject.addProperty("theCityName", citys);
146.         final SoapSerializationEnvelope serializa = new SoapSerializationEnvelope(
147.                 SoapEnvelope.VER11);
148.         serializa.bodyOut = soapObject;
149.         serializa.dotNet = true;
150.         FutureTask<List<String>> future = new FutureTask<List<String>>(
151.                 new Callable<List<String>>() {
152.                     @Override
153.                     public List<String> call() throws Exception {
154.                         List<String> list = new ArrayList<String>();
155.                         // 调用webservice
156.                         httpSe.call(PACE+W_NAME, serializa);
157.                         // 获取返回信息
158.                         if (serializa.getResponse() != null) {
159.                             SoapObject result = (SoapObject) serializa.bodyIn;
160.                             SoapObject deialt = (SoapObject) result
161.                                     .getProperty("getWeatherbyCityNameResult");
162.                             // 解析数据
163.                             for (int i = 0; i < deialt.getPropertyCount(); i++) {
164.                                 list.add(deialt.getProperty(i).toString());
165.                             }
166.                         }
167.                         return list;
168.                     }
169.                 });
170.         new Thread(future).start();
171.         try {
172.             return future.get();
173.         } catch (InterruptedException e) {
174.             // TODO Auto-generated catch block
175.             e.printStackTrace();
176.         } catch (ExecutionException e) {
177.             // TODO Auto-generated catch block
178.             e.printStackTrace();
179.         }
180.         return null;
181.     }
182.
183. }

ChangeImageView.java

1. package com.example.webserviceteset;
2.
3. public class ChangeImageView {
4.     // 由于下载下来的图片分 大中小 三种 而调用远程webserivce获取的值是小的图片名 所以的 根据获取的图片名称来获取向对应的大图片ID
5.     public static int imageId(String ids) {
6.
7.         int id = R.drawable.a_0;
8.         int ided =Integer.parseInt(ids.substring(0, ids.indexOf(".")));
9.         switch (ided) {
10.         case 1:
11.             id = R.drawable.a_1;
12.             break;
13.         case 2:
14.             id = R.drawable.a_2;
15.             break;
16.         case 3:
17.             id = R.drawable.a_3;
18.             break;
19.         case 4:
20.             id = R.drawable.a_4;
21.             break;
22.         case 5:
23.             id = R.drawable.a_5;
24.             break;
25.         case 6:
26.             id = R.drawable.a_6;
27.             break;
28.         case 7:
29.             id = R.drawable.a_7;
30.             break;
31.         case 8:
32.             id = R.drawable.a_8;
33.             break;
34.         case 9:
35.             id = R.drawable.a_9;
36.             break;
37.         case 10:
38.             id = R.drawable.a_10;
39.             break;
40.         case 11:
41.             id = R.drawable.a_11;
42.             break;
43.         case 12:
44.             id = R.drawable.a_12;
45.             break;
46.         case 13:
47.             id = R.drawable.a_13;
48.             break;
49.         case 14:
50.             id = R.drawable.a_1;
51.             break;
52.         case 15:
53.             id = R.drawable.a_15;
54.             break;
55.         case 16:
56.             id = R.drawable.a_16;
57.             break;
58.         case 17:
59.             id = R.drawable.a_17;
60.             break;
61.         case 18:
62.             id = R.drawable.a_18;
63.             break;
64.         case 19:
65.             id = R.drawable.a_19;
66.             break;
67.         case 20:
68.             id = R.drawable.a_20;
69.             break;
70.         case 21:
71.             id = R.drawable.a_21;
72.             break;
73.         case 22:
74.             id = R.drawable.a_22;
75.             break;
76.         case 23:
77.             id = R.drawable.a_23;
78.             break;
79.         case 24:
80.             id = R.drawable.a_24;
81.             break;
82.         case 25:
83.             id = R.drawable.a_25;
84.             break;
85.         case 26:
86.             id = R.drawable.a_26;
87.             break;
88.         case 27:
89.             id = R.drawable.a_27;
90.             break;
91.         case 28:
92.             id = R.drawable.a_28;
93.             break;
94.         case 29:
95.             id = R.drawable.a_29;
96.             break;
97.         case 30:
98.             id = R.drawable.a_30;
99.             break;
100.         }
101.         return id;
102.     }
103. }

activity_main.xml

1. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
2.     xmlns:tools="http://schemas.android.com/tools"
3.     android:layout_width="match_parent"
4.     android:layout_height="match_parent"
5.     android:orientation="vertical"
6.     tools:context=".MainActivity" >
7.
8.     <LinearLayout
9.         android:layout_width="wrap_content"
10.         android:layout_height="wrap_content"
11.         android:orientation="horizontal" >
12.
13.         <Spinner
14.             android:id="@+id/citys"
15.             android:layout_width="match_parent"
16.             android:layout_height="wrap_content" />
17.         <Spinner
18.             android:id="@+id/city"
19.             android:layout_width="match_parent"
20.             android:layout_height="wrap_content" />
21.     </LinearLayout>
22.
23.     <LinearLayout
24.         android:layout_width="wrap_content"
25.         android:layout_height="wrap_content"
26.         android:orientation="horizontal" >
27.
28.         <TextView
29.             android:id="@+id/cityNames1"
30.             android:layout_width="wrap_content"
31.             android:layout_height="wrap_content" />
32.
33.         <ImageView
34.             android:id="@+id/weateImage1"
35.             android:layout_width="wrap_content"
36.             android:layout_height="wrap_content" />
37.     </LinearLayout>
38.
39.     <LinearLayout
40.         android:layout_width="wrap_content"
41.         android:layout_height="wrap_content"
42.         android:orientation="horizontal" >
43.
44.         <TextView
45.             android:id="@+id/cityNames2"
46.             android:layout_width="wrap_content"
47.             android:layout_height="wrap_content" />
48.
49.         <ImageView
50.             android:id="@+id/weateImage2"
51.             android:layout_width="wrap_content"
52.             android:layout_height="wrap_content" />
53.     </LinearLayout>
54.
55.     <LinearLayout
56.         android:layout_width="wrap_content"
57.         android:layout_height="wrap_content"
58.         android:orientation="horizontal" >
59.
60.         <TextView
61.             android:id="@+id/cityNames3"
62.             android:layout_width="wrap_content"
63.             android:layout_height="wrap_content" />
64.
65.         <ImageView
66.             android:id="@+id/weateImage3"
67.             android:layout_width="wrap_content"
68.             android:layout_height="wrap_content" />
69.     </LinearLayout>
70.
71.     <LinearLayout
72.         android:layout_width="wrap_content"
73.         android:layout_height="wrap_content"
74.         android:orientation="horizontal" >
75.
76.         <TextView
77.             android:id="@+id/cityjie"
78.             android:layout_width="match_parent"
79.             android:layout_height="wrap_content"
80.             android:lines="6" />
81.     </LinearLayout>
82.
83. </LinearLayout>
84. AndroidManifest.xmlAndroidManifest.xml

AndroidManifest.xml

1. <?xml version="1.0" encoding="utf-8"?>
2. <manifest xmlns:android="http://schemas.android.com/apk/res/android"
3.     package="com.example.webserviceteset"
4.     android:versionCode="1"
5.     android:versionName="1.0" >
6.
7.     <uses-sdk
8.         android:minSdkVersion="11"
9.         android:targetSdkVersion="17" />
10.     <uses-permission
11.         android:name="android.permission.INTERNET"/>
12.
13.     <application
14.         android:allowBackup="true"
15.         android:icon="@drawable/ic_launcher"
16.         android:label="@string/app_name"
17.         android:theme="@style/AppTheme" >
18.         <activity
19.             android:name="com.example.webserviceteset.MainActivity"
20.             android:label="@string/app_name" >
21.             <intent-filter>
22.                 <action android:name="android.intent.action.MAIN" />
23.
24.                 <category android:name="android.intent.category.LAUNCHER" />
25.             </intent-filter>
26.         </activity>
27.     </application>
28.
29. </manifest>

源代码下载的地址：http://files.cnblogs.com/android100/WebServiceTeset.rar
