SilverLight-DataBinding：二、Bingding to a Collection Objects(绑定一个集合对象)_.NET_编程开发_程序员俱乐部

ylbtech-SilverLight-DataBinding: Bingding to a Collection Objects(绑定一个集合对象)

• 1.A, Building  a Data Object(创建一个数据对象)
• 1.B, Calling a Data Service(调用一个数据服务)【测试数据】
• 1.C, Binding to a Collection of Objects(绑定一个对象集合)
• 1.D, Binding to a Collection of Objects 2(绑定一个对象集合 2)

1.A, Building  a Data Object(创建一个数据对象)返回顶部
/Access/Prouct.cs class="code_img_closed" src="/Upload/Images/2013111810/0015B68B3C38AA5B.gif" alt="" />logs_code_hide('48410024-1478-422e-9210-b5d1bbab9226',event)" src="/Upload/Images/2013111810/2B1B950FA3DF188F.gif" alt="" />

using System;

using System.Collections.Generic;
using System.Linq;
using System.ComponentModel.DataAnnotations;
namespace SLYlbtechApp.Access
{
    /// <summary>
    /// 产品类
    /// </summary>
    public class Product
    {
        int productId;
        /// <summary>
        /// 编号【PK】
        /// </summary>
        public int ProductId
        {
            get { return productId; }
            set { productId = value; }
        }
        string productName;
        /// <summary>
        /// 产品名称
        /// </summary>
        public string ProductName
        {
            get
            {
                return productName;
            }
            set
            {
                if (value=="") throw new ArgumentException("不能为空");
                productName = value;
            }
        }
        string quantityPerUnit;
        /// <summary>
        /// 产品规格
        /// </summary>
        public string QuantityPerUnit
        {
            get { return quantityPerUnit; }
            set { quantityPerUnit = value; }
        }
        /// <summary>
        /// 单位价格
        /// 注意 不要使用 decimal 类型，在 UserControl.Resounrce 资源绑定是引发类型转换异常
        /// </summary>
        double unitPrice;
        [Display(Name="价格",Description="价格不能小于0")]
        public double UnitPrice
        {
            get { return unitPrice; }
            set
            {
                if (value < 0) throw new ArgumentException("不能小于0");
                unitPrice = value;
            }
        }
        string description;
        /// <summary>
        /// 描述
        /// </summary>
        public string Description
        {
            get { return description; }
            set { description = value; }
        }
        string productImagePath;
        /// <summary>
        /// 产品图片地址
        /// </summary>
        public string ProductImagePath
        {
            get { return productImagePath; }
            set { productImagePath = value; }
        }
        string categoryName;
        /// <summary>
        /// 类别名称
        /// </summary>
        public string CategoryName
        {
            get { return categoryName; }
            set { categoryName = value; }
        }

        /// <summary>
        /// 空参构造
        /// </summary>
        public Product()
        { }
        /// <summary>
        /// 全参构造
        /// </summary>
        /// <param name="productId"></param>
        /// <param name="productName"></param>
        /// <param name="quantityPerUnit"></param>
        /// <param name="unitPrice"></param>
        /// <param name="description"></param>
        /// <param name="productImagePath"></param>
        /// <param name="categoryName"></param>
        public Product(int productId, string productName, string quantityPerUnit, double unitPrice, string description
            , string productImagePath, string categoryName)
        {
            ProductId = productId;
            ProductName=productName;
            QuantityPerUnit=quantityPerUnit;
            UnitPrice=unitPrice;
            Description=description;

            ProductImagePath=productImagePath;
            CategoryName=categoryName;
        }

        /// <summary>
        /// 获取全部产品
        /// </summary>
        /// <returns></returns>
        public static IList<Product> GetAll()
        {
            IList<Product> dals = new List<Product>();
            string categoryName = string.Empty;
            string productImagePath = string.Empty;
            string description = "嗟夫！草木无情，有时飘零。人为动物，惟物之灵。百忧感其心，万事劳其形，有动于中，必摇其精。而况思其力之所不及，忧其智之所不能，宜其渥然丹者为槁木，黟然黑者为星星。奈何以非金石之质，欲与草木而争荣？念谁为之戕贼，亦何恨乎秋声！";
            #region Add Product

            #region 饮料
            categoryName = "饮料";
            productImagePath = "../Images/pencil.jpg";

            dals.Add(new Product()
            {
                ProductId = 100,
                ProductName = "啤酒",
                QuantityPerUnit = "1箱*6听",
                UnitPrice = 10d,
                CategoryName = categoryName
                ,
                ProductImagePath = productImagePath,
                Description = description
            });

            dals.Add(new Product()
            {
                ProductId = 120,
                ProductName = "绿茶",
                QuantityPerUnit = "500ml",
                UnitPrice = 3d,
                CategoryName = categoryName
                ,
                ProductImagePath = productImagePath,
                Description = description
            });

            dals.Add(new Product()
            {
                ProductId = 190,
                ProductName = "红茶",
                QuantityPerUnit = "500ml",
                UnitPrice = 3d,
                CategoryName = categoryName
                ,
                ProductImagePath = productImagePath,
                Description = description
            });
            dals.Add(new Product()
            {
                ProductId = 102,
                ProductName = "纯净水",
                QuantityPerUnit = "500ml",
                UnitPrice = 1.5d,
                CategoryName = categoryName
                ,
                ProductImagePath = productImagePath,
                Description = description
            });
            #endregion

            #region 零食
            categoryName = "零食";
            productImagePath = "../Images/pencil2.jpg";

            dals.Add(new Product()
            {
                ProductId = 200,
                ProductName = "奥利奥巧克力饼干",
                QuantityPerUnit = "10 boxes x 20 bags",
                UnitPrice = 30d,
                CategoryName = categoryName
                ,
                ProductImagePath = productImagePath,
                Description = description
            });

            dals.Add(new Product()
            {
                ProductId = 220,
                ProductName = "玻璃 海苔",
                QuantityPerUnit = "20g",
                UnitPrice = 13d,
                CategoryName = categoryName
                ,
                ProductImagePath = productImagePath,
                Description = description
            });

             dals.Add(new Product()
             {
                 ProductId = 210,
                 ProductName = "好丽友 薯片",
                 QuantityPerUnit = "100g",
                 UnitPrice = 3d,
                 CategoryName = categoryName
                 ,
                 ProductImagePath = productImagePath,
                 Description = description
             });
             dals.Add(new Product()
             {
                 ProductId = 201,
                 ProductName = "统一 老坛酸菜面",
                 QuantityPerUnit = "1 盒",
                 UnitPrice = 8.5d,
                 CategoryName = categoryName
                 ,
                 ProductImagePath = productImagePath,
                 Description = description
             });
            #endregion

            #endregion
             return dals;
        }
        /// <summary>
        /// GetModel
        /// </summary>
        /// <returns></returns>
        public static Product GetModel()
        {
            Product dal = null;

            string categoryName = string.Empty;
            string productImagePath = string.Empty;
            string description = "嗟夫！草木无情，有时飘零。人为动物，惟物之灵。百忧感其心，万事劳其形，有动于中，必摇其精。而况思其力之所不及，忧其智之所不能，宜其渥然丹者为槁木，黟然黑者为星星。奈何以非金石之质，欲与草木而争荣？念谁为之戕贼，亦何恨乎秋声！";

            categoryName = "饮料";
            productImagePath = "Images/pencil.jpg";
            dal = new Product()
            {
                ProductId = 100,
                ProductName = "啤酒",
                QuantityPerUnit = "1箱*6听",
                UnitPrice=3.5,
                CategoryName = categoryName
                ,
                ProductImagePath = productImagePath,
                Description = description
            };
            //dal._unitPrice = 10d;
            return dal;
        }
        /// <summary>
        /// GetModel
        /// </summary>
        /// <param name="id">产品编号</param>
        /// <returns></returns>
        public static Product GetModel(int id)
        {
            Product dal = null;
            IList<Product> dals = GetAll();
            try
            {
                dal = dals.Single(p => p.ProductId == id);
            }
            catch { }
            finally
            {
                dals = null;
            }
            return dal;
        }
    }
}

View Code

/DataBinding/PriceConverter.cs

using System;

using System.Windows.Data;
using System.Globalization;
namespace SLYlbtechApp.DataBinding
{
    /// <summary>
    /// 价格格式转换器
    /// </summary>
    public class PriceConverter:IValueConverter
    {
        public object Convert(object value, Type targetType, object parameter,
            CultureInfo culture)
        {
            double price = (double)value;
            return price.ToString("C", culture);
        }

        public object ConvertBack(object value, Type targetType, object parameter,
            CultureInfo culture)
        {
            string price = value.ToString();
            double result;
            if (double.TryParse(price, NumberStyles.Any, culture, out result))
            {
                return result;
            }
            return value;
        }
    }
}

View Code

4,

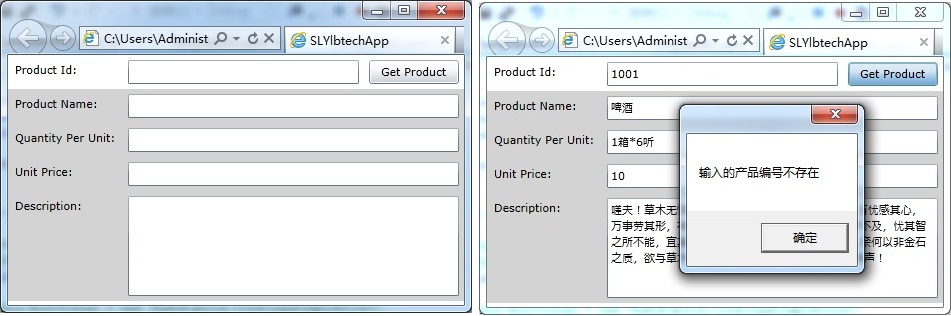

1.B, Calling a Data Service(调用一个数据服务)【测试数据】返回顶部 1, 2, 2.1/3,[无] 2.2/3,

<Grid x:Name="LayoutRoot" Background="White">
    <Grid.RowDefinitions>
        <RowDefinition Height="Auto"></RowDefinition>
        <RowDefinition Height="Auto"></RowDefinition>
    </Grid.RowDefinitions>
    <Grid Grid.Row="0">
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="115"></ColumnDefinition>
            <ColumnDefinition Width="*"></ColumnDefinition>
            <ColumnDefinition Width="100"></ColumnDefinition>
        </Grid.ColumnDefinitions>
        <TextBlock Grid.Row="0" Grid.Column="0" Margin="7">Product Id:</TextBlock>
        <TextBox Grid.Row="0" Grid.Column="1" Margin="5" Name="txtProductId"></TextBox>
        <Button  Grid.Row="0" Grid.Column="2" Margin="5" Name="btnSearchProduct"
                    Content="Get Product" Click="btnSearchProduct_Click"></Button>
    </Grid>
    <Grid Grid.Row="1" x:Name="gridDetailProduct" Background="LightGray" >
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"></RowDefinition>
            <RowDefinition Height="Auto"></RowDefinition>
            <RowDefinition Height="Auto"></RowDefinition>
            <RowDefinition Height="Auto"></RowDefinition>
            <RowDefinition Height="Auto"></RowDefinition>
        </Grid.RowDefinitions>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="115"></ColumnDefinition>
            <ColumnDefinition Width="*"></ColumnDefinition>
        </Grid.ColumnDefinitions>

        <TextBlock Grid.Row="0" Grid.Column="0" Margin="7">Product Name:</TextBlock>
        <TextBox Grid.Row="0" Grid.Column="1" Margin="5" Text="{Binding ProductName}"></TextBox>


        <TextBlock Grid.Row="1" Grid.Column="0" Margin="7">Quantity Per Unit:</TextBlock>
        <TextBox Grid.Row="1" Grid.Column="1" Margin="5" Text="{Binding QuantityPerUnit}"></TextBox>

        <TextBlock Grid.Row="2" Grid.Column="0" Margin="7">Unit Price:</TextBlock>
        <TextBox Grid.Row="2" Grid.Column="1" Margin="5" Text="{Binding UnitPrice}"></TextBox>

        <TextBlock Grid.Row="3" Grid.Column="0" Margin="7">Description:</TextBlock>
        <TextBox Grid.Row="3" Grid.Column="1" Grid.RowSpan="2" Margin="5" Height="100" Text="{Binding Description}" TextWrapping="Wrap" ></TextBox>
    </Grid>
</Grid>

View Code

2.3/3,

using System.Windows.Controls;
using System.Windows;
using SLYlbtechApp.Access;
namespace SLYlbtechApp.ABindingToDataObjects
{
    public partial class TemplateB1 : UserControl
    {
        public TemplateB1()
        {
            InitializeComponent();
        }
        //根据产品编号查找产品
        private void btnSearchProduct_Click(object sender, System.Windows.RoutedEventArgs e)
        {
            int id = 0;
            if (int.TryParse(this.txtProductId.Text.Trim(), out id))
            {
                Product dal = Product.GetModel(id);
                if (dal == null)
                {
                    MessageBox.Show("输入的产品编号不存在");
                }
                else
                {
                    this.gridDetailProduct.DataContext = dal;
                }
            }
            else
            {
                MessageBox.Show("输入的产品编号错误");
            }
        }
    }
}

3,

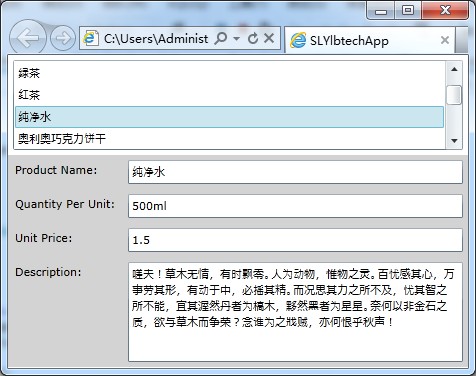

4, 1.C, Binding to a Collection of Objects(绑定一个对象集合)返回顶部 1, 2, 2.1/3,

xmlns:local="clr-namespace:SLYlbtechApp.DataBinding"

2.2/3,

<UserControl.Resources>
    <local:PriceConverter x:Key="PriceConverter"></local:PriceConverter>
    <!--<local:ImagePathConverter x:Key="ImagePathConverter"></local:ImagePathConverter>-->
</UserControl.Resources>
    <Grid x:Name="LayoutRoot" Background="White">
    <Grid.RowDefinitions>
        <RowDefinition Height="Auto"></RowDefinition>
        <RowDefinition Height="Auto"></RowDefinition>
    </Grid.RowDefinitions>
    <Grid Grid.Row="0">
        <Grid.RowDefinitions>
            <RowDefinition Height="100"></RowDefinition>
            <RowDefinition Height="Auto"></RowDefinition>
        </Grid.RowDefinitions>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="115"></ColumnDefinition>
            <ColumnDefinition Width="*"></ColumnDefinition>
            <ColumnDefinition Width="100"></ColumnDefinition>
        </Grid.ColumnDefinitions>
        <ListBox Grid.Row="0" Grid.ColumnSpan="3" Margin="5" Name="lstProduct" DisplayMemberPath="ProductName"></ListBox>
        <Button  Grid.Row="1" Grid.Column="2" Margin="5" Name="btnSearchProduct" Content="Get Product" Click="btnSearchProduct_Click"></Button>
    </Grid>
    <Grid Grid.Row="1" x:Name="gridDetailProduct" Background="LightGray" Height="800" >
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"></RowDefinition>
            <RowDefinition Height="Auto"></RowDefinition>
            <RowDefinition Height="Auto"></RowDefinition>
            <RowDefinition Height="Auto"></RowDefinition>
            <RowDefinition Height="Auto"></RowDefinition>
            <RowDefinition Height="Auto"></RowDefinition>
        </Grid.RowDefinitions>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="115"></ColumnDefinition>
            <ColumnDefinition Width="*"></ColumnDefinition>
        </Grid.ColumnDefinitions>

        <TextBlock Grid.Row="0" Grid.Column="0" Margin="7">Product Name:</TextBlock>
        <TextBox Grid.Row="0" Grid.Column="1" Margin="5" Text="{Binding ProductName}"></TextBox>


        <TextBlock Grid.Row="1" Grid.Column="0" Margin="7">Quantity Per Unit:</TextBlock>
        <TextBox Grid.Row="1" Grid.Column="1" Margin="5" Text="{Binding QuantityPerUnit}"></TextBox>

        <TextBlock Grid.Row="2" Grid.Column="0" Margin="7">Unit Price:</TextBlock>
        <TextBox Grid.Row="2" Grid.Column="1" Margin="5" Text="{Binding UnitPrice,Converter={StaticResource PriceConverter}}"></TextBox>

        <TextBlock Grid.Row="3" Grid.Column="0" Margin="7">Description:</TextBlock>
        <TextBox Grid.Row="3" Grid.Column="1" Grid.RowSpan="2" Margin="5" Height="100" Text="{Binding Description}" TextWrapping="Wrap" ></TextBox>

        <Image Grid.Row="5" Grid.Column="1" Source="{Binding ProductImagePath}"  Height="100" Width="100" ></Image>
    </Grid>
</Grid>

View Code

2.3/3,

using System.Windows.Controls;
using System.Windows;
using SLYlbtechApp.Access;
namespace SLYlbtechApp.ABindingToDataObjects
{
    public partial class TemplateB2 : UserControl
    {
        public TemplateB2()
        {
            InitializeComponent();
            this.lstProduct.ItemsSource = Product.GetAll();
        }

        private void btnSearchProduct_Click(object sender, System.Windows.RoutedEventArgs e)
        {
            if (this.lstProduct.SelectedIndex == -1)
            {
                MessageBox.Show("请选择列表框中的商品");
            }
            else
            {
                //方式一
                //Product dal = (Product)this.lstProduct.SelectedItem;
                //this.gridDetailProduct.DataContext = dal;

                //方式二
                this.gridDetailProduct.DataContext = this.lstProduct.SelectedItem;
            }
        }
    }
}

3,

3.A,ListBox 绑定

3.A.Code,

<ListBox Grid.Row="0" Grid.ColumnSpan="3" Margin="5" Name="lstProduct" DisplayMemberPath="ProductName"></ListBox>

3.A.Desc,
DisplayMemberPath[绑定集合里的属性名称]

3.B,产品价格格式转换

3.B.1/3,

xmlns:local="clr-namespace:SLYlbtechApp.DataBinding"

3.B.2/3,

<UserControl.Resources>
    <local:PriceConverter x:Key="PriceConverter"></local:PriceConverter>
</UserControl.Resources>

3.B.3/3,

<TextBox Grid.Row="2" Grid.Column="1" Margin="5" Text="{Binding UnitPrice,Converter={StaticResource PriceConverter}}"></TextBox>

4,

1.D,Binding to a Collection of Objects 2(绑定一个对象集合 2)返回顶部 1, 2, 2.1/3,[无] 2.2/3,

<Grid x:Name="LayoutRoot" Background="White">
    <Grid.RowDefinitions>
        <RowDefinition Height="Auto"></RowDefinition>
        <RowDefinition Height="Auto"></RowDefinition>
    </Grid.RowDefinitions>
    <Grid Grid.Row="0">
        <Grid.RowDefinitions>
            <RowDefinition Height="100"></RowDefinition>
        </Grid.RowDefinitions>
        <ListBox Grid.Row="0" Grid.ColumnSpan="3" Margin="5" Name="lstProduct" DisplayMemberPath="ProductName" SelectionChanged="lstProduct_SelectionChanged"></ListBox>
    </Grid>
    <Grid Grid.Row="1" x:Name="gridDetailProduct" Background="LightGray" >
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"></RowDefinition>
            <RowDefinition Height="Auto"></RowDefinition>
            <RowDefinition Height="Auto"></RowDefinition>
            <RowDefinition Height="Auto"></RowDefinition>
            <RowDefinition Height="Auto"></RowDefinition>
        </Grid.RowDefinitions>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="115"></ColumnDefinition>
            <ColumnDefinition Width="*"></ColumnDefinition>
        </Grid.ColumnDefinitions>

        <TextBlock Grid.Row="0" Grid.Column="0" Margin="7">Product Name:</TextBlock>
        <TextBox Grid.Row="0" Grid.Column="1" Margin="5" Text="{Binding ProductName}"></TextBox>


        <TextBlock Grid.Row="1" Grid.Column="0" Margin="7">Quantity Per Unit:</TextBlock>
        <TextBox Grid.Row="1" Grid.Column="1" Margin="5" Text="{Binding QuantityPerUnit}"></TextBox>

        <TextBlock Grid.Row="2" Grid.Column="0" Margin="7">Unit Price:</TextBlock>
        <TextBox Grid.Row="2" Grid.Column="1" Margin="5" Text="{Binding UnitPrice}"></TextBox>

        <TextBlock Grid.Row="3" Grid.Column="0" Margin="7">Description:</TextBlock>
        <TextBox Grid.Row="3" Grid.Column="1" Grid.RowSpan="2" Margin="5" Height="100" Text="{Binding Description}" TextWrapping="Wrap" ></TextBox>
    </Grid>
</Grid>

View Code

2.3/3,

using System.Windows.Controls;

using SLYlbtechApp.Access;
namespace SLYlbtechApp.ABindingToDataObjects
{
    public partial class TemplateBb2 : UserControl
    {
        public TemplateBb2()
        {
            InitializeComponent();
            this.lstProduct.ItemsSource = Product.GetAll();
        }
        /// <summary>
        /// 列表框选项改变事件
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void lstProduct_SelectionChanged(object sender, SelectionChangedEventArgs e)
        {
            //方式一
            //Product dal = (Product)this.lstProduct.SelectedItem;
            //this.gridDetailProduct.DataContext = dal;

            //方式二
            this.gridDetailProduct.DataContext = this.lstProduct.SelectedItem;
        }
    }
}

3,

3.A, 同上文 D.3.A

4, 1.E,返回顶部   作者：ylbtech
出处：http://ylbtech.cnblogs.com/
本文版权归作者和博客园共有，欢迎转载，但未经作者同意必须保留此段声明，且在文章页面明显位置给出原文连接，否则保留追究法律责任的权利。
