ylbtech-SilverLight-Layout: 布局（2）GridSplitter（网格分割）垂直分割、水平分割

• A, Splitter（分割）对象之 GridSplitter（网格分割）1：垂直分割
• B,Splitter（分割）对象之 GridSplitter（网格分割）2：水平分割
• C,Splitter（分割）对象之 GridSplitter（网格分割）3：Grid嵌套水平分割
• D, Splitter（分割）对象之 GridSplitter（网格分割）3：Grid嵌套水平分割+垂直分割

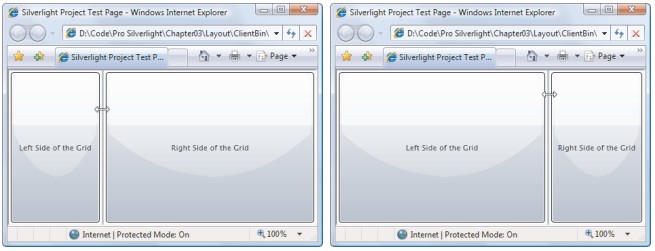

1.A, Splitter（分割）对象之 GridSplitter（网格分割）1：垂直分割返回顶部 1, 2, 2.1/2, <UserControl >中加一个引用

 xmlns:controls="clr-namespace:System.Windows.Controls;assembly=System.Windows.Controls"

2.2/2,

<Grid Background="White">
    <Grid.ColumnDefinitions>
        <ColumnDefinition Width="100"></ColumnDefinition>
        <ColumnDefinition Width="Auto"></ColumnDefinition>
        <ColumnDefinition Width="*"></ColumnDefinition>
    </Grid.ColumnDefinitions>
    <Button Grid.Column="0" Margin="3" Content="Left side of the grid"></Button>
    <controls:GridSplitter Grid.Column="1" Background="LightGray" Width="3"
                            VerticalAlignment="Stretch" HorizontalAlignment="Center"
                            ShowsPreview="False"/>
    <Button Grid.Column="2" Margin="3" Content="Right side of the grid"></Button>
</Grid>

3, Width=[Auto[自动大小]|*[其他]], Background

, Grid.Column[网格列坐标], VerticalAlignment[竖直对齐], HorizontalAlignment[水平对齐], ShowsPreview[显示预览]

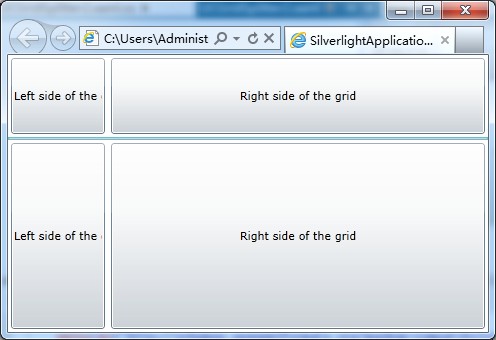

4, 1.B,Splitter（分割）对象之 GridSplitter（网格分割）2：水平分割返回顶部 1, 2, 2.1/2, 同上文 A.2.1/2 2.2/2,

<Grid Background="White">
    <Grid.RowDefinitions>
        <RowDefinition Height="80"></RowDefinition>
        <RowDefinition Height="Auto"></RowDefinition>
        <RowDefinition Height="*"></RowDefinition>
    </Grid.RowDefinitions>
    <Grid.ColumnDefinitions>
        <ColumnDefinition Width="100"></ColumnDefinition>
        <ColumnDefinition Width="Auto"></ColumnDefinition>
        <ColumnDefinition Width="*"></ColumnDefinition>
    </Grid.ColumnDefinitions>
    <Button Grid.Column="0" Margin="3" Content="Left side of the grid"></Button>
    <Button Grid.Row="2" Grid.Column="0" Margin="3" Content="Left side of the grid"></Button>
    <controls:GridSplitter Grid.Row="1" Grid.ColumnSpan="3" Background="LightGray" Height="3"
                            VerticalAlignment="Center" HorizontalAlignment="Stretch"
                            ShowsPreview="False"/>
    <Button Grid.Row="0" Grid.Column="2" Margin="3" Content="Right side of the grid"></Button>

    <Button Grid.Row="2"  Grid.Column="2" Margin="3" Content="Right side of the grid"></Button>
</Grid>

3,

+, Grid.ColumnSpan[合并列]

4, 1.C,Splitter（分割）对象之 GridSplitter（网格分割）3：Grid嵌套水平分割返回顶部 1, 2, 2.1/2, 同上文 A.2.1/2 2.2/2,

<Grid Background="White">
    <Grid.ColumnDefinitions>
        <ColumnDefinition Width="100"></ColumnDefinition>
        <ColumnDefinition Width="*"></ColumnDefinition>
    </Grid.ColumnDefinitions>
    <Button Content="Light side of the grid"></Button>
    <Grid Grid.Column="1">
        <Grid.RowDefinitions>
            <RowDefinition Height="80"></RowDefinition>
            <RowDefinition Height="Auto"></RowDefinition>
            <RowDefinition Height="*"></RowDefinition>
        </Grid.RowDefinitions>
        <controls:GridSplitter Grid.Row="1" Background="LightGray" Height="3"
                            VerticalAlignment="Center" HorizontalAlignment="Stretch"
                            ShowsPreview="False"/>
        <Button Grid.Row="0" Grid.Column="2" Margin="3" Content="Right side of the grid"></Button>
        <Button Grid.Row="2"  Grid.Column="2" Margin="3" Content="Right side of the grid"></Button>
    </Grid>
</Grid>

3,

4, 1.D, Splitter（分割）对象之 GridSplitter（网格分割）3：Grid嵌套水平分割+垂直分割返回顶部 1, 2, 2.1/2, 同上文 A.2.1/2 2.2/2,

<Grid Background="White">
    <Grid.RowDefinitions>
        <RowDefinition Height="100"></RowDefinition>
        <RowDefinition Height="Auto"></RowDefinition>
        <RowDefinition Height="*"></RowDefinition>
    </Grid.RowDefinitions>
    <Grid.ColumnDefinitions>
        <ColumnDefinition Width="100"></ColumnDefinition>
        <ColumnDefinition Width="Auto"></ColumnDefinition>
        <ColumnDefinition Width="*"></ColumnDefinition>
    </Grid.ColumnDefinitions>
    <Button Grid.Column="0" Margin="3" Content="左边"></Button>
    <Button Grid.Row="2" Grid.Column="0" Margin="3" Content="左边"></Button>
    <controls:GridSplitter Grid.Column="1" Grid.RowSpan="3" Background="LightGray" Width="3"
                            VerticalAlignment="Stretch" HorizontalAlignment="Center"
                            ShowsPreview="False"/>
    <Grid Grid.Row="0" Grid.Column="2" Grid.RowSpan="3">
        <Grid.RowDefinitions>
            <RowDefinition Height="80"></RowDefinition>
            <RowDefinition Height="Auto"></RowDefinition>
            <RowDefinition Height="*"></RowDefinition>
        </Grid.RowDefinitions>
        <Button Grid.Row="0" Grid.Column="2" Margin="3" Content="右上"></Button>
        <Button Grid.Row="2"  Grid.Column="2" Margin="3" Content="右下"></Button>
        <controls:GridSplitter Grid.Row="1" Background="LightGray" Height="3"
                            VerticalAlignment="Center" HorizontalAlignment="Stretch"
                            ShowsPreview="False"/>
    </Grid>
</Grid>

3,

4, 1.E,返回顶部   作者：ylbtech
出处：http://ylbtech.cnblogs.com/
