Spring中Quartz的配置_JAVA_编程开发_程序员俱乐部

1. 引入quartz的jar包

2. 建立需要运行的调度的类和方法

?

class="java" name="code">package com.baidu.service;

import java.util.Date;

public class QuartzService{

	public void work(){
		System.out.println("当前时间:"+new Date().toString());
	}

}

?

3.创建调度xml文件

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:jee="http://www.springframework.org/schema/jee" xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:aop="http://www.springframework.org/schema/aop" xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
		http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-3.0.xsd
		http://www.springframework.org/schema/jee http://www.springframework.org/schema/jee/spring-jee-3.0.xsd
		http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-3.0.xsd
		http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.0.xsd"
	default-lazy-init="true">

	<!-- 要调用的工作类 -->
    <bean id="quartzService" class="com.baidu.service.QuartzService"></bean>

    <!-- 启动触发器的配置开始 -->
    <bean name="schedulerFactory" lazy-init="false" class="org.springframework.scheduling.quartz.SchedulerFactoryBean">
        <property name="triggers">
            <list>
                <ref local="taskJobTrigger" />
            </list>
        </property>
    </bean>
    <!-- 启动触发器的配置结束 -->


    <!-- job的配置开始 -->
    <bean id="myJobDetail" class="org.springframework.scheduling.quartz.MethodInvokingJobDetailFactoryBean">
        <property name="targetObject" ref="quartzService"></property>
        <property name="targetMethod" value="work"></property>
        <property name="concurrent" value="false"></property>

    </bean>
    <!-- job的配置结束 -->


    <!-- 调度的配置开始 -->
    <bean id="taskJobTrigger" class="org.springframework.scheduling.quartz.CronTriggerBean">
        <property name="jobDetail">
            <ref bean="myJobDetail" />
        </property>
        <property name="cronExpression">
            <value>0/10 * * * * ?</value>
        </property>
    </bean>
    <!-- 调度的配置结束 -->



</beans>

?

4.引入xml（app-context.xml spring的配置文件）


<import resource="app-scheduling.xml"/>

?

5. web.xml中的配置

<!-- Spring ApplicationContext配置文件的路径,可使用通配符,多个路径用,号分隔 此参数用于后面的Spring Context Loader -->
<context-param>
	<param-name>contextConfigLocation</param-name>
	<param-value>/WEB-INF/classes/application-context.xml</param-value>
</context-param>

<!--Spring的ApplicationContext 载入 -->
<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>

?

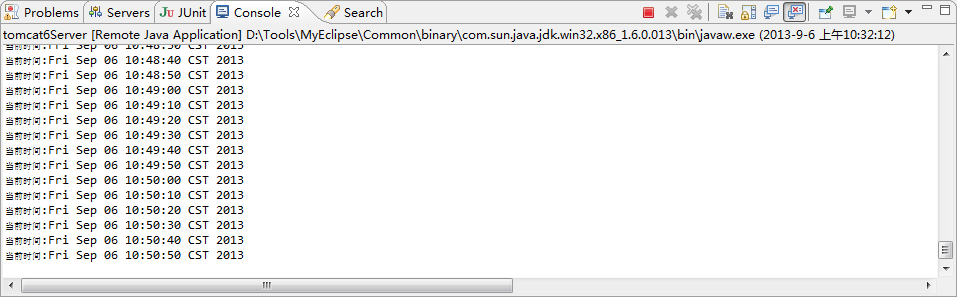

启动tomcat后，如果没有报错的话，就运行work方法了。

?

•
