本文将介绍CountDownLatch工具类，并采用这个工具类给出一个实例。
1. CountDownLatch工具类介绍
CountDownLatch是一个
同步工具类，它允许一个或多个
线程处于等待状态直到在其它线程中运行的一组操作完成为止。CountDownLatch用一个给定的计数来实现初始化。Await方法会一直处于阻塞状态，直到countDown方法调用而使当前计数达到零。当计数为零之后，所有处于等待的线程将被释放，await的任何后续调用将立即返回。这种现象只出现一次，计数是不能被重置的。如果
你需要一个可以重置计数的
版本，需要考虑使用CyclicBarrie.
上面的介绍来自于CountDownLatch类的
注释。
class="java">/**
* A synchronization aid that allows one or more threads to wait until
* a set of operations being performed in other threads completes.
*
* <p>A {@code CountDownLatch} is initialized with a given [i]count[/i].
* The {@link #await await} methods block until the current count reaches
* zero due to invocations of the {@link #countDown} method, after which
* all waiting threads are released and any subsequent invocations of
* {@link #await await} return immediately. This is a one-shot phenomenon
* -- the count cannot be reset. If you need a version that resets the
* count, consider using a {@link CyclicBarrier}.
*
*/

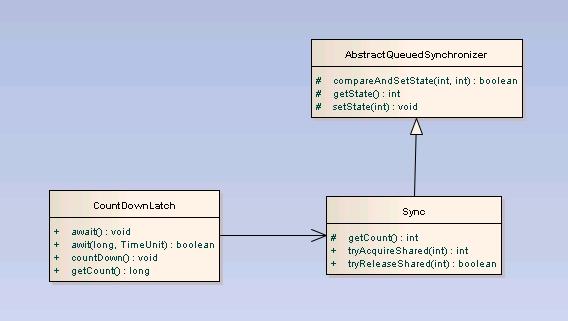

CountDownLatch中定义了一个内部类
Sync，该类继承
AbstractQueuedSynchronizer。从代码中可以看出，
CountDownLatch的await,countDown以及getCount方法都调用了Sync的方法。CountDownLatch工具类相关的类图以及
详细代码如下：
/*
* @(#)CountDownLatch.java 1.5 04/02/09
*
* Copyright 2004 Sun Microsystems, Inc. All rights reserved.
* SUN PROPRIETARY/CONFIDENTIAL. Use is subject to license terms.
*/
package java.util.concurrent;
import java.util.concurrent.locks.*;
import java.util.concurrent.atomic.*;
/**
* A synchronization aid that allows one or more threads to wait until
* a set of operations being performed in other threads completes.
*
* <p>A <tt>CountDownLatch</tt> is initialized with a given
* [i]count[/i]. The {@link #await await} methods block until the current
* {@link #getCount count} reaches zero due to invocations of the
* {@link #countDown} method, after which all waiting threads are
* released and any subsequent invocations of {@link #await await} return
* immediately. This is a one-shot phenomenon -- the count cannot be
* reset. If you need a version that resets the count, consider using
* a {@link CyclicBarrier}.
*
* <p>A <tt>CountDownLatch</tt> is a versatile synchronization tool
* and can be used for a number of purposes. A
* <tt>CountDownLatch</tt> initialized with a count of one serves as a
* simple on/off latch, or gate: all threads invoking {@link #await await}
* wait at the gate until it is opened by a thread invoking {@link
* #countDown}. A <tt>CountDownLatch</tt> initialized to [i]N[/i]
* can be used to make one thread wait until [i]N[/i] threads have
* completed some action, or some action has been completed N times.
* <p>A useful property of a <tt>CountDownLatch</tt> is that it
* doesn't require that threads calling <tt>countDown</tt> wait for
* the count to reach zero before proceeding, it simply prevents any
* thread from proceeding past an {@link #await await} until all
* threads could pass.
*
* <p><b>Sample usage:</b> Here is a pair of classes in which a group
* of worker threads use two countdown latches:
* [list]
* <li>The first is a start signal that prevents any worker from proceeding
* until the driver is ready for them to proceed;
* <li>The second is a completion signal that allows the driver to wait
* until all workers have completed.
* [/list]
*
* <pre>
* class Driver { // ...
* void main() throws InterruptedException {
* CountDownLatch startSignal = new CountDownLatch(1);
* CountDownLatch doneSignal = new CountDownLatch(N);
*
* for (int i = 0; i < N; ++i) // create and start threads
* new Thread(new Worker(startSignal, doneSignal)).start();
*
* doSomethingElse(); // don't let run yet
* startSignal.countDown(); // let all threads proceed
* doSomethingElse();
* doneSignal.await(); // wait for all to finish
* }
* }
*
* class Worker implements Runnable {
* private final CountDownLatch startSignal;
* private final CountDownLatch doneSignal;
* Worker(CountDownLatch startSignal, CountDownLatch doneSignal) {
* this.startSignal = startSignal;
* this.doneSignal = doneSignal;
* }
* public void run() {
* try {
* startSignal.await();
* doWork();
* doneSignal.countDown();
* } catch (InterruptedException ex) {} // return;
* }
*
* void doWork() { ... }
* }
*
* </pre>
*
* <p>Another typical usage would be to divide a problem into N parts,
* describe each part with a Runnable that executes that portion and
* counts down on the latch, and queue all the Runnables to an
* Executor. When all sub-parts are complete, the coordinating thread
* will be able to pass through await. (When threads must repeatedly
* count down in this way, instead use a {@link CyclicBarrier}.)
*
* <pre>
* class Driver2 { // ...
* void main() throws InterruptedException {
* CountDownLatch doneSignal = new CountDownLatch(N);
* Executor e = ...
*
* for (int i = 0; i < N; ++i) // create and start threads
* e.execute(new WorkerRunnable(doneSignal, i));
*
* doneSignal.await(); // wait for all to finish
* }
* }
*
* class WorkerRunnable implements Runnable {
* private final CountDownLatch doneSignal;
* private final int i;
* WorkerRunnable(CountDownLatch doneSignal, int i) {
* this.doneSignal = doneSignal;
* this.i = i;
* }
* public void run() {
* try {
* doWork(i);
* doneSignal.countDown();
* } catch (InterruptedException ex) {} // return;
* }
*
* void doWork() { ... }
* }
*
* </pre>
*
* @since 1.5
* @author Doug Lea
*/
public class CountDownLatch {
/**
* Synchronization control For CountDownLatch.
* Uses AQS state to represent count.
*/
private static final class Sync extends AbstractQueuedSynchronizer {
Sync(int count) {
setState(count);
}
int getCount() {
return getState();
}
public int tryAcquireShared(int acquires) {
return getState() == 0? 1 : -1;
}
public boolean tryReleaseShared(int releases) {
// Decrement count; signal when transition to zero
for (;;) {
int c = getState();
if (c == 0)
return false;
int nextc = c-1;
if (compareAndSetState(c, nextc))
return nextc == 0;
}
}
}
private final Sync sync;
/**
* Constructs a <tt>CountDownLatch</tt> initialized with the given
* count.
*
* @param count the number of times {@link #countDown} must be invoked
* before threads can pass through {@link #await}.
*
* @throws IllegalArgumentException if <tt>count</tt> is less than zero.
*/
public CountDownLatch(int count) {
if (count < 0) throw new IllegalArgumentException("count < 0");
this.sync = new Sync(count);
}
/**
* Causes the current thread to wait until the latch has counted down to
* zero, unless the thread is {@link Thread#interrupt interrupted}.
*
* <p>If the current {@link #getCount count} is zero then this method
* returns immediately.
* <p>If the current {@link #getCount count} is greater than zero then
* the current thread becomes disabled for thread scheduling
* purposes and lies dormant until one of two things happen:
* [list]
* <li>The count reaches zero due to invocations of the
* {@link #countDown} method; or
* <li>Some other thread {@link Thread#interrupt interrupts} the current
* thread.
* [/list]
* <p>If the current thread:
* [list]
* <li>has its interrupted status set on entry to this method; or
* <li>is {@link Thread#interrupt interrupted} while waiting,
* [/list]
* then {@link InterruptedException} is thrown and the current thread's
* interrupted status is cleared.
*
* @throws InterruptedException if the current thread is interrupted
* while waiting.
*/
public void await() throws InterruptedException {
sync.acquireSharedInterruptibly(1);
}
/**
* Causes the current thread to wait until the latch has counted down to
* zero, unless the thread is {@link Thread#interrupt interrupted},
* or the specified waiting time elapses.
*
* <p>If the current {@link #getCount count} is zero then this method
* returns immediately with the value <tt>true</tt>.
*
* <p>If the current {@link #getCount count} is greater than zero then
* the current thread becomes disabled for thread scheduling
* purposes and lies dormant until one of three things happen:
* [list]
* <li>The count reaches zero due to invocations of the
* {@link #countDown} method; or
* <li>Some other thread {@link Thread#interrupt interrupts} the current
* thread; or
* <li>The specified waiting time elapses.
* [/list]
* <p>If the count reaches zero then the method returns with the
* value <tt>true</tt>.
* <p>If the current thread:
* [list]
* <li>has its interrupted status set on entry to this method; or
* <li>is {@link Thread#interrupt interrupted} while waiting,
* [/list]
* then {@link InterruptedException} is thrown and the current thread's
* interrupted status is cleared.
*
* <p>If the specified waiting time elapses then the value <tt>false</tt>
* is returned.
* If the time is
* less than or equal to zero, the method will not wait at all.
*
* @param timeout the maximum time to wait
* @param unit the time unit of the <tt>timeout</tt> argument.
* @return <tt>true</tt> if the count reached zero and <tt>false</tt>
* if the waiting time elapsed before the count reached zero.
*
* @throws InterruptedException if the current thread is interrupted
* while waiting.
*/
public boolean await(long timeout, TimeUnit unit)
throws InterruptedException {
return sync.tryAcquireSharedNanos(1, unit.toNanos(timeout));
}
/**
* Decrements the count of the latch, releasing all waiting threads if
* the count reaches zero.
* <p>If the current {@link #getCount count} is greater than zero then
* it is decremented. If the new count is zero then all waiting threads
* are re-enabled for thread scheduling purposes.
* <p>If the current {@link #getCount count} equals zero then nothing
* happens.
*/
public void countDown() {
sync.releaseShared(1);
}
/**
* Returns the current count.
* <p>This method is typically used for debugging and testing purposes.
* @return the current count.
*/
public long getCount() {
return sync.getCount();
}
/**
* Returns a string identifying this latch, as well as its state.
* The state, in brackets, includes the String
* "Count =" followed by the current count.
* @return a string identifying this latch, as well as its
* state
*/
public String toString() {
return super.toString() + "[Count = " + sync.getCount() + "]";
}
}
2. CountDownLatch工具类的使用案例
CountDownLatch的作用是控制一个计数器，每个线程在运行完毕后执行countDown，表示自己运行结束，这对于多个子任务的计算特别有效，比如一个
异步任务需要拆分成10个子任务执行，主任务必须知道子任务是否完成，所有子任务完成后才能进行合并计算，从而保证了一个主任务逻辑的正确性。(此段摘自于<<改善Java程序的151个建议>>, P254)
CountDownLatch最重要的方法是countDown()和await()，前者主要是倒数一次，后者是等待倒数到0，如果没有到达0，就只有阻塞等待了。
本实例主要
使用CountDownLatch工具类来实现10个线程对1~100的求和，每个线程对10个数进行求和。第一个线程对1 – 10求和
第二个线程对 11 – 20求和
第三个线程对21 – 30 求和
…..
第十个线程对91 – 100求和。
具体的代码如下：
package my.concurrent.countdown;
import java.util.concurrent.Callable;
import java.util.concurrent.CountDownLatch;
public class Calculator implements Callable<Integer> {
//开始信号
private final CountDownLatch startSignal;
//结束信号
private final CountDownLatch doneSignal;
private int groupNumber = 0;
/**
* @param startSignal
* @param endSignal
* @param groupId
*/
public Calculator(CountDownLatch startSignal, CountDownLatch doneSignal,
int groupNumber) {
this.startSignal = startSignal;
this.doneSignal = doneSignal;
this.groupNumber = groupNumber;
}
public Integer call() throws Exception {
startSignal.await();
Integer result = sum(groupNumber);
printCompleteInfor(groupNumber,result);
doneSignal.countDown();
return result;
}
private Integer sum(int groupNumber) {
if (groupNumber < 1) {
throw new IllegalArgumentException();
}
int sum = 0;
int start = (groupNumber - 1) * 10 + 1;
int end = groupNumber * 10;
for (int i = start; i <= end; i++) {
sum += i;
}
return sum;
}
private void printCompleteInfor(int groupNumber, int sum)
{
System.out.println(String.format("Group %d is finished, the sum in this gropu is %d", groupNumber, sum));
}
}
package my.concurrent.countdown;
import java.util.ArrayList;
import java.util.List;
import java.util.concurrent.CountDownLatch;
import java.util.concurrent.ExecutionException;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;
import java.util.concurrent.Future;
public class CountDownLatchTest {
public static void main(String[] args) throws Exception {
/**
* 1－100求和，分10个线程来计算，每个线程对10个数求和。
*/
int numOfGroups = 10;
CountDownLatch startSignal = new CountDownLatch(1);
CountDownLatch doneSignal = new CountDownLatch(numOfGroups);
ExecutorService service = Executors.newFixedThreadPool(numOfGroups);
List<Future<Integer>> futures = new ArrayList<Future<Integer>>();
submit(futures, numOfGroups, service, startSignal, doneSignal);
/**
* 开始，让所有的求和计算线程运行
*/
startSignal.countDown();
/**
* 阻塞，知道所有计算线程完成计算
*/
doneSignal.await();
shutdown(service);
printResult(futures);
}
private static void submit(List<Future<Integer>> futures, int numOfGroups,
ExecutorService service, CountDownLatch startSignal,
CountDownLatch doneSignal) {
for (int groupNumber = 1; groupNumber <= numOfGroups; groupNumber++) {
futures.add(service.submit(new Calculator(startSignal, doneSignal,
groupNumber)));
}
}
private static int getResult(List<Future<Integer>> futures)
throws InterruptedException, ExecutionException {
int result = 0;
for (Future<Integer> f : futures) {
result += f.get();
}
return result;
}
private static void printResult(List<Future<Integer>> futures)
throws InterruptedException, ExecutionException {
System.out.println("[1,100] Sum is :" + getResult(futures));
}
private static void shutdown(ExecutorService service)
{
service.shutdown();
}
}
一次的执行结果如下：
Group 8 is finished, the sum in this gropu is 755
Group 2 is finished, the sum in this gropu is 155
Group 10 is finished, the sum in this gropu is 955
Group 5 is finished, the sum in this gropu is 455
Group 7 is finished, the sum in this gropu is 655
Group 3 is finished, the sum in this gropu is 255
Group 9 is finished, the sum in this gropu is 855
Group 1 is finished, the sum in this gropu is 55
Group 4 is finished, the sum in this gropu is 355
Group 6 is finished, the sum in this gropu is 555
[1,100] Sum is :5050
- 大小: 20.3 KB
相关文章
