本文主要探讨了一种基于ASP.NET MVC3 Razor的模块化（Plugin）/插件（plugin）式架构的实现方法。本文借鉴了《Compile your asp.net mvc Razor views into a seperate dll》作者提供的方法。敬请注意。其实ASP.NET MVC的模块化（Plugin）/插件（plugin）式架构讨论的很多，但基于Razor视图引擎的很少（如：MVC2插件架构例子都是基于WebForm的，MVCContrib Portable Areas也是，还有这个Plugin架构）。要么就是非常复杂非常重量级的框架，例如Orchard CMS的模块化做的很好，可惜太重量级了，也没独立的模块可以剥离出来。所以我们追寻的是简单的基于ASP.NET MVC3 Razor的模块化（Plugin）/插件（plugin）式架构的实现方法。本文最后实现的项目结构如下图：（插件都放到~/Plugin目录下，按功能划分模块，每个模块都有M,V,C）

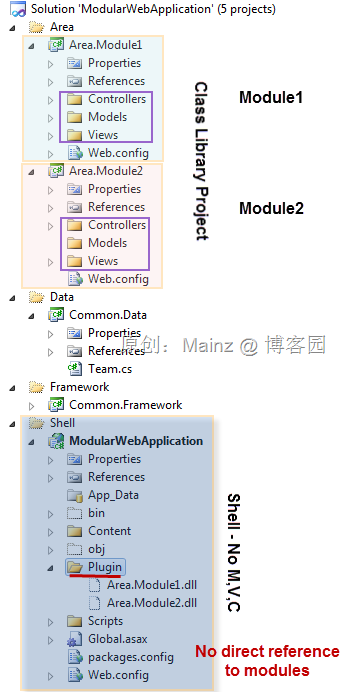

其中，业务模块（class library project）包含其所有的视图、控制器等，模型可以放在里面也可以单独放一个project。主web项目没有引用业务模块，业务模块会编译到主web项目的~/plugin目录下面（注意：不是bin目录），然后当web应用启动的时候自动加载plugin目录下面的模块。最后运行起来的效果如下图：
其中红色的区域都是plugin进去的，那个tab的标题plugin到母版页的主菜单，tab内容也来自plugin。下面说说如何实现这样的ASP.NET MVC插件式plugin架构（模块化架构）。
废话少说，直入要害。基于ASP.NET MVC3 Razor的编译发生在两个层面：
所以如果我们要动态加载插件（plugin），用反射bin目录下的程序集（assembly）的方法很容易搞定上面的第一部分（C#代码的部分），但UI视图的部分（上面第二部分）（特别是*.cshtml, 母版_layout.cshtml, 基视图_viewStart.cshtml）就比较难搞定。而且每次报错都是一样的，那就是Controller找不到相应的视图View，基本不知所云而且根本不是要点：view …. or its master was not found or no view engine supports the searched locations. The following locations were searched: …，因此要搞定UI视图的部分（上面第二部分）（特别是*.cshtml, 母版_layout.cshtml, 基视图_viewStart.cshtml），就需要自己动手了，基本原理是：
代码：自定义VirtualPathProvider，从虚拟路径自定义判断读取资源（从插件中加载资源），如果要使用编译的视图就返回编译的VirtualFile
1: using System;
2: using System.Collections.Generic;
3: using System.Linq;
4: using System.Reflection;
5: using System.Web.Caching;
6: using System.Web.Hosting;
7: using System.Web.WebPages;
8:
9: namespace Common.Framework
10: {
11: public class CompiledVirtualPathProvider: VirtualPathProvider
12: {
13: /// <summary>
14: /// Gets a value that indicates whether a file exists in the virtual file system.
15: /// </summary>
16: /// <returns>
17: /// true if the file exists in the virtual file system; otherwise, false.
18: /// </returns>
19: /// <param name="virtualPath">The path to the virtual file.</param>
20: public override bool FileExists(string virtualPath)
21: {
22: return
23: GetCompiledType(virtualPath) != null
24: || Previous.FileExists(virtualPath);
25: }
26:
27: public Type GetCompiledType(string virtualPath)
28: {
29: return ApplicationPartRegistry.Instance.GetCompiledType(virtualPath);
30: }
31:
32: /// <summary>
33: /// Gets a virtual file from the virtual file system.
34: /// </summary>
35: /// <returns>
36: /// A descendent of the <see cref="T:System.Web.Hosting.VirtualFile"/> class that represents a file in the virtual file system.
37: /// </returns>
38: /// <param name="virtualPath">The path to the virtual file.</param>
39: public override VirtualFile GetFile(string virtualPath)
40: {
41: if (Previous.FileExists(virtualPath))
42: {
43: return Previous.GetFile(virtualPath);
44: }
45: var compiledType = GetCompiledType(virtualPath);
46: if (compiledType != null)
47: {
48: return new CompiledVirtualFile(virtualPath, compiledType);
49: }
50: return null;
51: }
52:
53: public override System.Web.Caching.CacheDependency GetCacheDependency(string virtualPath, System.Collections.IEnumerable virtualPathDependencies, DateTime utcStart)
54: {
55: if (virtualPathDependencies == null)
56: return Previous.GetCacheDependency(virtualPath, virtualPathDependencies, utcStart);
57:
58: return Previous.GetCacheDependency(virtualPath,
59: from vp in virtualPathDependencies.Cast<string>()
60: where GetCompiledType(vp) == null
61: select vp
62: , utcStart);
63: }
64:
65: }
66: }
代码：容器Dictionary保存已编译的视图和虚拟路径，例如path <~/views/team/index.cshtml> type <Area.Module2.Views.Team._Page_Views_Team_Index_cshtml>，路径注册以后，会从容器库全局搜索所有注册过的视图，也就是说即使你视图引用的_layout.cshtml和_viewStart.cshtml在其他的Class library project照样可以找到。
1: using System;
2: using System.Collections.Generic;
3: using System.Diagnostics;
4: using System.Linq;
5: using System.Reflection;
6: using System.Web;
7: using System.Web.WebPages;
8:
9: namespace Common.Framework
10: {
11: public class DictionaryBasedApplicationPartRegistry : IApplicationPartRegistry
12: {
13: private static readonly Type webPageType = typeof(WebPageRenderingBase);
14: private readonly Dictionary<string, Type> registeredPaths = new Dictionary<string, Type>();
15:
16: /// <summary>
17: ///
18: /// </summary>
19: /// <param name="virtualPath"></param>
20: /// <returns></returns>
21: public virtual Type GetCompiledType(string virtualPath)
22: {
23: if (virtualPath == null) throw new ArgumentNullException("virtualPath");
24:
25: //Debug.WriteLine(String.Format("---GetCompiledType : virtualPath <{0}>", virtualPath));
26:
27: if (virtualPath.StartsWith("/"))
28: virtualPath = VirtualPathUtility.ToAppRelative(virtualPath);
29: if (!virtualPath.StartsWith("~"))
30: virtualPath = !virtualPath.StartsWith("/") ? "~/" + virtualPath : "~" + virtualPath;
31: virtualPath = virtualPath.ToLower();
32: return registeredPaths.ContainsKey(virtualPath)
33: ? registeredPaths[virtualPath]
34: : null;
35: }
36:
37: public void Register(Assembly applicationPart)
38: {
39: ((IApplicationPartRegistry)this).Register(applicationPart, null);
40: }
41:
42: public virtual void Register(Assembly applicationPart, string rootVirtualPath)
43: {
44: //Debug.WriteLine(String.Format("---Register assembly <{0}>, path <{1}>", applicationPart.FullName, rootVirtualPath));
45:
46: foreach (var type in applicationPart.GetTypes().Where(type => type.IsSubclassOf(webPageType)))
47: {
48: //Debug.WriteLine(String.Format("-----Register type <{0}>, path <{1}>", type.FullName, rootVirtualPath));
49:
50: ((IApplicationPartRegistry)this).RegisterWebPage(type, rootVirtualPath);
51: }
52: }
53:
54: public void RegisterWebPage(Type type)
55: {
56: ((IApplicationPartRegistry)this).RegisterWebPage(type, string.Empty);
57: }
58:
59: public virtual void RegisterWebPage(Type type, string rootVirtualPath)
60: {
61: var attribute = type.GetCustomAttributes(typeof(PageVirtualPathAttribute), false).Cast<PageVirtualPathAttribute>().SingleOrDefault<PageVirtualPathAttribute>();
62: if (attribute != null)
63: {
64: var rootRelativeVirtualPath = GetRootRelativeVirtualPath(rootVirtualPath ?? "", attribute.VirtualPath);
65:
66: //Debug.WriteLine(String.Format("---Register path/type : path <{0}> type <{1}>", rootRelativeVirtualPath.ToLower(),
67: // type.FullName));
68: registeredPaths[rootRelativeVirtualPath.ToLower()] = type;
69: }
70: }
71:
72: static string GetRootRelativeVirtualPath(string rootVirtualPath, string pageVirtualPath)
73: {
74: string relativePath = pageVirtualPath;
75: if (relativePath.StartsWith("~/", StringComparison.Ordinal))
76: {
77: relativePath = relativePath.Substring(2);
78: }
79: if (!rootVirtualPath.EndsWith("/", StringComparison.OrdinalIgnoreCase))
80: {
81: rootVirtualPath = rootVirtualPath + "/";
82: }
83: relativePath = VirtualPathUtility.Combine(rootVirtualPath, relativePath);
84: if (!relativePath.StartsWith("~"))
85: {
86: return !relativePath.StartsWith("/") ? "~/" + relativePath : "~" + relativePath;
87: }
88: return relativePath;
89: }
90: }
91: }
下面的代码很关键，用PreApplicationStartMethod关键字(.NET 4.0开始支持）使得代码在Application_Start之前执行。
有关[assembly: PreApplicationStartMethod(typeof(SomeClassLib.Initializer), "Initialize")]详细信息请参考这个页面和这个页面。
1: using System.Web;
2: using System.Web.Compilation;
3: using System.Web.Hosting;
4: using Common.Framework;
5: using Common.PrecompiledViews;
6:
7: [assembly: PreApplicationStartMethod(typeof(PreApplicationStartCode), "Start")]
8:
9: namespace Common.Framework
10: {
11: public static class PreApplicationStartCode
12: {
13: private static bool _startWasCalled;
14:
15: public static void Start()
16: {
17: if (_startWasCalled)
18: {
19: return;
20: }
21: _startWasCalled = true;
22:
23: //Register virtual paths
24: HostingEnvironment.RegisterVirtualPathProvider(new CompiledVirtualPathProvider());
25:
26: //Load Plugin Folder,
27: PluginLoader.Initialize();
28: }
29: }
30: }
代码：PluginLoader，加载plugin目录里面的东东（assembly和module配置文件）
1: using System;
2: using System.Collections.Generic;
3: using System.IO;
4: using System.Linq;
5: using System.Reflection;
6: using System.Text;
7: using System.Threading;
8: using System.Web;
9: using System.Web.Compilation;
10: using System.Web.Hosting;
11: using Common.Framework;
12: using Common.PrecompiledViews;
13:
14: //[assembly: PreApplicationStartMethod(typeof(PluginLoader), "Initialize")]
15:
16: namespace Common.PrecompiledViews
17: {
18: public class PluginLoader
19: {
20: public static void Initialize(string folder = "~/Plugin")
21: {
22: LoadAssemblies(folder);
23: LoadConfig(folder);
24: }
25:
26: private static void LoadConfig(string folder, string defaultConfigName="*.config")
27: {
28: var directory = new DirectoryInfo(HostingEnvironment.MapPath(folder));
29: var configFiles = directory.GetFiles(defaultConfigName, SearchOption.AllDirectories).ToList();
30: if (configFiles.Count == 0) return;
31:
32: foreach (var configFile in configFiles.OrderBy(s => s.Name))
33: {
34: ModuleConfigContainer.Register(new ModuleConfiguration(configFile.FullName));
35: }
36: }
37:
38: private static void LoadAssemblies(string folder)
39: {
40: var directory = new DirectoryInfo(HostingEnvironment.MapPath(folder));
41: var binFiles = directory.GetFiles("*.dll", SearchOption.AllDirectories).ToList();
42: if (binFiles.Count == 0) return;
43:
44: foreach (var plug in binFiles)
45: {
46: //running in full trust
47: //************
48: //if (GetCurrentTrustLevel() != AspNetHostingPermissionLevel.Unrestricted)
49: //set in web.config, probing to plugin\temp and copy all to that folder
50: //************************
51: var shadowCopyPlugFolder = new DirectoryInfo(AppDomain.CurrentDomain.DynamicDirectory);
52: var shadowCopiedPlug = new FileInfo(Path.Combine(shadowCopyPlugFolder.FullName, plug.Name));
53: File.Copy(plug.FullName, shadowCopiedPlug.FullName, true); //TODO: Exception handling here...
54: var shadowCopiedAssembly = Assembly.Load(AssemblyName.GetAssemblyName(shadowCopiedPlug.FullName));
55:
56: //add the reference to the build manager
57: BuildManager.AddReferencedAssembly(shadowCopiedAssembly);
58: }
59: }
60:
61: //private static AspNetHostingPermissionLevel GetCurrentTrustLevel()
62: //{
63: // foreach (AspNetHostingPermissionLevel trustLevel in
64: // new AspNetHostingPermissionLevel[]
65: // {
66: // AspNetHostingPermissionLevel.Unrestricted,
67: // AspNetHostingPermissionLevel.High,
68: // AspNetHostingPermissionLevel.Medium,
69: // AspNetHostingPermissionLevel.Low,
70: // AspNetHostingPermissionLevel.Minimal
71: // })
72: // {
73: // try
74: // {
75: // new AspNetHostingPermission(trustLevel).Demand();
76: // }
77: // catch (System.Security.SecurityException)
78: // {
79: // continue;
80: // }
81:
82: // return trustLevel;
83: // }
84:
85: // return AspNetHostingPermissionLevel.None;
86: //}
87:
88: }
89: }
此外，使用SingleFileGenerator的优点是性能提升，缺点是修改了视图就要重新编译。

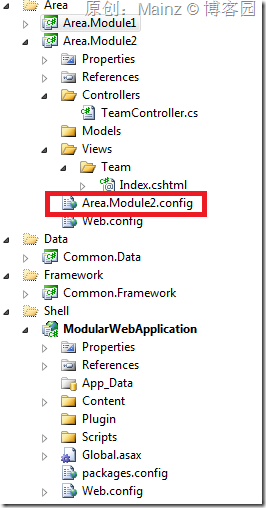

我们把各个模块编译出来的assembly和各个模块的配置文件自动放到一个bin平级的plugin目录，然后web应用启动的时候自动扫描这个plugin目录并加载各个模块plugin，这个怎么做到的？大家也许知道，ASP.NET只允许读取Bin目录下的assbmely，不可以读取其他路径，包括Bin\abc等，即使在web.config这样配置probing也不行：（不信你可以试一下）
1: <configuration> Element
2: <runtime> Element
3: <assemblyBinding xmlns="urn:schemas-microsoft-com:asm.v1">
4: <probing privatePath="bin;bin\abc;plugin;"/>
5: </assemblyBinding>
6: </runtime>
7: </configuration>
这个和TrustLevel有关，在Full Trust的情况下，可以这样读取非Bin目录下的assembly：
首先在和Bib平级的地方建一个目录Plugin，然后在模块class library project的属性里面加一个postBuildEvent，就是说在编译完成以后把模块的assbmely自动拷贝到主web项目的plugin目录：
1: copy /Y "$(TargetDir)$(ProjectName).dll" "$(SolutionDir)ModularWebApplication\Plugin\"
2: copy /Y "$(TargetDir)$(ProjectName).config" "$(SolutionDir)ModularWebApplication\Plugin\"
3:
然后用下面的代码加载Plugin目录下的assembly：（只看LoadAssembly那一段）
1: using System;
2: using System.Collections.Generic;
3: using System.IO;
4: using System.Linq;
5: using System.Reflection;
6: using System.Text;
7: using System.Threading;
8: using System.Web;
9: using System.Web.Compilation;
10: using System.Web.Hosting;
11: using Common.Framework;
12: using Common.PrecompiledViews;
13:
14: //[assembly: PreApplicationStartMethod(typeof(PluginLoader), "Initialize")]
15:
16: namespace Common.PrecompiledViews
17: {
18: public class PluginLoader
19: {
20: public static void Initialize(string folder = "~/Plugin")
21: {
22: LoadAssemblies(folder);
23: LoadConfig(folder);
24: }
25:
26: private static void LoadConfig(string folder, string defaultConfigName="*.config")
27: {
28: var directory = new DirectoryInfo(HostingEnvironment.MapPath(folder));
29: var configFiles = directory.GetFiles(defaultConfigName, SearchOption.AllDirectories).ToList();
30: if (configFiles.Count == 0) return;
31:
32: foreach (var configFile in configFiles.OrderBy(s => s.Name))
33: {
34: ModuleConfigContainer.Register(new ModuleConfiguration(configFile.FullName));
35: }
36: }
37:
38: private static void LoadAssemblies(string folder)
39: {
40: var directory = new DirectoryInfo(HostingEnvironment.MapPath(folder));
41: var binFiles = directory.GetFiles("*.dll", SearchOption.AllDirectories).ToList();
42: if (binFiles.Count == 0) return;
43:
44: foreach (var plug in binFiles)
45: {
46: //running in full trust
47: //************
48: //if (GetCurrentTrustLevel() != AspNetHostingPermissionLevel.Unrestricted)
49: //set in web.config, probing to plugin\temp and copy all to that folder
50: //************************
51: var shadowCopyPlugFolder = new DirectoryInfo(AppDomain.CurrentDomain.DynamicDirectory);
52: var shadowCopiedPlug = new FileInfo(Path.Combine(shadowCopyPlugFolder.FullName, plug.Name));
53: File.Copy(plug.FullName, shadowCopiedPlug.FullName, true); //TODO: Exception handling here...
54: var shadowCopiedAssembly = Assembly.Load(AssemblyName.GetAssemblyName(shadowCopiedPlug.FullName));
55:
56: //add the reference to the build manager
57: BuildManager.AddReferencedAssembly(shadowCopiedAssembly);
58: }
59: }
60:
61: //private static AspNetHostingPermissionLevel GetCurrentTrustLevel()
62: //{
63: // foreach (AspNetHostingPermissionLevel trustLevel in
64: // new AspNetHostingPermissionLevel[]
65: // {
66: // AspNetHostingPermissionLevel.Unrestricted,
67: // AspNetHostingPermissionLevel.High,
68: // AspNetHostingPermissionLevel.Medium,
69: // AspNetHostingPermissionLevel.Low,
70: // AspNetHostingPermissionLevel.Minimal
71: // })
72: // {
73: // try
74: // {
75: // new AspNetHostingPermission(trustLevel).Demand();
76: // }
77: // catch (System.Security.SecurityException)
78: // {
79: // continue;
80: // }
81:
82: // return trustLevel;
83: // }
84:
85: // return AspNetHostingPermissionLevel.None;
86: //}
87:
88: }
89: }
如果不是Full Trust，例如Medium Trust的情况下参考这个帖子《Developing-a-plugin-framework-in-ASPNET-with-medium-trust》。
在母版页_layout.cshtml有个主菜单，一般是这样写的：
1: <ul>
2: <li>@Html.ActionLink("Home", "Index", "Home")</li>
3: <li>@Html.ActionLink("About", "About", "Home")</li>
4: <li>@Html.ActionLink("Team", "Index", "Team")</li>
5: </ul>
现在我们如何实现从模块插入plugin到这个主菜单呢？这个有点难。因为大家知道，_layout.cshml母版没有controller。怎么实现呢？方法是用controller基类，让所有controller继承自这个基类。然后在基类里面，读取plugin目录里面的配置文件，获取所有模块需要插入的主菜单项，然后放入viewBag，这样在_Layout.cshtml就可以获取viewBag，类似这样：
1: <ul>
2: @foreach (MainMenuItemModel entry in ViewBag.MainMenuItems)
3: {
4: <li>@Html.ActionLink(entry.Text,
5: entry.ActionName,
6: entry.ControllerName)</li>
7: }
8: </ul>
代码：基类Controller，读取plugin目录里面的配置文件，获取所有模块需要插入的主菜单项，然后放入viewBag
1: using System;
2: using System.Collections;
3: using System.Collections.Generic;
4: using System.ComponentModel;
5: using System.Linq;
6: using System.Net.Mime;
7: using System.Text;
8: using System.Web.Mvc;
9:
10: namespace Common.Framework
11: {
12: public class BaseController : Controller
13: {
14: protected override void Initialize(System.Web.Routing.RequestContext requestContext)
15: {
16: base.Initialize(requestContext);
17:
18: // retireve data from plugins
19: IEnumerable<ModuleConfiguration> ret = ModuleConfigContainer.GetConfig();
20:
21: var data = (from c in ret
22: from menu in c.MainMenuItems
23: select new MainMenuItemModel
24: {
25: Id = menu.Id, ActionName = menu.ActionName, ControllerName = menu.ControllerName, Text = menu.Text
26: }).ToList();
27:
28: ViewBag.MainMenuItems = data.AsEnumerable();
29: }
30:
31: }
32: }
代码：ModuleConfigContainer，用到单例模式，只读取一次
1: using System;
2: using System.Collections.Generic;
3: using System.Linq;
4: using System.Text;
5:
6: namespace Common.Framework
7: {
8: public static class ModuleConfigContainer
9: {
10: static ModuleConfigContainer()
11: {
12: Instance = new ModuleConfigDictionary();
13: }
14:
15: internal static IModuleConfigDictionary Instance { get; set; }
16:
17: public static void Register(ModuleConfiguration item)
18: {
19: Instance.Register(item);
20: }
21:
22: public static IEnumerable<ModuleConfiguration> GetConfig()
23: {
24: return Instance.GetConfigs();
25: }
26: }
27: }
代码：ModuleConfigDictionary
1: using System;
2: using System.Collections.Generic;
3: using System.Linq;
4: using System.Text;
5:
6: namespace Common.Framework
7: {
8: public class ModuleConfigDictionary : IModuleConfigDictionary
9: {
10: private readonly Dictionary<string, ModuleConfiguration> _configurations = new Dictionary<string, ModuleConfiguration>();
11:
12: public IEnumerable<ModuleConfiguration> GetConfigs()
13: {
14: return _configurations.Values.AsEnumerable();
15: }
16:
17: public void Register(ModuleConfiguration item)
18: {
19: if(_configurations.ContainsKey(item.ModuleName))
20: {
21: _configurations[item.ModuleName] = item;
22: }
23: else
24: {
25: _configurations.Add(item.ModuleName, item);
26: }
27: }
28: }
29: }
代码：ModuleConfiguration，读取模块的配置文件
1: using System;
2: using System.Collections.Generic;
3: using System.IO;
4: using System.Linq;
5: using System.Text;
6: using System.Xml;
7: using System.Xml.Linq;
8:
9: namespace Common.Framework
10: {
11: public class ModuleConfiguration
12: {
13: public ModuleConfiguration(string filePath)
14: {
15: try
16: {
17: var doc = XDocument.Load(filePath);
18: var root = XElement.Parse(doc.ToString());
19:
20: if (!root.HasElements) return;
21:
22: var module = from e in root.Descendants("module")
23: //where e.Attribute("name").Value == "xxxx"
24: select e;
25:
26: if (!module.Any()) return;
27:
28: ModuleName = module.FirstOrDefault().Attribute("name").Value;
29:
30: var menus = from e in module.FirstOrDefault().Descendants("menu")
31: select e;
32:
33: if (!menus.Any()) return;
34:
35: var menuitems = menus.Select(xElement => new MainMenuItemModel
36: {
37: Id = xElement.Attribute("id").Value,
38: Text = xElement.Attribute("text").Value,
39: ActionName = xElement.Attribute("action").Value,
40: ControllerName = xElement.Attribute("controller").Value
41: }).ToList();
42:
43: MainMenuItems = menuitems;
44: }
45: catch
46: {
47: //TODO: logging
48: }
49: }
50: public string ModuleName { get; set; }
51: public IEnumerable<MainMenuItemModel> MainMenuItems { get; set; }
52: }
53: }
每个模块的配置文件为{projectName}.config，格式如下：
1: <?xml version="1.0" encoding="utf-8" ?>
2: <configuration>
3: <module name="Module2">
4: <mainmenu>
5: <menu id="modul2" text="Team" action="Index" controller="Team"/>
6: </mainmenu>
7: </module>
8: </configuration>
为了简单起见，只保留了注入主菜单的部分，为了让读者简单易懂。明白了以后你自己可以任意扩展…

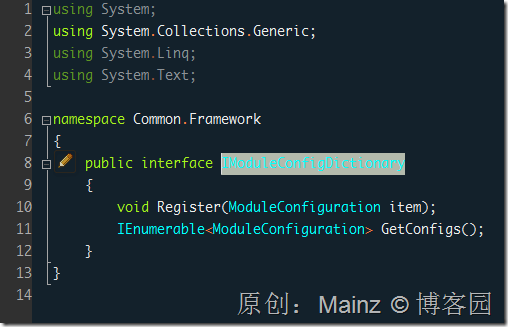

代码：IModuleConfigDictionary，接口
模块配置文件{projectName}.config的位置：
为什么每个模块的Class library project都需要一个web.config呢？因为如果没有这个，那就没有Razor智能提示，大家可以参考这篇文章《How to get Razor intellisense for @model in a class library project》。
插件式架构（Plugin Architecture）或者模块化（Modular）架构是大型应用必须的架构，关于什么是Plugin，什么是模块化模式，这种架构的优缺点等我就不说了，自己百谷歌度。关于.NET下面的插件式架构和模块化开发实现方法，基本上用AppDomain实现，当检测到一个新的插件Plugin时，实例化一个新的AppDomain并加载Assembly反射类等，由于AppDomain很好的隔离各个Plugin，所以跨域通信要用MarshalByRefObject类，具体做法可以参考这篇文章《基于AppDomain的"插件式"开发》。另外，有很多框架提供了模块化/插件开发的框架，例如Prism、MEF(Managed Extensibility Framework，.NET 4.0 内置)等。
还有一种插件架构是客户端插件架构（Javascript 模块化），如jQuery UI Widget Factory，Silk Project就是很好的例子。
源码下载请点击此处或下载源代码。运行源码之前务必阅读此文和本文。注意：本文抛砖引玉，力求简单，易懂，并非完整的架构实现，更多丰富的功能实现一切皆有可能，只要在理解的基础上。
相关文章
