1 TCP的开销

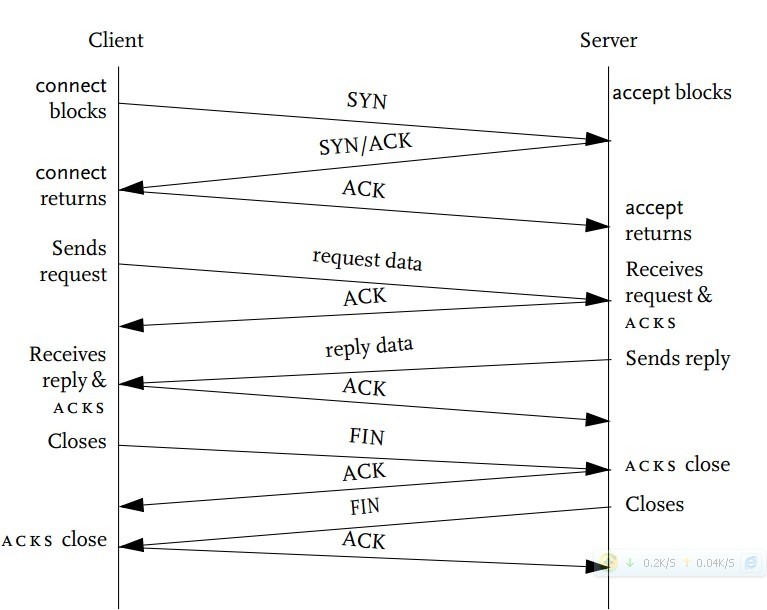

a ?连接协商三次握手，c->syn->s,s->syn ack->c, c->ack->s
b ?关闭协商四次握手，c->fin->s, s->ack-c,s->fin->c,c->ack->s
c ?保持数据有序，响应确认等计算开销
d ?网络拥塞引起的重试开销
2 使用知名端口初始化 serversocket可能需要超级权限。ServerSocket(int port, int backlog)参数backlog用来配置连接队列，在accept之前预先完成连接，加速连接TCP连接阶段，默认为50.
如果要提高吞吐量，可以通过设置更大的ServerSocket.setReceiveBufferSize来实现，但是必须在bind之前设置，也就是说要先调用无参构造，然后再调用ServerSocket.bind(SocketAddress endpoint)
?
3 网络io写操作，提高吞吐量较好的实践有使用java.io.BufferedOutputStream，作为缓冲，减少用户线程和内核线程的切换频率。缓冲区大小一般大于ServerSocket.setReceiveBufferSize。
?
4 避免对象流死锁，较好的实践是如果要在同一个socket上构建对象输入流和输出流，最好是先构造输出流，再构造输入流。
?
5 tcp半关闭，shut down output，完成后，对方的read收到eof，结束阻塞。
?
6 tcp关闭可以用socket.close,socket.getoutputstream.close,socket.getinputstream.close,较好的方式是调用socket.getoutpurtstream.close,它会把未flush的flush掉。三个方法只需调用其中一个即可。isClose方法只会告诉我们本地tcp是否关闭，但是不能告诉我们远程是否关闭。
?
7 socket read 设置timeout时间，防止无止境阻塞。一般来说，timeout时间会设定为预期时间的两倍。timeout时间设置只对之后的阻塞读有效。
?
8 每个socket都有send buffer和receive buffer，这个buffer在内核地址空间而非jvm。buffer的size由操作系统实现决定，一般来说是2kb。send buffer可以在tcp关闭前随时设定，通过java.net.Socket.setSendBufferSize(int)设置。但是size的设置只是一种hint，不是绝对值。size设得越大，减少网络写次数，减少拥塞控制，tcp效率、吞吐量越高，类似http://en.wikipedia.org/wiki/Nagle's_algorithm?原理。
一般设定为MSS的三倍；至少大于对方receive buffer；receive buffer也要设定大一点，不拖send buffer后腿；
bufferedoutputstream，bytebuffer一般也要设定为匹配的值；
buffersize(bits)=bandwidth(bits/sec)* delay(sec),有点类似于线程数量的控制，不让cpu闲下来。这边的白话是不让buffer空下来，随时处于最大填充状态。
?
9 nagle算法，为了提高网络传输效率，减少网络拥塞，延迟小包发送，组装为大包一起发送。默认为开，可以通过setTcpnodelay为true来关闭。一般来说，不会关闭，除非是需要实时交互的场景。另外如果真需要关闭，可以采用巧妙的方式，使用bufferedoutputstream,把buffer size设为大于最大请求或响应包，socket send buffer和receive buffer也设为此值，用一次操作写出请求或响应，bufferedoutputstream.flush，充分利用网络。
?
10 setlinger，用于关闭socket时，进行磨蹭，拖延。
?
11 keep alive，是个鸡肋。用于检测连接是否处于连接状态，检测对方是否active。它比较有争议，不是tcp协议的标准内容。另外检测需要消耗网络，当检测对方无反应，socket会被置为reset状态，不可读写。一般不推荐使用。
可以考虑用应用层的心跳检测替代。
?
12 ?settrafficclass，设置流量类别，只是hint作用，具体效果取决于实现。有这些类别? IPTOS_LOWCOST (0x02),IPTOS_RELIABILITY (0x04),IPTOS_THROUGHPUT (0x08),IPTOS_LOWDELAY (0x10)
?
13 接口中文翻译http://hi.baidu.com/%EC%C5%BF%E1%D0%A1%B7%E5/blog/item/5d8e0f58aee147471038c29d.html
* ReliableDatagramSocket.java.
* Copyright ? Esmond Pitt, 1997, 2005. All rights reserved.
* Permission to use is granted provided this copyright
* and permission notice is preserved.
*/
import java.io.*;
import java.net.*;
import java.text.*;
import java.util.*;
// All times are expressed in seconds.
// ReliabilityConstants interface, just defines constants.
interface ReliabilityConstants
{
// Timeout minima/maxima
public static final int MIN_RETRANSMIT_TIMEOUT = 1;
public static final int MAX_RETRANSMIT_TIMEOUT = 64;
// Maximum retransmissions per datagram, suggest 3 or 4.
public static final int MAX_RETRANSMISSIONS = 4;
}
The D;; class manages current and smoothed round-trip timers
and the related timeouts:
// RoundTripTimer class.
class RoundTripTimer implements ReliabilityConstants
{
float roundTripTime = 0.0f;// most recent RTT
float smoothedTripTime = 0.0f;// smoothed RTT
float deviation = 0.75f; // smoothed mean deviation
short retransmissions = 0;// retransmit count: 0, 1, 2, …
// current retransmit timeout
float currentTimeout =
minmax(calculateRetransmitTimeout());
/** @return the re-transmission timeout. */
private int calculateRetransmitTimeout()
{
return (int)(smoothedTripTime+4.0*deviation);
}
/** @return the bounded retransmission timeout. */
private float minmax(float rto)
{
return Math.min
(Math.max(rto, MIN_RETRANSMIT_TIMEOUT),
MAX_RETRANSMIT_TIMEOUT);
}
/** Called before each new packet is transmitted. */
void newPacket()
{
retransmissions = 0;
}
/**
* @return the timeout for the packet.
*/
float currentTimeout()
{
return currentTimeout;
}
/**
* Called straight after a successful receive.
* Calculates the round-trip time, then updates the
* smoothed round-trip time and the variance (deviation).
* @param ms time in ms since starting the transmission.
*/
void stoppedAt(long ms)
{
// Calculate the round-trip time for this packet.
roundTripTime = ms/1000;
// Update our estimators of round-trip time
// and its mean deviation.
double delta = roundTripTime ? smoothedTripTime;
smoothedTripTime += delta/8.0;
deviation += (Math.abs(delta)-deviation)/4.0;
// Recalculate the current timeout.
currentTimeout = minmax(calculateRetransmitTimeout());
}
/**
* Called after a timeout has occurred.
* @return true if it's time to give up,
* false if we can retransmit.
*/
boolean isTimeout()
{
currentTimeout *= 2; // next retransmit timeout
retransmissions++;
return retransmissions > MAX_RETRANSMISSIONS;
}
} // RoundTripTimer class
The D
" class exports a D method like the ones
we have already seen.
// ReliableDatagramSocket class
public class ReliableDatagramSocket
extends DatagramSocket
implements ReliabilityConstants
{
RoundTripTimer roundTripTimer = new RoundTripTimer();
private boolean reinit = false;
private long sendSequenceNo = 0; // send sequence #
private long recvSequenceNo = 0; // recv sequence #
/* anonymous initialization for all constructors */
{
init();
}
/**
* Construct a ReliableDatagramSocket
* @param port Local port: reeive on any interface/address
* @exception SocketException can't create the socket
*/
public ReliableDatagramSocket(int port)
throws SocketException
{
super(port);
}
/**
* Construct a ReliableDatagramSocket
* @param port Local port
* @param localAddr local interface address to use
* @exception SocketException can't create the socket
*/
public ReliableDatagramSocket
(int port, InetAddress localAddr) throws SocketException
{
super(port, localAddr);
}
/**
* Construct a ReliableDatagramSocket, JDK >= 1.4.
* @param localAddr local socket address to use
* @exception SocketException can't create the socket
*/
public ReliableDatagramSocket(SocketAddress localAddr)
throws SocketException
{
super(localAddr);
}
/**
* Overrides DatagramSocket.connect():
* Does the connect, then (re-)initializes
* the statistics for the connection.
* @param dest Destination address
* @param port Destination port
*/
public void connect(InetAddress dest, int port)
{
super.connect(dest, port);
init();
}
/**
* Overrides JDK 1.4 DatagramSocket.connect().
* Does the connect, then (re-)initializes
* the statistics for the connection.
* @param dest Destination address
*/
public void connect(SocketAddress dest)
{
super.connect(dest);
init();
}
/** Initialize */
private void init()
{
this.roundTripTimer = new RoundTripTimer();
}
/**
* Send and receive reliably,
* retrying adaptively with exponential backoff
* until the response is received or timeout occurs.
* @param sendPacket outgoing request datagram
* @param recvPacket incoming reply datagram
* @exception IOException on any error
* @exception InterruptedIOException on timeout
*/
public synchronized void sendReceive
(DatagramPacket sendPacket, DatagramPacket recvPacket)
throws IOException, InterruptedIOException
{
// re-initialize after timeout
if (reinit)
{
init();
reinit = false;
}
roundTripTimer.newPacket();
long start = System.currentTimeMillis();
long sequenceNumber = getSendSequenceNo();
// Loop until final timeout or some unexpected exception
for (;;)
{
// keep using the same sequenceNumber while retrying
setSendSequenceNo(sequenceNumber);
send(sendPacket);// may throw
int timeout =
(int)(roundTripTimer.currentTimeout()*1000.0+0.5);
long soTimeoutStart = System.currentTimeMillis();
try
{
for (;;)
{
// Adjust socket timeout for time already elapsed
int soTimeout = timeout?(int)
(System.currentTimeMillis()?soTimeoutStart);
setSoTimeout(soTimeout);
receive(recvPacket);
long recvSequenceNumber = getRecvSequenceNo();
if (recvSequenceNumber == sequenceNumber)
{
// Got the correct reply:
// stop timer, calculate new RTT values
long ms = System.currentTimeMillis()-start;
roundTripTimer.stoppedAt(ms);
return;
}
}
}
catch (InterruptedIOException exc)
{
// timeout: retry?
if (roundTripTimer.isTimeout())
{
reinit = true;
// rethrow InterruptedIOException to caller
throw exc;
}
// else continue
}
// may throw other SocketException or IOException
} // end re-transmit loop
} // sendReceive()
/**
* @return the last received sequence number;
* used by servers to obtain the reply sequenceNumber.
*/
public long getRecvSequenceNo()
{
return recvSequenceNo;
}
/** @return the last sent sequence number */
private long getSendSequenceNo()
{
return sendSequenceNo;
}
/**
* Set the next send sequence number.
* Used by servers to set the reply
* sequenceNumber from the received packet:
*
. * socket.setSendSequenceNo(socket.getRecvSequenceNo());
*
* @param sendSequenceNo Next sequence number to send.
*/
public void setSendSequenceNo(long sendSequenceNo)
{
this.sendSequenceNo = sendSequenceNo;
}
/**
* override for DatagramSocket.receive:
* handles the sequence number.
* @param packet DatagramPacket
* @exception IOException I/O error
*/
public void receive(DatagramPacket packet)
throws IOException
{
super.receive(packet);
// read sequence number and remove it from the packet
ByteArrayInputStream bais = new ByteArrayInputStream
(packet.getData(), packet.getOffset(),
packet.getLength());
DataInputStream dis = new DataInputStream(bais);
recvSequenceNo = dis.readLong();
byte[] buffer = new byte[dis.available()];
dis.read(buffer);
packet.setData(buffer,0,buffer.length);
}
/**
* override for DatagramSocket.send:
* handles the sequence number.
* @param packet DatagramPacket
* @exception IOException I/O error
*/
public void send(DatagramPacket packet)
throws IOException
{
ByteArrayOutputStreambaos = new ByteArrayOutputStream();
DataOutputStreamdos = new DataOutputStream(baos);
// Write the sequence number, then the user data.
dos.writeLong(sendSequenceNo++);
dos.write
(packet.getData(), packet.getOffset(),
packet.getLength());
dos.flush();
// Construct a new packet with this new data and send it.
byte[]data = baos.toByteArray();
packet = new DatagramPacket
(data, baos.size(), packet.getAddress(),
packet.getPort());
super.send(packet);
}
} // end of ReliableDatagramSocket class
public class ReliableEchoServer implements Runnable { ReliableDatagramSocket socket; byte[] buffer = new byte[1024]; DatagramPacket recvPacket = new DatagramPacket(buffer, buffer.length); ReliableEchoServer(int port) throws IOException { this.socket = new ReliableDatagramSocket(port); } public void run() { for (;;) { try { // Restore the receive length to the maximum recvPacket.setLength(buffer.length); socket.receive(recvPacket); // Reply must have same seqno as request long seqno = socket.getRecvSequenceNo(); socket.setSendSequenceNo(seqno); // Echo the request back as the response socket.send(recvPacket); } catch (IOException exc) { exc.printStackTrace(); } } // for (;;) } // run() } // class
UDP支持多播和广播（广播是一种特殊的多播，尽量不使用广播，广播产生更多没必要的网络流量），而TCP只支持单播。一般多播用于服务发现,如jini look up。多播与多次单播相比，好处是减少开销、减小网络流量、减少服务器负载，而且速度更快，并且接受者接收到消息的时间更接近，对于某些场景来说很重要。
多播的缺点是继承了udp，不可靠网络，依赖路由器，安全问题更加复杂。并且多播并不知道多播消息会被哪些接受者接收，也不知道接受者是否接收到，设计协议的时候需要考虑这点。
发送多播消息，发送端可以用MulticastSocket和DatagramSocket，而接收端只能用MulticastSocket。
?
?
多播使用场景
?
(a) Software distribution
(b) Time services
(c) Naming services like
(d) Stock-market tickers, race results, and the like
(e) Database replication
(f) Video and audio streaming: video conferencing, movie shows, etc
(g) Multi-player gaming
(h) Distributed resource allocation
(i) Service discovery.
?
public void processSession(Socket socket)
{
receive(request);
// process request and construct reply, not shown …
send(reply);
// close connection
socket.close();// exception handling not shown
}
?
void processSession(Socket socket)
{
while (receive(request)) // i.e. while not end-of-stream
{
// process request and construct reply, not shown …
send(reply);
}
// close connection
socket.close();// exception handling not shown
}
?多次对话的连接释放方式，可以根据输入流的返回结果，或者遇到eof来关闭连接。
归结点
(a) On receipt of an end-of-stream when reading the connection.
(b) If the request or the client is deemed invalid.
(c) On detection of a read timeout or idle timeout on the connection.
(d) After writing a reply
// Initialization - common to both ends
static final int HEADER_LENGTH = 16;
static final int BODY_LENGTH = 480;
static final int TRAILER_LENGTH = 16;
ByteBuffer header = ByteBuffer.allocate(HEADER_LENGTH);
ByteBuffer body = ByteBuffer.allocate(BODY_LENGTH);
ByteBuffer trailer = ByteBuffer.allocate(TRAILER_LENGTH);
ByteBuffer[]
buffers = new ByteBuffer[]
{ header, body, trailer };
// sending end - populate the buffers, not shown
long count = channel.write(buffers);
// repeat until all data sent
// receiving end
long count = channel.read(buffers);
// repeat until all data read
?
对于浏览器加载页面的过程，由于加载对交互顺序不敏感，所以client可以同时并发多个连接、多个线程并行从服务端获取数据
