NIO 之 选择就绪模式

 2011/12/2 7:30:30  chenkangxian  http://chenkangxian.iteye.com  我要评论(0)
  • 摘要:JavaNIO非堵塞应用通常适用用在I/O读写等方面,我们知道,系统运行的性能瓶颈通常在I/O读写,包括对端口和文件的操作上,过去,在打开一个I/O通道后,read()将一直等待在端口一边读取字节内容,如果没有内容进来,read()也是傻傻的等,这会影响我们程序继续做其他事情,那么改进做法就是开设线程,让线程去等待,但是这样做也是相当耗费资源的。JavaNIO非堵塞技术实际是采取Reactor模式,或者说是Observer模式为我们监察I/O端口,如果有内容进来,会自动通知我们,这样
  • 标签:模式

? ? ?Java NIO非堵塞应用通常适用用在I/O读写等方面,我们知道,系统运行的性能瓶颈通常在I/O读写,包括对端口和文件的操作上,过去,在打开一个I/O通道后,read()将一直等待在端口一边读取字节内容,如果没有内容进来,read()也是傻傻的等,这会影响我们程序继续做其他事情,那么改进做法就是开设线程,让线程去等待,但是这样做也是相当耗费资源的。

? ? ? ?Java NIO非堵塞技术实际是采取Reactor模式,或者说是Observer模式为我们监察I/O端口,如果有内容进来,会自动通知我们,这样,我们就不必开启多个线程死等,从外界看,实现了流畅的I/O读写,不堵塞了。

? ? ? Java NIO出现不只是一个技术性能的提高,你会发现网络上到处在介绍它,因为它具有里程碑意义,从JDK1.4开始,Java开始提高性能相关的功能,从而使得Java在底层或者并行分布式计算等操作上已经可以和C或Perl等语言并驾齐驱。

?

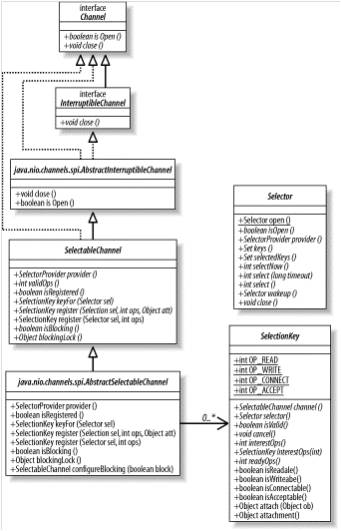

? ? ? ? ? ? ? ? ? ? ?图 1 ? ? ?类结构图

?

?

package cn.chenkangxian.nioconcurrent;

import java.io.IOException;
import java.nio.ByteBuffer;
import java.nio.channels.SelectionKey;
import java.nio.channels.SocketChannel;
import java.util.LinkedList;
import java.util.List;

/**
 * @Project: testNio
 *
 * @Author: chenkangxian
 *
 * @Annotation: 使用线程池来处理大量channel并发
 *
 * @Date:2011-7-5
 *
 * @Copyright: 2011 chenkangxian, All rights reserved.
 *
 */
public class SelectSocketsThreadPool extends SelectSockets {

	private static final int MAX_THREADS = 5;
	private ThreadPool pool = new ThreadPool(MAX_THREADS);

	/**
	 * 从socket中读数据
	 */
	protected void readDataFromSocket(SelectionKey key) throws Exception {

		WorkerThread worker = pool.getWorker();
		if (worker == null) {
			return;
		}

		worker.serviceChannel(key);
	}

	/**
	 *
	 * @Project: concurrentnio
	 *
	 * @Author: chenkangxian
	 *
	 * @Annotation:线程池
	 *
	 * @Date:2011-7-20
	 *
	 * @Copyright: 2011 chenkangxian, All rights reserved.
	 *
	 */
	private class ThreadPool {

		List idle = new LinkedList();

		/**
		 * 线程池初始化
		 *
		 * @param poolSize 线程池大小
		 */
		ThreadPool(int poolSize) {
			for (int i = 0; i < poolSize; i++) {
				WorkerThread thread = new WorkerThread(this);

				thread.setName("Worker" + (i + 1));
				thread.start();
				idle.add(thread);
			}
		}

		/**
		 * 获得工作线程
		 *
		 * Author: chenkangxian
		 *
		 * Last Modification Time: 2011-7-20
		 *
		 * @return
		 */
		WorkerThread getWorker() {
			WorkerThread worker = null;

			synchronized (idle) {
				if (idle.size() > 0) {
					worker = (WorkerThread) idle.remove(0);
				}
			}

			return (worker);
		}

		/**
		 * 送回工作线程
		 *
		 * Author: chenkangxian
		 *
		 * Last Modification Time: 2011-7-20
		 *
		 * @param worker
		 */
		void returnWorker(WorkerThread worker) {
			synchronized (idle) {
				idle.add(worker);
			}
		}
	}

	private class WorkerThread extends Thread {

		private ByteBuffer buffer = ByteBuffer.allocate(1024);
		private ThreadPool pool;
		private SelectionKey key;

		WorkerThread(ThreadPool pool) {
			this.pool = pool;
		}

		public synchronized void run() {
			System.out.println(this.getName() + " is ready");
			while (true) {
				try {
					this.wait();//等待被notify
				} catch (InterruptedException e) {
					e.printStackTrace();
					this.interrupt();
				}

				if (key == null) {//直到有key
					continue;
				}

				System.out.println(this.getName() + " has been awakened");

				try {
					drainChannel(key);
				} catch (Exception e) {
					System.out.println("Caught '" + e + "' closing channel");

					try {
						key.channel().close();
					} catch (IOException ex) {
						ex.printStackTrace();
					}

					key.selector().wakeup();
				}

				key = null;

				this.pool.returnWorker(this);
			}
		}

		synchronized void serviceChannel(SelectionKey key) {
			this.key = key;

			//消除读的关注
			key.interestOps(key.interestOps() & (~SelectionKey.OP_READ));
			this.notify();
		}

		void drainChannel(SelectionKey key) throws Exception {

			SocketChannel channel = (SocketChannel) key.channel();
			int count;

			buffer.clear();

			while ((count = channel.read(buffer)) > 0) {
				buffer.flip();

				while (buffer.hasRemaining()) {
					channel.write(buffer);
				}

				buffer.clear();
			}

			if (count < 0) {
				channel.close();
				return;
			}

			//重新开始关注读事件
			key.interestOps(key.interestOps() | SelectionKey.OP_READ);

			key.selector().wakeup();
		}

	}

	public static void main(String[] args) throws Exception {

		new SelectSocketsThreadPool().go(args);

	}
}
?

?

package cn.chenkangxian.nioconcurrent;

import java.net.InetSocketAddress;
import java.net.ServerSocket;
import java.nio.ByteBuffer;
import java.nio.channels.SelectableChannel;
import java.nio.channels.SelectionKey;
import java.nio.channels.Selector;
import java.nio.channels.ServerSocketChannel;
import java.nio.channels.SocketChannel;
import java.util.Iterator;

/**
 *
 * @Project: concurrentnio
 *
 * @Author: chenkangxian
 *
 * @Annotation:
 *
 * @Date:2011-7-11
 *
 * @Copyright: 2011 chenkangxian, All rights reserved.
 *
 */
public class SelectSockets {

	public static int PORT_NUMBER = 1234;

	private ByteBuffer buffer = ByteBuffer.allocate(1024);

	public static void main(String[] args) throws Exception {

		new SelectSockets().go(args);

	}

	public void go(String[] args) throws Exception{

		int port = PORT_NUMBER;
//		if(args.length > 0){
//			port = Integer.parseInt(args[0]);
//		}
//		System.out.println("Listening on port " + port);

		ServerSocketChannel serverChannel = ServerSocketChannel.open();

		ServerSocket serverSocket = serverChannel.socket();

		Selector selector = Selector.open();

		serverSocket.bind(new InetSocketAddress(port));

		serverChannel.configureBlocking(false);

		serverChannel.register(selector, SelectionKey.OP_ACCEPT);

		while(true){

			int n = selector.select(); //没有轮询,单个selector

			if(n == 0){
				continue;
			}

			Iterator it = selector.selectedKeys().iterator();

			while(it.hasNext()){
				SelectionKey key = (SelectionKey)it.next();

				if(key.isAcceptable()){
					ServerSocketChannel server =
						(ServerSocketChannel)key.channel();
					SocketChannel channel = server.accept();

					registerChannel(selector,channel
							,SelectionKey.OP_READ);

					sayHello(channel);
				}

				if(key.isReadable()){
					readDataFromSocket(key);
				}

				it.remove();
			}
		}

	}


	/**
	 * 在selector上注册channel,并设置interest
	 *
	 * Author: chenkangxian
	 *
	 * Last Modification Time: 2011-7-11
	 *
	 * @param selector 选择器
	 *
	 * @param channel 通道
	 *
	 * @param ops interest
	 *
	 * @throws Exception
	 */
	protected void registerChannel(Selector selector,
			SelectableChannel channel, int ops) throws Exception{

		if(channel == null){
			return ;
		}

		channel.configureBlocking(false);

		channel.register(selector, ops);
	}




	/**
	 * 处理有可用数据的通道
	 *
	 * Author: chenkangxian
	 *
	 * Last Modification Time: 2011-7-11
	 *
	 * @param key 可用通道对应的key
	 *
	 * @throws Exception
	 */
	protected void readDataFromSocket(SelectionKey key) throws Exception{

		SocketChannel socketChannel = (SocketChannel)key.channel();
		int count;

		buffer.clear(); //Empty buffer

		while((count = socketChannel.read(buffer)) > 0){

			buffer.flip();

			while(buffer.hasRemaining()){
				socketChannel.write(buffer);
			}

			buffer.clear();

		}

		if(count < 0){
			socketChannel.close();
		}

	}

	/**
	 * 打招呼
	 *
	 * Author: chenkangxian
	 *
	 * Last Modification Time: 2011-7-11
	 *
	 * @param channel 客户端channel
	 *
	 * @throws Exception
	 */
	private void sayHello(SocketChannel channel) throws Exception{

		buffer.clear();
		buffer.put("Hello 哈罗! \r\n".getBytes());
		buffer.flip();

		channel.write(buffer);
	}

}
?

?

?

?

?

  • 大小: 28.7 KB
  • 查看图片附件
