Ocelot统一权限验证

 2017/12/8 15:47:49  桂素伟  程序员俱乐部  我要评论(0)
  • 摘要:Ocelot作为网关,可以用来作统一验证,接上一篇博客,我们继续前一篇,我们创建了OcelotGateway网关项目,DemoAAPI项目,DemoBAPI项目,为了验证用户并分发Token,现在还需要添加AuthenticationAPI项目,也是asp.netcorewebapi项目,整体思路是,当用户首次请求(Request)时web服务,网关会判断本请求有无Token,并是否正确,如果没有或不正确,就会反回401Unauthorized;如果请求调用登录,正确输入用户名或密码
  • 标签:

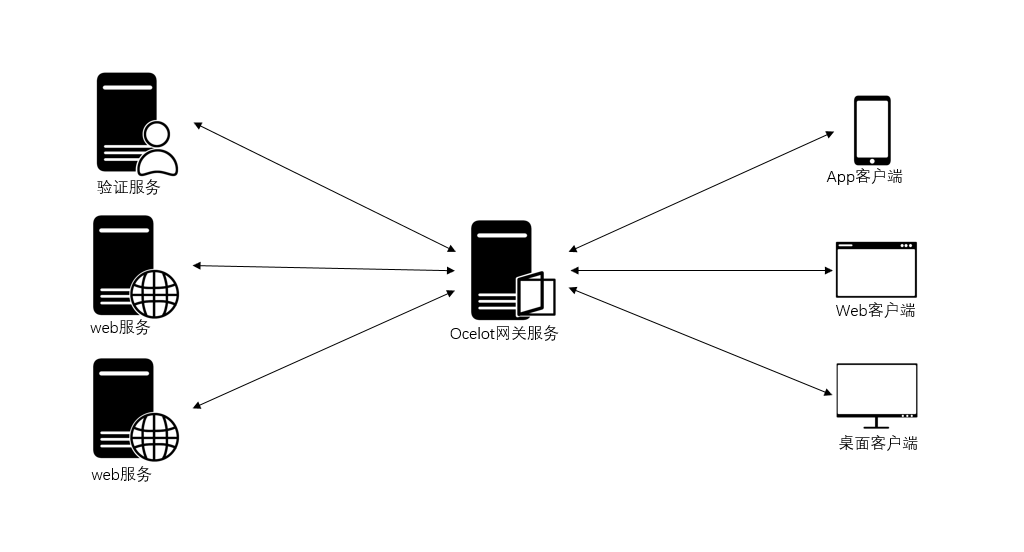

Ocelot作为网关,可以用来作统一验证,接上一篇博客,我们继续

前一篇,我们创建了OcelotGateway网关项目,DemoAAPI项目,DemoBAPI项目,为了验证用户并分发Token,现在还需要添加AuthenticationAPI项目,也是asp.net core web api项目,整体思路是,当用户首次请求(Request)时web服务,网关会判断本请求有无Token,并是否正确,如果没有或不正确,就会反回401 Unauthorized;如果请求调用登录,正确输入用户名或密码,AuthenticationAPI会验证并分发Token;当客户端带上Token再次访问web服务时,网关就会放过本请求,当请求到达web服务时,web服务要对本Token进行授权验证,如果有访问请求的地址,会成功返回应答,负责会提示没有权验,所以只要具有正确的Token,应答返回都是200 OK,因为Token正确,只是没有权限访问请求的内容。
下面创建最重要的一个项目Ocelot.JWTAuthorizePolicy,选.NET Standard的类库作为项目模板创建本项目,本项目的作用是为网关项目(OcelotGateway),web服务项目(DemoAAPI和DemoBAPI),和AuthenticationAPI提供注入JWT或自定义策略的API,关于自定义策略,可参考(http://www.cnblogs.com/axzxs2001/p/7530929.html)
本项目中的组成部分:
Permission.cs

class="code_img_closed" src="/Upload/Images/2017120815/0015B68B3C38AA5B.gif" alt="" />
 1 namespace Ocelot.JWTAuthorizePolicy
 2 {
 3 /// <summary>
 4 /// 用户或角色或其他凭据实体
 5 /// </summary>
 6 public class Permission
 7 {
 8 /// <summary>
 9 /// 用户或角色或其他凭据名称
10 /// </summary>
11 public virtual string Name
12 { get; set; }
13 /// <summary>
14 /// 请求Url
15 /// </summary>
16 public virtual string Url
17 { get; set; }
18 }
19 }
View Code

PermissionRequirement.cs

 1 using Microsoft.AspNetCore.Authorization;
 2 using Microsoft.IdentityModel.Tokens;
 3 using System;
 4 using System.Collections.Generic;
 5
 6 namespace Ocelot.JWTAuthorizePolicy
 7 {
 8 /// <summary>
 9 /// 必要参数类
10 /// </summary>
11 public class PermissionRequirement : IAuthorizationRequirement
12 {
13 /// <summary>
14 /// 无权限action
15 /// </summary>
16 public string DeniedAction { get; set; }
17
18 /// <summary>
19 /// 认证授权类型
20 /// </summary>
21 public string ClaimType { internal get; set; }
22 /// <summary>
23 /// 请求路径
24 /// </summary>
25 public string LoginPath { get; set; } = "/Api/Login";
26 /// <summary>
27 /// 发行人
28 /// </summary>
29 public string Issuer { get; set; }
30 /// <summary>
31 /// 订阅人
32 /// </summary>
33 public string Audience { get; set; }
34 /// <summary>
35 /// 过期时间
36 /// </summary>
37 public TimeSpan Expiration { get; set; }
38 /// <summary>
39 /// 签名验证
40 /// </summary>
41 public SigningCredentials SigningCredentials { get; set; }
42
43 /// <summary>
44 /// 构造
45 /// </summary>
46 /// <param name="deniedAction">无权限action</param>
47 /// <param name="userPermissions">用户权限集合</param>
48
49 /// <summary>
50 /// 构造
51 /// </summary>
52 /// <param name="deniedAction">拒约请求的url</param>
53 /// <param name="claimType">声明类型</param>
54 /// <param name="issuer">发行人</param>
55 /// <param name="audience">订阅人</param>
56 /// <param name="signingCredentials">签名验证实体</param>
57 public PermissionRequirement(string deniedAction, string claimType, string issuer, string audience, SigningCredentials signingCredentials, TimeSpan expiration)
58 {
59 ClaimType = claimType;
60 DeniedAction = deniedAction;
61 Issuer = issuer;
62 Audience = audience;
63 Expiration = expiration;
64 SigningCredentials = signingCredentials;
65 }
66 }
67 }
View Code

PermissionHandler.cs

 1 using Microsoft.AspNetCore.Authentication;
 2 using Microsoft.AspNetCore.Authentication.JwtBearer;
 3 using Microsoft.AspNetCore.Authorization;
 4 using Microsoft.Extensions.DependencyInjection;
 5 using System;
 6 using System.Collections.Generic;
 7 using System.Linq;
 8 using System.Security.Claims;
 9 using System.Threading.Tasks;
10
11 namespace Ocelot.JWTAuthorizePolicy
12 {
13 /// <summary>
14 /// 权限授权Handler
15 /// </summary>
16 public class PermissionHandler : AuthorizationHandler<PermissionRequirement>
17 {
18 /// <summary>
19 /// 验证方案提供对象
20 /// </summary>
21 public IAuthenticationSchemeProvider Schemes { get; set; }
22 /// <summary>
23 /// 用户权限集合
24 /// </summary>
25 List<Permission> _permissions;
26 /// <summary>
27 /// 构造
28 /// </summary>
29 /// <param name="schemes"></param>
30 public PermissionHandler(IAuthenticationSchemeProvider schemes, List<Permission> permissions=null)
31 {
32 Schemes = schemes;
33 _permissions = permissions;
34 }
35
36 protected override async Task HandleRequirementAsync(AuthorizationHandlerContext context, PermissionRequirement requirement)
37 {
38 //从AuthorizationHandlerContext转成HttpContext,以便取出表求信息
39 var httpContext = (context.Resource as Microsoft.AspNetCore.Mvc.Filters.AuthorizationFilterContext).HttpContext;
40 //请求Url
41 var questUrl = httpContext.Request.Path.Value.ToLower();
42 //判断请求是否停止
43 var handlers = httpContext.RequestServices.GetRequiredService<IAuthenticationHandlerProvider>();
44 foreach (var scheme in await Schemes.GetRequestHandlerSchemesAsync())
45 {
46 var handler = await handlers.GetHandlerAsync(httpContext, scheme.Name) as IAuthenticationRequestHandler;
47 if (handler != null && await handler.HandleRequestAsync())
48 {
49 context.Fail();
50 return;
51 }
52 }
53 //判断请求是否拥有凭据,即有没有登录
54 var defaultAuthenticate = await Schemes.GetDefaultAuthenticateSchemeAsync();
55 if (defaultAuthenticate != null)
56 {
57 var result = await httpContext.AuthenticateAsync(defaultAuthenticate.Name);
58 //result?.Principal不为空即登录成功
59 if (result?.Principal != null)
60 {
61 httpContext.User = result.Principal;
62 //权限中是否存在请求的url
63 if (_permissions!=null&&_permissions.GroupBy(g => g.Url).Where(w => w.Key.ToLower() == questUrl).Count() > 0)
64 {
65 var name = httpContext.User.Claims.SingleOrDefault(s => s.Type == requirement.ClaimType).Value;
66 //验证权限
67 if (_permissions.Where(w => w.Name == name && w.Url.ToLower() == questUrl).Count() == 0)
68 {
69 //无权限跳转到拒绝页面
70 httpContext.Response.Redirect(requirement.DeniedAction);
71 context.Succeed(requirement);
72 return;
73 }
74 }
75 //判断过期时间
76 if (DateTime.Parse(httpContext.User.Claims.SingleOrDefault(s => s.Type == ClaimTypes.Expiration).Value) >= DateTime.Now)
77 {
78 context.Succeed(requirement);
79 }
80 else
81 {
82 context.Fail();
83 }
84 return;
85 }
86 }
87 //判断没有登录时,是否访问登录的url,并且是Post请求,并且是form表单提交类型,否则为失败
88 if (!questUrl.Equals(requirement.LoginPath.ToLower(), StringComparison.Ordinal) && (!httpContext.Request.Method.Equals("POST")
89 || !httpContext.Request.HasFormContentType))
90 {
91 context.Fail();
92 return;
93 }
94 context.Succeed(requirement);
95 }
96 }
97 }
View Code

JwtToken.cs

 1 using System;
 2 using System.IdentityModel.Tokens.Jwt;
 3 using System.Security.Claims;
 4
 5 namespace Ocelot.JWTAuthorizePolicy
 6 {
 7 /// <summary>
 8 /// JWTToken生成类
 9 /// </summary>
10 public class JwtToken
11 {
12 /// <summary>
13 /// 获取基于JWT的Token
14 /// </summary>
15 /// <param name="username"></param>
16 /// <returns></returns>
17 public static dynamic BuildJwtToken(Claim[] claims, PermissionRequirement permissionRequirement)
18 {
19 var now = DateTime.UtcNow;
20 var jwt = new JwtSecurityToken(
21 issuer: permissionRequirement.Issuer,
22 audience: permissionRequirement.Audience,
23 claims: claims,
24 notBefore: now,
25 expires: now.Add(permissionRequirement.Expiration),
26 signingCredentials: permissionRequirement.SigningCredentials
27 );
28 var encodedJwt = new JwtSecurityTokenHandler().WriteToken(jwt);
29 var responseJson = new
30 {
31 Status = true,
32 access_token = encodedJwt,
33 expires_in = permissionRequirement.Expiration.TotalMilliseconds,
34 token_type = "Bearer"
35 };
36 return responseJson;
37 }
38 }
39 }
View Code

OcelotJwtBearerExtension.cs,本类型中的方法分别用于网关,web服务,和验证服务,请参看注释

  1 using Microsoft.AspNetCore.Authentication;
  2 using Microsoft.AspNetCore.Authorization;
  3 using Microsoft.Extensions.DependencyInjection;
  4 using Microsoft.IdentityModel.Tokens;
  5 using System;
  6 using System.Collections.Generic;
  7 using System.Security.Claims;
  8 using System.Text;
  9
 10 namespace Ocelot.JWTAuthorizePolicy
 11 {
 12 /// <summary>
 13 /// Ocelot下JwtBearer扩展
 14 /// </summary>
 15 public static class OcelotJwtBearerExtension
 16 {
 17 /// <summary>
 18 /// 注入Ocelot下JwtBearer,在ocelot网关的Startup的ConfigureServices中调用
 19 /// </summary>
 20 /// <param name="services">IServiceCollection</param>
 21 /// <param name="issuer">发行人</param>
 22 /// <param name="audience">订阅人</param>
 23 /// <param name="secret">密钥</param>
 24 /// <param name="defaultScheme">默认架构</param>
 25 /// <param name="isHttps">是否https</param>
 26 /// <returns></returns>
 27 public static AuthenticationBuilder AddOcelotJwtBearer(this IServiceCollection services, string issuer, string audience, string secret, string defaultScheme, bool isHttps = false)
 28 {
 29 var keyByteArray = Encoding.ASCII.GetBytes(secret);
 30 var signingKey = new SymmetricSecurityKey(keyByteArray);
 31 var tokenValidationParameters = new TokenValidationParameters
 32 {
 33 ValidateIssuerSigningKey = true,
 34 IssuerSigningKey = signingKey,
 35 ValidateIssuer = true,
 36 ValidIssuer = issuer,//发行人
 37 ValidateAudience = true,
 38 ValidAudience = audience,//订阅人
 39 ValidateLifetime = true,
 40 ClockSkew = TimeSpan.Zero,
 41 RequireExpirationTime = true,
 42 };
 43 return services.AddAuthentication(options =>
 44 {
 45 options.DefaultScheme = defaultScheme;
 46 })
 47 .AddJwtBearer(defaultScheme, opt =>
 48 {
 49 //不使用https
 50 opt.RequireHttpsMetadata = isHttps;
 51 opt.TokenValidationParameters = tokenValidationParameters;
 52 });
 53 }
 54
 55 /// <summary>
 56 /// 注入Ocelot jwt策略,在业务API应用中的Startup的ConfigureServices调用
 57 /// </summary>
 58 /// <param name="services">IServiceCollection</param>
 59 /// <param name="issuer">发行人</param>
 60 /// <param name="audience">订阅人</param>
 61 /// <param name="secret">密钥</param>
 62 /// <param name="defaultScheme">默认架构</param>
 63 /// <param name="policyName">自定义策略名称</param>
 64 /// <param name="deniedUrl">拒绝路由</param>
 65 /// <param name="isHttps">是否https</param>
 66 /// <returns></returns>
 67 public static AuthenticationBuilder AddOcelotPolicyJwtBearer(this IServiceCollection services, string issuer, string audience, string secret, string defaultScheme, string policyName, string deniedUrl, bool isHttps = false)
 68 {
 69
 70 var keyByteArray = Encoding.ASCII.GetBytes(secret);
 71 var signingKey = new SymmetricSecurityKey(keyByteArray);
 72 var tokenValidationParameters = new TokenValidationParameters
 73 {
 74 ValidateIssuerSigningKey = true,
 75 IssuerSigningKey = signingKey,
 76 ValidateIssuer = true,
 77 ValidIssuer = issuer,//发行人
 78 ValidateAudience = true,
 79 ValidAudience = audience,//订阅人
 80 ValidateLifetime = true,
 81 ClockSkew = TimeSpan.Zero,
 82 RequireExpirationTime = true,
 83
 84 };
 85 var signingCredentials = new SigningCredentials(signingKey, SecurityAlgorithms.HmacSha256);
 86 //如果第三个参数,是ClaimTypes.Role,上面集合的每个元素的Name为角色名称,如果ClaimTypes.Name,即上面集合的每个元素的Name为用户名
 87 var permissionRequirement = new PermissionRequirement(
 88 deniedUrl,
 89 ClaimTypes.Role,
 90 issuer,
 91 audience,
 92 signingCredentials,
 93 expiration: TimeSpan.FromHours(10)
 94 );
 95 //注入授权Handler
 96 services.AddSingleton<IAuthorizationHandler, PermissionHandler>();
 97 services.AddSingleton(permissionRequirement);
 98 return services.AddAuthorization(options =>
 99 {
100 options.AddPolicy(policyName,
101 policy => policy.Requirements.Add(permissionRequirement));
102
103 })
104 .AddAuthentication(options =>
105 {
106 options.DefaultScheme = defaultScheme;
107 })
108 .AddJwtBearer(defaultScheme, o =>
109 {
110 //不使用https
111 o.RequireHttpsMetadata = isHttps;
112 o.TokenValidationParameters = tokenValidationParameters;
113 });
114 }
115 /// <summary>
116 /// 注入Token生成器参数,在token生成项目的Startup的ConfigureServices中使用
117 /// </summary>
118 /// <param name="services">IServiceCollection</param>
119 /// <param name="issuer">发行人</param>
120 /// <param name="audience">订阅人</param>
121 /// <param name="secret">密钥</param>
122 /// <param name="deniedUrl">拒绝路由</param>
123 /// <returns></returns>
124 public static IServiceCollection AddJTokenBuild(this IServiceCollection services, string issuer, string audience, string secret, string deniedUrl)
125 {
126 var signingCredentials = new SigningCredentials(new SymmetricSecurityKey(Encoding.ASCII.GetBytes(secret)), SecurityAlgorithms.HmacSha256);
127 //如果第三个参数,是ClaimTypes.Role,上面集合的每个元素的Name为角色名称,如果ClaimTypes.Name,即上面集合的每个元素的Name为用户名
128 var permissionRequirement = new PermissionRequirement(
129 deniedUrl,
130 ClaimTypes.Role,
131 issuer,
132 audience,
133 signingCredentials,
134 expiration: TimeSpan.FromHours(10)
135 );
136 return services.AddSingleton(permissionRequirement);
137
138 }
139
140 }
141 }
View Code

接下来看AuthenticationAPI项目:

appsettings.json

{
"Logging": {
"IncludeScopes": false,
"Debug": {
"LogLevel": {
"Default": "Information"
}
},
"Console": {
"LogLevel": {
"Default": "Information"
}
}
},
"Audience": {
"Secret": "ABCDEFGHIJKLMNOPQRSTUVWXYZ1234567890",
"Issuer": "gsw",
"Audience": "everone"
}
}

Startup.cs

 1 using Microsoft.AspNetCore.Builder;
 2 using Microsoft.AspNetCore.Hosting;
 3 using Microsoft.Extensions.Configuration;
 4 using Microsoft.Extensions.DependencyInjection;
 5 using Ocelot.JWTAuthorizePolicy;
 6
 7 namespace AuthenticationAPI
 8 {
 9 public class Startup
10 {
11 public Startup(IConfiguration configuration)
12 {
13 Configuration = configuration;
14 }
15 public IConfiguration Configuration { get; }
16 public void ConfigureServices(IServiceCollection services)
17 {
18 var audienceConfig = Configuration.GetSection("Audience");
19 //注入OcelotJwtBearer
20 services.AddJTokenBuild(audienceConfig["Issuer"], audienceConfig["Issuer"], audienceConfig["Secret"], "/api/denied");
21 services.AddMvc();
22 }
23 public void Configure(IApplicationBuilder app, IHostingEnvironment env)
24 {
25 if (env.IsDevelopment())
26 {
27 app.UseDeveloperExceptionPage();
28 }
29 app.UseMvc();
30 }
31 }
32 }
View Code

PermissionController.cs

 1 using System;
 2 using Microsoft.AspNetCore.Mvc;
 3 using Microsoft.AspNetCore.Authorization;
 4 using System.Security.Claims;
 5 using Microsoft.AspNetCore.Authentication.JwtBearer;
 6 using Ocelot.JWTAuthorizePolicy;
 7
 8 namespace AuthenticationAPI
 9 {
10 public class PermissionController : Controller
11 {
12 /// <summary>
13 /// 自定义策略参数
14 /// </summary>
15 PermissionRequirement _requirement;
16 public PermissionController(PermissionRequirement requirement)
17 {
18 _requirement = requirement;
19 }
20 [AllowAnonymous]
21 [HttpPost("/authapi/login")]
22 public IActionResult Login(string username, string password)
23 {
24 var isValidated = (username == "gsw" && password == "111111")|| (username == "ggg" && password == "222222");
25 var role=username=="gsw"?"admin" :"system";
26 if (!isValidated)
27 {
28 return new JsonResult(new
29 {
30 Status = false,
31 Message = "认证失败"
32 });
33 }
34 else
35 {
36 //如果是基于用户的授权策略,这里要添加用户;如果是基于角色的授权策略,这里要添加角色
37 var claims = new Claim[] { new Claim(ClaimTypes.Name, username), new Claim(ClaimTypes.Role, role), new Claim(ClaimTypes.Expiration ,DateTime.Now.AddSeconds(_requirement.Expiration.TotalSeconds).ToString())};
38 //用户标识
39 var identity = new ClaimsIdentity(JwtBearerDefaults.AuthenticationScheme);
40 identity.AddClaims(claims);
41
42 var token = JwtToken.BuildJwtToken(claims, _requirement);
43 return new JsonResult(token);
44 }
45 }
46 }
47 }
View Code

DemoAAPI项目,DemoBAPI项目类似

appsettings.json与网关,AuthenticationAPI相同
Startup.cs

 1 using System.Collections.Generic;
 2 using Microsoft.AspNetCore.Builder;
 3 using Microsoft.AspNetCore.Hosting;
 4 using Microsoft.Extensions.Configuration;
 5 using Microsoft.Extensions.DependencyInjection;
 6 using Microsoft.Extensions.Logging;
 7 using Ocelot.JWTAuthorizePolicy;
 8
 9 namespace DemoAAPI
10 {
11 public class Startup
12 {
13 public Startup(IConfiguration configuration)
14 {
15 Configuration = configuration;
16 }
17 public IConfiguration Configuration { get; }
18 public void ConfigureServices(IServiceCollection services)
19 {
20 //读取配置文件
21 var audienceConfig = Configuration.GetSection("Audience");
22 services.AddOcelotPolicyJwtBearer(audienceConfig["Issuer"], audienceConfig["Issuer"], audienceConfig["Secret"], "GSWBearer", "Permission", "/demoaapi/denied");
23
24 //这个集合模拟用户权限表,可从数据库中查询出来
25 var permission = new List<Permission> {
26 new Permission { Url="/demoaapi/values", Name="system"},
27 new Permission { Url="/", Name="system"}
28 };
29 services.AddSingleton(permission);
30 services.AddMvc();
31 }
32 public void Configure(IApplicationBuilder app, IHostingEnvironment env, ILoggerFactory loggerFactory)
33 {
34 loggerFactory.AddConsole(Configuration.GetSection("Logging"));
35 if (env.IsDevelopment())
36 {
37 app.UseDeveloperExceptionPage();
38 }
39 app.UseMvc();
40 }
41 }
42 }
View Code

ValuesController.cs

 1 using System.Collections.Generic;
 2 using Microsoft.AspNetCore.Authorization;
 3 using Microsoft.AspNetCore.Mvc;
 4
 5 namespace DemoAAPI.Controllers
 6 {
 7 [Authorize("Permission")]
 8 [Route("demoaapi/[controller]")]
 9 public class ValuesController : Controller
10 {
11 [HttpGet]
12 public IEnumerable<string> Get()
13 {
14 return new string[] { "DemoA服务", "请求" };
15 }
16 [AllowAnonymous]
17 [HttpGet("/demoaapi/denied")]
18 public IActionResult Denied()
19 {
20 return new JsonResult(new
21 {
22 Status = false,
23 Message = "demoaapi你无权限访问"
24 });
25 }
26 }
27 }
View Code

OcelotGateway项目

configuration.json,注意每个连接的AuthenticationOptions. AuthenticationProviderKey,要设置成

{
"ReRoutes": [
{
"DownstreamPathTemplate": "/demoaapi/values",
"DownstreamScheme": "http",
"DownstreamPort": 5001,
"DownstreamHost": "localhost",
"UpstreamPathTemplate": "/demoaapi/values",
"UpstreamHttpMethod": [ "Get" ],
"QoSOptions": {
"ExceptionsAllowedBeforeBreaking": 3,
"DurationOfBreak": 10,
"TimeoutValue": 5000
},
"HttpHandlerOptions": {
"AllowAutoRedirect": false,
"UseCookieContainer": false
},
"AuthenticationOptions": {
"AuthenticationProviderKey": "GSWBearer",
"AllowedScopes": []
}
},
{
"DownstreamPathTemplate": "/demoaapi/denied",
"DownstreamScheme": "http",
"DownstreamPort": 5001,
"DownstreamHost": "localhost",
"UpstreamPathTemplate": "/demoaapi/denied",
"UpstreamHttpMethod": [ "Get" ],
"QoSOptions": {
"ExceptionsAllowedBeforeBreaking": 3,
"DurationOfBreak": 10,
"TimeoutValue": 5000
},
"AuthenticationOptions": {
}
},
{
"DownstreamPathTemplate": "/demobapi/values",
"DownstreamScheme": "http",
"DownstreamPort": 5002,
"DownstreamHost": "localhost",
"UpstreamPathTemplate": "/demobapi/values",
"UpstreamHttpMethod": [ "Get" ],
"QoSOptions": {
"ExceptionsAllowedBeforeBreaking": 3,
"DurationOfBreak": 10,
"TimeoutValue": 5000
},
"HttpHandlerOptions": {
"AllowAutoRedirect": false,
"UseCookieContainer": false
},
"AuthenticationOptions": {
"AuthenticationProviderKey": "GSWBearer",
"AllowedScopes": []
}
},
{
"DownstreamPathTemplate": "/demobapi/denied",
"DownstreamScheme": "http",
"DownstreamPort": 5002,
"DownstreamHost": "localhost",
"UpstreamPathTemplate": "/demobapi/denied",
"UpstreamHttpMethod": [ "Get" ],
"QoSOptions": {
"ExceptionsAllowedBeforeBreaking": 3,
"DurationOfBreak": 10,
"TimeoutValue": 5000
},
"AuthenticationOptions": {
}
},
{
"DownstreamPathTemplate": "/authapi/login",
"DownstreamScheme": "http",
"DownstreamPort": 5003,
"DownstreamHost": "localhost",
"UpstreamPathTemplate": "/authapi/login",
"UpstreamHttpMethod": [ "Get", "Post" ],
"QoSOptions": {
"ExceptionsAllowedBeforeBreaking": 3,
"DurationOfBreak": 10,
"TimeoutValue": 5000
},
"AuthenticationOptions": {
}
}
]
}
View Code

Startup.cs

 1 using Microsoft.AspNetCore.Builder;
 2 using Microsoft.AspNetCore.Hosting;
 3 using Microsoft.Extensions.Configuration;
 4 using Microsoft.Extensions.DependencyInjection;
 5 using Ocelot.DependencyInjection;
 6 using Ocelot.Middleware;
 7 using Ocelot.JWTAuthorizePolicy;
 8 namespace OcelotGateway
 9 {
10 public class Startup
11 {
12 public Startup(IConfiguration configuration)
13 {
14 Configuration = configuration;
15 }
16 public IConfiguration Configuration { get; }
17 public void ConfigureServices(IServiceCollection services)
18 {
19 var audienceConfig = Configuration.GetSection("Audience");
20 //注入OcelotJwtBearer
21 services.AddOcelotJwtBearer(audienceConfig["Issuer"], audienceConfig["Issuer"], audienceConfig["Secret"], "GSWBearer");
22 //注入配置文件,AddOcelot要求参数是IConfigurationRoot类型,所以要作个转换
23 services.AddOcelot(Configuration as ConfigurationRoot);
24 }
25 public void Configure(IApplicationBuilder app, IHostingEnvironment env)
26 {
27 app.UseOcelot().Wait();
28 }
29 }
30 }
View Code

接下来是测试项目,创建一个控制项目TestClient

Nuget中添加RestSharp包
Program.cs

  1 using RestSharp;
  2 using System;
  3 using System.Diagnostics;
  4
  5 namespace TestClient
  6 {
  7 class Program
  8 {
  9 /// <summary>
 10 /// 访问Url
 11 /// </summary>
 12 static string _url = "http://127.0.0.1:5000";
 13 static void Main(string[] args)
 14 {
 15
 16 Console.Title = "TestClient";
 17 dynamic token = null;
 18 while (true)
 19 {
 20 Console.WriteLine("1、登录【admin】 2、登录【system】 3、登录【错误用户名密码】 4、查询HisUser数据 5、查询LisUser数据 ");
 21 var mark = Console.ReadLine();
 22 var stopwatch = new Stopwatch();
 23 stopwatch.Start();
 24 switch (mark)
 25 {
 26 case "1":
 27 token = AdminLogin();
 28 break;
 29 case "2":
 30 token = SystemLogin();
 31 break;
 32 case "3":
 33 token = NullLogin();
 34 break;
 35 case "4":
 36 DemoAAPI(token);
 37 break;
 38 case "5":
 39 DemoBAPI(token);
 40 break;
 41 }
 42 stopwatch.Stop();
 43 TimeSpan timespan = stopwatch.Elapsed;
 44 Console.WriteLine($"间隔时间:{timespan.TotalSeconds}");
 45 tokenString = "Bearer " + Convert.ToString(token?.access_token);
 46 }
 47 }
 48 static string tokenString = "";
 49 static dynamic NullLogin()
 50 {
 51 var loginClient = new RestClient(_url);
 52 var loginRequest = new RestRequest("/authapi/login", Method.POST);
 53 loginRequest.AddParameter("username", "gswaa");
 54 loginRequest.AddParameter("password", "111111");
 55 //或用用户名密码查询对应角色
 56 loginRequest.AddParameter("role", "system");
 57 IRestResponse loginResponse = loginClient.Execute(loginRequest);
 58 var loginContent = loginResponse.Content;
 59 Console.WriteLine(loginContent);
 60 return Newtonsoft.Json.JsonConvert.DeserializeObject(loginContent);
 61 }
 62
 63 static dynamic SystemLogin()
 64 {
 65 var loginClient = new RestClient(_url);
 66 var loginRequest = new RestRequest("/authapi/login", Method.POST);
 67 loginRequest.AddParameter("username", "ggg");
 68 loginRequest.AddParameter("password", "222222");
 69 IRestResponse loginResponse = loginClient.Execute(loginRequest);
 70 var loginContent = loginResponse.Content;
 71 Console.WriteLine(loginContent);
 72 return Newtonsoft.Json.JsonConvert.DeserializeObject(loginContent);
 73 }
 74 static dynamic AdminLogin()
 75 {
 76 var loginClient = new RestClient(_url);
 77 var loginRequest = new RestRequest("/authapi/login", Method.POST);
 78 loginRequest.AddParameter("username", "gsw");
 79 loginRequest.AddParameter("password", "111111");
 80 IRestResponse loginResponse = loginClient.Execute(loginRequest);
 81 var loginContent = loginResponse.Content;
 82 Console.WriteLine(loginContent);
 83 return Newtonsoft.Json.JsonConvert.DeserializeObject(loginContent);
 84 }
 85 static void DemoAAPI(dynamic token)
 86 {
 87 var client = new RestClient(_url);
 88 //这里要在获取的令牌字符串前加Bearer
 89 string tk = "Bearer " + Convert.ToString(token?.access_token);
 90 client.AddDefaultHeader("Authorization", tk);
 91 var request = new RestRequest("/demoaapi/values", Method.GET);
 92 IRestResponse response = client.Execute(request);
 93 var content = response.Content;
 94 Console.WriteLine($"状态码:{(int)response.StatusCode} 状态信息:{response.StatusCode} 返回结果:{content}");
 95 }
 96 static void DemoBAPI(dynamic token)
 97 {
 98 var client = new RestClient(_url);
 99 //这里要在获取的令牌字符串前加Bearer
100 string tk = "Bearer " + Convert.ToString(token?.access_token);
101 client.AddDefaultHeader("Authorization", tk);
102 var request = new RestRequest("/demobapi/values", Method.GET);
103 IRestResponse response = client.Execute(request);
104 var content = response.Content; Console.WriteLine($"状态码:{(int)response.StatusCode} 状态信息:{response.StatusCode} 返回结果:{content}");
105 }
106 }
107 }
View Code



代码下载

上一篇: Ocelot监控 下一篇: Ocelot网关
  • 相关文章
发表评论
用户名: 匿名
