WPF 圖表控件 MetroChart

 2017/10/20 11:30:07  Mantis丶Shrimp  程序员俱乐部  我要评论(0)
  • 摘要:TorstenMandelkowMetroChart包括以下:ColumnChart(ClusteredColumnChart,StackedColumnChart,StackedColumnChart100Percent)饼图(饼图和Dognut)BarChart(ClusteredBarChart,StackedBarChart,StackedBarChart100Percent)甜甜圈图径向测量图有相当大的演示可以从CodePlex下载,但是不夠詳細的,所以我决定写一个小的入门指南
  • 标签:控件



Torsten Mandelkow MetroChart包括以下:

  • ColumnChart(ClusteredColumnChart,StackedColumnChart,StackedColumnChart100Percent)
  • 饼图(饼图和Dognut)
  • BarChart(ClusteredBarChart,StackedBarChart,StackedBarChart100Percent)
  • 甜甜圈
  • 径向测量



相当大的演示可以从CodePlex下载,但是不夠詳細的,所以我决定写一个小的入门指南。作为文档的一部分,还有一个操作方法,但它并没有真正起作用图表没有渲染,我一步一步地遵循了如何操作,

其中

  • ChartTitle是图表的主要标题
  • ChartSubTitle是字幕,当然以较小的字体显示
  • DisplayMember是保存该值名称的属性的名称
  • ValueMember是保存该值的属性的名称
  • ItemsSource是本系列产品的来源。
  • SeriesTitle拥有特定系列的标题
<Window xmlns:MetroChart="clr-namespace:De.TorstenMandelkow.MetroChart;assembly=De.TorstenMandelkow.MetroChart"  x:Class="WpfApplication1.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:Class="clr-namespace:WpfApplication1"
        mc:Ignorable="d"
         xmlns:chart="using:De.TorstenMandelkow.MetroChart"
        Title="MainWindow" Height="800" Width="1000" WindowStartupLocation="CenterScreen">
    <ScrollViewer>
        <Grid ShowGridLines="True">

        <Grid.RowDefinitions>
            <RowDefinition Height="*"></RowDefinition>
            <RowDefinition Height="Auto"></RowDefinition>
        </Grid.RowDefinitions>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="*"></ColumnDefinition>
            <ColumnDefinition Width="Auto"></ColumnDefinition>
        </Grid.ColumnDefinitions>

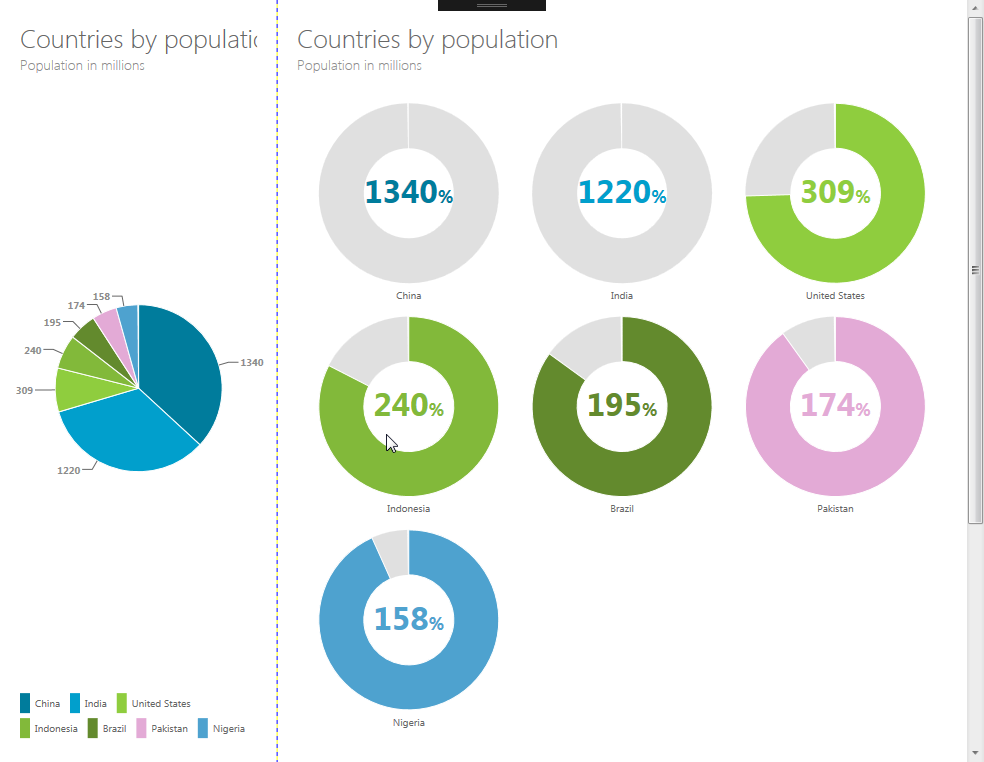

        <MetroChart:PieChart ChartSubTitle="Population in millions"
                ChartTitle="Countries by population" Grid.Row="0" Grid.Column="0">
            <MetroChart:PieChart.Series>
                <MetroChart:ChartSeries DisplayMember="Name"
                            ItemsSource="{Binding Path=Populations}"
                            SeriesTitle="World largest populations"
                            ValueMember="Count" />
            </MetroChart:PieChart.Series>
        </MetroChart:PieChart>

        <MetroChart:RadialGaugeChart ChartSubTitle="Population in millions"
                ChartTitle="Countries by population" Background="White" Grid.Row="0" Grid.Column="1">
            <MetroChart:RadialGaugeChart.Series>
                <MetroChart:ChartSeries DisplayMember="Name"
                            ItemsSource="{Binding Path=Populations}"
                            SeriesTitle="World smallest populations"
                            ValueMember="Count" />
            </MetroChart:RadialGaugeChart.Series>
        </MetroChart:RadialGaugeChart>

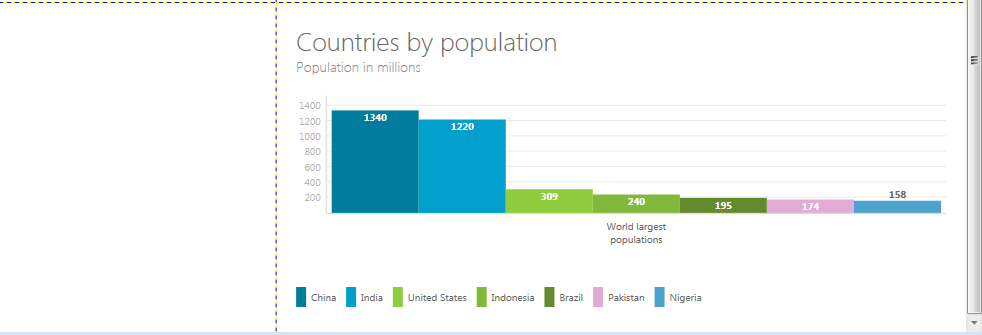

        <MetroChart:ClusteredColumnChart ChartSubTitle="Population in millions" ChartTitle="Countries by population" Grid.Row="1" Grid.Column="1">
            <MetroChart:ClusteredColumnChart.Series>
                <MetroChart:ChartSeries DisplayMember="Name"
                                   ItemsSource="{Binding Path=Populations}"
                                   SeriesTitle="World largest populations"
                                   ValueMember="Count" />

            </MetroChart:ClusteredColumnChart.Series>
        </MetroChart:ClusteredColumnChart>



    </Grid>
    </ScrollViewer>
</Window>

VIEWMODEL:

using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.ComponentModel;
using System.Linq;
using System.Text;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;

namespace WpfApplication1
{
    /// <summary>
    /// MainWindow.xaml 的交互逻辑
    /// </summary>
    public partial class MainWindow : Window
    {

        public MainWindow()
        {
            InitializeComponent();
            this.DataContext = new MainViewModel();
        }
    }


    public class MainViewModel
    {
        private readonly ObservableCollection<Population> _populations = new ObservableCollection<Population>();
        public ObservableCollection<Population> Populations
        {
            get
            {
                return _populations;
            }
        }

        public MainViewModel()
        {
            _populations.Add(new Population() { Name = "China", Count = 1340 });
            _populations.Add(new Population() { Name = "India", Count = 1220 });
            _populations.Add(new Population() { Name = "United States", Count = 309 });
            _populations.Add(new Population() { Name = "Indonesia", Count = 240 });
            _populations.Add(new Population() { Name = "Brazil", Count = 195 });
            _populations.Add(new Population() { Name = "Pakistan", Count = 174 });
            _populations.Add(new Population() { Name = "Nigeria", Count = 158 });
        }
    }


    public class Population : INotifyPropertyChanged
    {
        private string _name = string.Empty;
        private int _count = 0;

        public string Name
        {
            get
            {
                return _name;
            }
            set
            {
                _name = value;
                NotifyPropertyChanged("Name");
            }
        }

        public int Count
        {
            get
            {
                return _count;
            }
            set
            {
                _count = value;
                NotifyPropertyChanged("Count");
            }

        }

        public event PropertyChangedEventHandler PropertyChanged;

        private void NotifyPropertyChanged(string property)
        {
            if (PropertyChanged != null)
            {
                PropertyChanged.Invoke(this, new PropertyChangedEventArgs(property));
            }
        }
    }
}

引用的控件類庫:De.TorstenMandelkow.MetroChart.WPF,需要可以找我要或者直接去github找就可以了.

转载需註明引用!
