问题描述 :

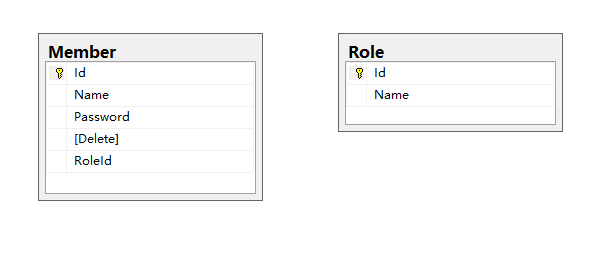

数据库中有两张表,如下:
Member(会员)表有外键RoleId,对应的是Role(角色)表的主键Id,业务逻辑是Member表的RoleId必须与Role表的Id对应(但在设计数据表时没有设置外键,使用EF(Entity Framework,下同)来配置)
首页Member的代码如下:
class="code_img_closed" src="/Upload/Images/2017080617/0015B68B3C38AA5B.gif" alt=""> public partial class Member
{
public int Id { get; set; }
public string Name { get; set; }
public string Password { get; set; }
public bool Delete{ get; set; }
public int RoleId { get; set; }
public virtual Role Role { get; set; }
}
logs_code_collapse" style="font-size: 18px">View Code
Role表的代码如下:
public partial class Role
{
public int Id { get; set; }
public string Name { get; set; }
public virtual IList<Member> Members { get; set; }
}
View Code
Member、Role的关系代码如下:
public class MemberMap : EntityTypeConfiguration<Member>
{
public MemberMap()
{
this.ToTable("Member");
this.HasKey(m => m.Id);
this.HasRequired(m => m.Role).WithMany().HasForeignKey(m => m.RoleId);
}
}
View Code
public class RoleMap: EntityTypeConfiguration<Role>
{
public RoleMap()
{
this.ToTable("Role");
this.HasKey(r => r.Id);
}
}
View Code
EF操作类如下:
public partial class EFContext<T> : DbContext where T : class
{
public EFContext(): base("name=MyConnectionString")
{
}
protected override void OnModelCreating(DbModelBuilder modelBuilder)
{
Database.SetInitializer<EFContext<T>> (null);
modelBuilder.Configurations.Add(new MemberMap());
modelBuilder.Configurations.Add(new RoleMap());
base.OnModelCreating(modelBuilder);
}
public DbSet<T> Table { get; set; }
public IQueryable<T> GetList(Expression<Func<T,bool>> where)
{
return this.Table.Where(where);
}
}
View Code

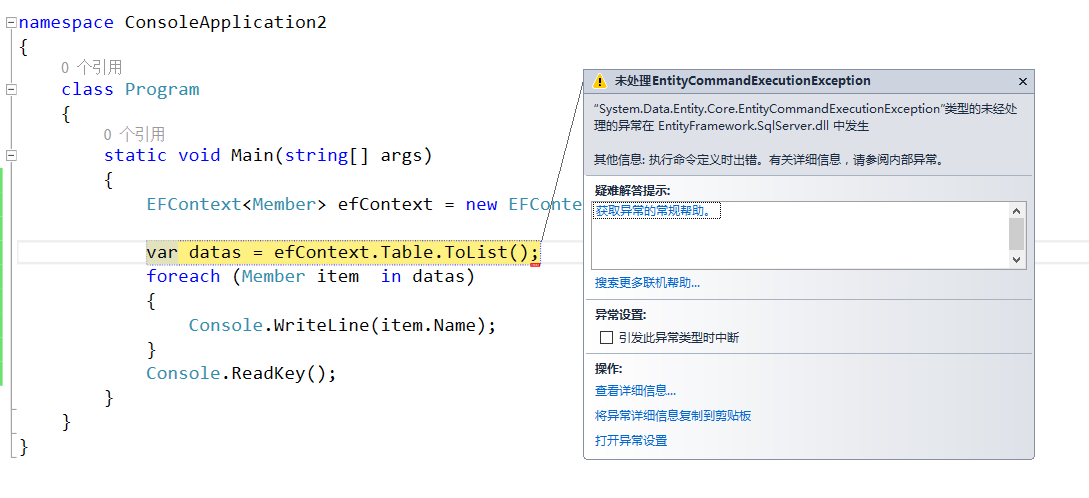

程序运行时提示异常,
展开详情信息如下:

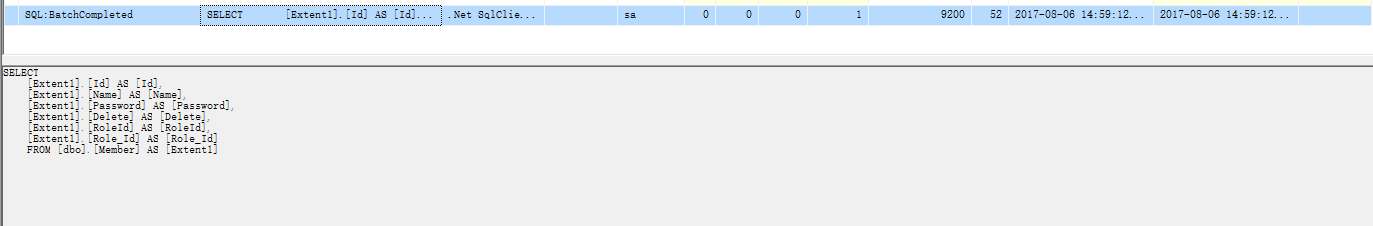

使用SQL Profiler发现生成的代码如下:
这里多查询了Role_Id,实际RoleId已经是外键了。
解决方法是WithMany()配置映射,即修改MemberMap为如下:
public class MemberMap : EntityTypeConfiguration<Member>
{
public MemberMap()
{
this.ToTable("Member");
this.HasKey(m => m.Id);
this.HasRequired(m => m.Role).WithMany(r => r.Members).HasForeignKey(m => m.RoleId);
}
}

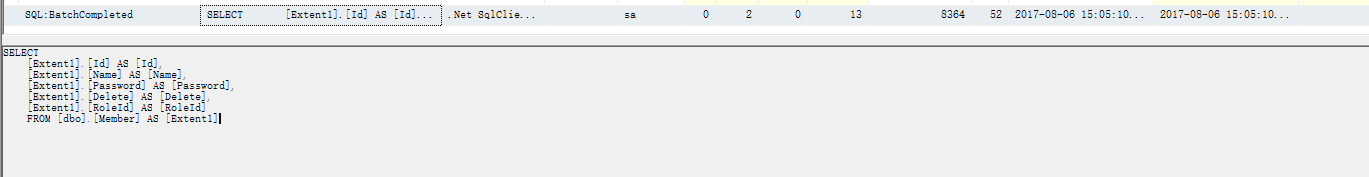

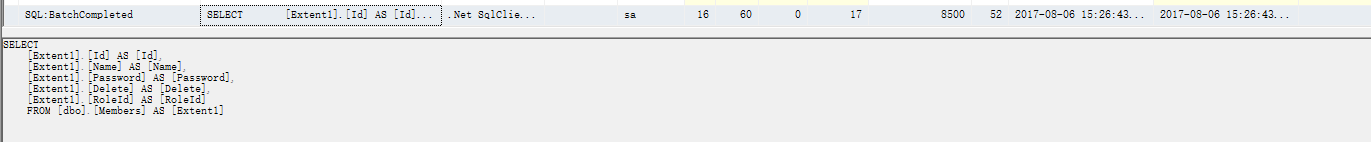

此时再运行控制台程序,没有异常,SQL Profiler如下:
可能有人会问,如果确实在MemberMap中使用WithMany()而不是WithMany(r=>r.Members)呢?
此时修改方式如下:
注释或删除Role实体代码中的Members属性
public partial class Role { public int Id { get; set; } public string Name { get; set; } //public virtual IList<Member> Members { get; set; } }View Code
修改MemberMap为上面所述的:
public class MemberMap : EntityTypeConfiguration<Member> { public MemberMap() { this.ToTable("Member"); this.HasKey(m => m.Id); this.HasRequired(m => m.Role).WithMany().HasForeignKey(m => m.RoleId); } }View Code
最后重新运行程序,没有异常
